Description
12.6" x 20"

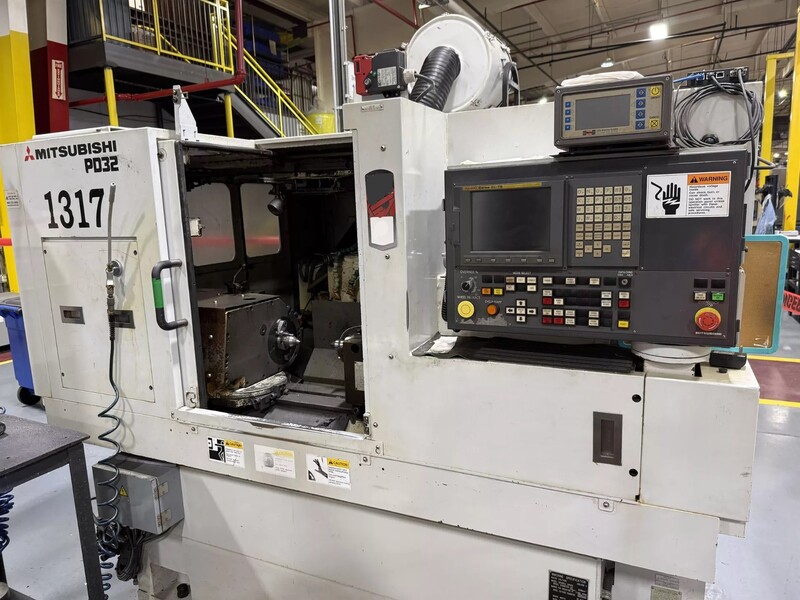

MITSUBISHI - NIDEC - YAMAZEN
"MADE IN JAPAN"
CNC ANGLE HEAD CYLINDRICAL GRINDER
FANUC 21i-TB CNC CONTROL
MODEL: PD32-B50A… S/N: GP726…
MANUFACTURED 11/2011 - INSTALLED JANUARY 2012
SPECIFICATIONS:
SWING .............................. 12.6"
MAX. CENTER DISTANCE ............... 19.7"
MAX. WORKPIECE DIAMETER ............ 11.8""
MAX. WORKLOAD ......................″30 LBS.

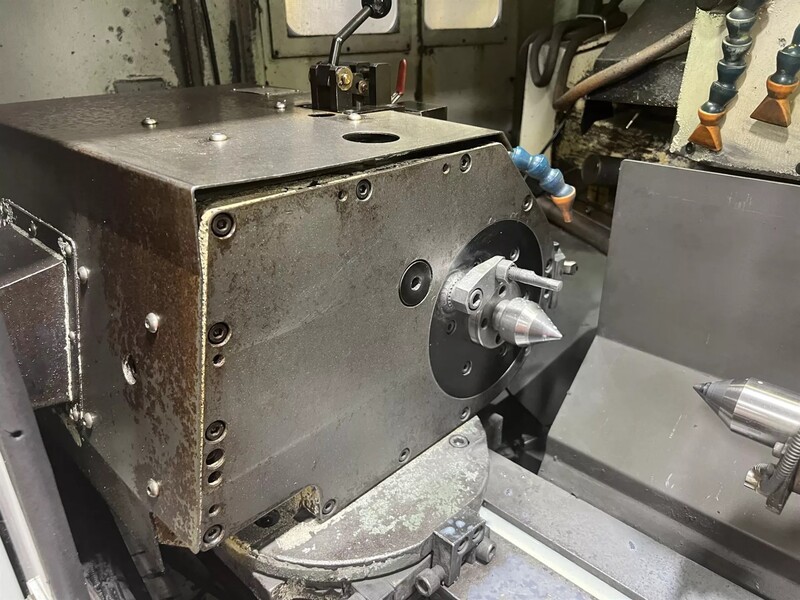

WORKHEAD CENTER TAPER .............. #4 MT

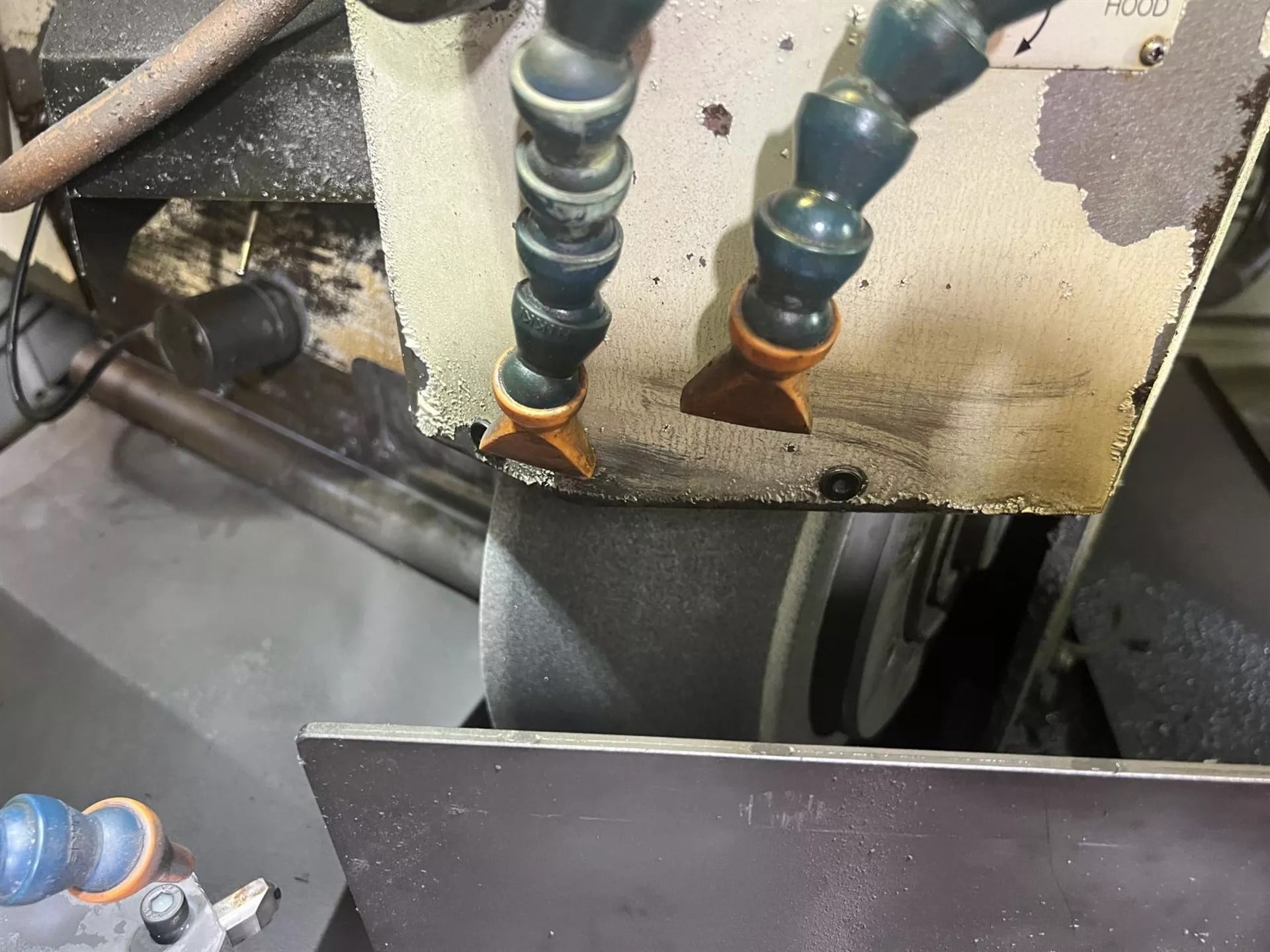

WHEEL SIZE,
DIAMETER ......................... 20" DIA.
MAX. WIDTH ....................... 4.7"
BORE ............................. 8"
MARKED FOR OPERATION AT ............ 11,800 SFPM
WHEEL DIRECTION DRIVE .............. CCW
TABLE, RAPID TRAVERSE RATE ......... 66' FPM
TABLE FEED RANGE (IPM).............. 0.00004" TO 787.4"
WHEELHEAD, RAPID TRAVERSE RATE ..... 66' FPM
WHEELHEAD FEED RANGE (IPM) ......... 0.00004" TO 787.4"
COMMAND UNIT ....................... 0.000004"
WORKHEAD SPINDLE SPEEDS ............ 10 TO 500 RPM
WORKHEAD SPINDLE TAPER ............. #4 MT
TAILSTOCK STROKE ................... 5.9"
TAILSTOCK SPINDLE TAPER ............ #5 MT
WHEEL HEAD MOTOR ................... 15 H.P.
DIMENSIONS (APPROX.)................ 124"L X 106"D
APPROX. WEIGHT ..................... 15,400 LBS.
EQUIPPED WITH:

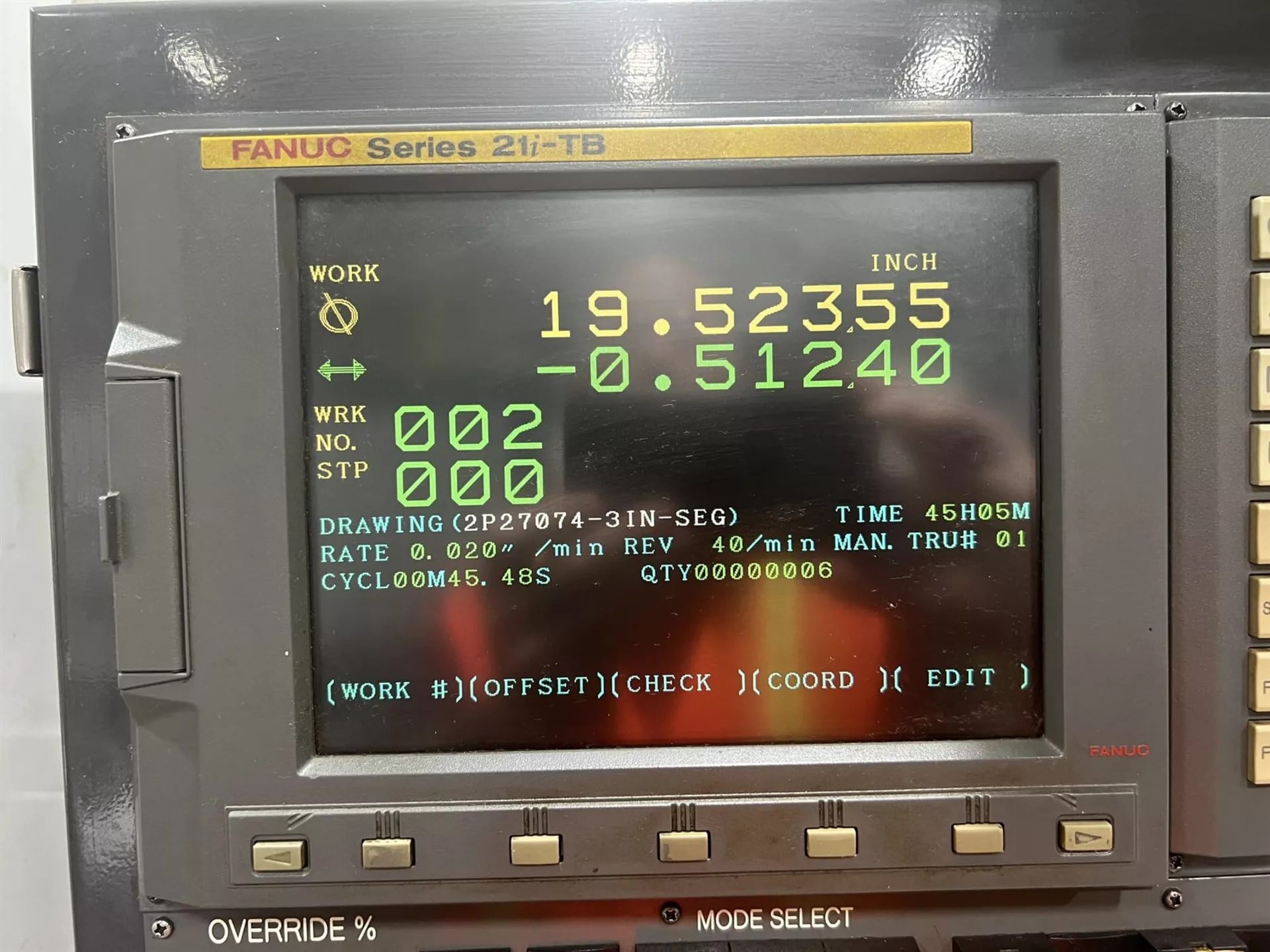

FANUC 21i-TB CNC CONTROL, WITH MITSUBISHI
CONVERSATIONAL SOFTWARE. It can run
alongside traditional G-code, allowing
users to toggle between or combine
conversational and conventional methods.
TABLE IS STATIONARY.… WHEELHEAD MOVES IN… OUT,
AND SIDE TO SIDE, FOR TRAVELS
LATERAL LOCATOR

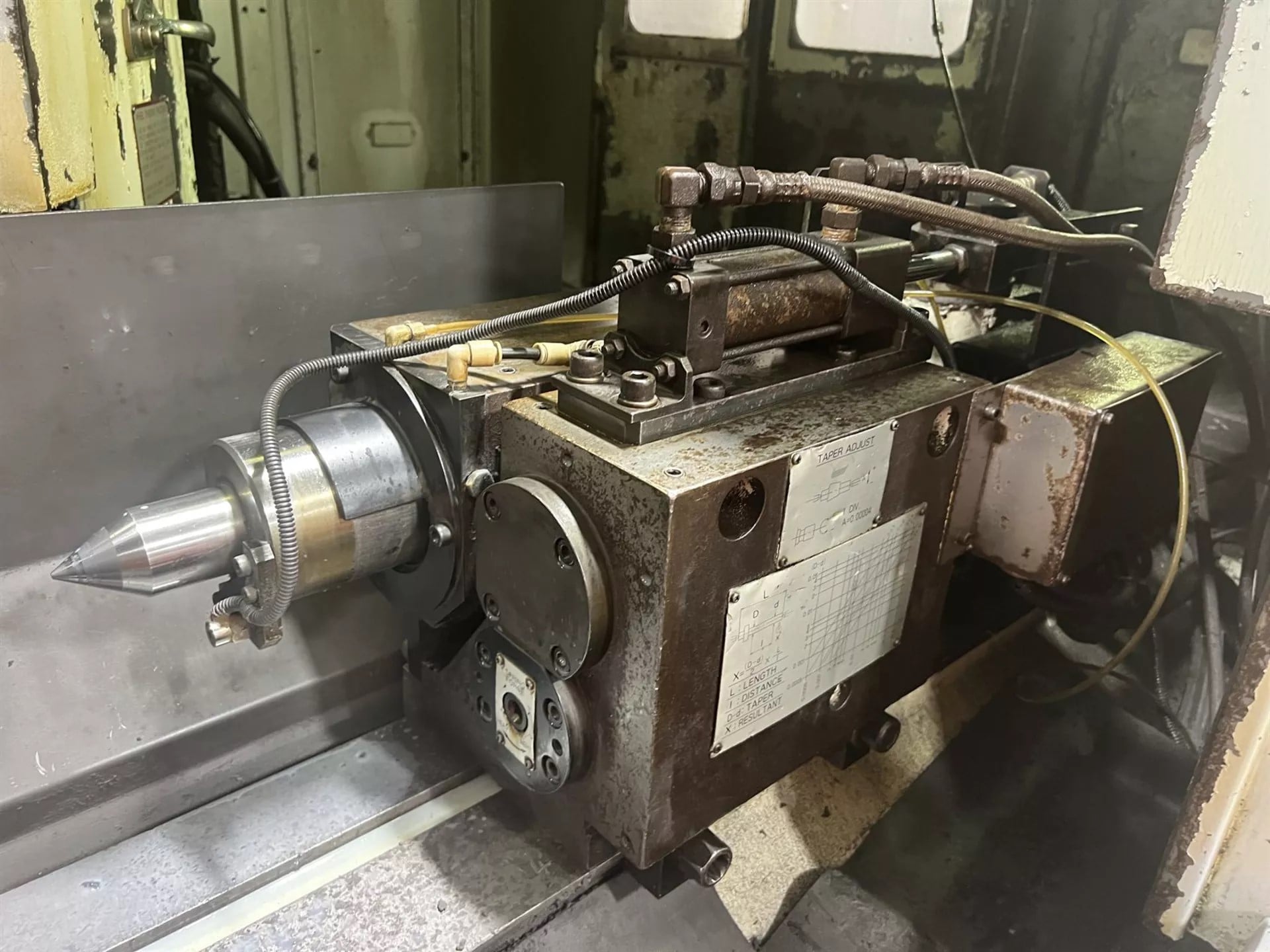

HYDRAULIC TAILSTOCK

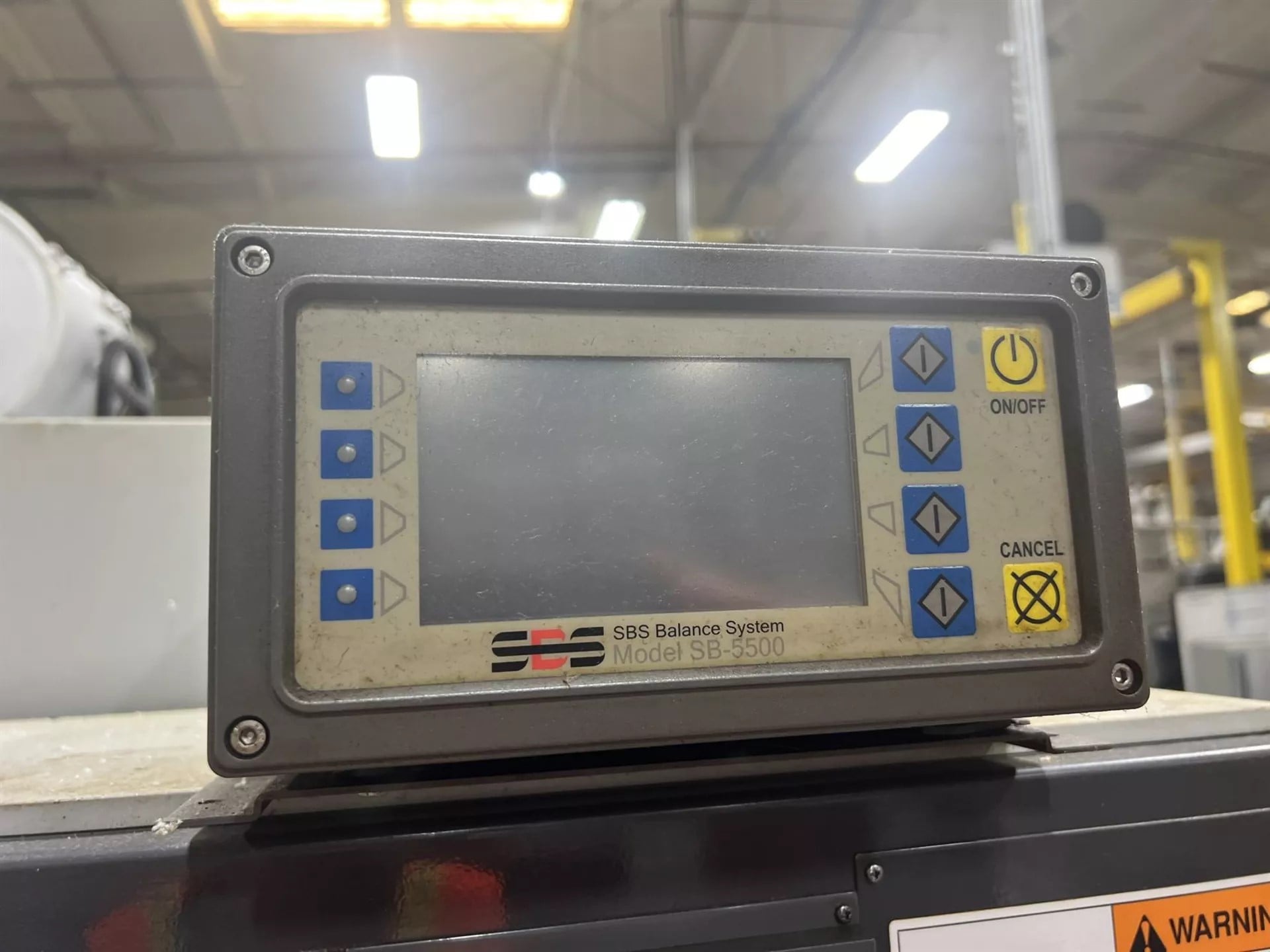

"SBS" MODEL…"SB-5500" AUTO WHEEL BALANCE SYSTEM
COOLANT SYSTEM WITH MAGNETIC SEPARATOR
MIST COLLECTOR
MACHINE IS WIRED FOR″/60/220 VOLTS
LINK TO VIDEO: https://youtu.be/Jjjp366Id5U?si=4wnQE1scN_BBQfGq
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
** EXCELLENT CONDITION… APPEARANCE - WOW!… **
LINK TO YAMAZEN MACHINE TOOLS, FOR OUR NIDEC PD32-B50A
CNC ANGLE HEAD CYLINDRICAL GRINDER:
https://www.yamazen.com/machine-tools/brands/nidec/cnc-cylindrical-grinder/p-series
The Nidec P-Series CNC Cylindrical
Grinder is a top-tier CNC machine
designed for high-precision
cylindrical grinding. Ideal for
CNC machining tasks on shafts,
axles, and spindles, this…
cylindrical grinding machine
delivers exceptional surface
finishes and tight tolerances.
Perfect for industries like autos,
aerospace, and tooling, the Nidec
CNC machine offers versatile
grinding patterns and user-friendly
operation.
Maximize productivity with this
advanced CNC machining center for
superior cylindrical shaping.
Even Novice Operators Can Easily Program and Operate
- Optimized conditions are automatically set with the
- same degree of expertise as experienced operator.
- Adaptation control is utilized for the automatic
- measurement device, realizing automatic setups
- for speed switching points between the rough
- and the fine grindings even for the first workpiece
- model that has been time-consuming
- in conventional machines.
- With conversational graphical programming
- software, data can be edited easily with
- minimum key commands.
High-Accuracy Grinding and Stable Quality
- The advanced fluid technology, which has been
- developed over time in our Aircraft Division,
- is applied to the bearings of machining tool.
- This enables highly-rigid rotation to the order
- of a submicron and results in high-accuracy
- machining.
High Productivity
- Wheel peripheral velocity of 60 m/s
- (or 80m/s, optional) realized
- high-speed heavy-duty grinding. The grinding
- wheel of 4.7"… width enables heavy-duty
- plunge grinding in a single stroke.
- The high-speed locater has shortened
- the measurement time.
- Measurement by longitudinal locator takes
- only 4 seconds.
Easy Automation and Incorporation Into Production Line
- Adoption of fixed-table design enabled
- narrow-width machine
- structure, facilitating automation and
- incorporation into production line.
- Various autoloaders and robots are optionally
- available to meet your specific needs.
Excellent Performance and Solid Safety
- Color LCD display is equipped as standard
- for enhanced visibility
- Graphical displays of path check, machining
- area indications and so on ensures steady operations.
- Safety is ensured by the triple checking functions
- (machining program, grinding path, and
- wheel motor overload detection).
