12.5" KMT #C-320-SA, Semi-Automatic Column Style Cold Saw, 7.25" Vise Opening, 17/33 RPM, 2.5 HP, 220/460 V, new

Description

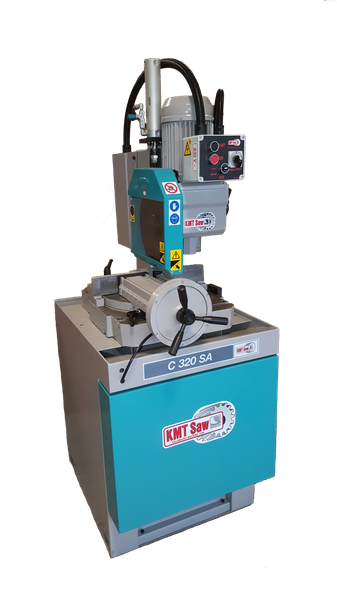

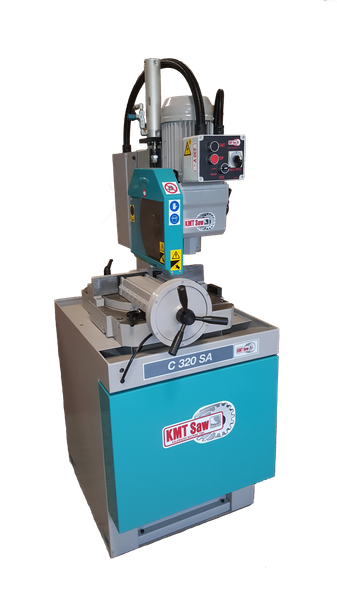

Kalamazoo Machine Tool 12 1/2″ Semi-Automatic Column Style Cold Saw, C 320 SA

Inventory # 7849

Model: C 320 SA

Made in Italy

Description:

Vertical column machines provide the construction that is most stable of all cold saws. This means superior saw frame guidance and vibration-free sawing, and greater accuracy throughout the entire life of the machine. The saw frame is quickly and accurately swiveled to any angle up to 45° left or 60° right, with a highly visible scale for optimum accurately returning to zero

Specifications:

Max. Blade Size: 12 1/2″

Capacity:

@ 0°:

Round: 4″

Square: 3 1/2″

Rectangle: 3 1/2″ x 5 3/4″

@ 45° Right:

Round: 4″

Square: 3 1/2″

Rectangle: 3″ x 4″

@ 60° Right:

Round: 3 1/2″

Square: 3″

Rectangle: 2 3/4″ x 3 1/2″

@ 45° Left:

Round: 4″

Square: 3 1/2″

Rectangle: 3″ x 4″

Vise Opening: 7 1/4″

Blade Speed: 17 / 33 RPM

Motor: 2.5 HP / 220v, 460v / 3ph

Standard Equipment:

One HSS Blade

Low Voltage Control

Totally Enclosed Worm Gear Transmission

Full Coolant System

Full Blade Guarding

Operators Manual Parts List/Schematics

Pull Out Chip Tray

Mechanical Specifications:

Dimensions: 31″ x 25″ x 36 1/4″ H (Workheight)

Weight: approx. 800 lbs.

Contact us for special pricing and availability

FOB Factory
