Ton: 113.0
Stroke: 18.0
Stock # 2322
Click to zoom in
For Sale by Icon Industries, Inc
Surplus Record Dealer Since 1990
Location: Grand Rapids, MI
Contact Tom,Pete,Bob
Phone Number: 616...> Show Phone Number 616-229-2957
Let the seller know you found their listing on Surplus Record!
Description

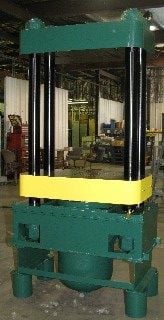

7" F TO B BETWEEN THE POSTS; 41.5" L TO R OVERALL. 29" X 23" NOMINAL BED SIZE. 12" BORE SINGLE-ACTING RAM WITH APPROX 18" MAX STROKE. PORT IS APPROX 1.25" WITH A FOUR-BOLT FLANGE. FULLY GUIDED WITH 7" BUSHINGS ON 4" DIAMETER POSTS (3.75" DIA THREADED AREA). PRESS WAS ORIGINALLY SET UP WITH CYLINDER IN A SHALLOW PIT. CYLINDER EXTENDS APPROX 19" BELOW THE BASE OF THE PRESS. WORK HEIGHT IS APPROX 24" IF CYLINDER IS IN PIT. A BASE COULD BE FABRICATED TO MAKE IT FLOOR-STANDING. OVERALL HEIGHT IS APPROX 94" INCLUDING THE 19" CYLINDER EXTENSION. APPROX 5,000 POUNDS. ITEM #2322.
Get Your Price from Icon Industries, Inc!
