11250 lbf United #STM-50KN-E (extra Tall)

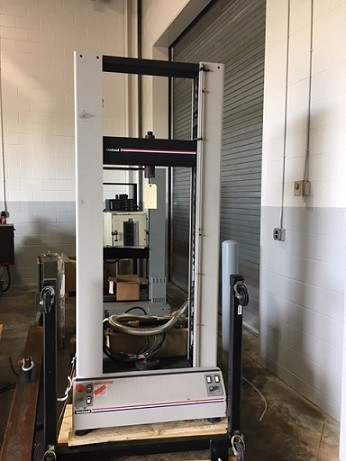

(1) USED 11,250 lbf (50 kN) United Model STM-50KN Electro-Mechanical Tension and Compression Testing Machine. S/N 0807556

United Model STM-50kN

SPECIFICATIONS:

Tension Testing Opening (Less Tooling): 72"

Compression Testing Opening (Less Tooling): 72"

Distance Between Columns/Screws: 22"

Testing Stroke: 42"

Table Size (W x D): 22" x 7"

Testing Speed (IPM): .002 - 20

Crosshead Adjusting Speed (IPM): 20

Approximate Overall Dimensions:

Load Frame (W x D x H): 30" x 35" x 84"

Weight (lbs.): 800

Electrical Requirements (V,Hz,Ph): 120, 60, 1

EQUIPPED WITH:

• Dell, OpiPlex 3050 Intel i5-7500 CPU 3.41GHz Computer (500 GB H.D., 4.0 GB Ram), 16X DVD+/-RW SATA Drive, Dell Wireless Key Keyboard & Mouse
• Dell, 24" LED-backlit LCD Color Monitor or Better & Manual
• Microsoft Windows 10 Professional, Workstation.
• MTESTQuattro, Material Testing Software for Data Acquisition (load, position & 2 strain), Analysis and Computer Controlled Testing with Manual.
• MTESTQuattro, Micro Console for Sensor Excitation and Analog/Digital Signal Processing with USB cable.
• Electronic Material Testing Control System in Custom Cabinet with PC Controls.

FOB Warren, MI

Reconditioned/Retrofitted and Certified

1 Year Parts and Labor Warranty
