Manufacturer: Instron
Model: 2404
Year: 2009
lb.: 11250
Stock # 29405
Price: $12,500 USD - Finance for as low as $253/mth
For Sale by Mohawk Machinery Inc
Surplus Record Dealer Since 1956
Mr. Secord
513-77...> Show Seller's Phone Number 513-771-1952 Let the seller know you found their listing on Surplus Record!
Description

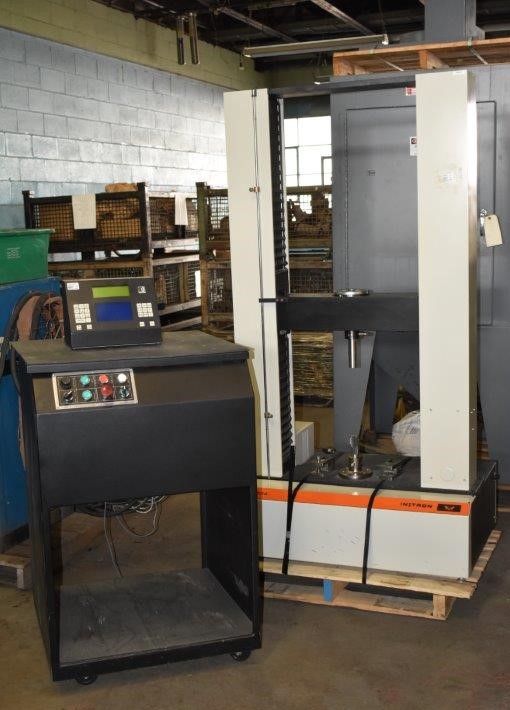

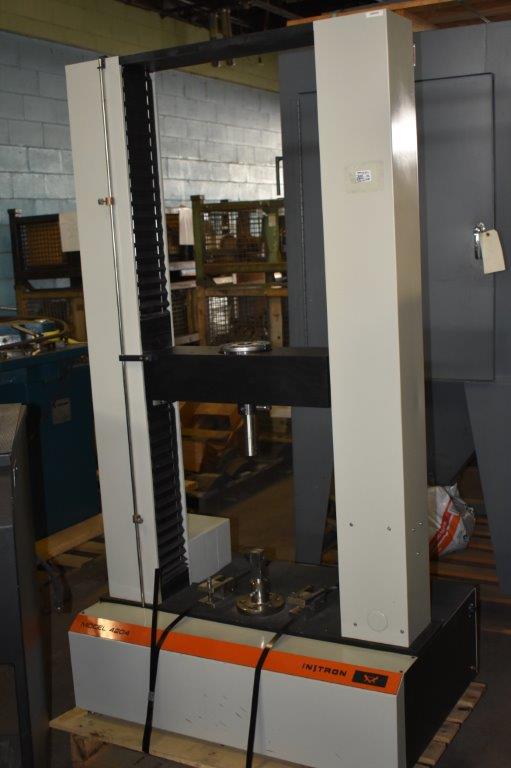

11250 LBF INSTRON "4204" BENCH TYPE UNISPACE TENSION
AND COMPRESSION TESTER
REBUILT 2009, REBUILD SERIAL NO 09-13283, MODEL 4204
11250 LBF INSTRON "4204" BENCH TYPE UNISPACE TENSION
AND COMPRESSION TESTER
REBUILT 2009, REBUILD SERIAL NO 09-13283, MODEL 4204
EQUIPPED WITH:

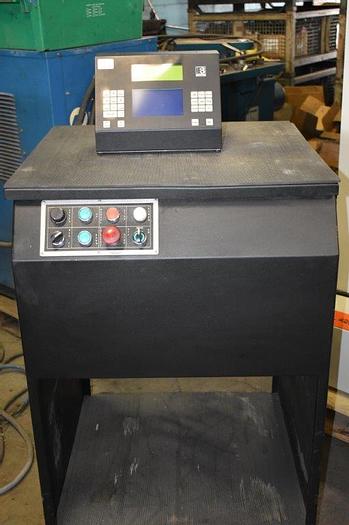

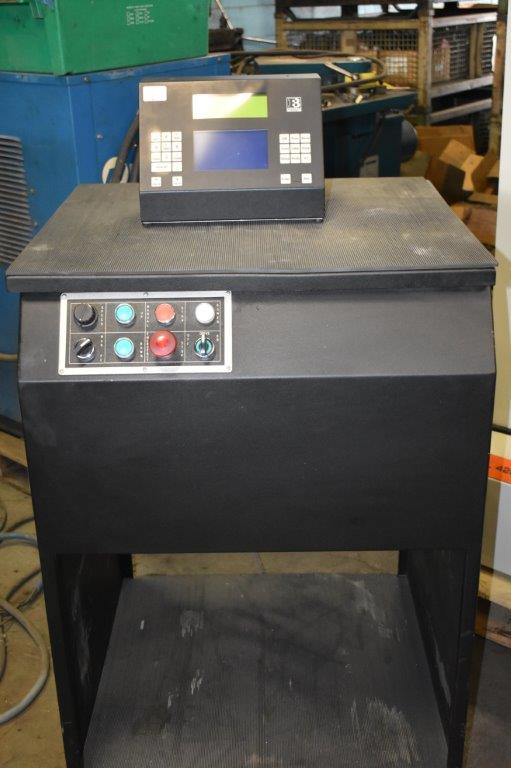

UPDATED ELECTRONIC CONSOLE WITH
ADMET CONTROLS (PPC-0903301-S)
50 KN STATIC LOAD CELL
CATALOG SPECIFICATIONS:
Testing Capacity Rating 11250 LBF 50Kn
Tension Testing Opening, (Less Tooling) 46"
Compression Testing Opening, (Less Tooling) 46"
Distance Between Columns/Screws 22"
Testing Stroke 46"
Table Size, W x D 22" x 7.75"
Testing Speed, Range .02 to 20 IPM
Crosshead Adjusting Speed 20 IPM
Overall Dimensions Console 27.5" x 27
Overall Dimensions Load Frame 39.5" x 33.5"
Load Frame Weight, Approximately 800 LBS
NOTE: THIS MACHINE WAS REBUILT BY THE FRANK BACON
MACHINERY COMPANY.
PRICE: F.O.B. OUR WAREHOUSE
Testing capacity rating: 11250 LBF 50KN
Tension testing opening, (less tooling): 46"
Compression testing opening, (less tooling): 46"
Distance between columns/screws: 22"
Testing stroke: 46"
Table size, w x d: 22" X 7.75"
Testing speed, range: .02 TO 20 IPM
Crosshead adjusting speed: 20 IPM
Overall dimensions console: 27.5" X 27
Overall dimensions load frame: 39.5" X 33.5"
Load frame weight, approximately: 800 LBS
AND COMPRESSION TESTER
REBUILT 2009, REBUILD SERIAL NO 09-13283, MODEL 4204
11250 LBF INSTRON "4204" BENCH TYPE UNISPACE TENSION
AND COMPRESSION TESTER
REBUILT 2009, REBUILD SERIAL NO 09-13283, MODEL 4204
EQUIPPED WITH:
UPDATED ELECTRONIC CONSOLE WITH
ADMET CONTROLS (PPC-0903301-S)
50 KN STATIC LOAD CELL
CATALOG SPECIFICATIONS:
Testing Capacity Rating 11250 LBF 50Kn
Tension Testing Opening, (Less Tooling) 46"
Compression Testing Opening, (Less Tooling) 46"
Distance Between Columns/Screws 22"
Testing Stroke 46"
Table Size, W x D 22" x 7.75"
Testing Speed, Range .02 to 20 IPM
Crosshead Adjusting Speed 20 IPM
Overall Dimensions Console 27.5" x 27
Overall Dimensions Load Frame 39.5" x 33.5"
Load Frame Weight, Approximately 800 LBS
NOTE: THIS MACHINE WAS REBUILT BY THE FRANK BACON
MACHINERY COMPANY.
PRICE: F.O.B. OUR WAREHOUSE
Testing capacity rating: 11250 LBF 50KN
Tension testing opening, (less tooling): 46"
Compression testing opening, (less tooling): 46"
Distance between columns/screws: 22"
Testing stroke: 46"
Table size, w x d: 22" X 7.75"
Testing speed, range: .02 TO 20 IPM
Crosshead adjusting speed: 20 IPM
Overall dimensions console: 27.5" X 27
Overall dimensions load frame: 39.5" X 33.5"
Load frame weight, approximately: 800 LBS
Inquire Further with Mohawk Machinery Inc!
Buyers Who Viewed This Listing Also Viewed …

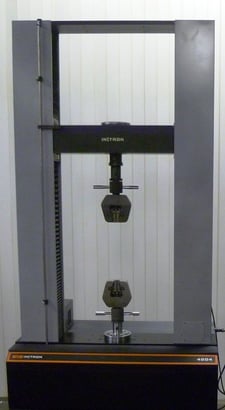

11250 lbf. (50kN) Instron #4204, compression tester, 22" W x 7.75" D table, 46" testing stroke
