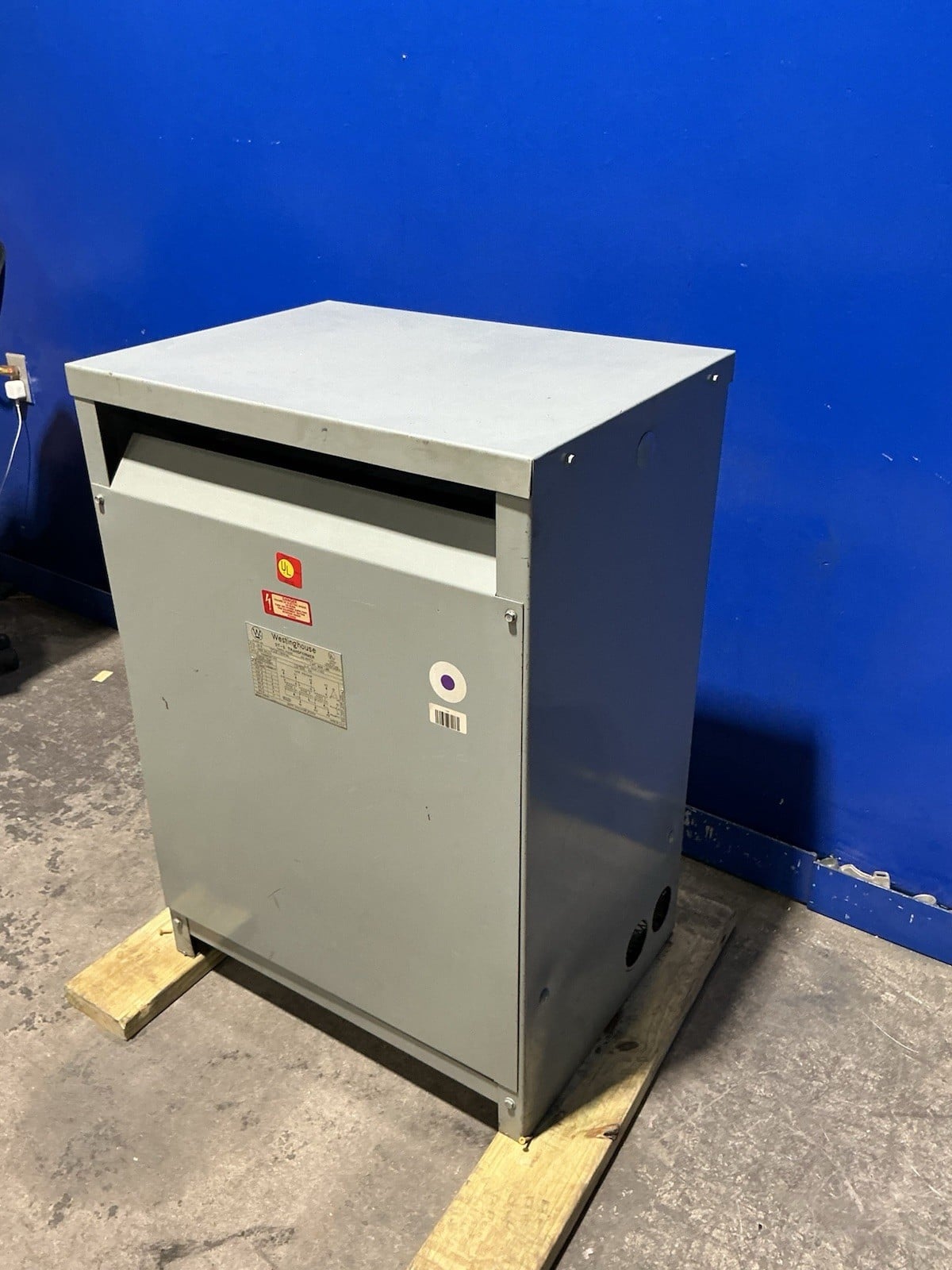

112.5 KVA 480 Delta Primary, 208Y/120 Secondary, Westinghouse 49M28T12G, Transformer, 3PH, 60 Hz

$2,217 USD

Request Formal Quote

Westinghouse 112.5kVA 480 Delta Dry Type Transformer 208Y/120V 3PH 60Hz 49M28T12G
112.5kVA 480V Delta Primary 208Y/120V Secondary 3 Phase 60Hz Dry Type
ITEM DETAILS
Manufacturer: Westinghouse
Model / Style Number: 49M28T12G
Equipment Type: DT-3 Dry Type Transformer
Power Rating: 112.5 kVA
Primary Voltage: 480V
Primary Winding: Delta
Secondary Voltage: 208Y/120V
Secondary Winding: Wye
Phase: 3 Phase
Frequency: 60Hz
Cooling Class: Class AA
Temperature Rise: 150C
Insulation System: 220C
Impedance: 5.6% @ 170C
Primary Tap Positions: 7 Positions
Primary Tap Percentages: 105% / 102.5% / 100% / 97.5% / 95% / 92.5% / 90%
Nameplate Weight: 600 lb
Certification: UL Listed Insulating Transformer
Country of Manufacture: Made in U.S.A.
Condition: Used
Travel Safe Inventory ID: TSW#19097
TRANSFORMER CONFIGURATION

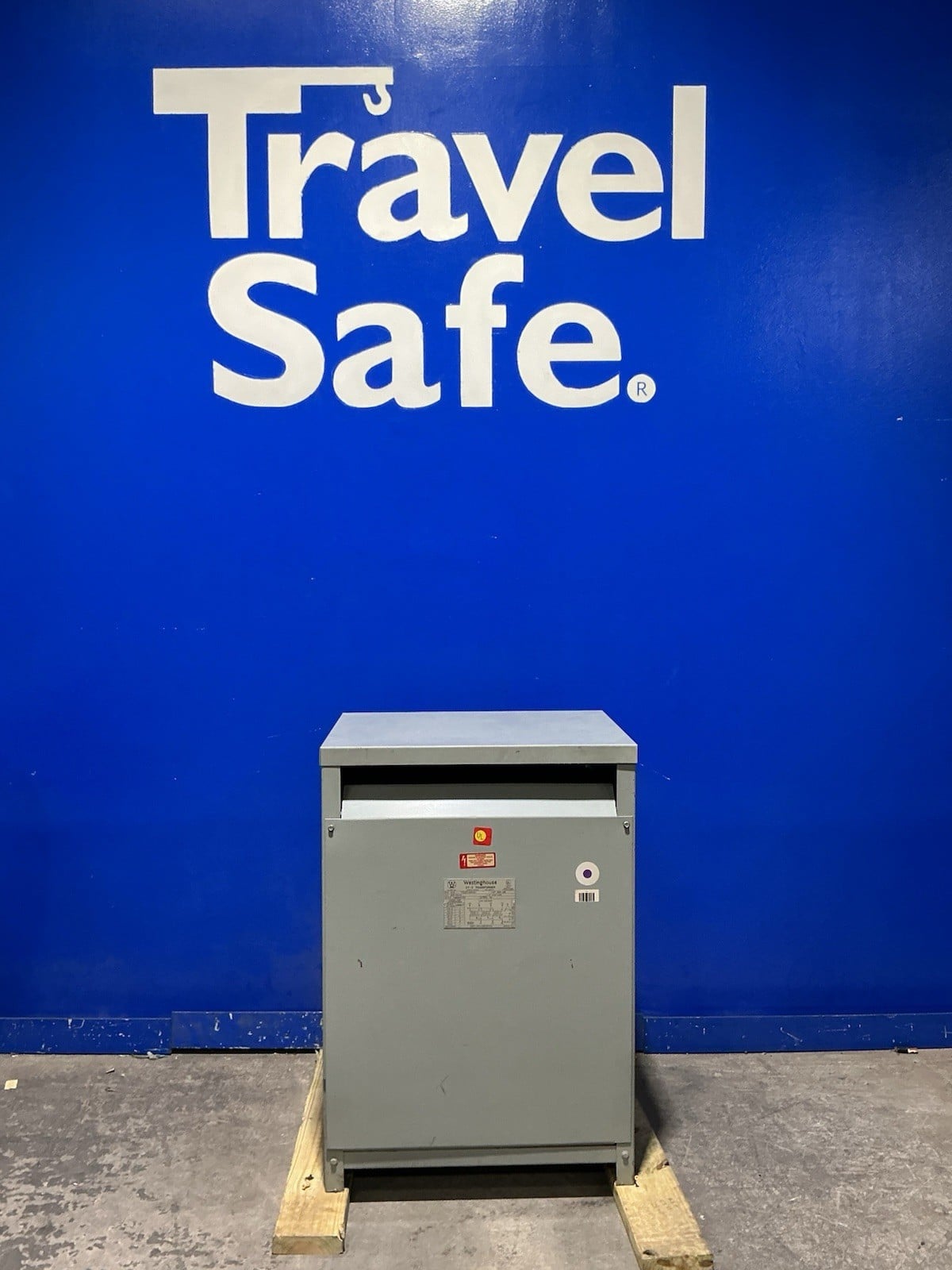

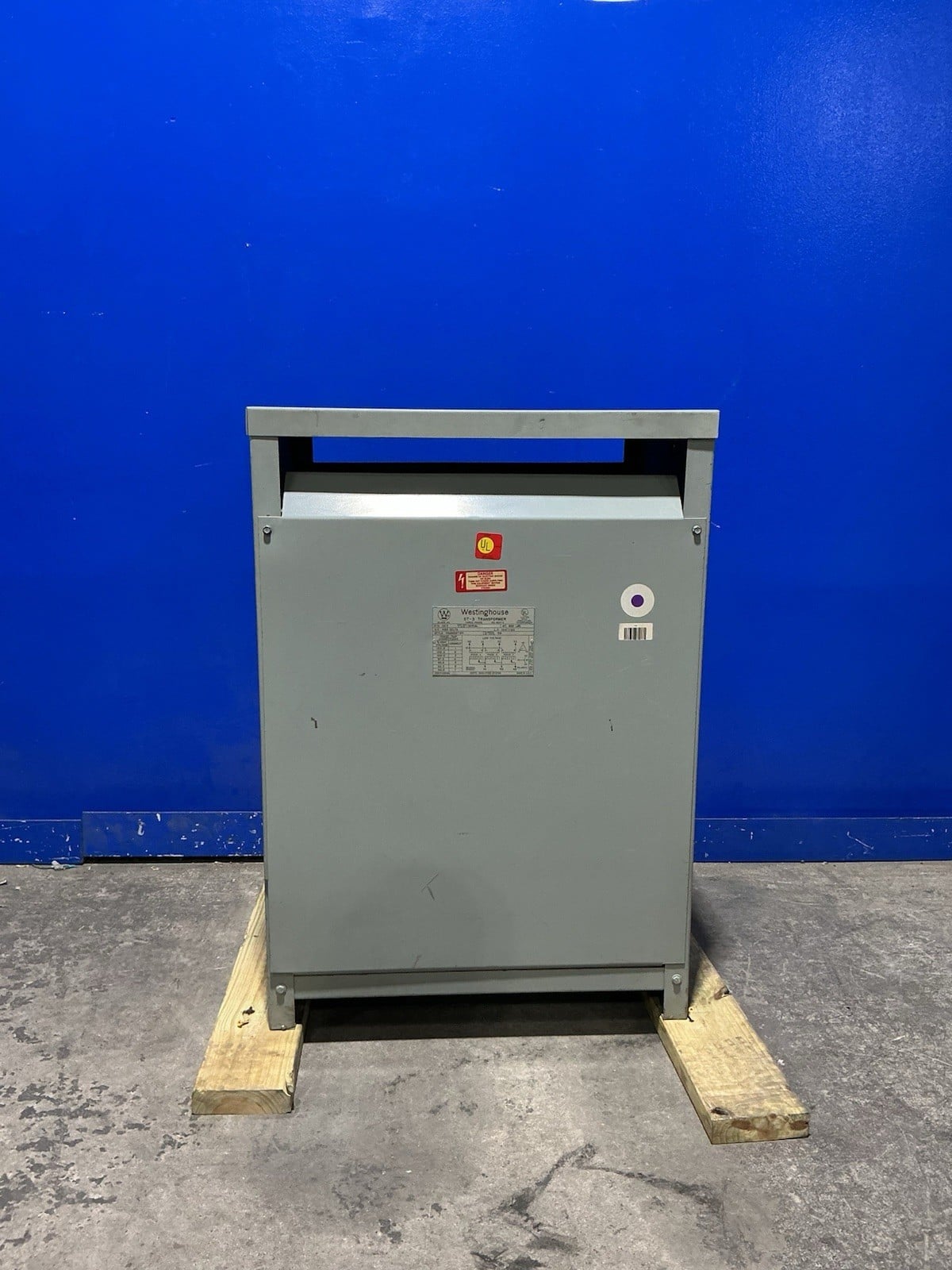

This listing is for a Westinghouse 49M28T12G DT-3 dry type transformer rated at 112.5 kVA with a 480V Delta primary and 208Y/120V Wye secondary. The transformer is configured for 3-phase, 60Hz operation.

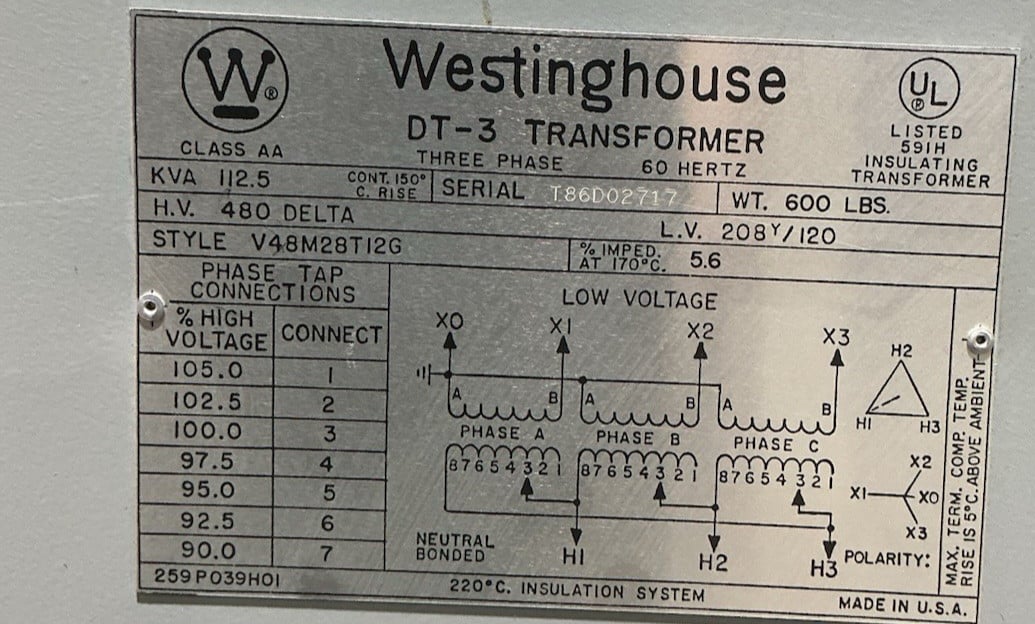

The nameplate identifies a 150C continuous temperature rise, 220C insulation system, Class AA cooling classification, and 5.6% impedance at 170C. Nameplate weight is approximately 600 lb.
The transformer provides 7 primary tap positions identified as 105%, 102.5%, 100%, 97.5%, 95%, 92.5%, and 90% of the high-voltage rating. Verify the required tap position and system voltage before installation or energization.
CONDITION
Travel Safe decommissions transformers and electrical distribution equipment from data centers, commercial facilities, industrial sites, and mission-critical electrical environments throughout the United States.

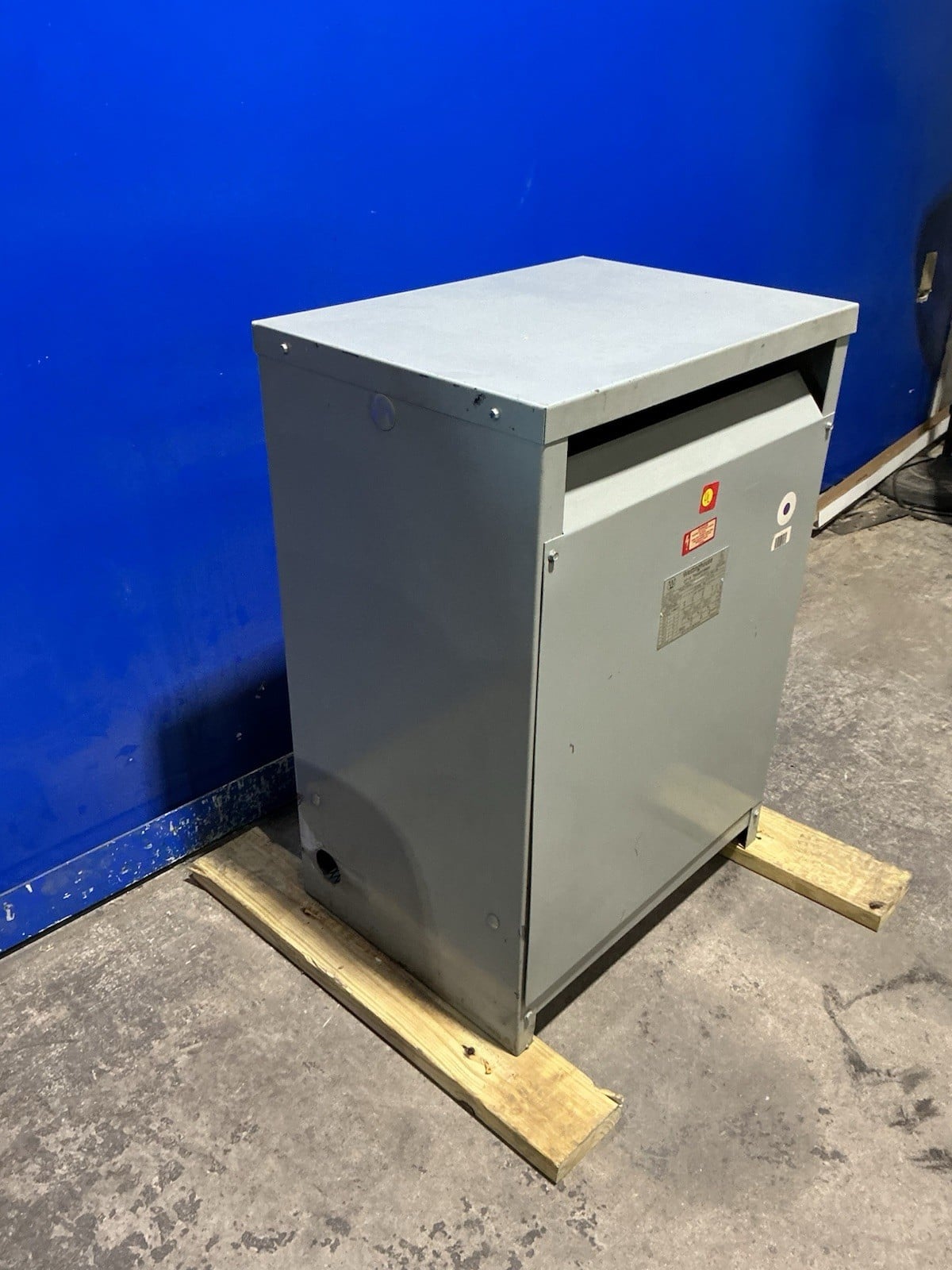

This transformer is used and may show normal signs of previous installation and service including scratches, scuffs, discoloration, labels, mounting marks, surface wear, or other cosmetic imperfections.

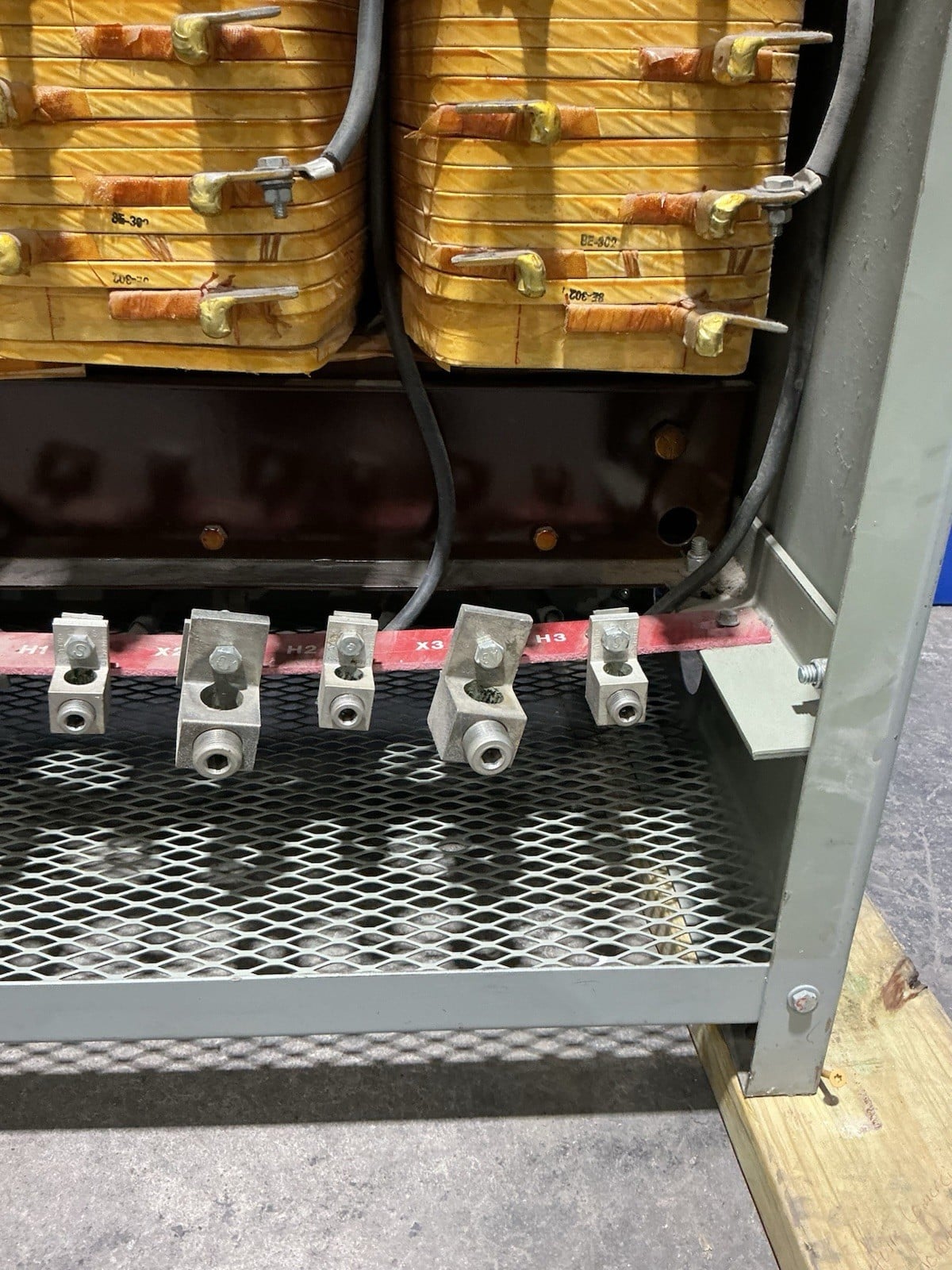

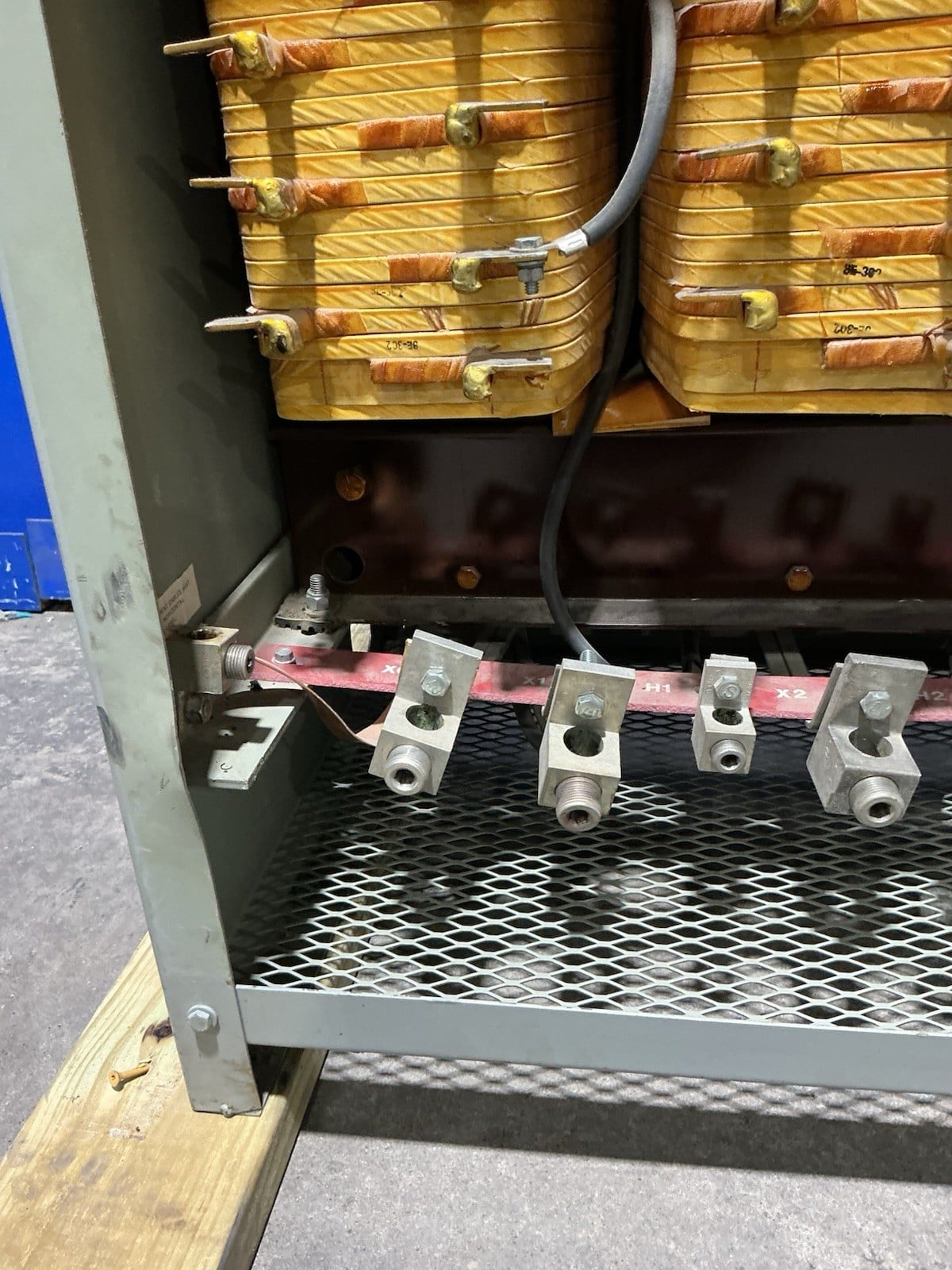

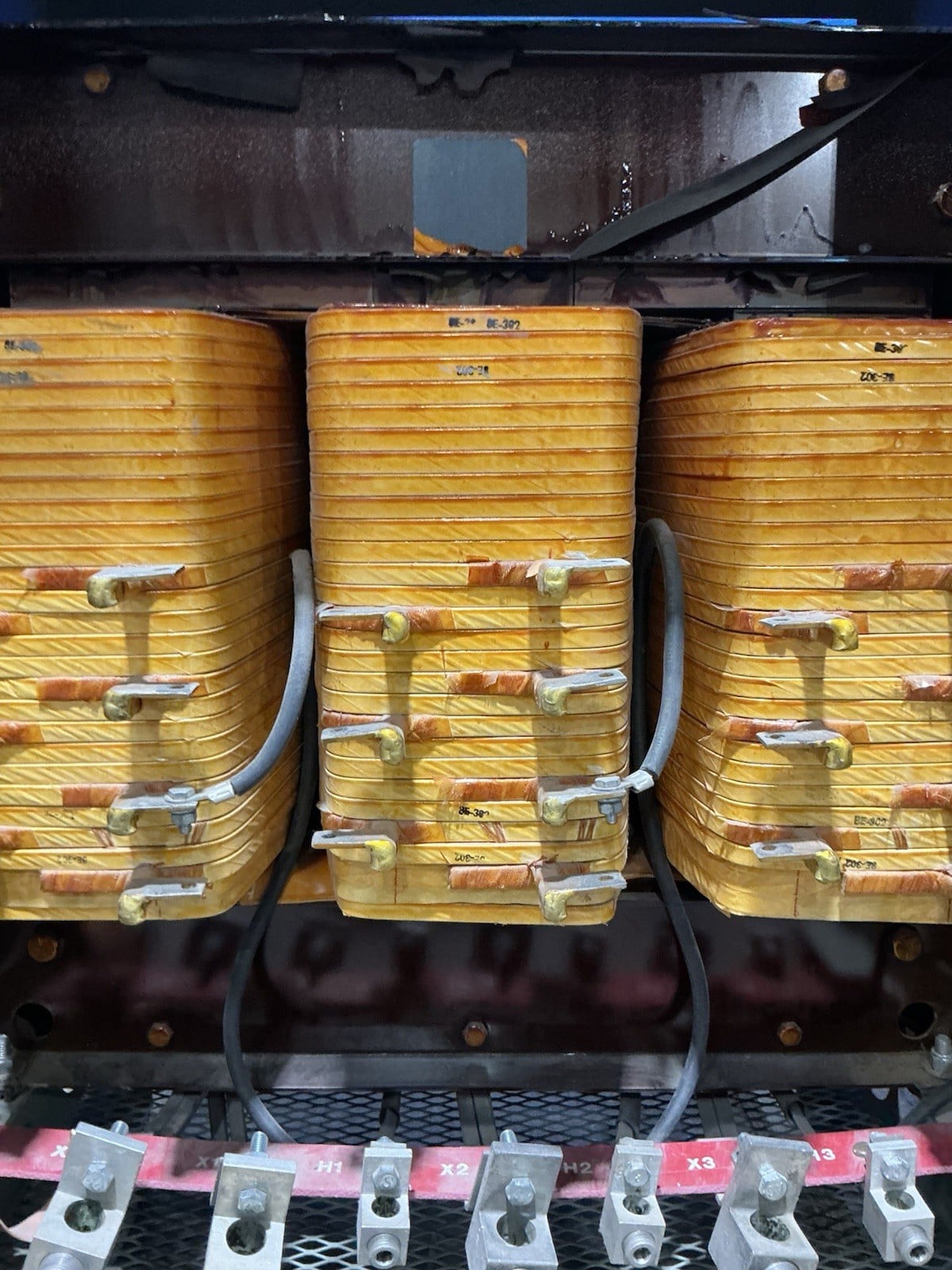

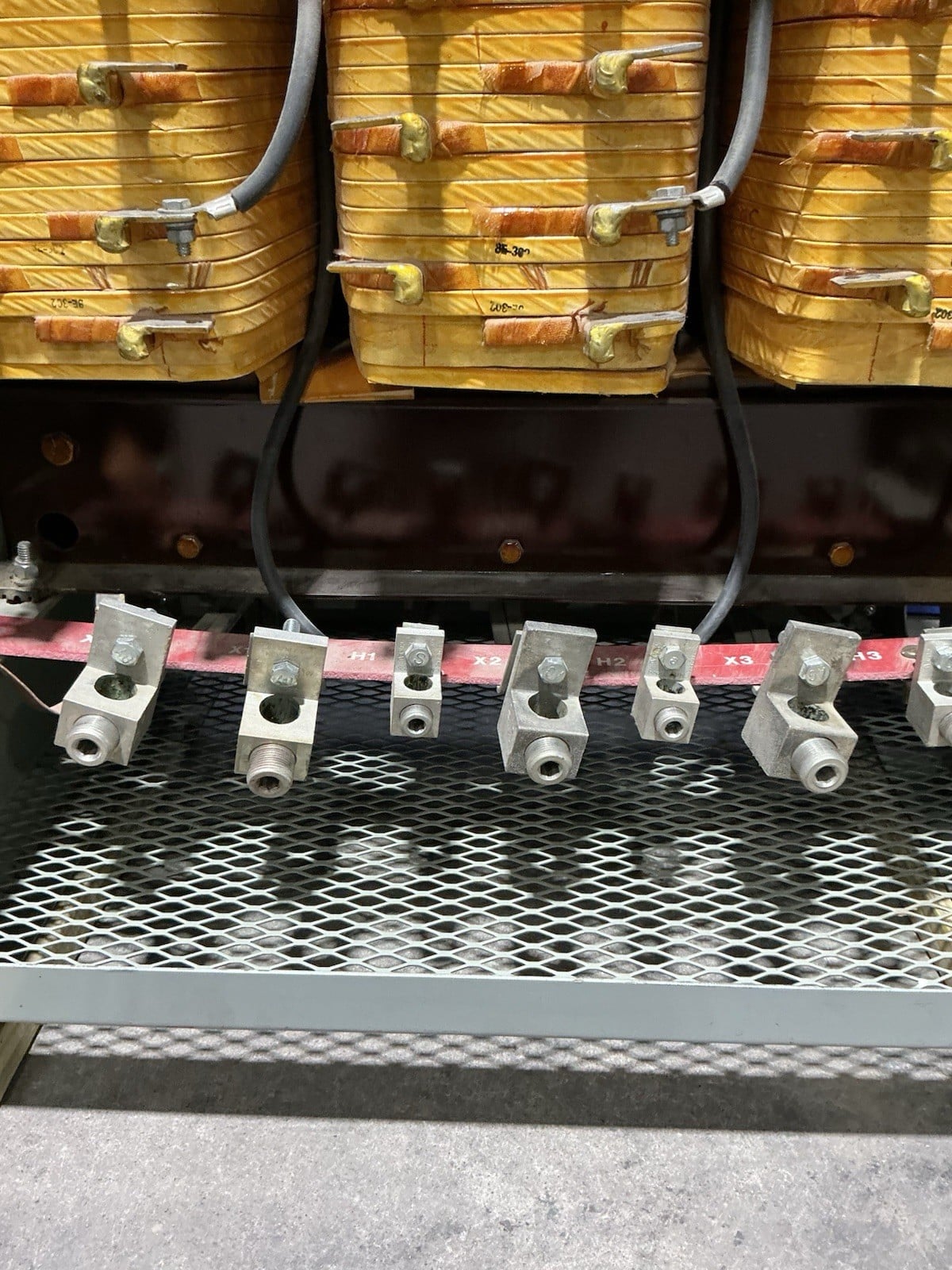

Please review all listing photographs carefully for the actual condition of the transformer enclosure, nameplate, terminals, windings, insulation, connection points, and included components.
VERIFY EQUIPMENT CONFIGURATION
Transformer configurations can vary significantly. Please verify the 49M28T12G style number, 112.5kVA rating, 480V Delta primary, 208Y/120V Wye secondary, 3-phase configuration, 60Hz frequency, impedance, primary tap arrangement, temperature rise, insulation system, dimensions, mounting requirements, electrical connections, and compatibility with your application before purchasing.
1-YEAR TRAVEL SAFE EQUIPMENT WARRANTY
This equipment includes Travel Safe's standard 1-year equipment warranty.
Warranty coverage is subject to Travel Safe's applicable terms and conditions.
5-YEAR & 10-YEAR EXTENDED PROTECTION
Looking for longer-term protection? Qualifying Travel Safe equipment may be eligible for optional 5-year or 10-year Extended Equipment Protection.
For an approved covered equipment failure during the protection period, Travel Safe provides comparable replacement equipment subject to the applicable protection terms.
Interested in extended protection?
Message Travel Safe through eBay for eligibility and pricing on this equipment.
ELECTRICAL INSTALLATION AVAILABLE
Travel Safe provides professional electrical installation services for qualifying transformers and electrical equipment. Installation is quoted separately based on transformer requirements, project scope, electrical connections, equipment location, rigging requirements, and job site conditions.
NATIONWIDE SHIPPING & FREIGHT
Travel Safe ships transformers and electrical equipment nationwide. Due to the size and weight of this transformer, commercial freight may be required. Freight requirements can vary based on destination, delivery access, unloading capabilities, liftgate requirements, and other delivery conditions.
