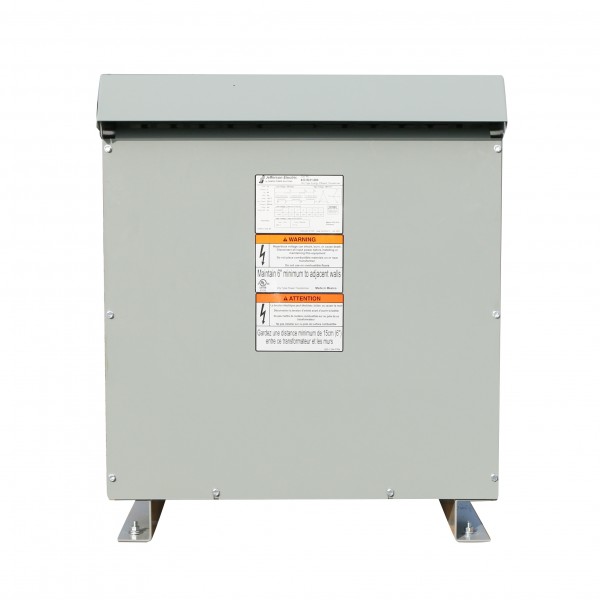

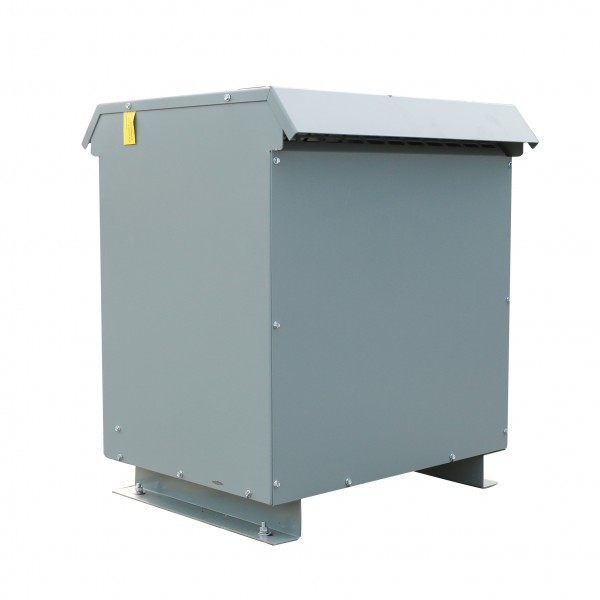

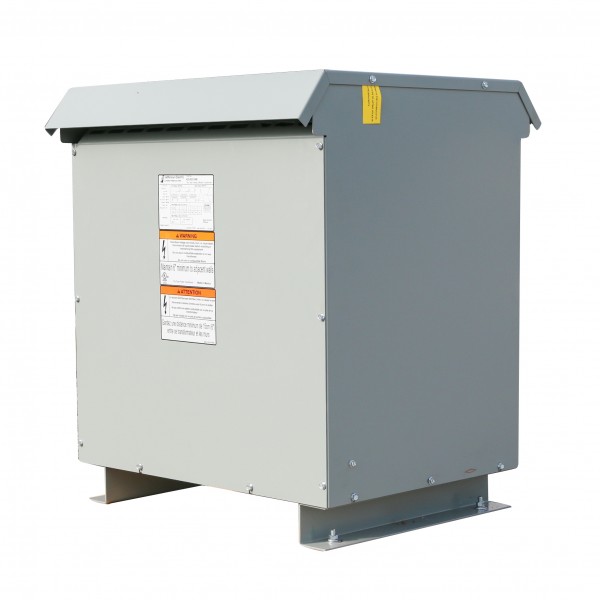

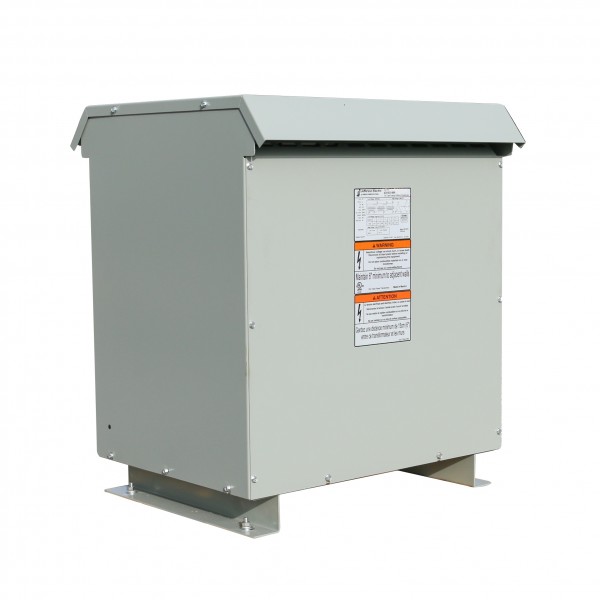

112.5 KVA 240 Delta Primary, 480Y/277 Secondary, Jefferson Electric, step up, factory new, Nema 3R, in stock

$7,695 USD

Request Formal Quote

This is a FACTORY NEW Jefferson Electric dry type STEP UP transformer for sale. We are a Wisconsin based authorized Jefferson dealer with many transformers IN STOCK and ready to ship! We can also custom order any voltage in nearly any size, just ask! We are here to help! Many of our Jefferson transformers come standard with a NEMA 3R, Rainproof outdoor enclosure allowing them to be installed both outdoors or indoors! Most units come with lugs and a 10 year limited factory warranty!

Save thousands and buy NEW from Green Industrial today!



Factory New Dry Type Energy Efficient Transformer

10 YEAR LIMITED WARRANTY

FREE SHIPPING / "Only available for standard loading dock address' that do not trigger extra lift gate fees." No exceptions to this rule apply. If UPS Freight's software for example says the address needs a lift-gate, that fee will be added to the sale price. The item can't ship until that additional is added. These units will ship directly to you from the factory upon full payment. Offer only good for Continental USA. Ask for shipping quote outside of these parameters.

THIS IS A STEP UP TRANSFORMER / SPECIALLY MADE TO TAKE A LOWER 240 VOLTAGE, 3 Phase-3 Wire & STEP UP TO 480Y/277 Volts, 3 Phase-4 Wire

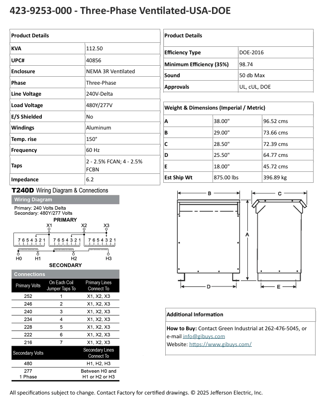

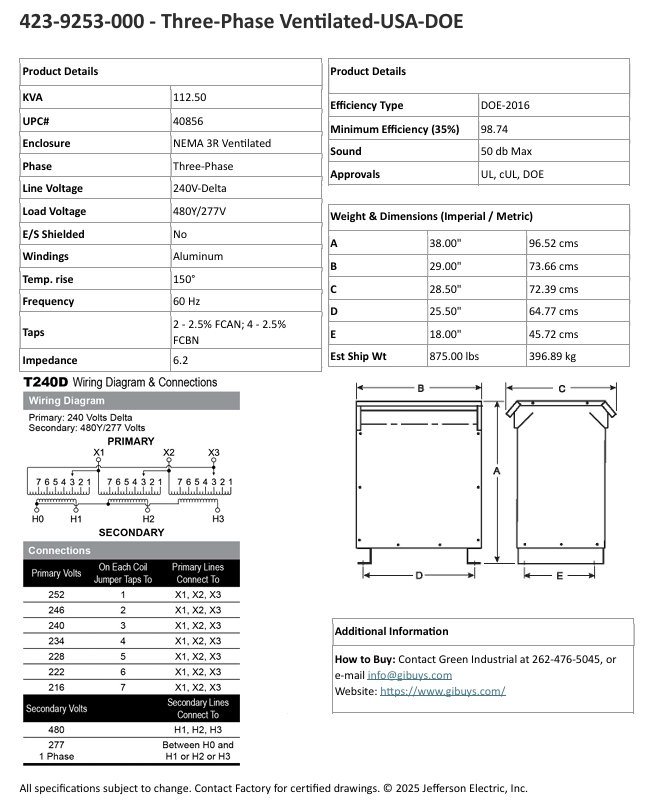

Manufacturer : Jefferson Electric

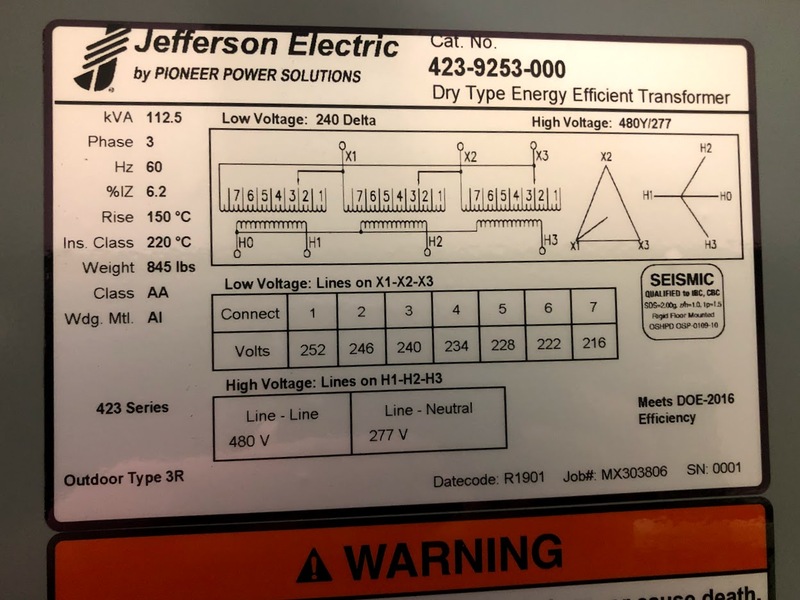

Catalog Number : 423-9253-000

KVA : 112.5

Phase : 3

Primary Voltage / High Side : 240 Delta, 3 Wire

Secondary Voltage / Low Side : 480Y/277, 4 Wire

Max Temp Rise : 150 Deg C

Lugs Included : No, Lug Kits are an additional $66.83, Lug Kit (4PT-2005-LUG)

Efficiency : Meets DOE-2016 Efficiency Standards

Enclosure Type : NEMA 3R (Indoor AND Outdoor Rated)

Winding Material : AL / AL

Condition : Factory New

Warranty : 10 Year Limited Warranty



Gibuys Item Number : JH-423-9251-000
