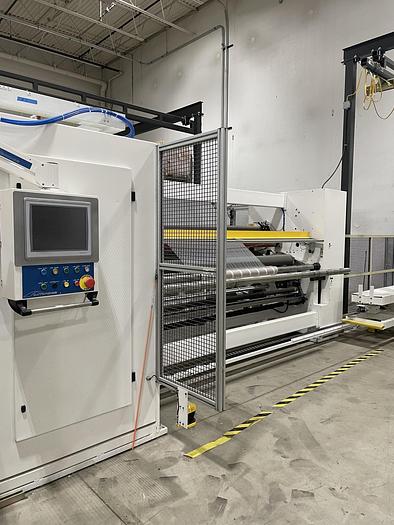

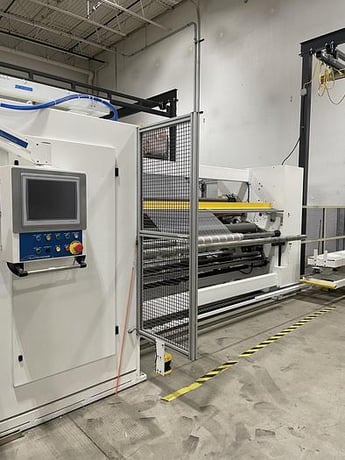

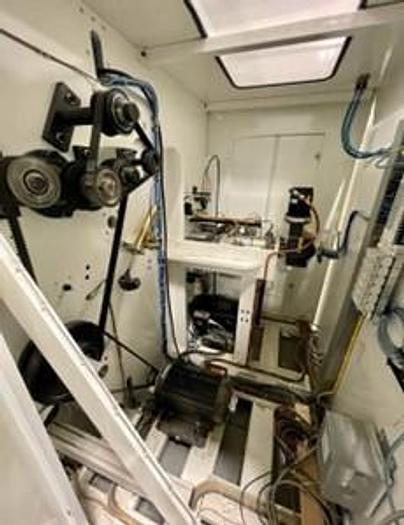

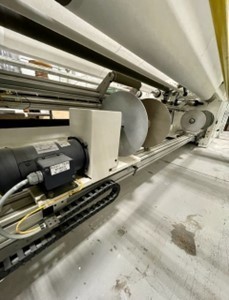

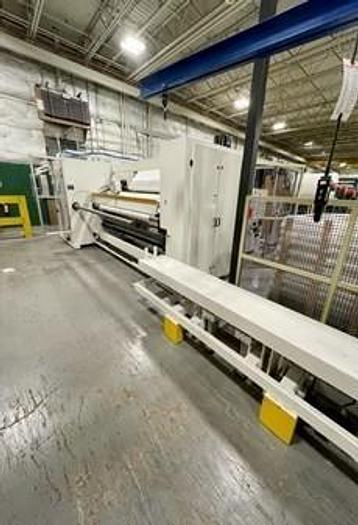

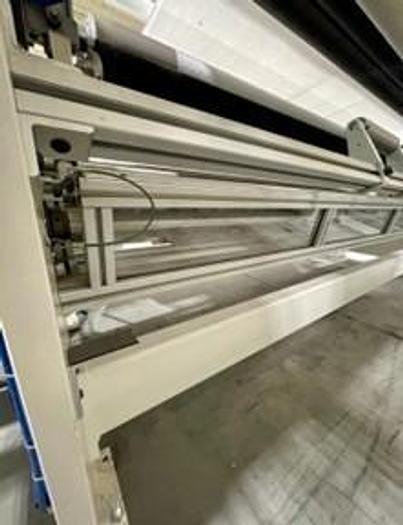

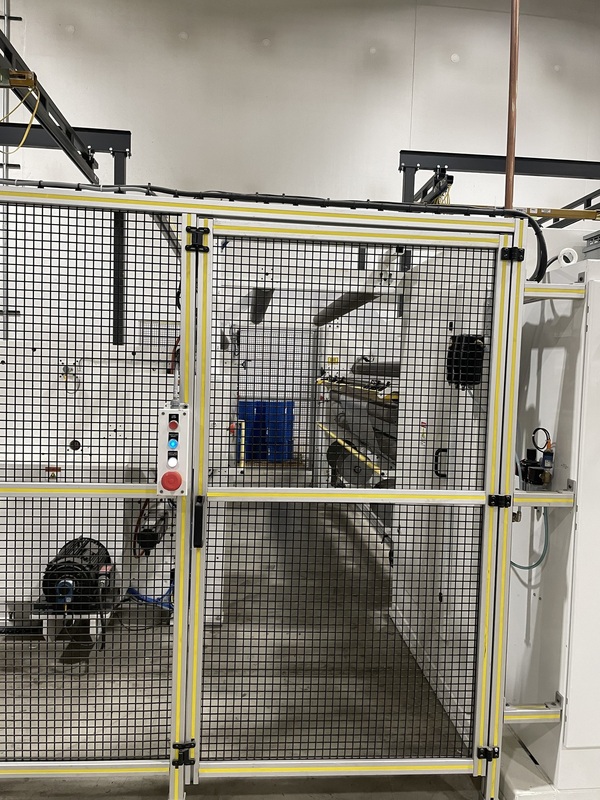

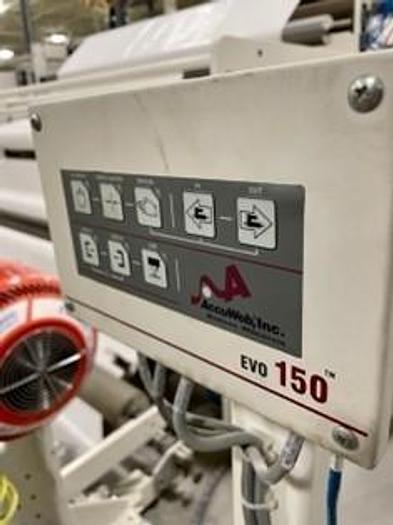

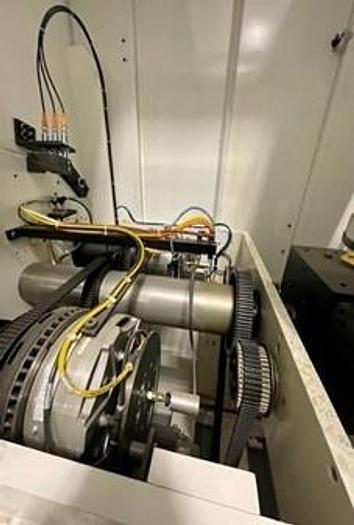

110" Simplex turret winder scorer & razor slitting, Catbridge #324, 2017

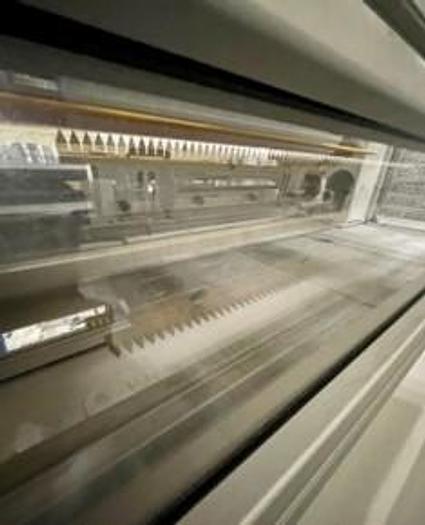

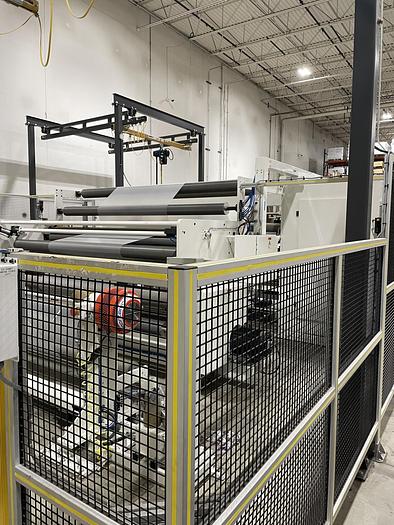

109671 One (1) Used Catbridge Model 324 Simplex Turret Winder Year 2017 Includes a brand new uninstalled score slitting section provided by Catbridge. Still installed and running Web Speed: (Note: Some products may not run at maximum web speed.) i) Customers Maximum Web Speed: 500 FPM ii) Design Speed: 1000 FPM iii) Customers Minimum Web Speed: 50 FPM Web Width: i) Customers Maximum Web Width: 106 ii) Design Web Width: 110 iii) Machine Minimum Web Width: 44 Unwind Specifications: i) Maximum Unwind Roll diameter: 40 diameter ii) Maximum Unwind Roll Weight: 3,000 lbs. The actual unwind capacity depends on the unwind shaft limitations, see shaft information in unwind section. iii) Unwind tension is limited by brake torque and rotational friction and inertia. (a) Minimum: .5 PLI (under most conditions) (b) Maximum: 1.5 PLI Rewind Specifications: i) Maximum Rewind Diameter: 18 ii) Rewind Slit Width: (1) Maximum Slit: 106 (2) Minimum Slit: 10 (3) Maximum Number of Slits: 10 iii) Maximum rewind roll weight; about 1,000 pounds (3 core) iv) Web Tension: (1) Closed Loop Control Tension Range (a) Minimum: 12 pounds total tension (b) Maximum: 120 pounds total tension, about 1.1PLI at 106 web (2) Controllable Rewind Tension Range with lock core shafts (a) At 3 Diameter : 20 (in-lbs), example: 0.5 PLI at 20 web width (b) At 18 Diameter: 1190 (in-lbs), example: 1 PLI at 106 web v) Note: Actual maximum roll weight the maximum tension are a function of roll weight, tension and product properties. The shaft capacities of rewind mandrel limits are stated by the mandrel manufacturer.
110.0 in18.0 in500 FPM1000 FPM50 FPM1061104440 diameter3,000 lbs. The actual unwind capacity depends on the unwind shaft limitations, see shaft information in unwind section.12 pounds total tension120 pounds total tension, about 1.1PLI at 106 web181061010Actual maximum roll weight the maximum tension are a function of roll weight, tension and product properties. The shaft capacities of rewind mandrel limits are stated by the mandrel manufacturer.
