$9,995 USD
Description
Description:

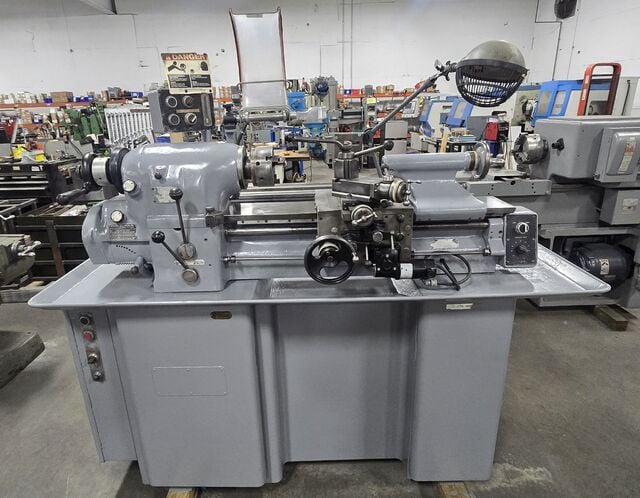

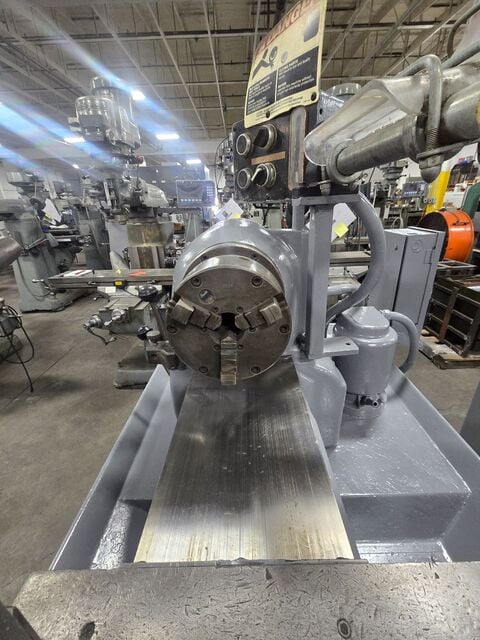

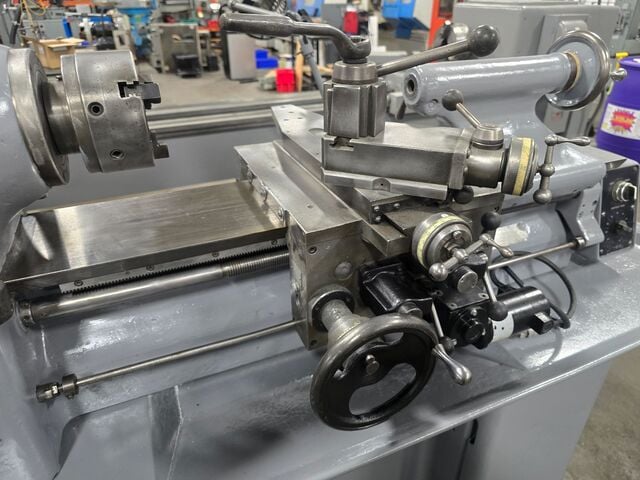

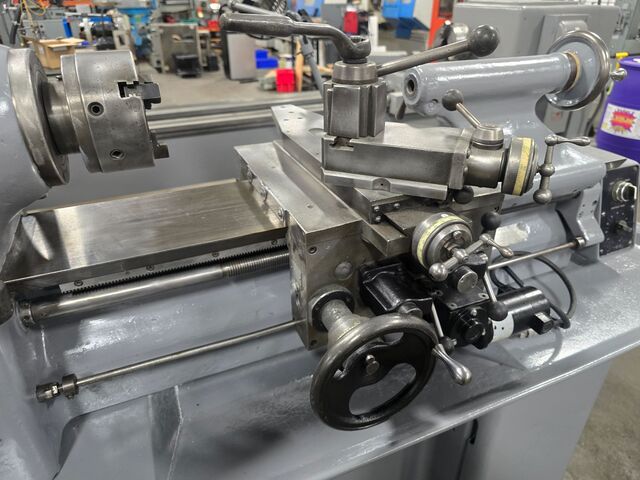

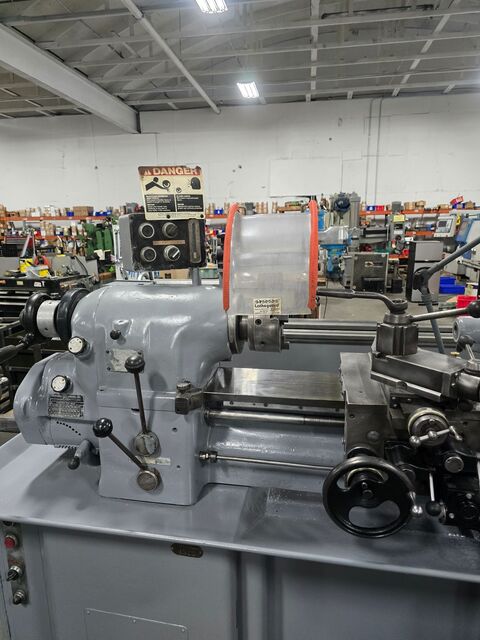

11" x 18" Hardinge HLV-H Wide Bed Lathe, ideal for toolroom use. Features: 1.5 HP, 3000 RPM, 11" swing, 20" centers, 1.25" spindle bore. Comes with inch threading, tailstock, tool post, 5C collet closer, and 6" 3-jaw chuck.
Spec Sheet:
Hardinge HLV-H Wide Bed Tool Room Lathe
SPEC SHEET
Max Swing Over Bed: 11
Max Swing Over Carriage: 9
Max Swing Over Cross Slide: 5.75
Compound Slide Travel: 3
DISTANCE BETWEEN CENTERS
Tailstock Flush: 18
Tailstock Overhung: 20
Power Feed Range: 0.25 IPM 7 PM
Longitudinal Feed Rate: 0.31 IPM 7 IPM
Cross Feed Rate: 0.18 IPM to 4 IPM
Tailstock Spindle Travel: 3.75
Tailstock Spindle Taper: No. 2 Morse
Spindle Bore: 1.25
1.5 HP Variable speed,
Spindle Speeds (Variable): 125 3000 RPM
Spindle Nose: Hardinge Tapered
Power 440 Volts / 60 Hertz / 3 Phase ,
Dimensions 6 Ft. x 3 Ft. x 5 Ft.
11" x 18" Hardinge HLV-H Wide Bed Lathe, ideal for toolroom use. Features: 1.5 HP, 3000 RPM, 11" swing, 20" centers, 1.25" spindle bore. Comes with inch threading, tailstock, tool post, 5C collet closer, and 6" 3-jaw chuck.
Spec Sheet:
Hardinge HLV-H Wide Bed Tool Room Lathe
SPEC SHEET
Max Swing Over Bed: 11
Max Swing Over Carriage: 9
Max Swing Over Cross Slide: 5.75
Compound Slide Travel: 3
DISTANCE BETWEEN CENTERS
Tailstock Flush: 18
Tailstock Overhung: 20
Power Feed Range: 0.25 IPM 7 PM
Longitudinal Feed Rate: 0.31 IPM 7 IPM
Cross Feed Rate: 0.18 IPM to 4 IPM
Tailstock Spindle Travel: 3.75
Tailstock Spindle Taper: No. 2 Morse
Spindle Bore: 1.25
1.5 HP Variable speed,
Spindle Speeds (Variable): 125 3000 RPM
Spindle Nose: Hardinge Tapered
Power 440 Volts / 60 Hertz / 3 Phase ,
Dimensions 6 Ft. x 3 Ft. x 5 Ft.
Inquire Further with Machinery Central!
