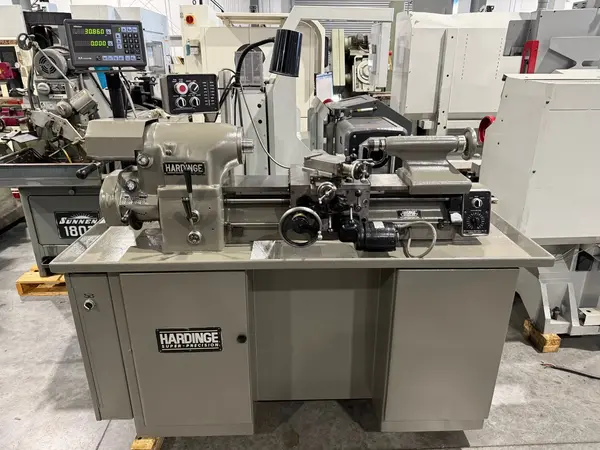

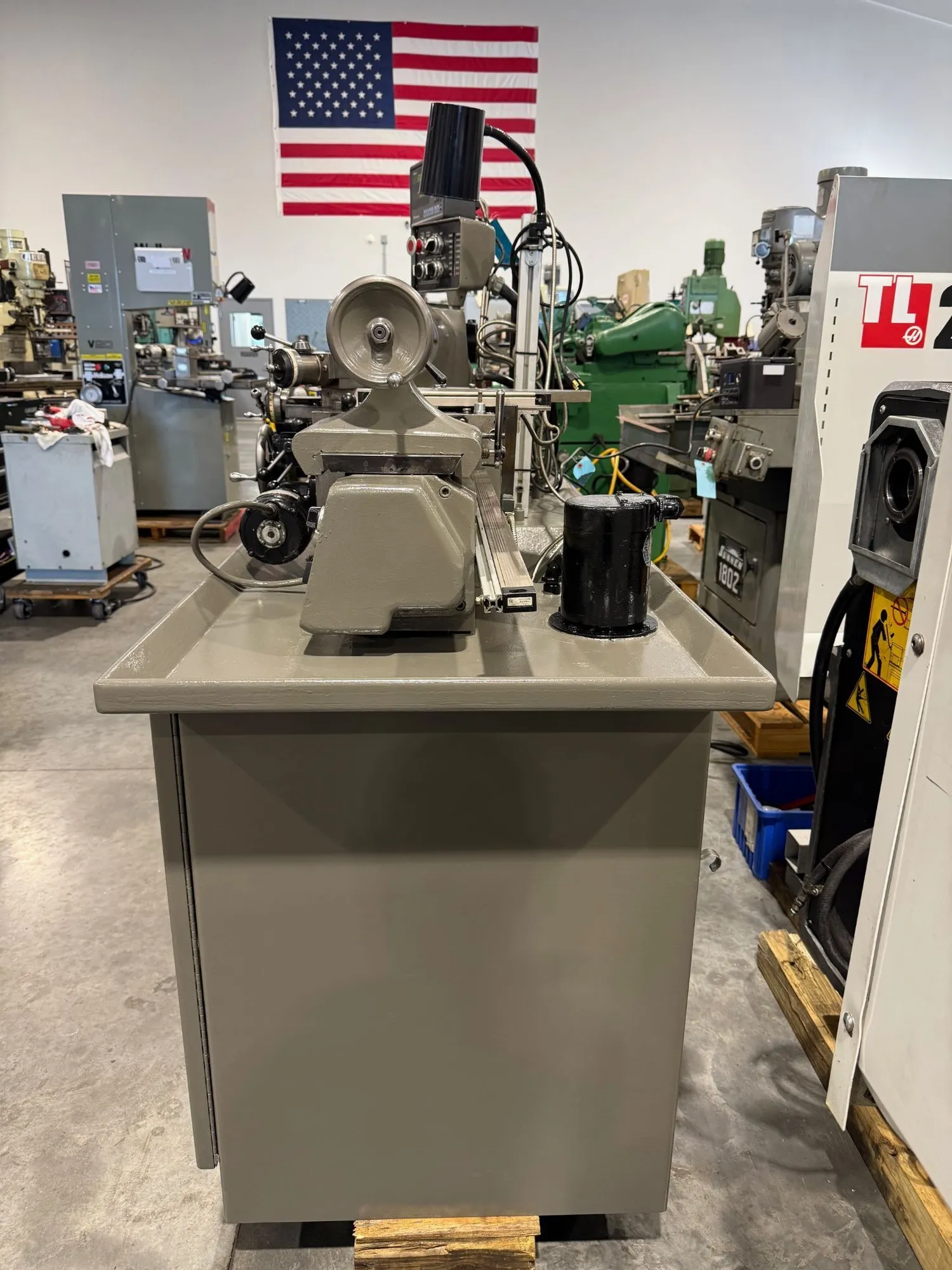

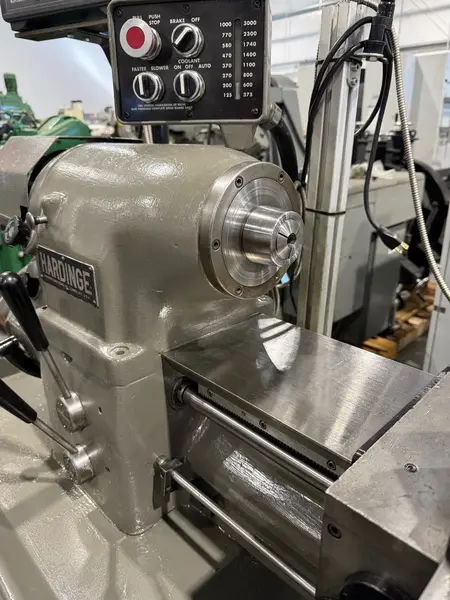

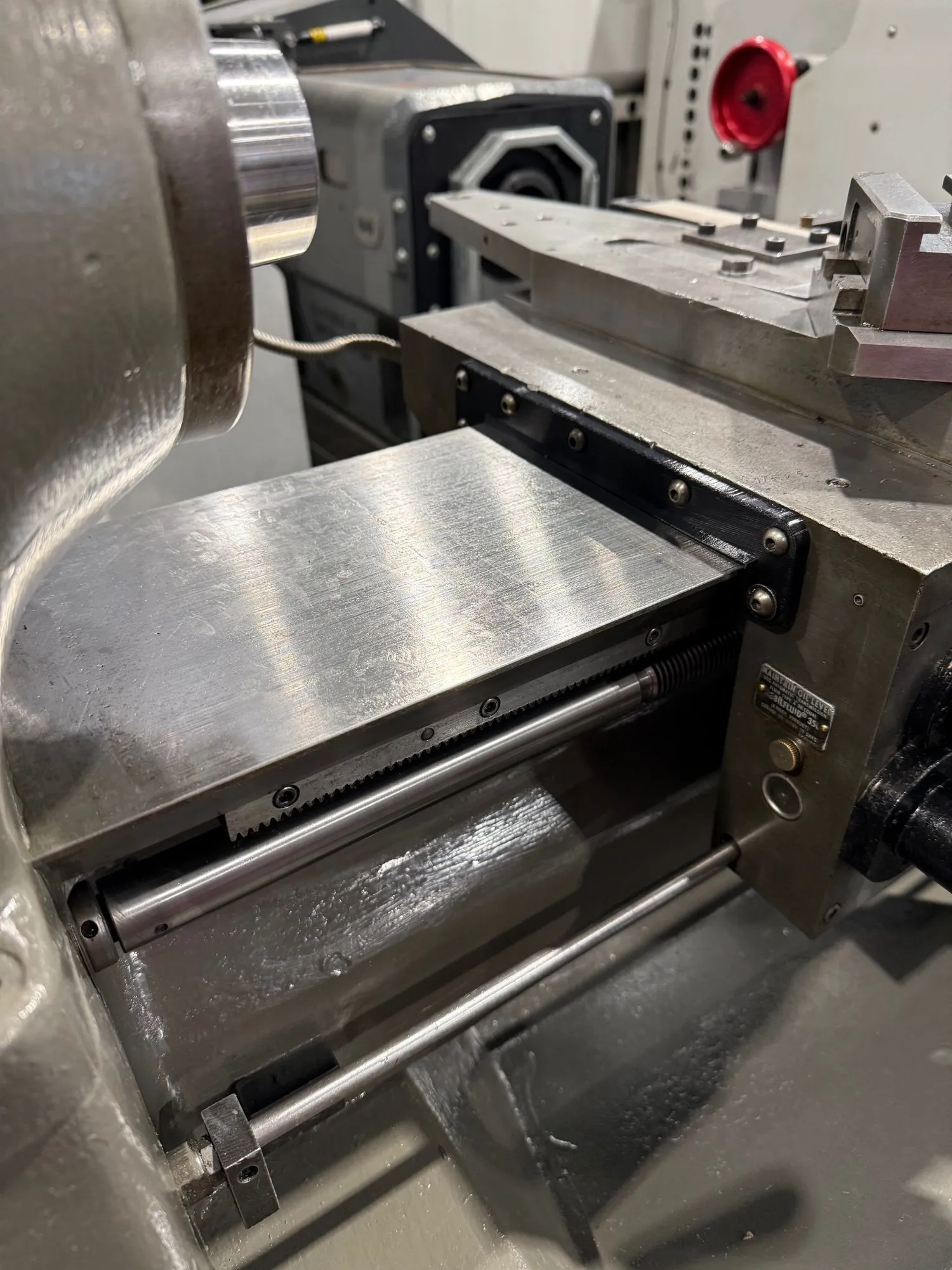

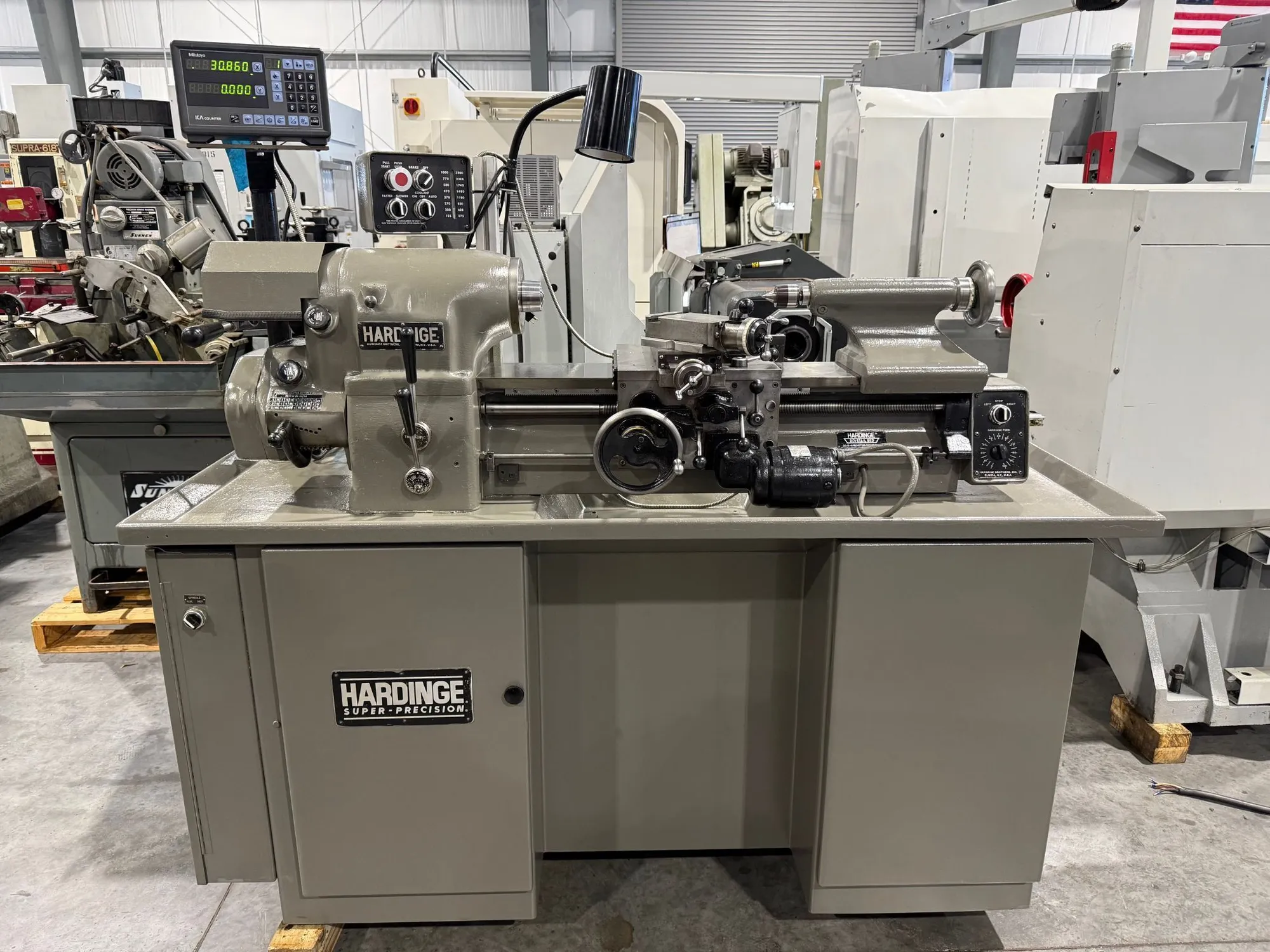

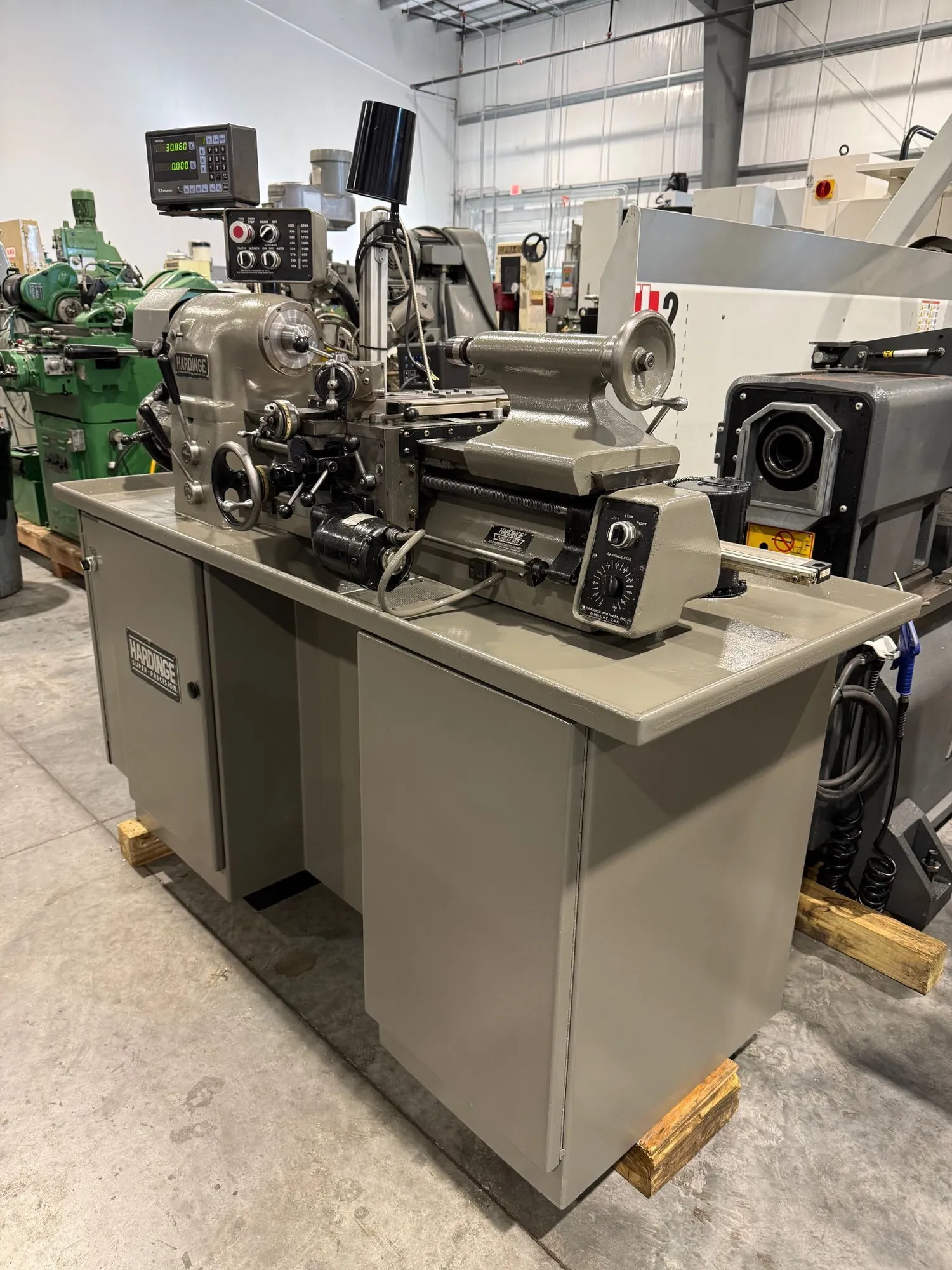

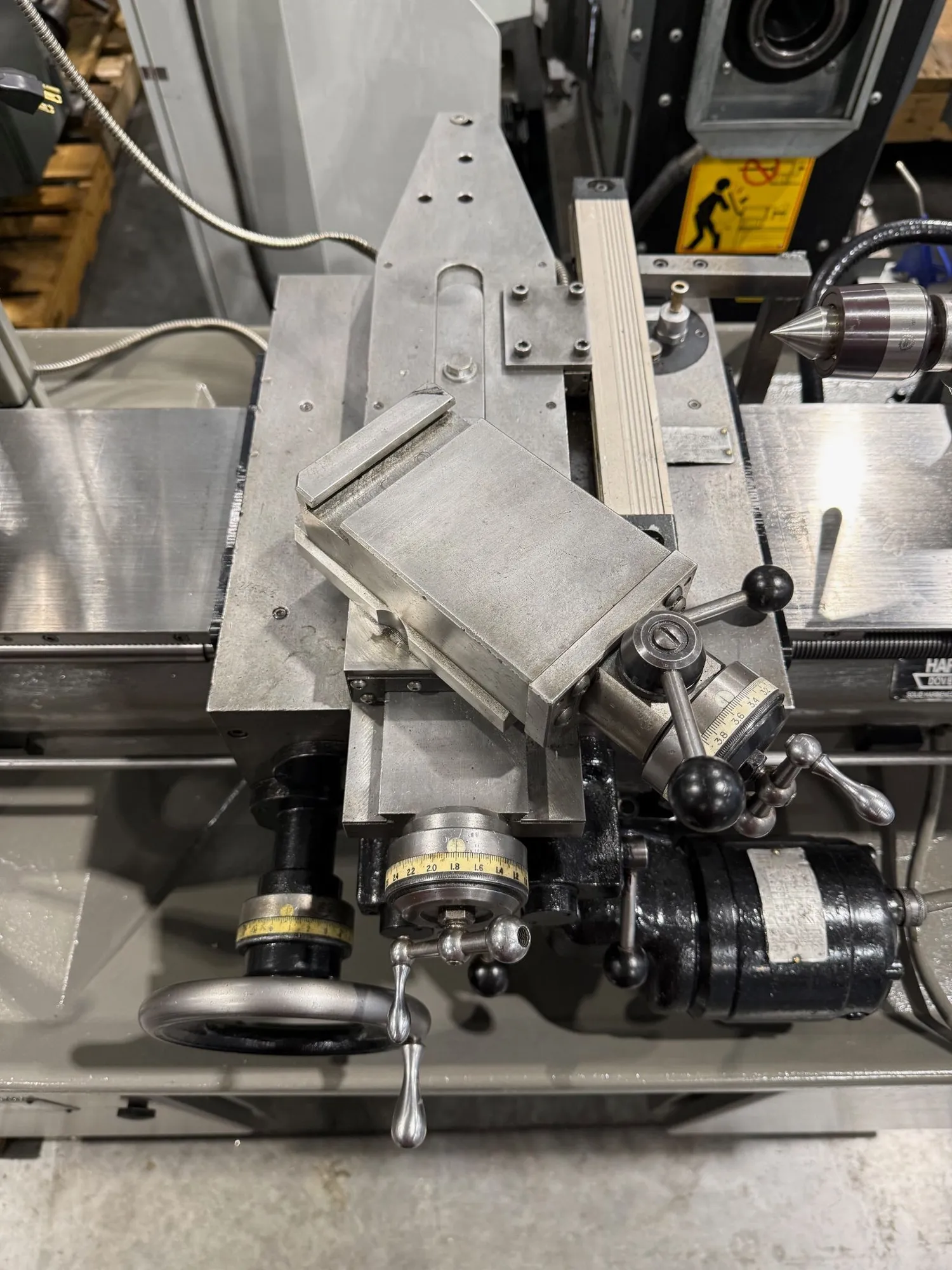

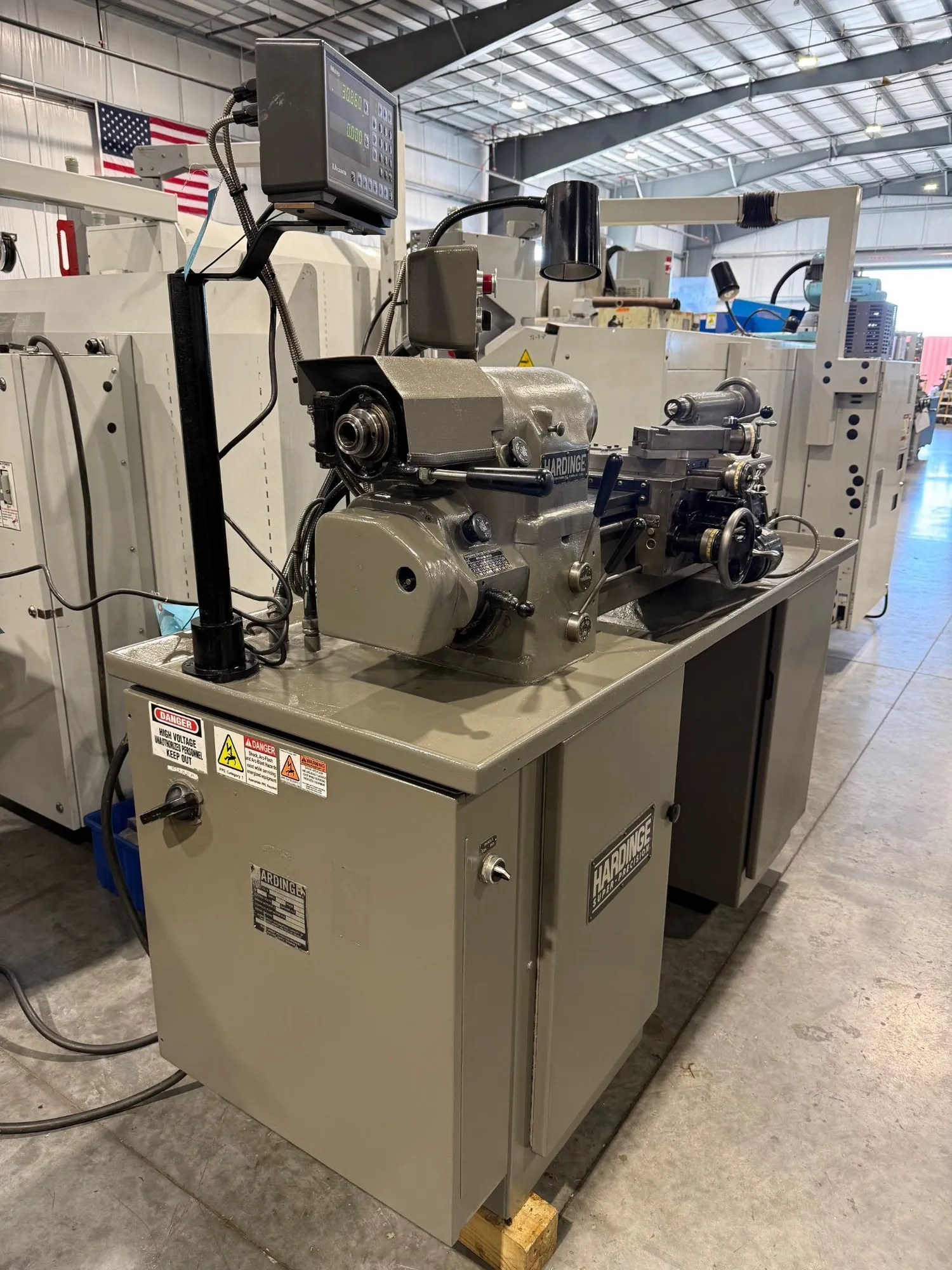

HARDINGE HLV-H Precision Tool Room Lathe “METRIC” 1988’ USA #8090 Reference #8090 Model # HLV-H Serial # HLV-H-12824 Year of manufacture- 1988’ Spindle construction- HARDINGE ball bearing Spindle nose- Tapered spindle nose Spindle capacity with round type 5C collets- 1-1/16" Spindle capacity with step chucks- 1-1/16" – 6” Spindle capacity with jaw chucks- 5” Spindle capacity with expanding collets- 3” Variable spindle speeds- 125-3,000 R.P.M. Hole through spindle- 1-1/4” Swing over bed- 11” Swing over carriage- 9” Swing over cross slide- 6” Distance between centers- 18” Compound slide travel- 3” Carriage power feed range- 5/16-7 I.P.M. Cross slide power feed range- 3/16-4 I.P.M. Tailstock spindle diameter- 1-3/8" Tailstock spindle taper- #2 MT Metric Range of threads in gear box (27) .3 -2.5 MM

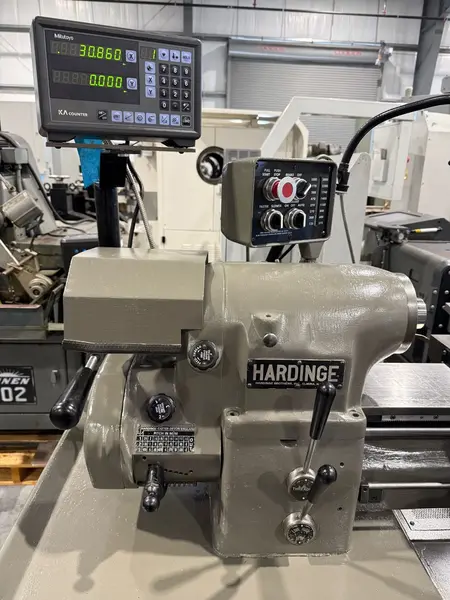

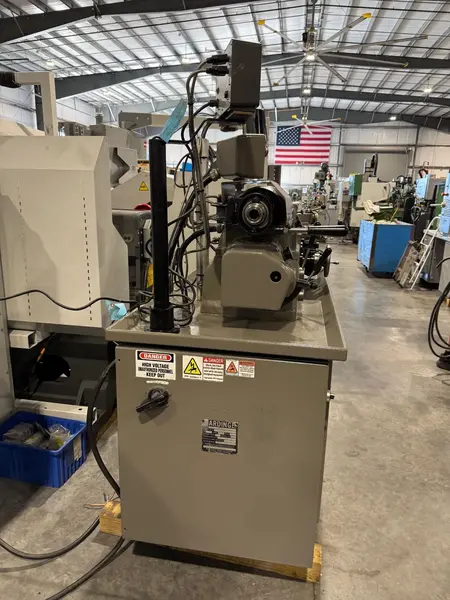

Equipped With Mitutoyo 2 Axis DRO Digital Read Out Ball bearing quick acting 5C collet closer Heavy duty full bearing tailstock Bison Live center Assorted 5-C Collets Self-contained coolant system & 1/6 H.P. Gusher Coolant pump (2) Adjustable longitudinal carriage stops .5 - 1 H.P two-speed main drive motor and electrical controls Machine is wired for 480 Volt / 3 Phase / 60 H.Z. Machine weight- 1700 Lbs. Machine dimensions- 70" L-R x 30" F-B x 57" H Machine location- F.O.B. Sarasota, Florida
