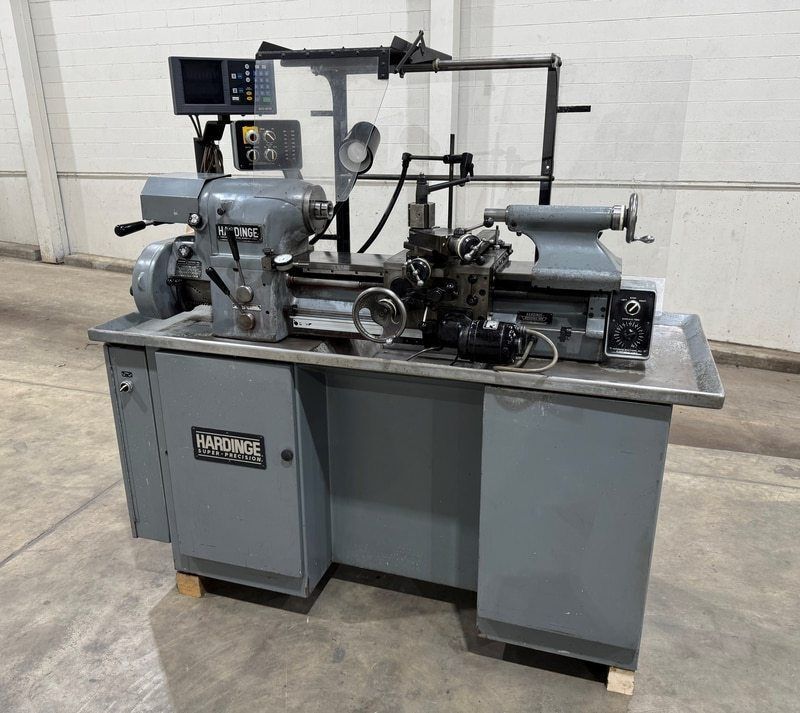

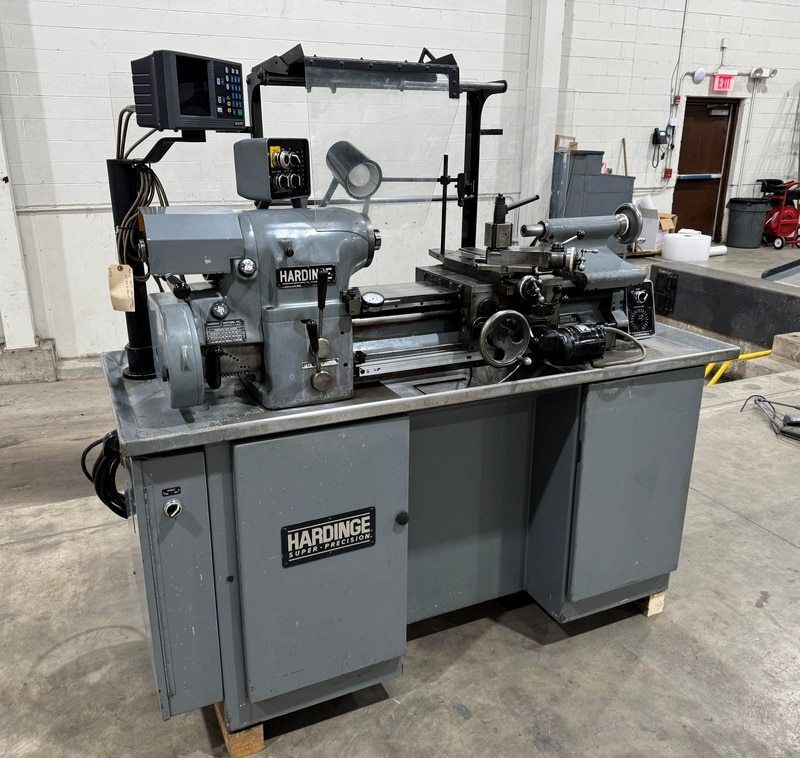

11" x 18" Hardinge #HLV-H, inch thread, 5C collet, compound cross, AcuRite digital read out system, 1990

Serial No. HLVH-8676T
New - 1990
Motor driven with 2-Speed, 3/60/230 volt variable speed drive unit with direct reading spindle speed indicator and controls. Hardinge Super-Precision ball bearing spindle. Hardinge tapered spindle nose. Tool storage compartment. Built-in coolant system. Hardened and ground dovetail bed. Leadscrew threading with automatic stop. Independent electric variable power feed drive for carriage and cross slide. Quick change gear box.
SPECIFICATIONS:
Spindle Capacity 5C Collets - Round............1-1/16"
Spindle Capacity 5C Collets - Hex............7/8"
Step Chucks............1-1/16" - 6"
Variable Spindle Speeds............125 - 3000 RPM
Swing Over Bed............11"
Swing Over Cross Slide............6"
Swing Over Carriage............9"
Distance Between Centers............18"
Hole thru Spindle............1-1/4"

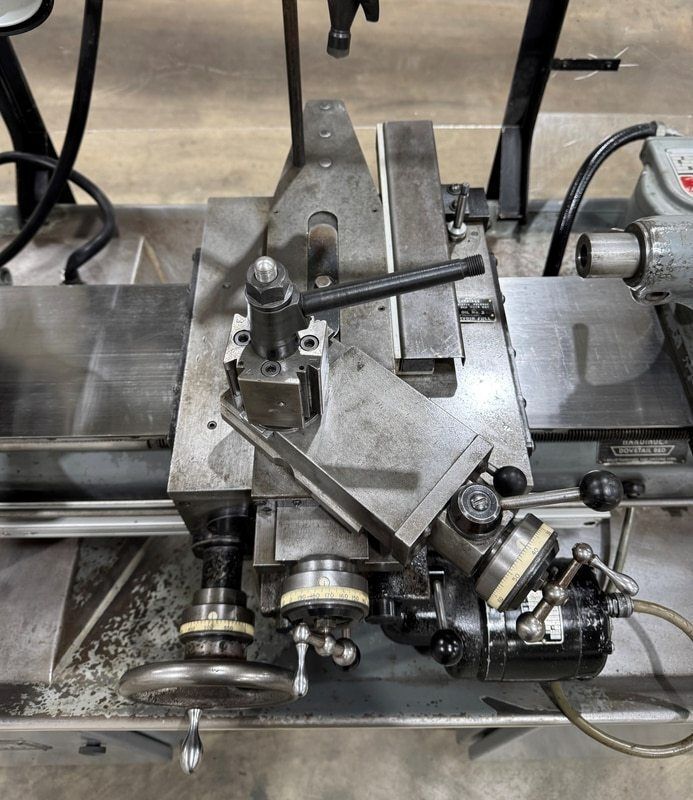

Compound Slide Travel............3"

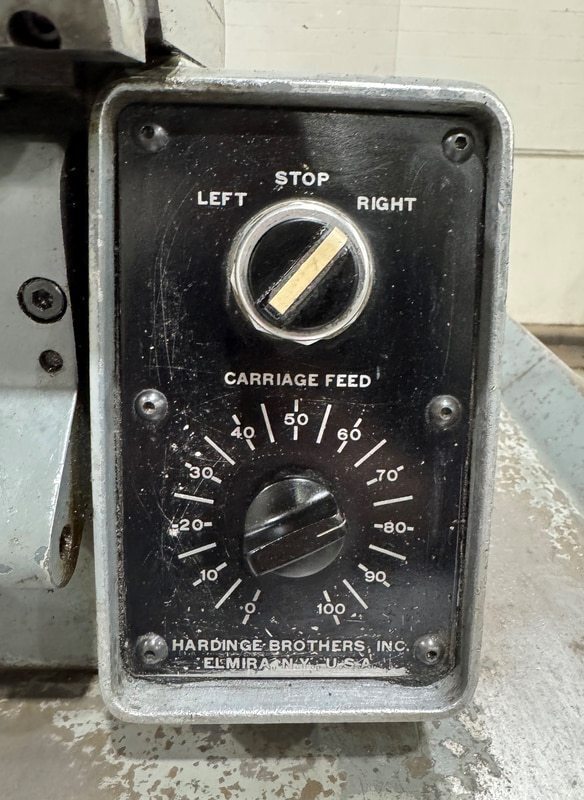

Carriage Power Feed Range............5/16" - 7 IPM
Cross Slide Power Feed Range............3/16" - 4 IPM

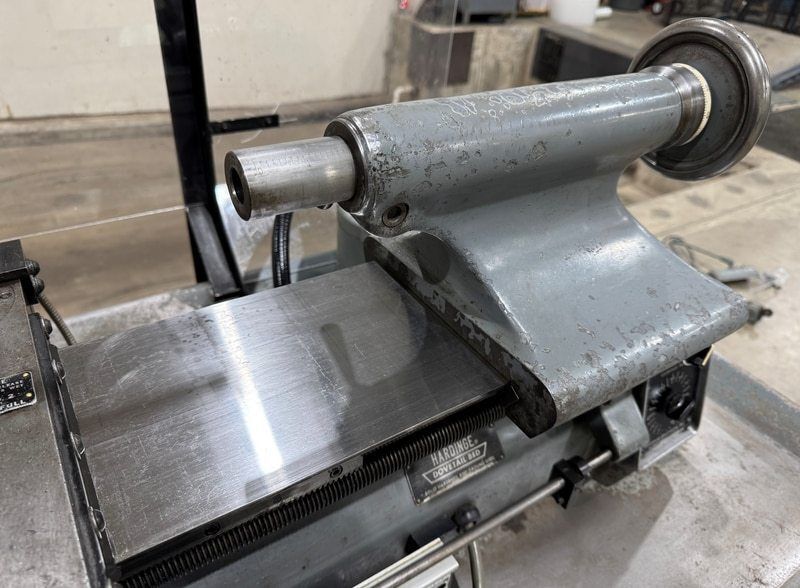

Tailstock Spindle Travel............3-3/4"
Tailstock Spindle Taper............No. 2 MT
Lead Screw Diameter............1" - 8" Thread
Range of Threads (27) - Inch............11" - 108" TPI
Electrics............460V/3Ph/60Hz
Actual Dimensions............72"L x 32"W x 64"H
Actual Dimensions (Skidded)............48"L x 48"W x 24"H
Actual Weight (Skidded)............2,000 Lbs.
EQUIPPED WITH:
Auxiliary Inch Threading Box

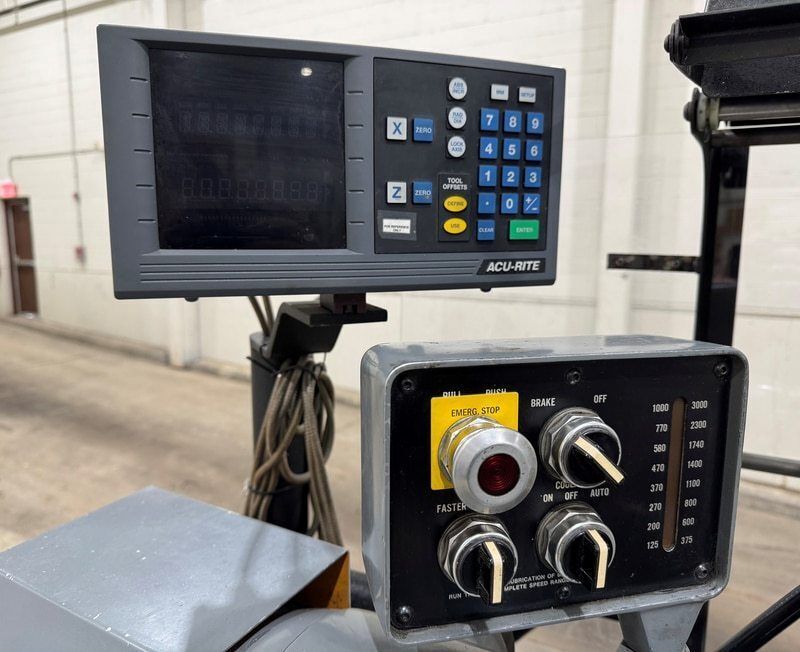

Acu-Rite Digital Read-Out System
Miscellaneous Tool Holders & Tool Post
Assorted Collets
Micrometer Inch Dials

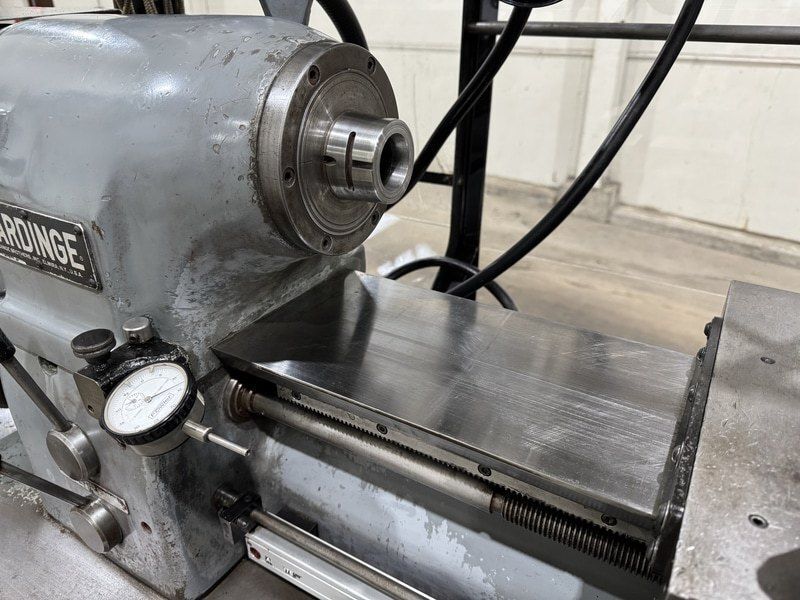

Hardinge H-HD1 Carriage Length Indicator
M.D. Coolant
Chip Guards
Work Light
*Preliminary Specifications, Pending Confirmation.
