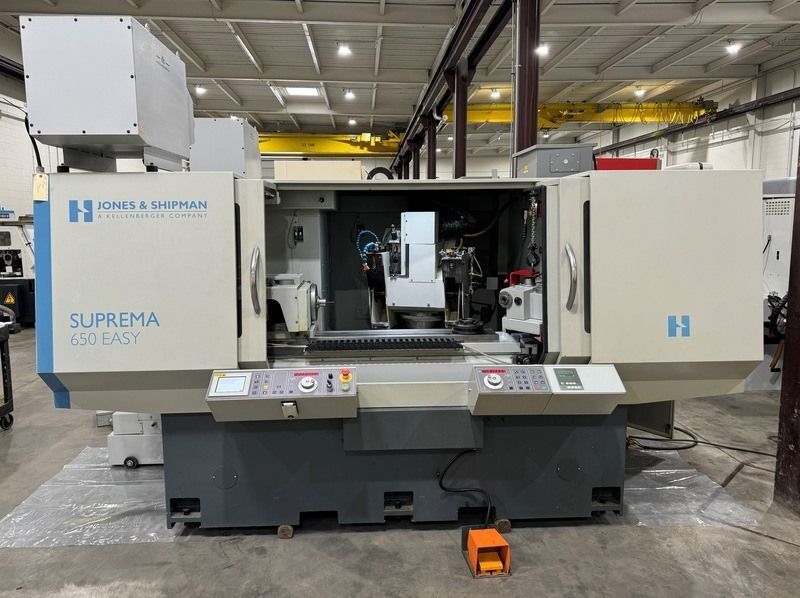

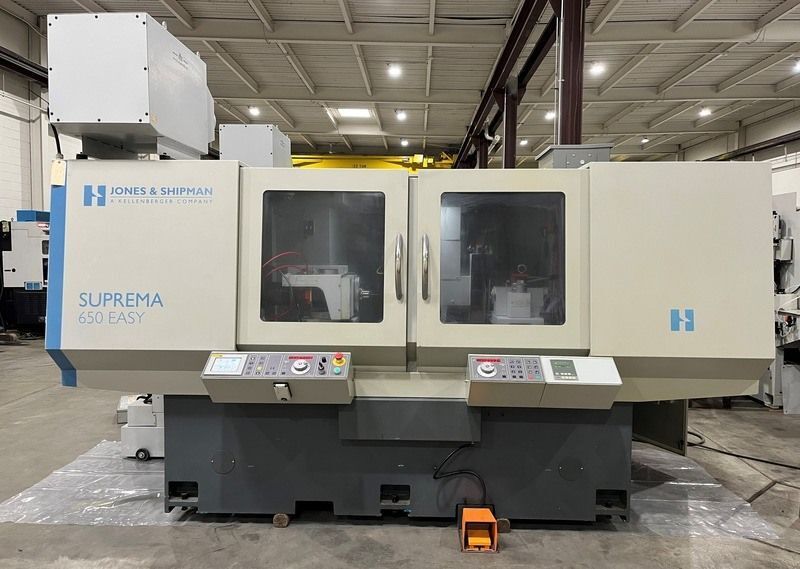

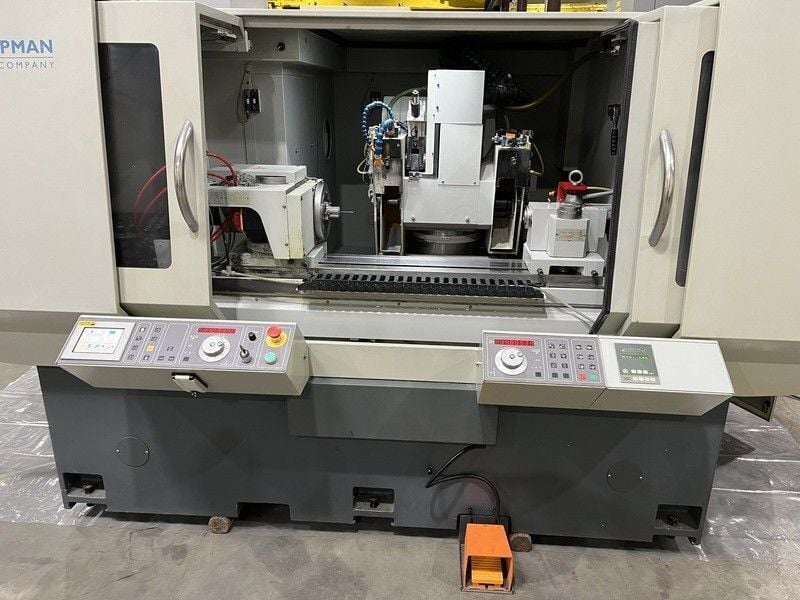

11.8" x 25.6" Jones & Shipman #Suprema-650-Easy-M, 3-wheel design, Marposs P3 SE gaging, 2016

New - 2016
SPECIFICATIONS:
Capacities:
- Grinding length............25.6"
- Swing............11.8"
- Weight between centers - maximum............220 Lbs.
Table:
- Traverse distance............29.5"
- Traverse speed - stepless............0.000004 - 472 IPM
- Swivel............+9°/-9°
- Electronic handwheel increment............0.00004"/0.0004"/0.004"
Traverse Control & Feedback - Fanuc digital AC Servo Motor
Wheelslide:
- Total infeed............10.2"
- Infeed rate............0.000004 - 0.24 IPM
- Electronic handwheel increment............0.00004"/0.0004"/0.004"
Infeed Control & Feedback - Fanuc Digital AC Servo Motor

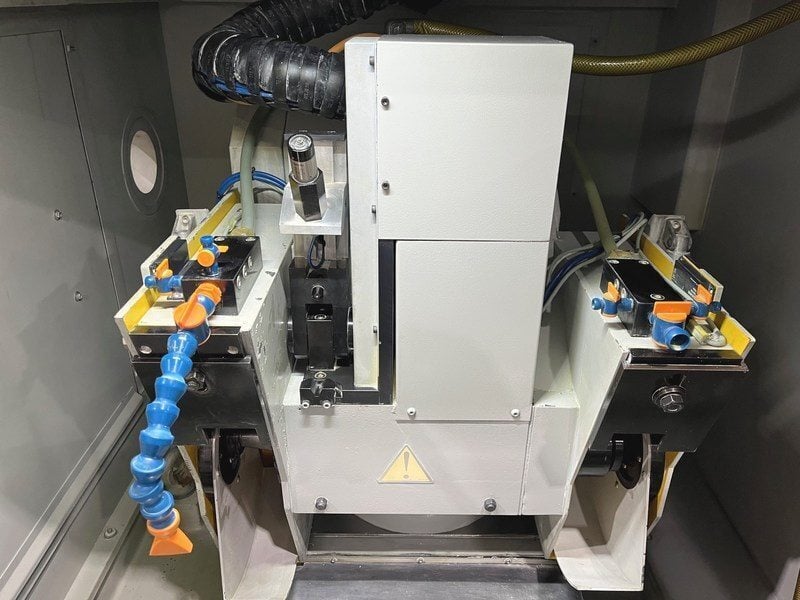

Wheelhead (Universal):
- Type............Swiveling
- Main motor............5.6 HP
- Wheel speed............108 FPS (Variable by means of Yaskawa 5.5kw Freq. Drive)
- L-Hand wheel............15.7"Ø x 2"W x 5"Bore
- R-Hand wheel............13.7"Ø x 1"W x 5"Bore
- ID Grinding System Motor power............3 HP (Variable by means of 2.2kw Freq. Drive)

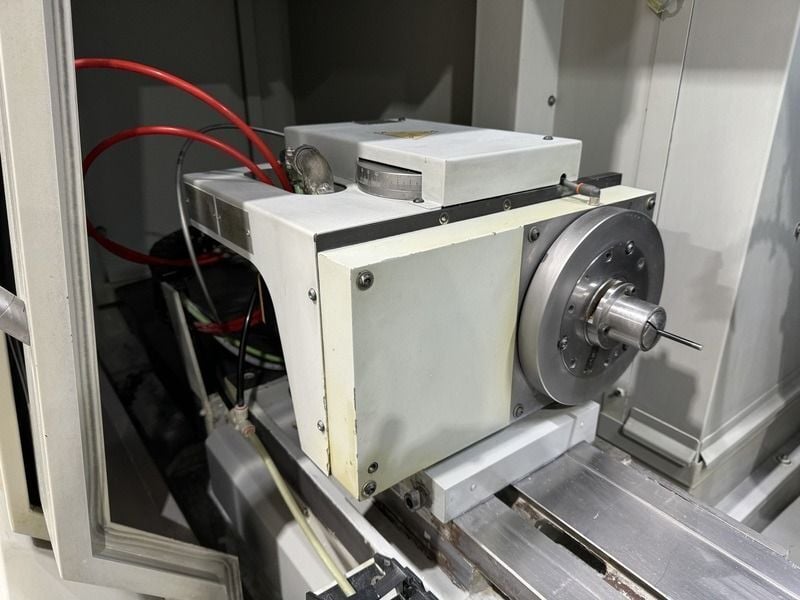

Workhead:
- Type.............Live & Dead Centre
- Swivel Range........... -15 deg. / + 90 deg.
- Speed Range (infinitely variable).............0 - 660 RPM
- Output Torque............20 Lb.Ft.
- Spindle Taper (standard/reduced)...............#5MT / #3MT
Machine weight - catalog............12,000 Lbs.
Machine dimensions - actual............ 134"(L-R) x 87"(F-B) x 100"(H)
Coolant System Dimensions - Actual............57"L x 27"W x 28"H
EQUIPPED WITH:

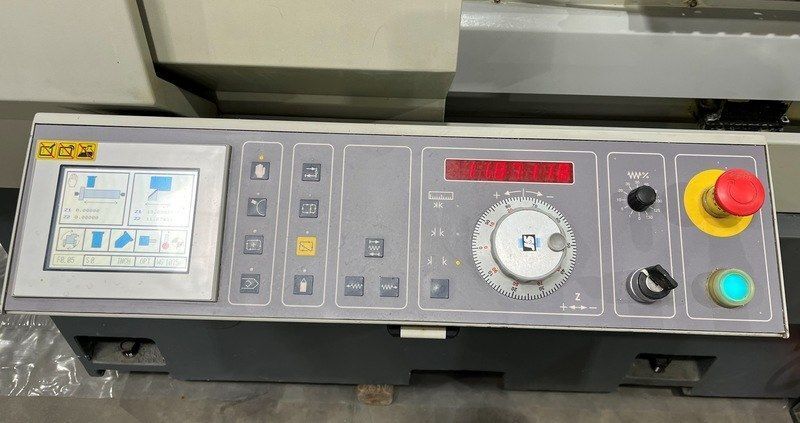

Fanuc color touchscreen control w/J&S icon based software

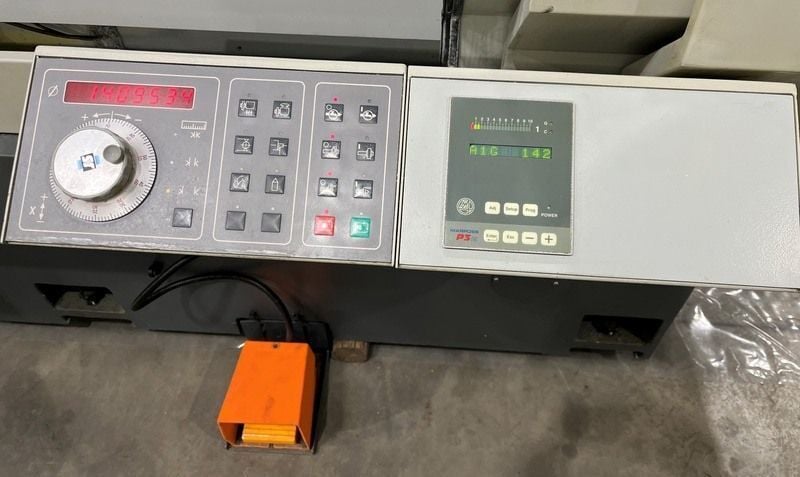

Marposs P3 SE gaging (acoustic gap and crash eliminator)

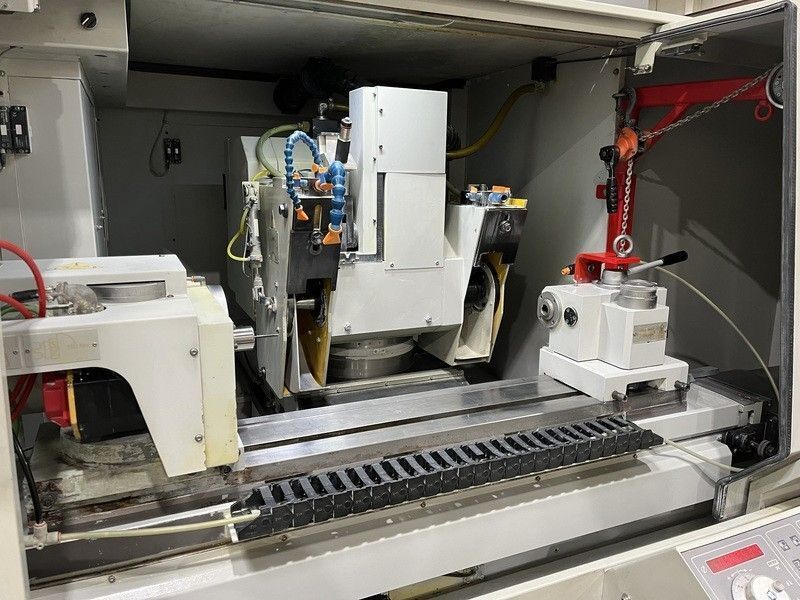

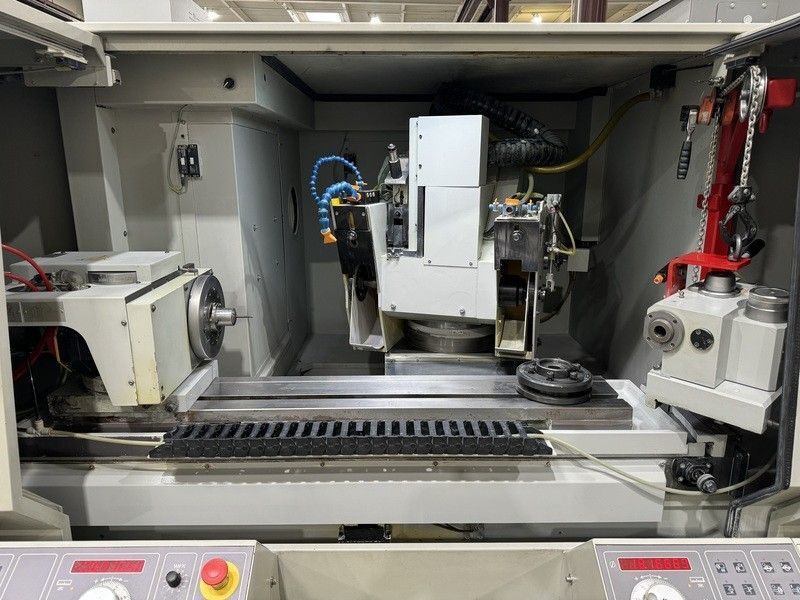

3-Wheel Design: Left-hand OD, Right-hand (face), & ID grind wheels (Variable Speed)

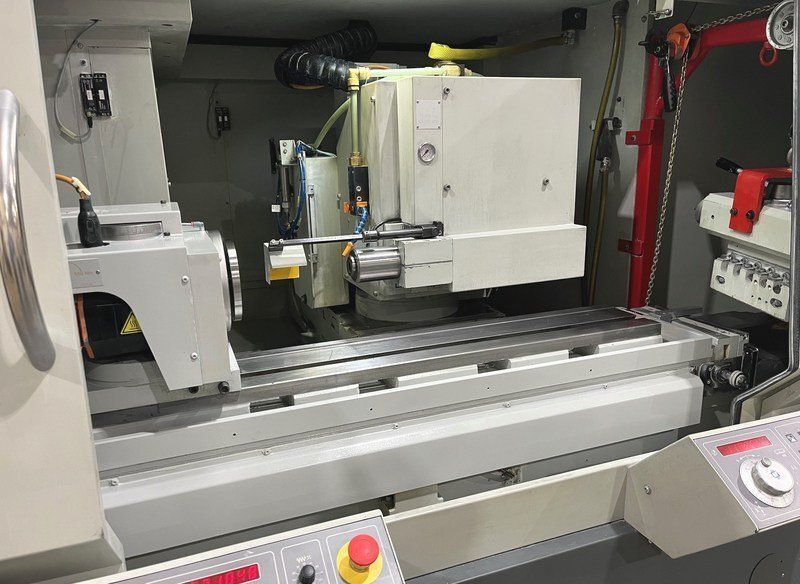

Fischer 28,000 RPM (variable speed)ID spindle w/ retractable wheel guard
Manual B-Axis swivel w/encoder for accuracy
High Accuracy Taper Correction Tailstock
Fanuc digital AC servo driven table and wheel slide
2-Axis simultaneous movement
Optional Pneumatic Foot Operated 5C Collet Attachment
Lateral Locator - Shoulder gage swing up probe
Uni Magnetic Industrial PFA-80A paper bed coolant filtration system
IFS Roof Mounted Mist Collector
Full enclosure
*Preliminary specifications pending verification.
