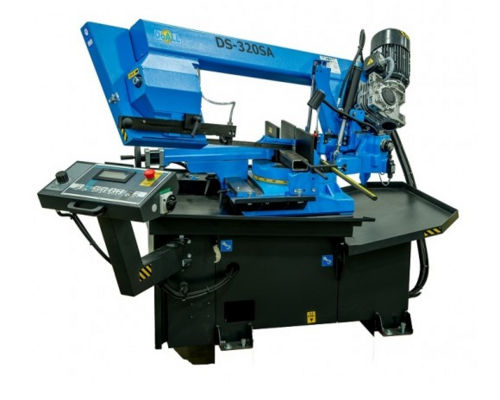

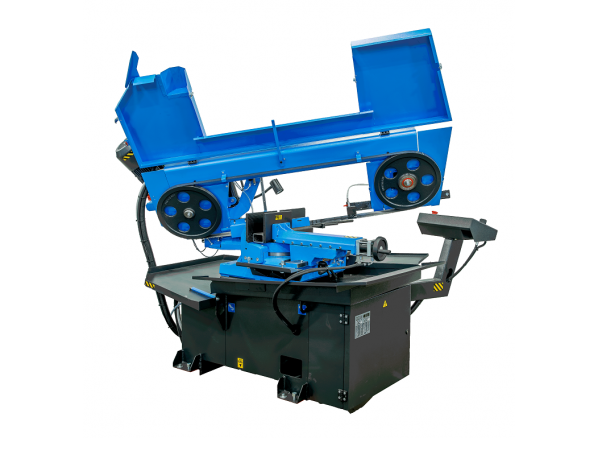

11-3/4" x 12-1/2" DoAll #DS-320SA, dual miter semi-auto band saw, 7" rnd, 10-240 FPM, new

11-3/4” x 12-1/2" Band Saw with Mitsubishi Saw Control Overfeed Protection Blade-Driven Band Brush 3.3 ft (1000mm) Work Stop Directly Mounted Work Height Sensor Variable Frequency Drive Work Light Flood Coolant Tool Kit Complimentary DoALL Cutting Fluids Package One DoALL Bi-Metal Saw Blade Instruction and parts manuals on CD or USB data stick.

GENERAL SPECIFICATIONS

• Cutting Capacity for Round Tube: 11.75"
• Cutting Capacity for Rectangle: 11.75 x 12.5"
• Cutting Capacity for Solid: Round: 7"
• Miter Cutting: 0⁰ - 60⁰ right and 0⁰ - 45⁰ left
• Miter Cutting Capacity for Tube at 45⁰: - Right: Round: 11.75", Rectangle: 11.75 x 9.75"
• Miter Cutting Capacity for Solid at 45⁰: - Right: Round: 4 ¼"
• Miter Cutting Capacity for Tube at 60⁰: - Right: Round: 7.75", Rectangle: 7.75 x 7.75"
• Miter Cutting Capacity for Solid at 60⁰: - Right: Round: 3 "
• Miter Cutting Capacity for Tube at 45⁰: - Left: Round: 11", Rectangle: 10.4" x 7.9"
• Miter Cutting Capacity for Solid at 45⁰: - Left: Round: 4 ¼"
• Min and Max Nesting Capacity at 90°: 0.12" to 12.5 x 6.25"
• Remnant Length Drop: Width: 1.2"
• Band Saw Blade Dimensions: Width: 1 x 0.035", Length: 144"
• Band Speed: 10-240 fpm
• Band Drive Motor: 2 - 2.5 hp
• Hydraulic Pump: 0.07 hp
• Coolant Pump: 0.6 hp
• Coolant Capacity: 5-1/4 gal
• Material Pass Line Height: 31-1/2"
• Machine Weight: 1533 lbs
• Floor Space Requirements W x L X H: 90 x 46 x 56"
• Machine Voltages Available: 230vac, 3-Phase, 60hz, Wye Configuration Required

INCLUDES: Work Stop Directly Mounted, Work Height Sensor, Variable Frequency Drive, Work Light, Flood Coolant, Tool Kit, Complimentary DoALL Cutting Fluids Package, One DoALL Bi-Metal Saw Blade, Instruction and parts manuals on CD or USB data stick.
