1050.0 KVA Self contained outdoor uninterruptible power supplies trailer, 480 Volts, rental

1 MW Self Contained Outdoor UPS Trailer –

System to include:

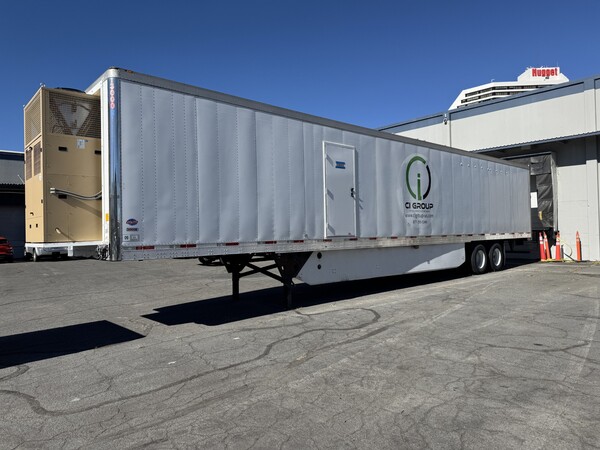

(1) Hyundai Thermo Tech 53’ Insulated Trailer:

Exterior Dry Van Dimensions (estimated): 8’6″‘W x 53”L x 13’6″H

Overall Dimensions with Exterior Mounted HVAC: 8’6″W x 58’L x 13’ 6″H

(1) Input CAM Lock Panel –

Rated: 1600A – 480V – 3PH

(6) CAM Locks Per Phase + (2) Ground – Male Connectors

Connections for Network monitoring included.

(1) Output CAM Lock Panel –

Rated: 1600A – 480V – 3PH

(5) CAM Locks Per Phase + (2) Ground – Female Connectors

Connections for Network monitoring included.

Integrated Switchboard – MDP

(1) 1600AF / 1600AT – BIB

(1) 1600AF / 1600AT – MBP

(1) 1600AF / 1600AT – MIS

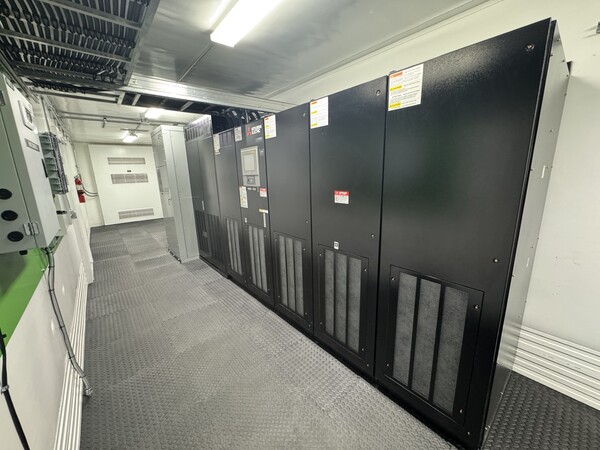

(1) Mitsubishi 9900C – 1050 kVA UPS

Rated: 1050 kVA

Voltage: 480V- 3PH -3W

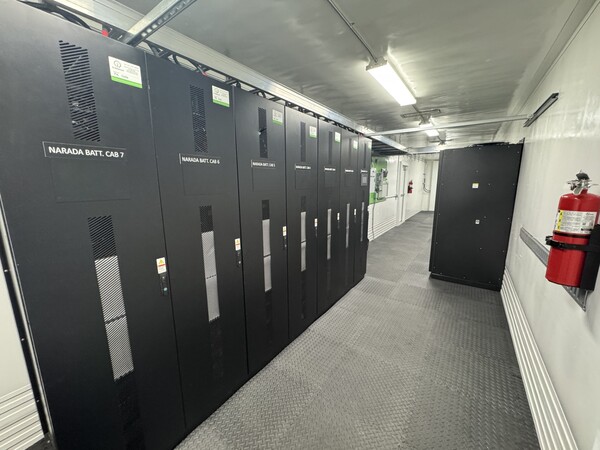

Battery System – 9.5 minutes at full load / 21 minutes at 50% Load

(1) MPLHP5125528-1111411

MPLHP 10 Module, 512VDC LFP Battery System,

Black, Siemens 400A Breaker, 24V UVR, 1AB Aux Contact, DC BMS Power, HMI and System Controller

(6) MPLHP5125528-1011411

MPLHP 10 Module, 512VDC LFP Battery System,

Black, Siemens 400A Breaker, 24V UVR, 1AB Aux

Contact, DC BMS Power

HVAC: N+1 Redundant

(2) Airsys Unicool

Model 28V2B5MR410AAC

Variable Capacity – Bottom Supply

Dual Compressors

System Monitoring:

Wireless with customer approval
