Description

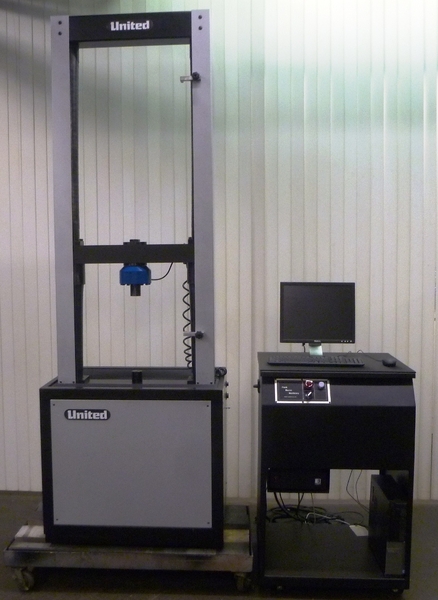

10K (50kN) United SFM-10 / SFM-50kN Floor Standing Tension and Compression Testing Machine
United Model SFM-10 SPECIFICATIONS:
- Tension Testing Opening (Less Tooling): 55"
- Compression Testing Opening (Less Tooling): 55"
- Distance Between Columns/Screws: 21"
- Testing Stroke: 55"
- Testing Speed (IPM): 0 - 20
- Approximate Overall Dimensions: New Electronic Console (W x D x H): 27" x 27" x 42" Load Frame (W x D x H): 37" x 30" x 95"
- Weight (lbs.): 1600
- Electrical Requirements (V,Hz,PH): 230, 60, 1
EQUIPPED WITH:
Computer with Keyboard and Mouse.
Microsoft Windows 11 Professional, Workstation
MTGenius, Material Testing Software for Data Acquisition (Load, Position & 2 Strain), Analysis and Computer Controlled Testing with Manual.
MTGenius, Micro Console for Sensor Excitation and Analog/Digital Signal Processing with USB Cable
Electronic Material Testing Control System in Custom Cabinet/Desk with PC Controls and
Crosshead Jog Controller
Solid State Drive Controller for Precision Control of Testing Rates (Load, Position & Strain).
10,000 lbf (50 kN) Tension & Compression Load Cell
FOB Warren, MI
Reconditioned/Retrofitted & Certified
1 Year Parts and Labor Warranty
*Representative Image
