Manufacturer: Michigan Roll Form
Model: DHCH-98B
CapacityLbs.: 10000
Width: 24
I.D.: 20 - 20
Stock # VX-14358
1 / 7
Click to zoom in
1 / 7
For Sale by VX Machinery
Surplus Record Dealer Since 1995
Location: Sylvania, OH
Contact Victor Van Deilen
Phone Number: 734...> Show Phone Number 734-854-8700
Let the seller know you found their listing on Surplus Record!
Description
MANUFACTURER: MICHIGAN ROLL FORM
MODEL NUMBER: DHCH-98B
SPECIFICATIONS:
Capacity: 10,000 Lbs. Per Side
Maximum Coil O.D.: 72"
Maximum Coil Width: 24"
Coil I.D. Range: 16" - 20"
Non-Motorized
EQUIPPED WITH:

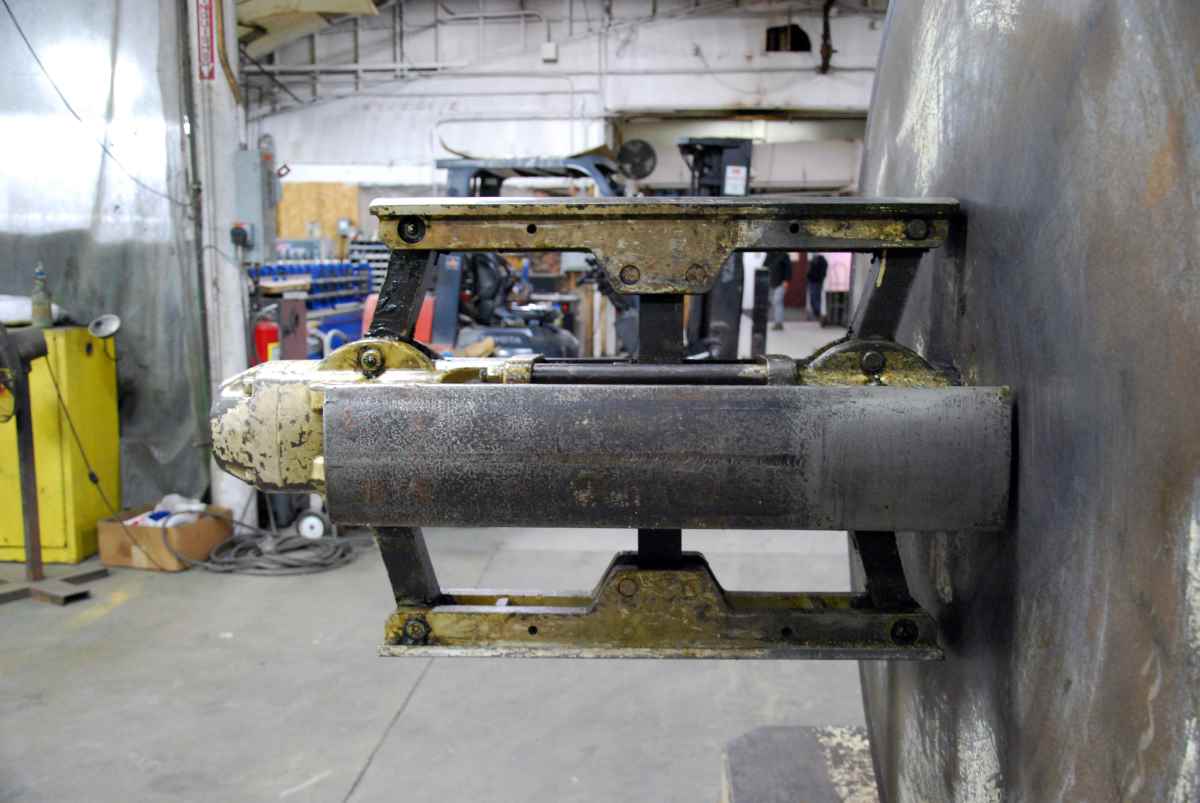

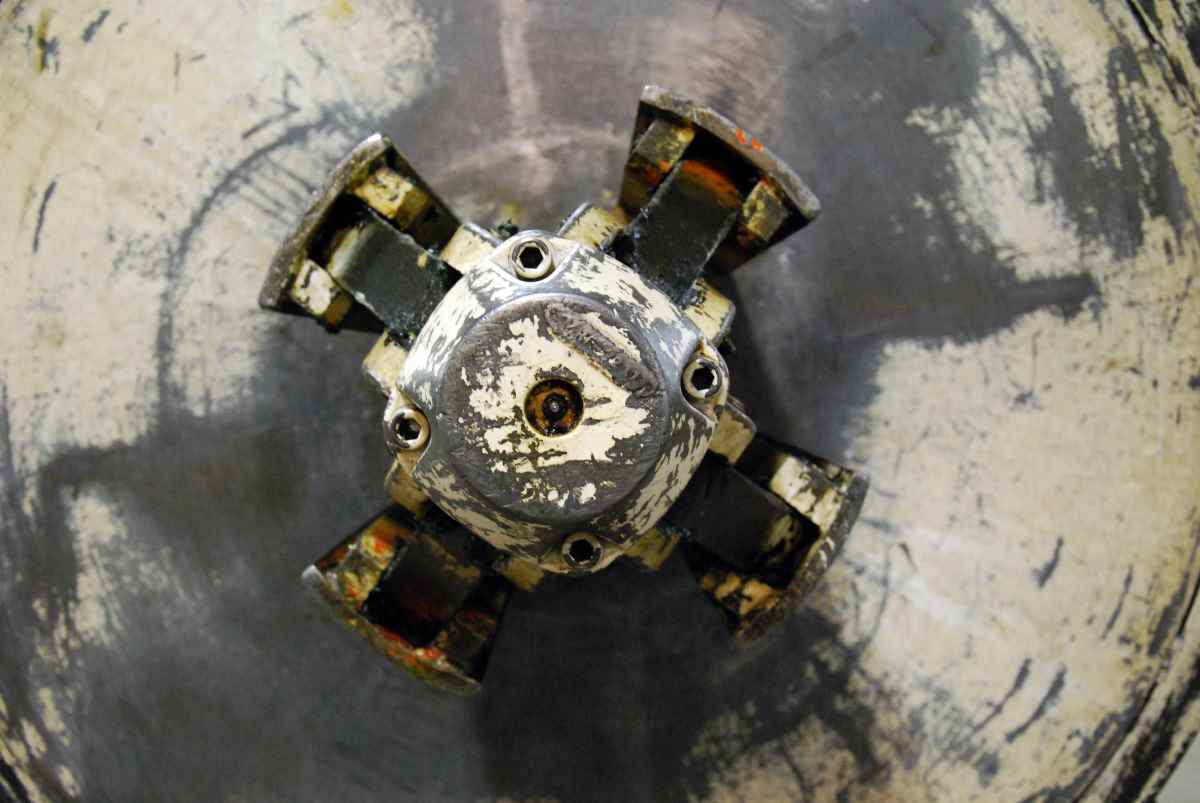

4-Arm Hydraulic Expansion
Air Brakes
Manual Rotation w/Pin Lock
Back Plates
NOTE: Missing Controls.
OVERALL DIMENSIONS: 11' x 8 'x 7'
APPROXIMATE WEIGHT: 11,500 Lbs.
MODEL NUMBER: DHCH-98B
SPECIFICATIONS:
Capacity: 10,000 Lbs. Per Side
Maximum Coil O.D.: 72"
Maximum Coil Width: 24"
Coil I.D. Range: 16" - 20"
Non-Motorized
EQUIPPED WITH:
4-Arm Hydraulic Expansion
Air Brakes
Manual Rotation w/Pin Lock
Back Plates
NOTE: Missing Controls.
OVERALL DIMENSIONS: 11' x 8 'x 7'
APPROXIMATE WEIGHT: 11,500 Lbs.
