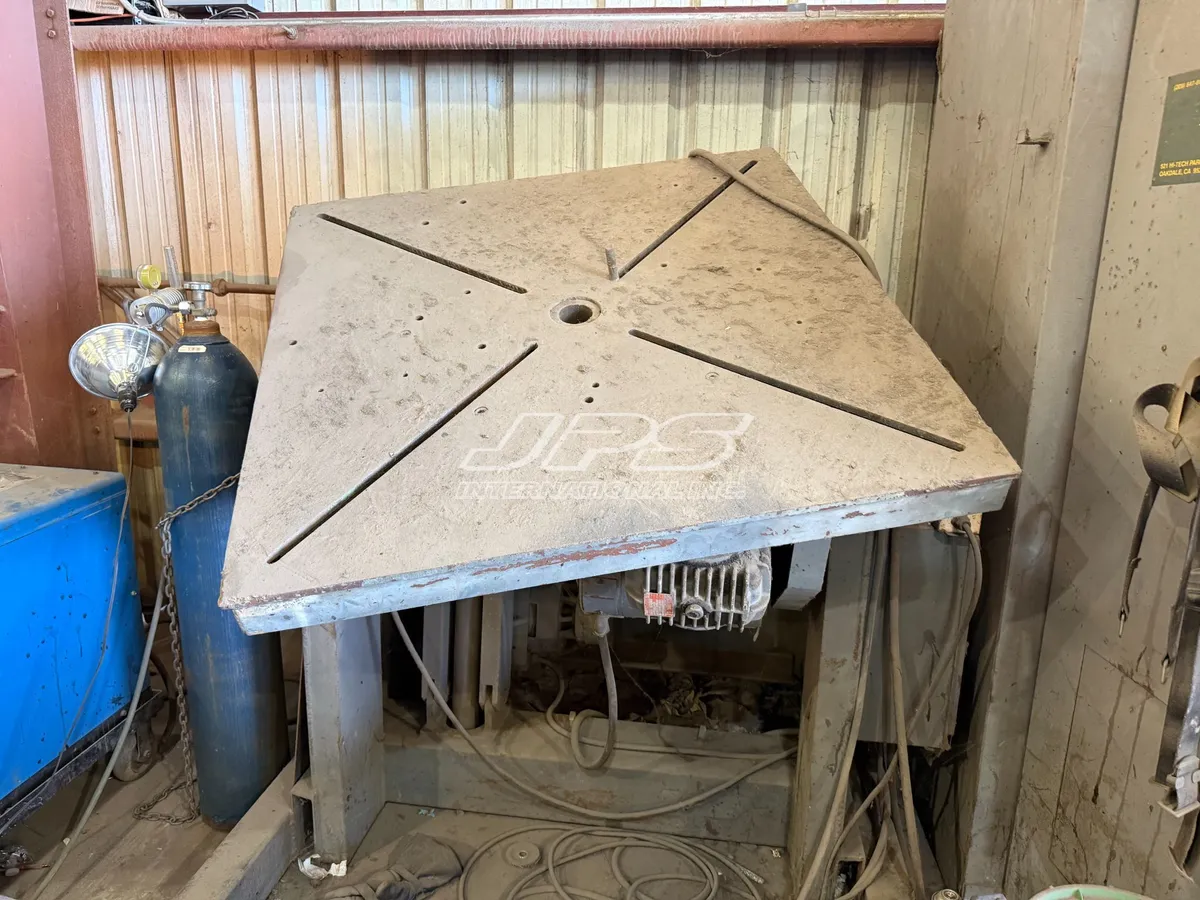

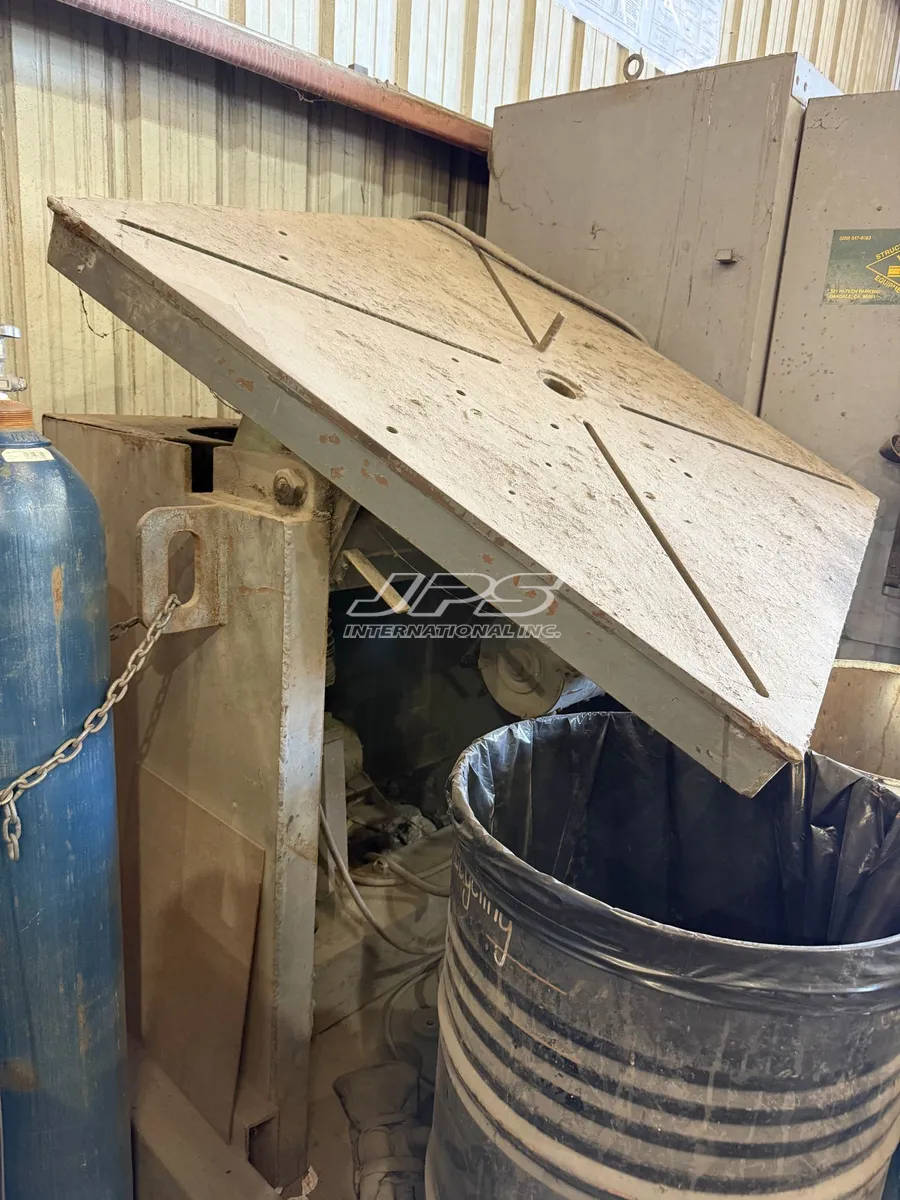

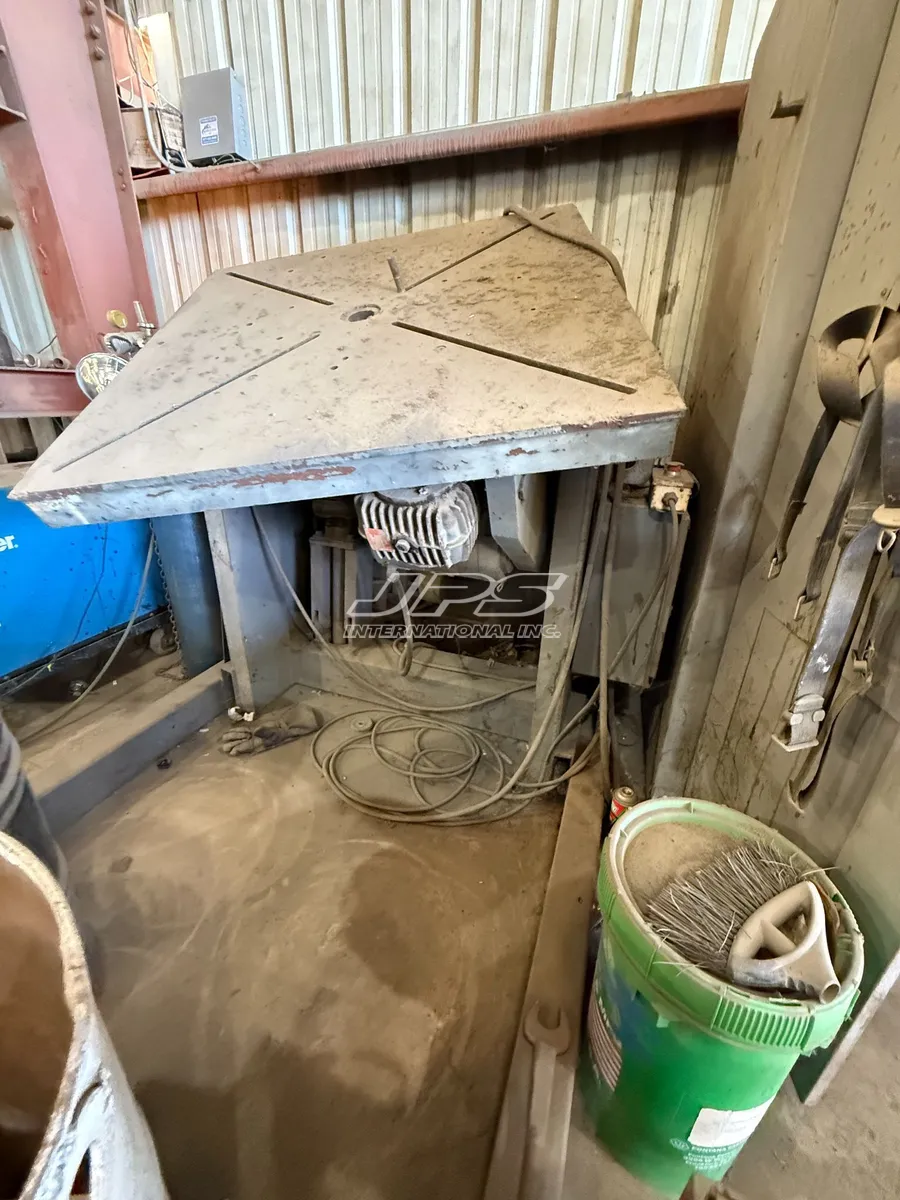

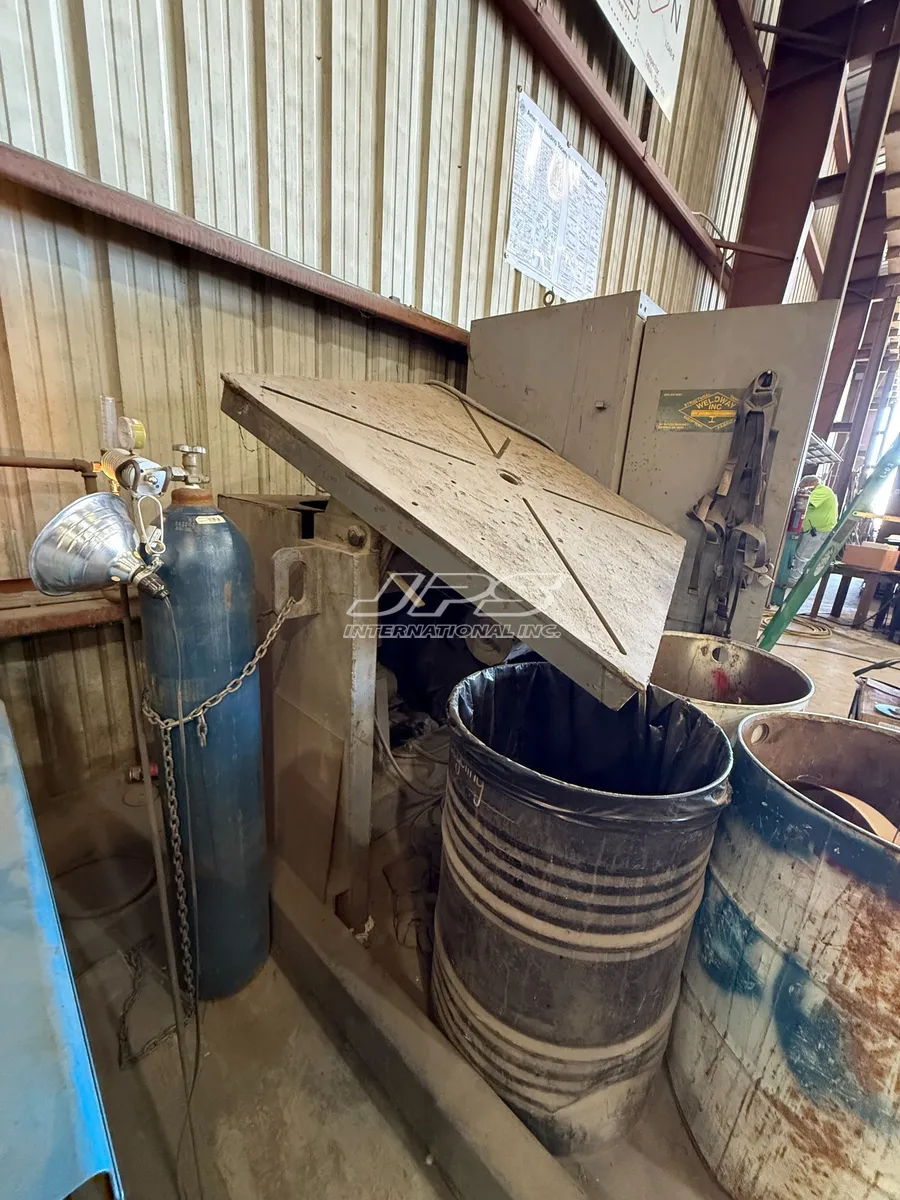

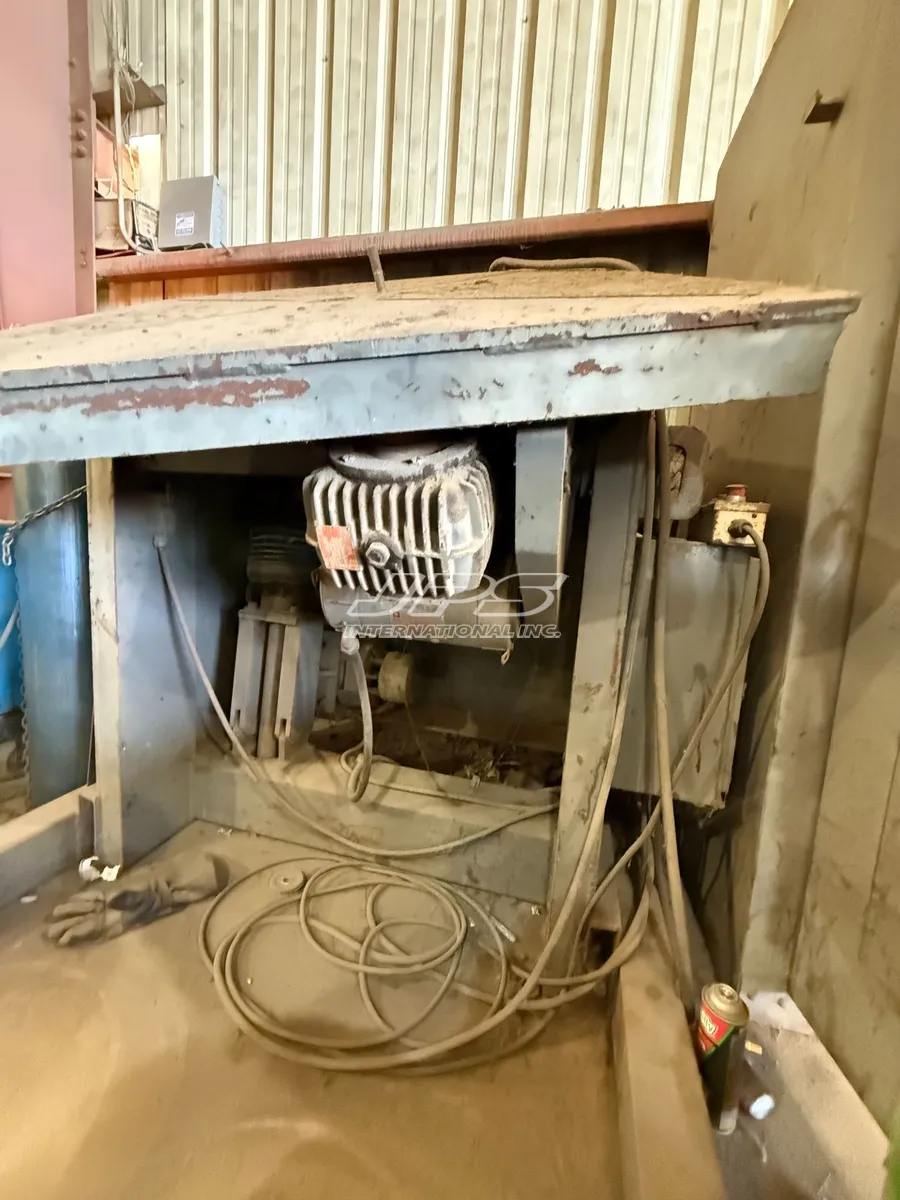

10,000 lb. Koike Aronson #HD-100VF, Welding Positioner, 48" x 48" table, 0°-135° tilt, 360° rotation, VF drive, hand pendant w/ inverter variable speed control, 460 Volt, 3PH

Load Capacity- 10,000 lb @ 12" center of gravity
Tilt Range- 0135 powered tilt
Rotation- 360 powered rotation
Rotation Speed- Variable speed, approx. 0.041.0 RPM
Tilt Torque- 205,000 in-lb
Rotation Torque- 120,000 in-lb
Table Size- 48" × 48" square slotted table
Table Height- Adjustable from 44.5" to 74.5"
Height Adjustment- Manual, 6" increments
Drive System- Double-driven / double-geared worm drive
Controls- Hand pendant with inverter variable-speed control
Power- Typically 460V, 3-phase
Weight- Approx. 4,3005,300 lb depending on configuration
Rotation Drive- Variable frequency inverter (VF)
Self-locking aluminum-bronze worm gear drive
Double tilt gears for load stability
Inverter-controlled variable speed rotation
Heavy-duty fabrication for pipe, vessel, and structural welding
Compatible with chucks, tailstocks, and pipe stands
Designed for large offset loads like elbows and T-sections
