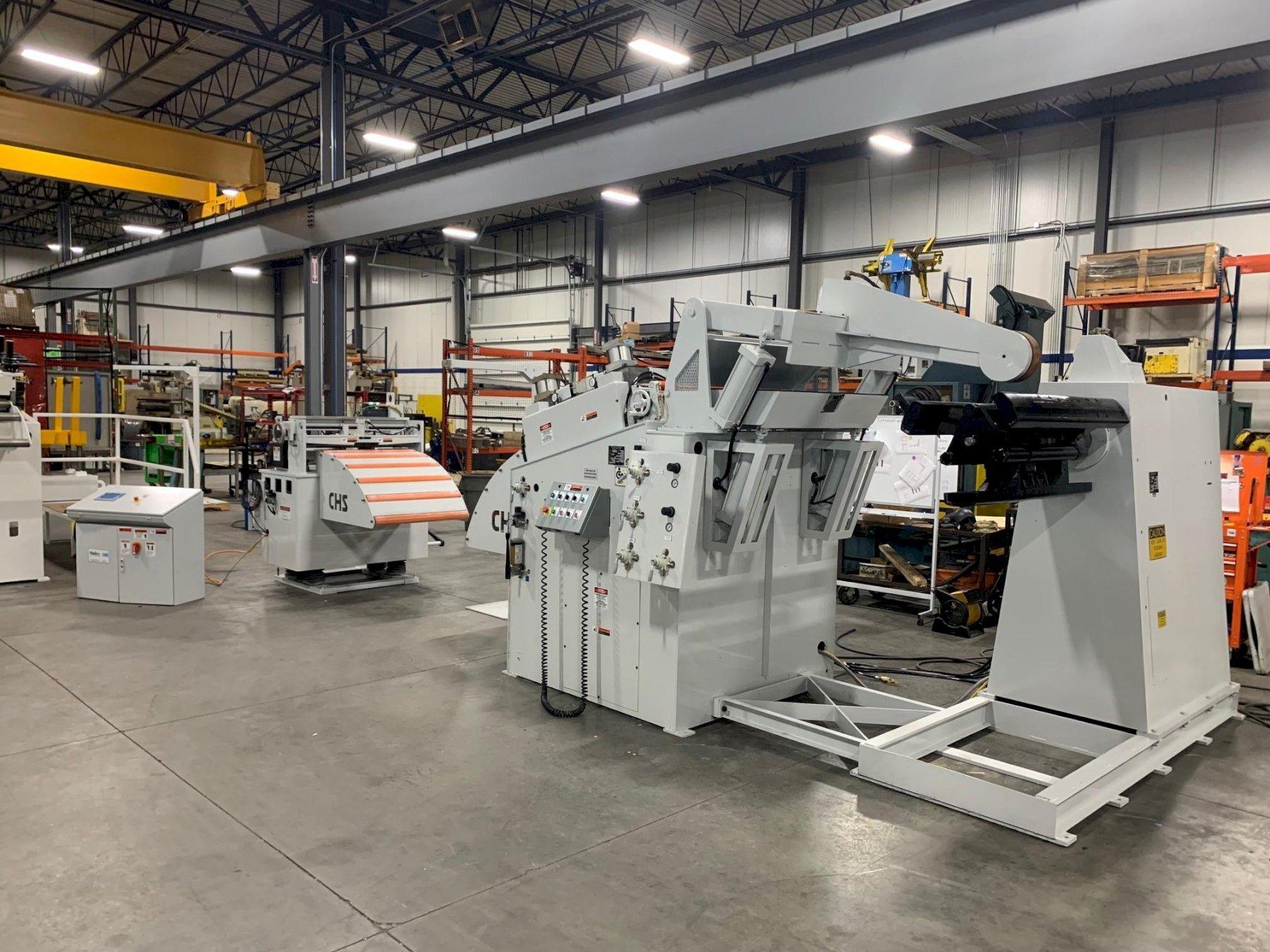

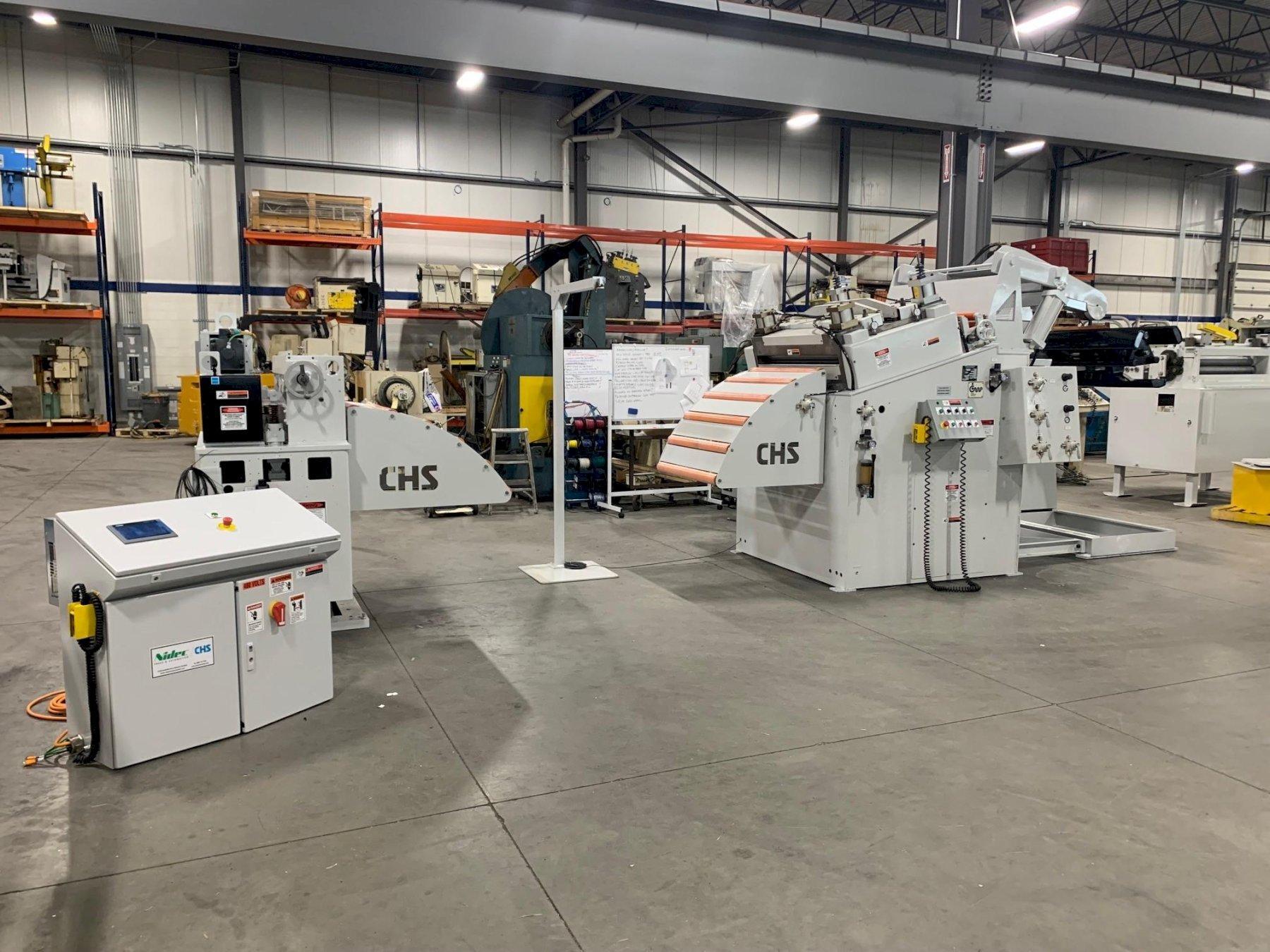

10000 lb. CWP #5R-42/42D11, coil reel & straightener, 42" W x .062" stock, 72" OD, 17.5"-22.5" ID, forward & reverse jog

Coil weight capacity: 10000 pounds

Stock Width Capacity 42 inches

Max Stock Thickness Capacity At Full Width .062 inches

Minimum expansion range: 17.5 inches

Maximum expansion range: 22.5 inches

Coil O.D. capacity: 72 inches

Specifications:
Coil weight capacity: 10,000 Lbs.
Coil width capacity: 42"
Stock thickness capacity: .062" x 42" Wide
Stock thickness capacity: .125" x 12" Wide
Expansion range: 17.5" - 22.5"
Coil O.D. capacity: 72"

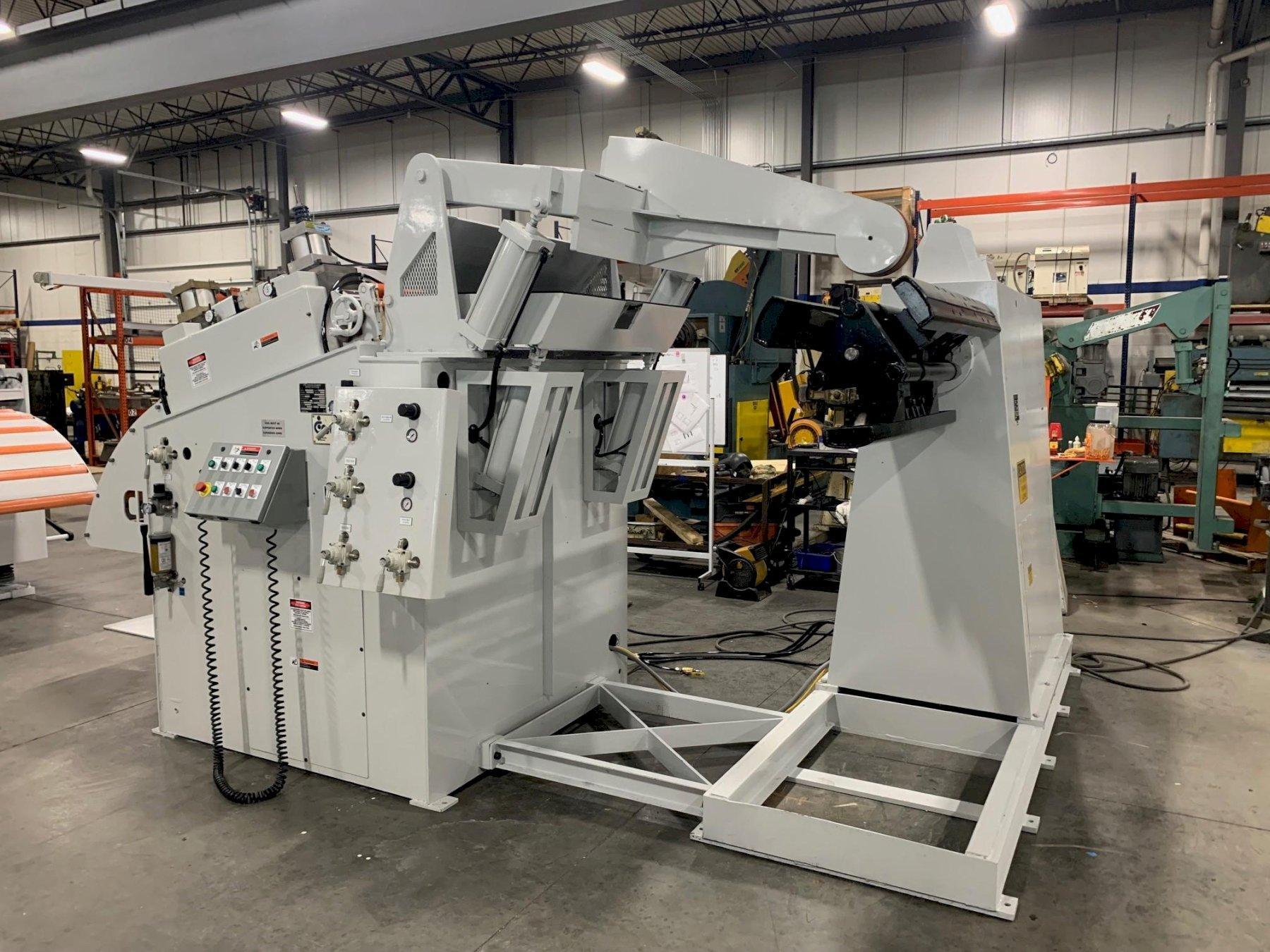

CWP Coil Reel Uncoiler Model No.: 5R-42, Serial No.: 053696-SR
Three leaf mandrel coil reel
Hydraulic coil reel mandrel expansion
Adjustable coil reel keeper arms
Air drag brake mounted on main coil reel spindle
Adjustable brake - pull off tension
Threading drive
Jog forward and reverse
Self contained hydraulic pump unit

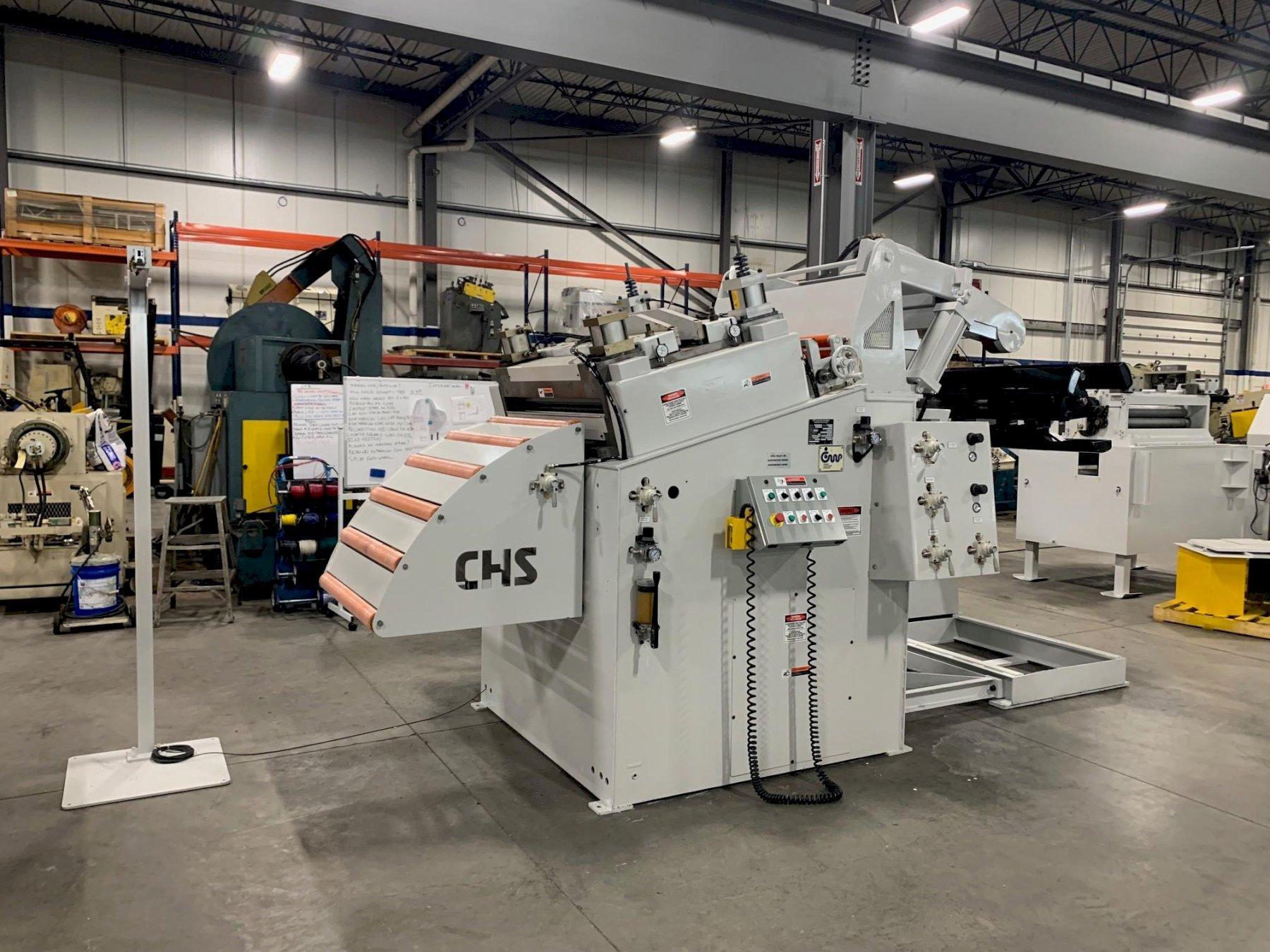

CWP Powered Coil Straightener Model No.: 42D11, Serial No.: 053696-STR
Entry and exit powered coil straightener pinch rolls x 4.20" diameter
Air operated entry upper powered coil straightener pinch roll adjustment
Air operated exit upper powered coil straightener pinch roll adjustment
Eleven coil straightening rolls x 2.80" diameter
Manual individual upper coil straightening roll adjustments
Coil hold down arm, peeler de-bender station
Motorized coil hold down arm end wheel
Stock peeler table with extension
Stock end debender
Heavy duty hand crank edge guides

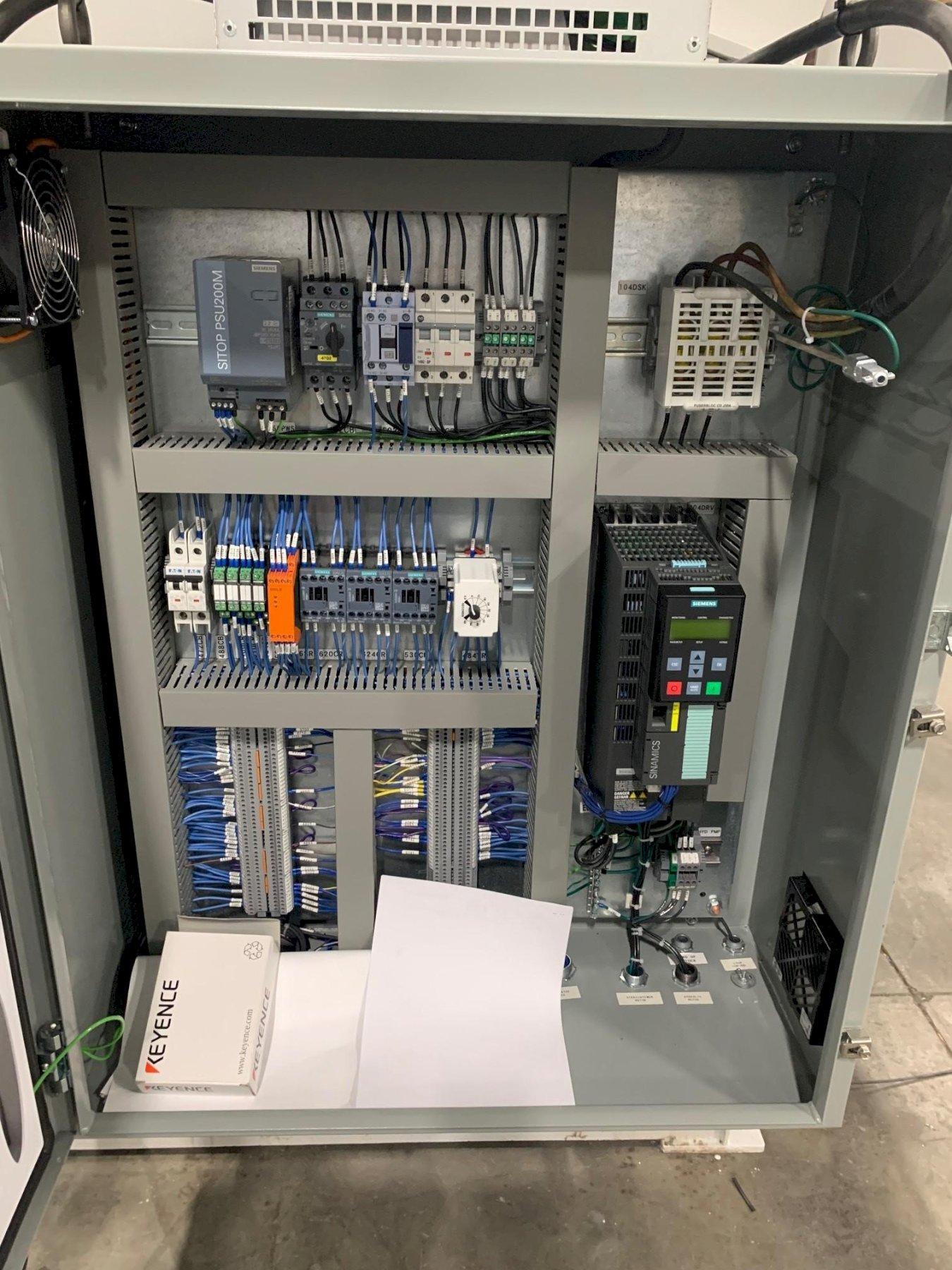

NEW AC VFD Control System
Exit cascade loop support rollers
Variable speed powered coil straightener drive system
New Laser Loop control
Reconditioned, painted and 100% cycling
Warranty: Ninety days parts warranty (controls)

Option 1
Perfecto Servo Roll Feed 36" Wide
Cabinet base mounted
All new AC Servo drive and controls
Consult sales for pricing
NOTE: Perfecto feeder would limit the line width capacity to 36"
Option 2
New NIDEC-CHS MX-4542 (42" Servo Feed)
Cabinet base mounted
Consult sales on prices for option 1 or 2
