10000 lb. Chambersburg, steam/air power hammer, 5 ton, 51" ram stroke, 5' inlet & exhaust, 28" x 32" ram area L-R & F-B

Mauldin Machine Inc.
Dealers In New and Used Industrial Machinery
PROPOSAL
We are pleased to offer, subject to prior sale and our “Standard Terms and Conditions of Sales", for immediate acceptance, the following:
ONE PREOWNED CHAMBERSBURG 10,000 POUND
STEAM/AIR POWER HAMMER COMPONENTS
SPECIFICATIONS: (subject to buyer verification)
Rated Size 5 Ton
Ram Stroke 51"
Distance Between Guides at die lines 28"
Ram Area L-R & F-B 28" x 32"
Anvil Die Face L-R & F-B 33 5/8" x 42"
Inlet and Exhaust 5"
Cylinder Bore Diameter 26.75"

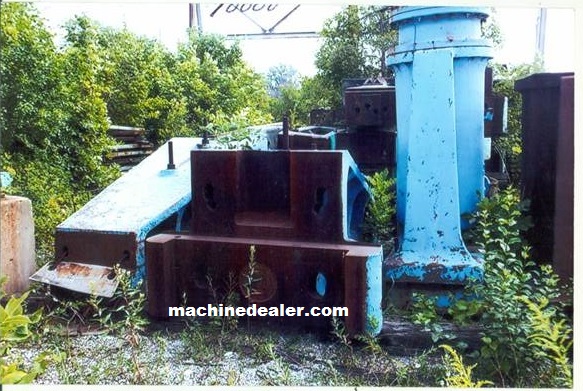

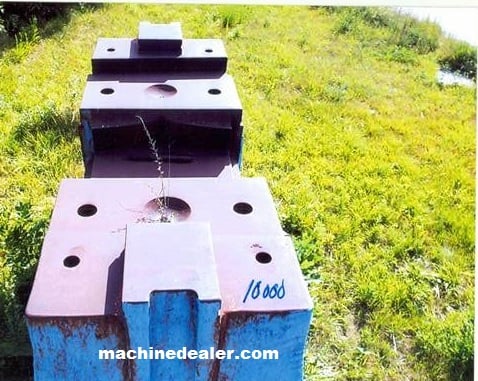

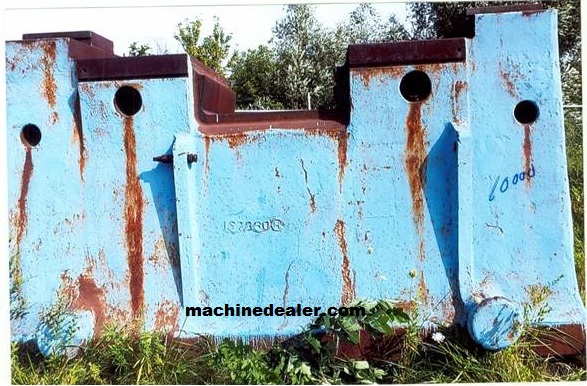

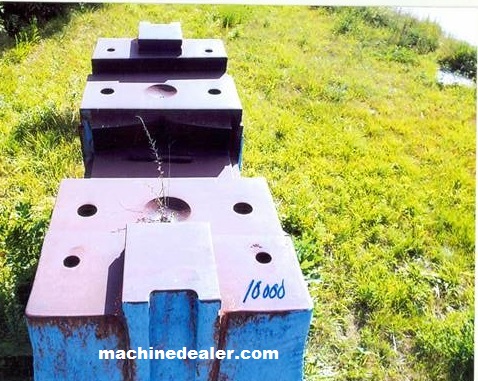

HAMMER COMPONENTS INCLUDED:
(2) 10,000# Hammer Columns (1) 10,000# Anvil
(1) 10,000# Cylinder (1) 10,000# Ram
(2) 10,000# Hammer Tie Plates (1) 10,000# Rod and Piston
(1) 10,000# Hammer Cap (1) 10,000# Various Components
LOCATION: Illinois, USA
CONDITION: Good. Dismantled and in storage. Hammer was assembled and cycled. Made no parts. Later dismantled and put into storage. Some linkage and base bolts are missing.
This hammer has an oversized bore and piston. It is capable of producing more energy with less pressure.
PRICE……………AS INSPECTED/LOADED TO TRUCK………….$POR USD
Stk#2757CE SPICIFICATIONS are from Chambersburg Catalog. Subject to verification.
Specifications are correct to the best of our knowledge but are subject to correction upon inspection. All sales are subject to our “Standard Terms and Conditions of Sales" with exception made only by Mauldin Machine Inc and all parties involved in the transaction.
