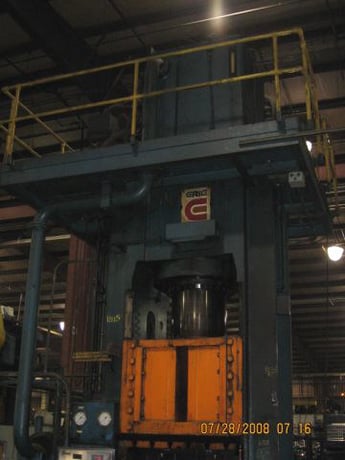

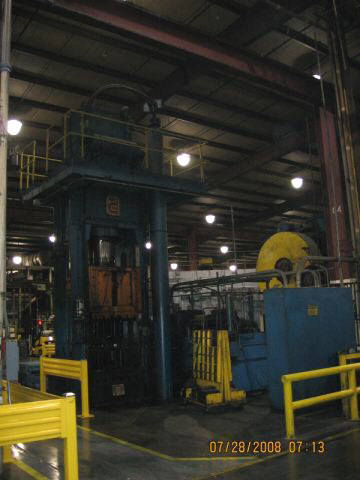

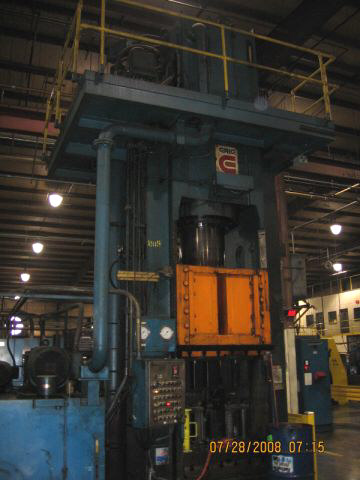

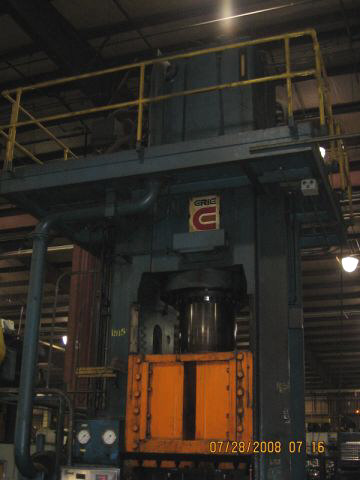

1000 Ton, Lake Erie, 48" x 48" bed, 26" stroke, 72" DL, 46" Shut Height, 1989

ONE PRE-OWNED ERIE 1000 TON HYDRAULIC FORGING PRESS,
S/N 25-8863, NEW IN 1989
SPECIFICATIONS:
Capacity-Pressing 1000 Tons
Bed Area (L-R x F-B) 48” x 48”
Top & Bottom Bolster Thickness 6”
Daylight Between Bolsters 72”
Stroke 26”
Shut Height 46”
Main Ram diameter-Single Acting 26”
Side Cylinders Dia. (2)- Commercial 5” x 3”
Top Ejector Capacity 15 Tons
Top Ejector Stroke 6”
Bottom Ejector Capacity 15 Tons
Bottom Ejector Stroke 8”
Maximum Height Under Crane 24’
Tank Area 60” x 120”
Foot Print 4’ x 7’
PRESS OPERATING SPEEDS:
Advance 600 in/min
Pressing w/Accumulator System (6” working stroke available) 600 in/min (adj)
Return 600 in/min
Top Ejector Extend 300 in/min
Bottom Ejector Extend 300 in/min

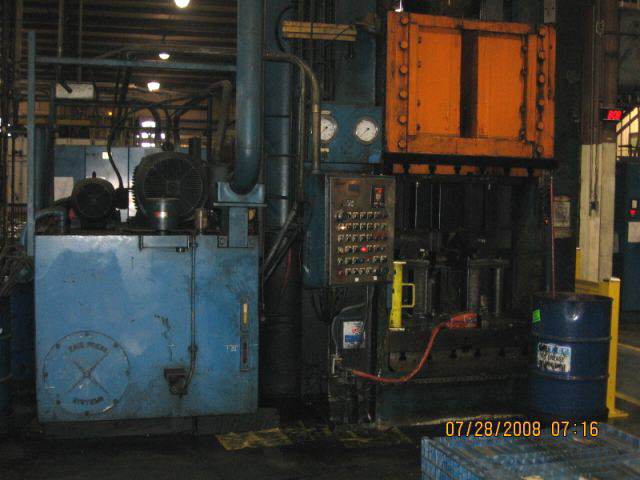

HYDRAULIC PUMPING UNIT:
1-Axial Piston Pump
1-Double Vane Pump
1-Accumulator System
* 1-200 HP Electric Motor @ 1200 RPM, TEFC Double Shaft (Kaiser to furnish)
* Erie Press Systems requires certified print to design Pumping
unit S.A.P. –P.D.Q.
1-Full Voltage Motor Starter
Electrical Characteristics 3/60/480
Press Operating Pressure 4500 PSI
THEORETICAL TIME CYCLE:
Advance 14” 1.4 Sec
Press 4” 0.4 Sec
Return 18” 1.8 Sec
Valve Response Time 1.5 Sec
Acceleration & Deceleration 1.5 Sec
TOTAL 6.6 Sec
Theoretical Strokes Per Min 6 Stk/Min
(Based on Accumulator Recovery)
LOCATION: Michigan, USA
PRICE……………………..AS INSPECTED……………………..POR
