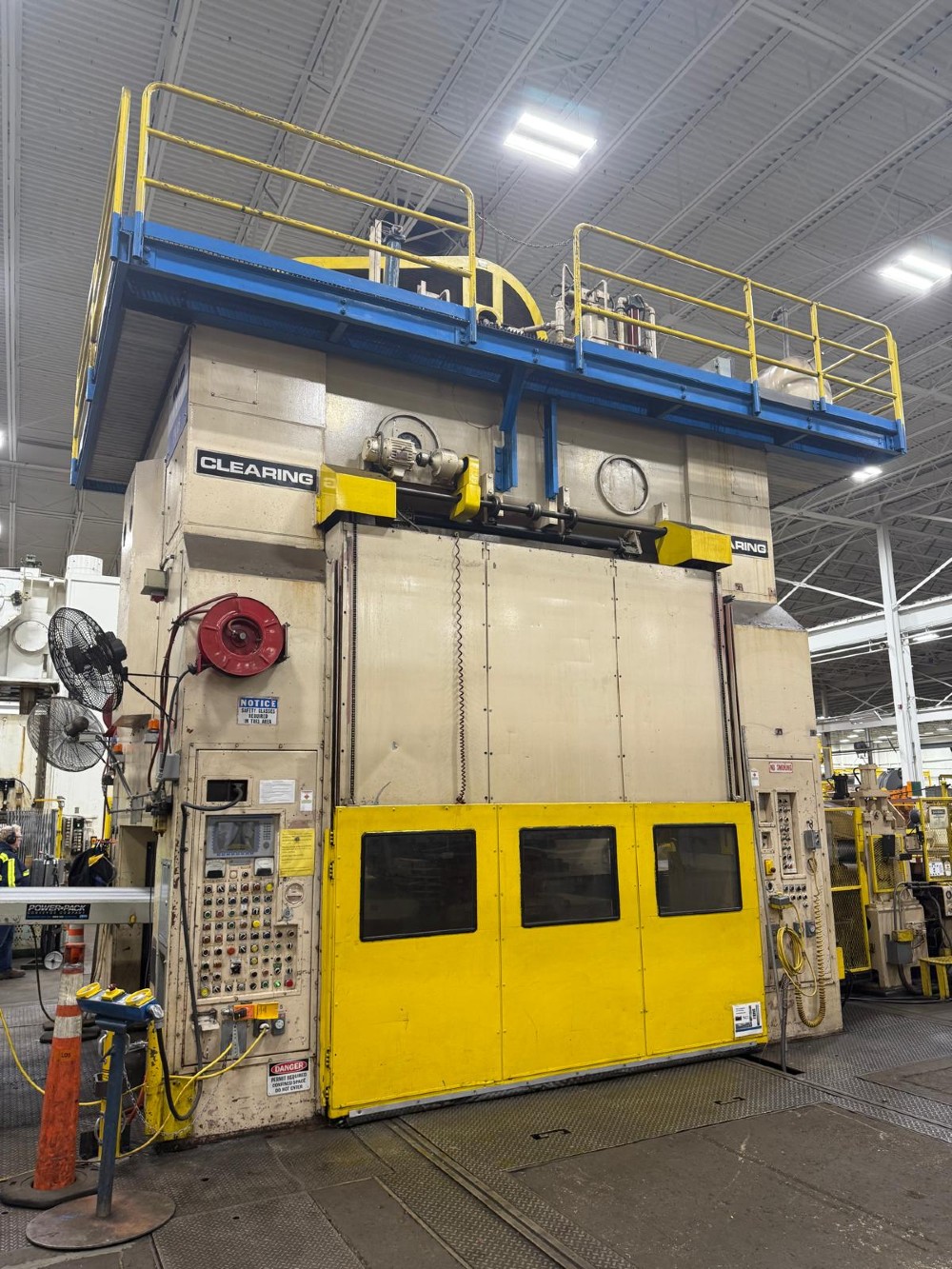

1000 Ton, Clearing #S4-1000-120-84, 120" x 84" Die Space, 12" Stroke, 44" Shut Height, 10-60 SPM

Dimension & Capacities:

• Frame capacity: 1000 tons

• Drive capacity: 1000 tons, ½″ up on stroke

• Slide & bed area: 120″ L–R × 84″ F–B

• Clearance between uprights: 122″

• Upright opening: 94″ F–B × 69″ high — starting at top of bed

• Integral moving bolster carriage: 120″ L–R × 84″ F–B with 8″ thick top plate

• Total bolster carriage height: 17″

• Passline above bolster carriage: 30″

• Stroke of slide: 12″

• Adjustment of slide: 2″ by motor

• Strokes per minute: 20 to 60 continuous, 30 intermittent

• Full flywheel energy @ 40 S.P.M.

• Inch speed: 20 S.P.M.

• Shut-height/stroke down adjustment up: 44″ top of integral carriage to bottom of slide

• Shop floorline to top of bed: 0″

• Overall press height – floor line to top of press: approx. 269″

Estimated Weights:

• Crown assembly: 145,000 lbs

• Slide assembly: 57,900 lbs

• Upright assembly (2): 49,500 lbs

• Bed structure: 78,000 lbs

• Bolster carriages (2): 33,000 lbs

• Tie rods, hydraulic nuts & standard nuts: 21,000 lbs

• Miscellaneous: 59,000 lbs

• Total: 476,400 lbs
