Description

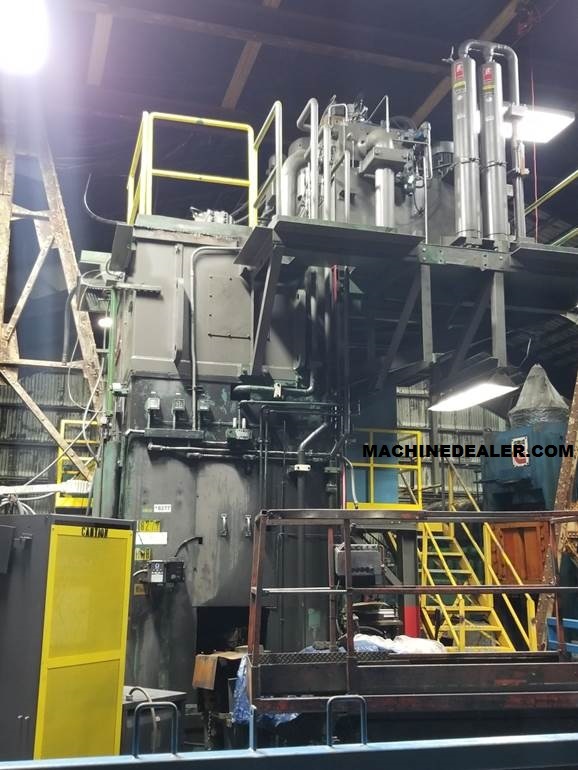

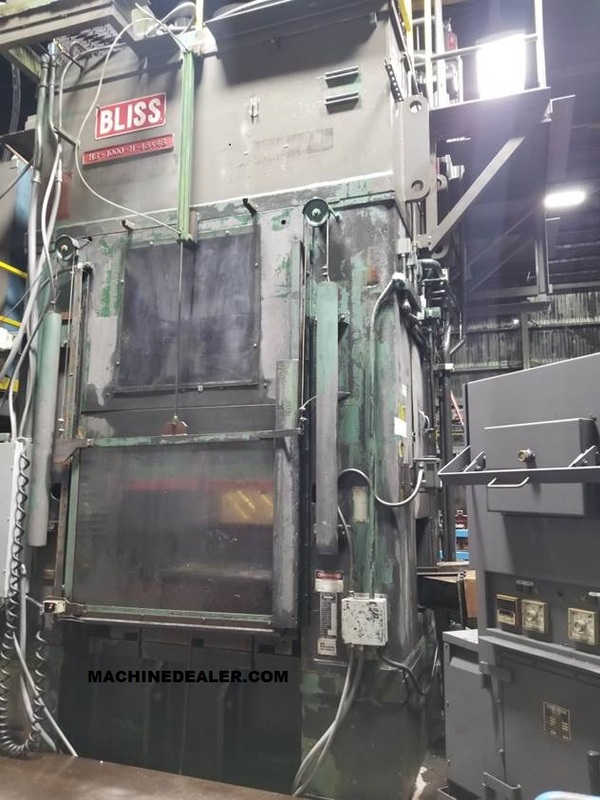

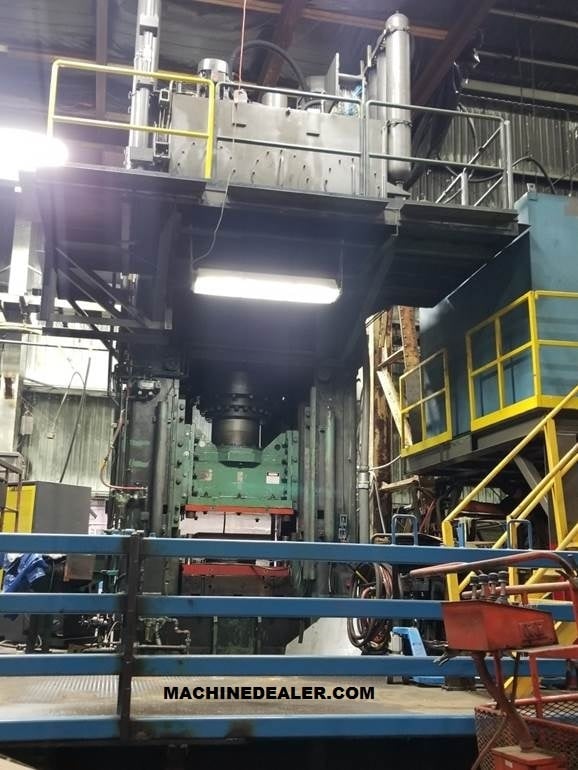

TWO PREOWNED BLISS HYDRO-DYNAMIC 1,000 TON HYDRAULIC FORGING PRESS CELLS MODEL HS1000-H-48-48, S/N 30323
SPECIFICATIONS:
Capacity @ 4500 PSI…………………………………….………….…….1,000 Tons
Pull Back Capacity……………………………………………………………..75 Tons
Daylight 40"
Stroke …………………………….24"
Shut Height…………………………………………………………………..………16"
Approach Speed……...…………………………………………….…...……1000 IPM
Press Speed @ 1,000 Tons……...………………………………………...….500 IPM
Ram Return Speed………………………………………………………..…..1000 IPM
Bed Size L to R & F to B………………………………………………………48" x 48"
Ejector Capacity………………………………………………………………...15 Tons
Ejector Speed ..250 IPM
Pump Capacity……………………………………………………………….…75 GPM
Motor………………………………………………………………..200 HP, 1200 RPM
Approximate Weight 149,000 lbs
Approximate Height Above Floor………………………………………………..21’ 6"
EQUIPED WITH:

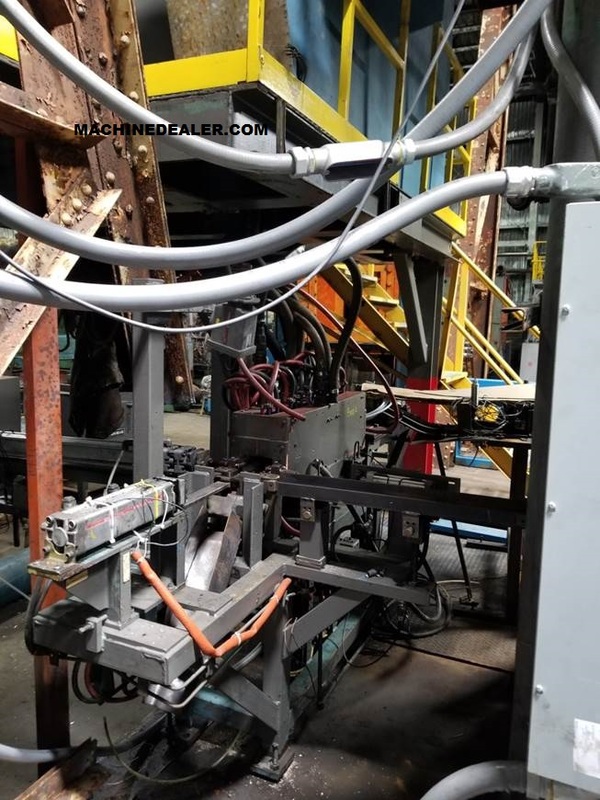

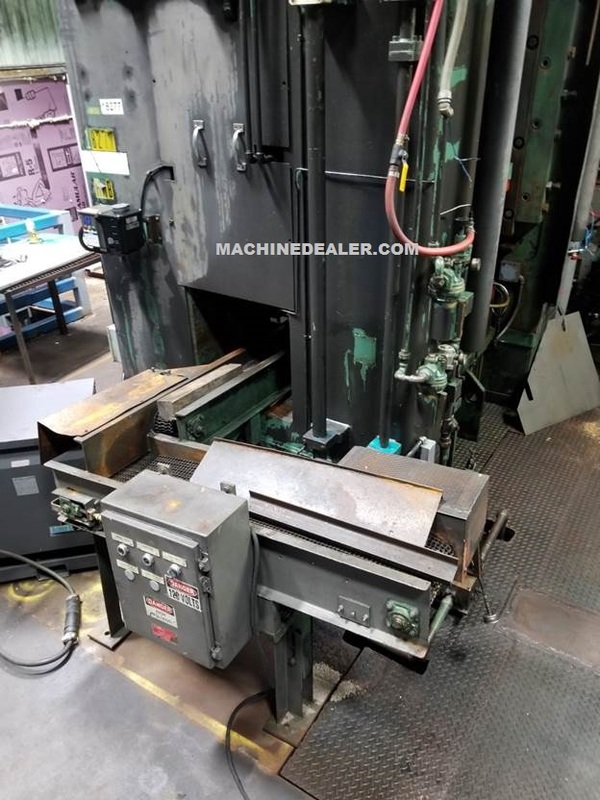

FeedAll Automation Feed Systems

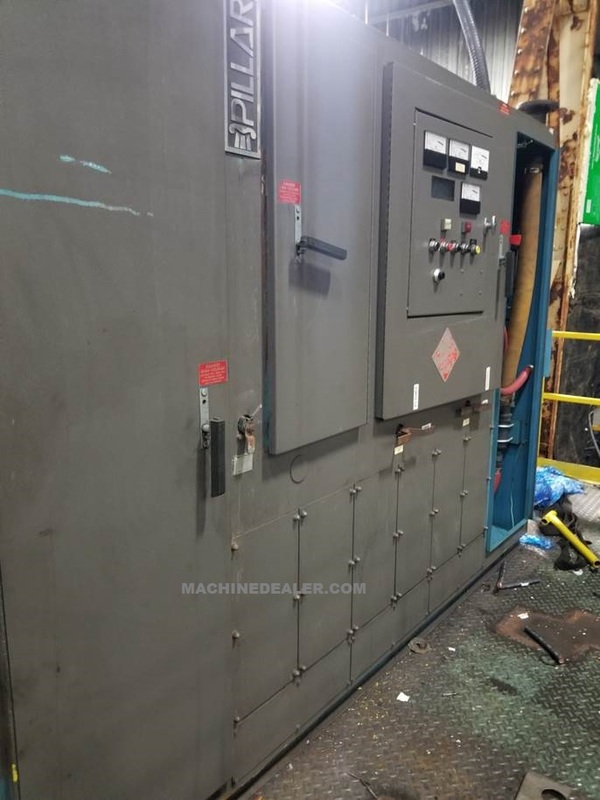

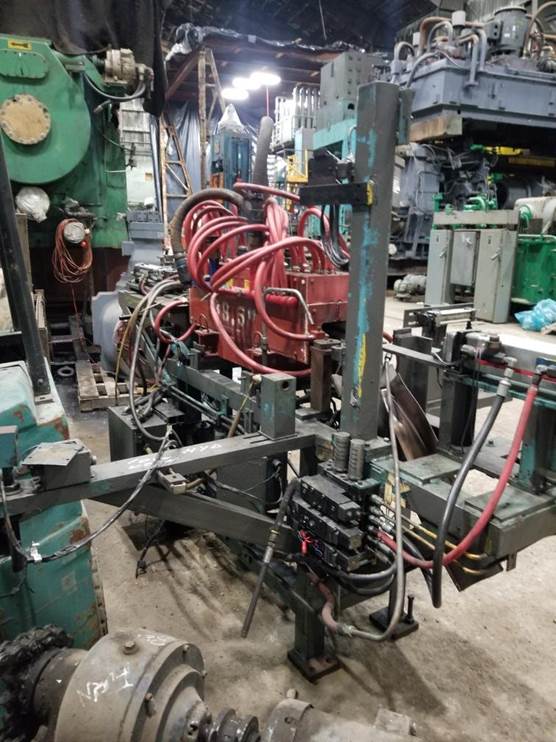

Piller Induction Heaters 400 KW Model AB555-4006/MK8 (2)

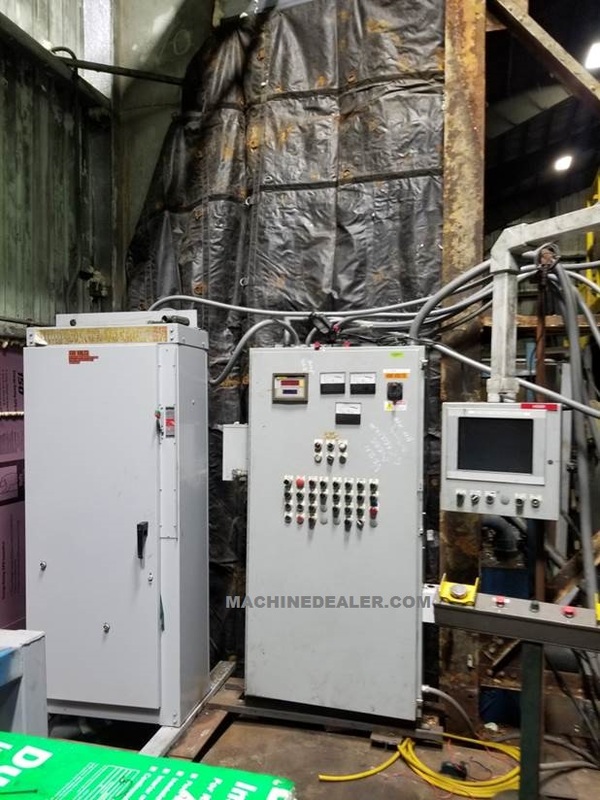

Updated Controls in 2013 with Touch Screen Monitors
Tooling and Dies for Forging and Trimming Turbine Blades

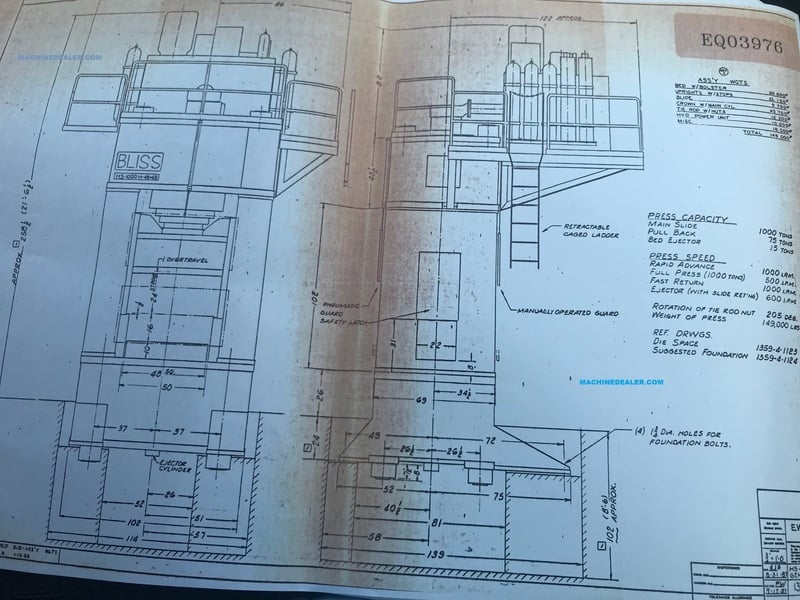

Manuals and Documentation
In Process Gaging
Condition: Very Good-Very Well Maintained Presses. One Press is Under Power.
Location: Michigan - In Storage
These two press cells were last used by a well known US company in production of forged turbine blades. The blades were used in both aerospace and in gas turbine generator power plants. The blades were both forged and trimmed in the presses. Dies and tooling for several families of turbine blades are included with the cells. Each cell only required one person for operation. Heated material was feed to the press and forged and trimmed blades were conveyed away from the cell.
PRICE…………………AS INSPECTED……………….……………..$POR
Stk#3017CVG
Specifications are correct to the best of our knowledge but are subject to correction upon inspection. All sales are subject to our “Standard Terms and Conditions of Sales" with exception made only by Mauldin Machine Inc and all parties involved in the transaction.
3024 Discovery Drive • Jacksonville, Arkansas 72076 • Phone: (501) 835-5494
PO Box 8549 • Jacksonville, Arkansas 72078
Website: www.mauldinmachine.com • E-mail: mail@mauldinmachine.com
