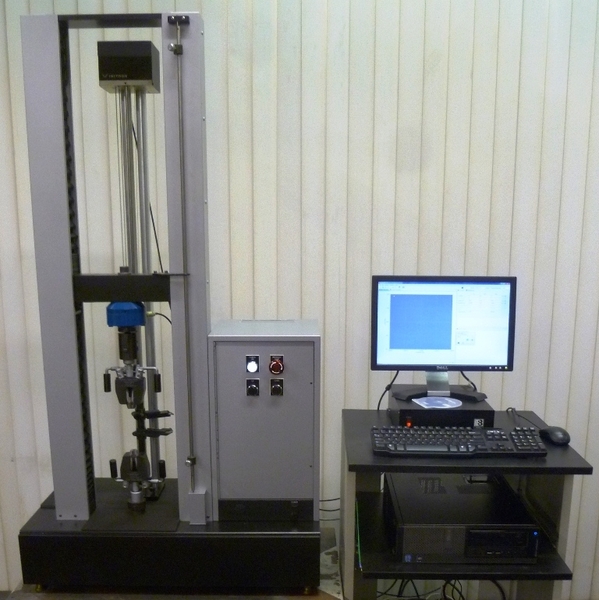

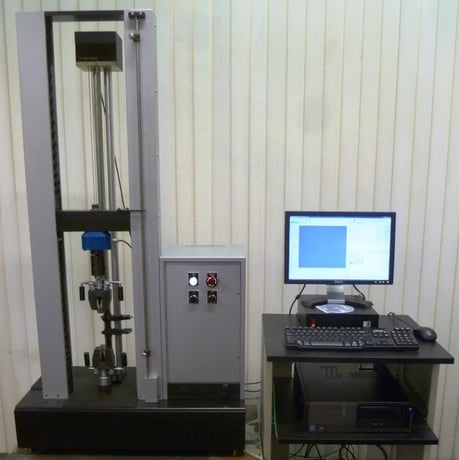

1000 lbf Instron #1011, Tension And Compression Machine

(1) Reconditioned 1K Instron 1011, Electro-Mechanical Tension and Compression Testing Machine. Updated with New SCR Solid State Variable Speed Drive Controller & 1000 lbf. load cell S/N-C3161

Instron 1011

SPECIFICATIONS:

Tension Testing Opening (Less Tooling): 42"

Compression Testing Opening (Less Tooling): 42"

Distance Between Columns/Screws: 9.8"

Testing Stroke: 42"

Table Size (W x D): 9.8" x 3.5"

Testing Speed (IPM): 0.05 - 20

Crosshead Adjusting Speed (IPM): 20

Approximate Overall Dimensions:

Load Frame (W x D x H): 32" x 13" x 58"

Approximate Weight (lbs.): 205

Electrical Requirements (V,Hz, PH): 120, 60, 1

EQUIPPED WITH:

• A Model eP2 Autoranging Digital Indicating System & Servo Controller.
• GageSafe Live Software for Analysis Real Time Display and Data Management.
• Three Channels with Load, Position and Strain Measurement.
• New Solid State Drive Controller for Precision Control of Testing Rates.
• New 1,000 lbf (5kN) Load Cell (or Load Cell of Choice).

FOB Warren, MI

Reconditioned/Retrofitted & Certified

1 Year Parts and Labor Warranty
