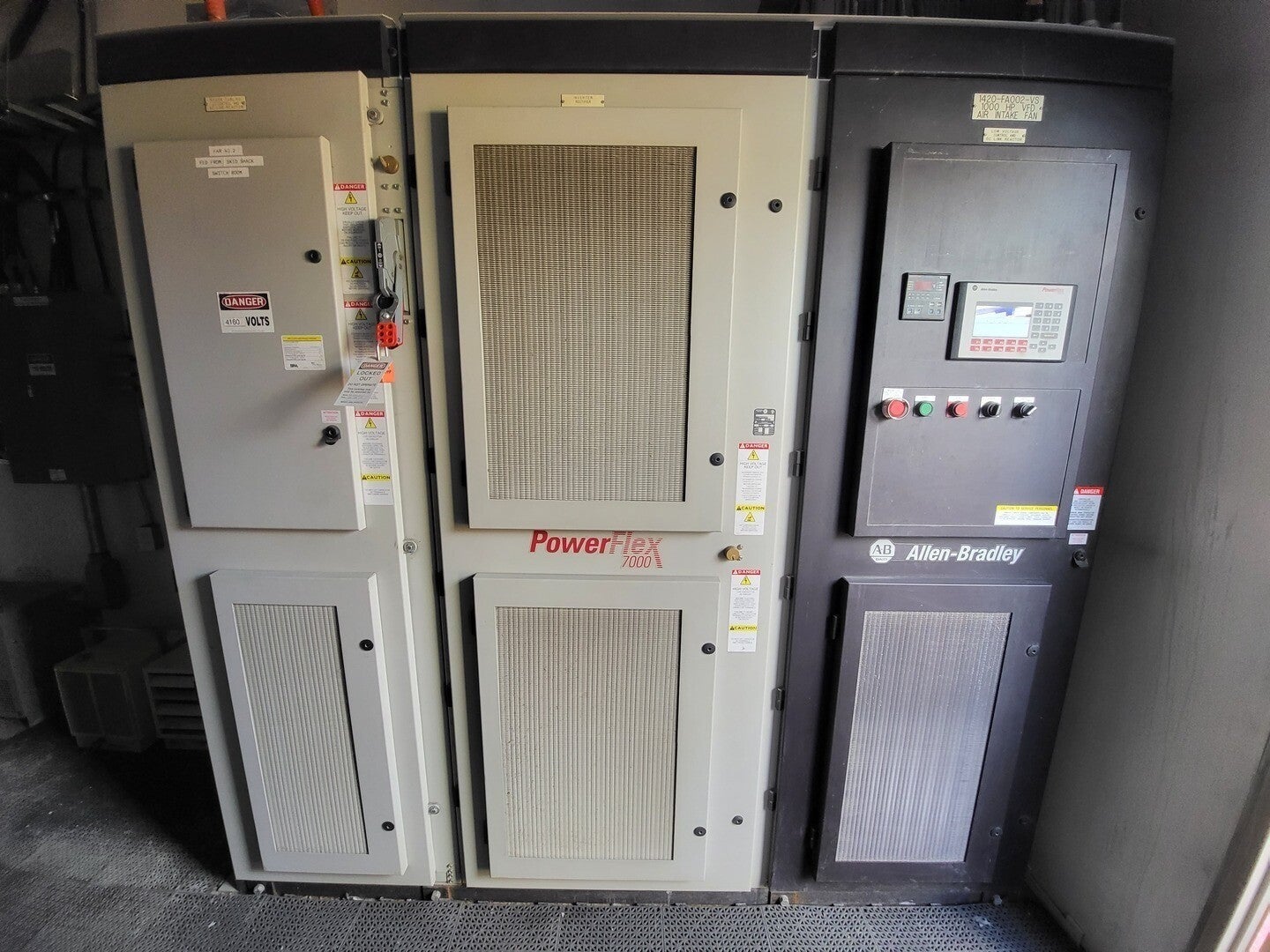

1000 HP Allen-Bradley, 7000A-A140DE-RPDTD, Powerflex 7000 VFD, insulated building, 4160 Volts

$160,425 USD

Request Formal Quote

SKU: 104798
Model: 7000A-A140DE-RPDTD
Condition: Used
Electrical Specifications:
Horsepower: 1000 hp
Voltage: 4160 volts
Phase: 3-phase
Amps: 140 amps
Dimensions: 142.00 (H) x 110.00 (W) x 240.00 (L) inches
Additional Description:

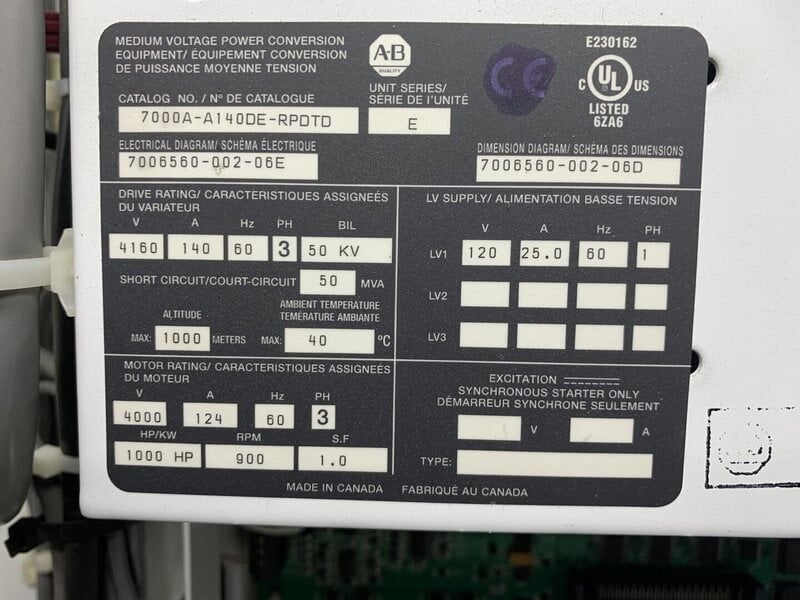

VFD Specifications:
- Catalog No.: 7000A-A140DE-RPDTD
- Unit Series: E
- Drive Rating: 4160V, 140A, 60hz, 3-Ph, 50KV BIL, 50MVA Short Circuit Rating
- Motor Rating: 1000HP, 4000V, 900RPM, 124A, 60hz, 3-Ph
- Motor: BALDOR 5HP, 208-230/460V, 1750RPM, 184T Electric Motor 36L513X864H2
Building Components:
- Variable Frequency Drive (VFD)
- Load Center - 575V/3-Ph, 400A
- Transformer - 600V/240-120V, 30kVA
- Distribution Panel - 240-120V, 225A

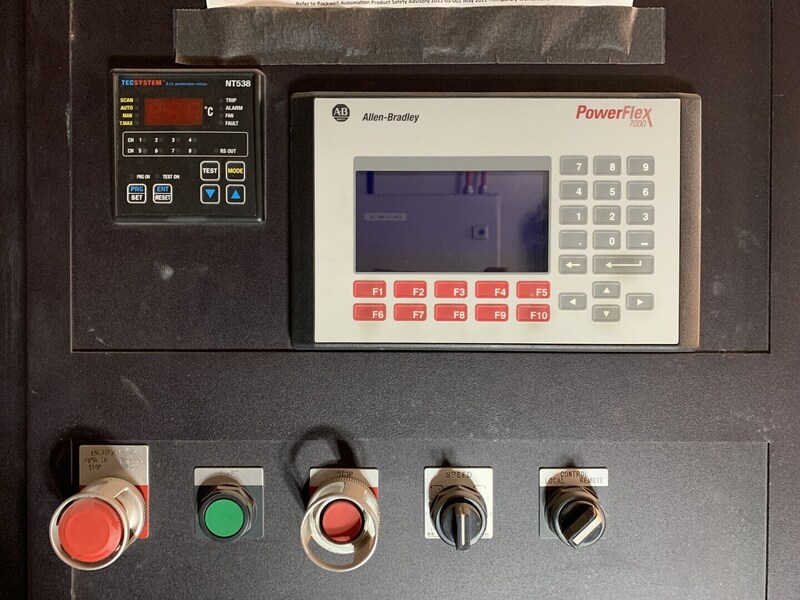

- Control Panel (PLC, HMI)
- Air Flow Monitor
- CO Monitor
- UPS (Power Supply)
- Exhaust Fan - LEADER #LDR-AX20-IV
- Line Voltage Cooling Thermostat
- Fixed Louver - Model 2225
- Motorized Damper - Model MBDFFM
Wall Construction:
- 4in. Steel Structural Framing
- 4in. Mineral Wool Insulation
- #16 GA. Steel Liner on Inside
- #22 GA. Corrugated Steel Panel Exterior
Roof Construction:
- 6in. Steel Structural Framing
- 6in. Mineral Wool Insulation
- #16 GA. Steel Liner on Ceiling
- #22 GA. Corrugated Steel Panels on Roof
Floor Construction:
- 6in. Steel Structural Framing
- 2in. Styrofoam
- 3/16in. Steel Floor Plating
