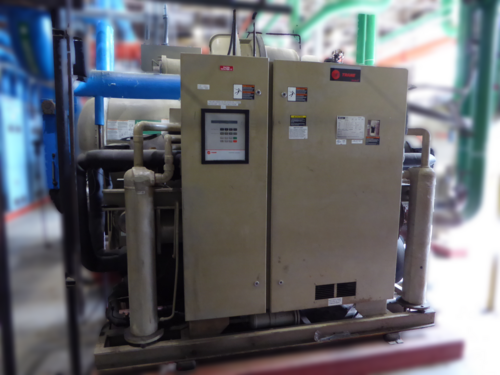

100 Ton, Trane Series R #RTWA100, Water-Cooled Chiller, dual compressor, 88,797/67,514 hours, 2011

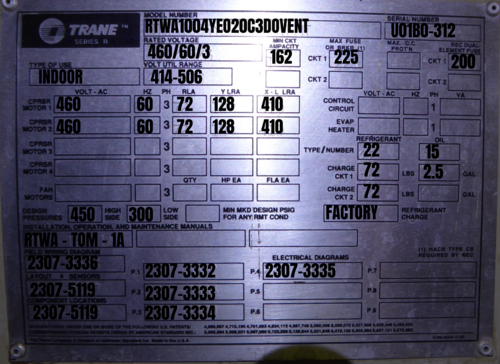

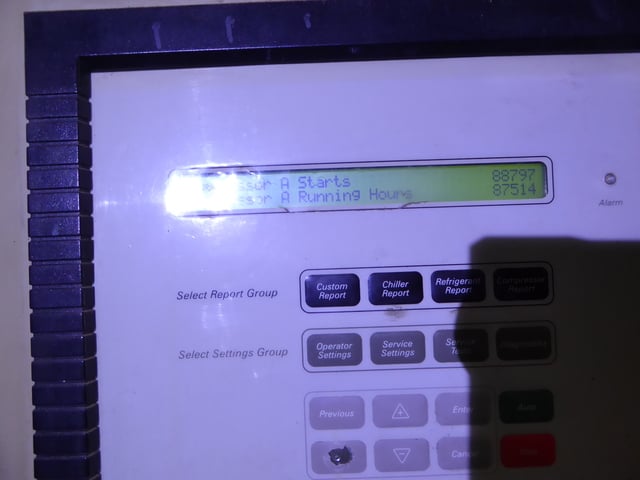

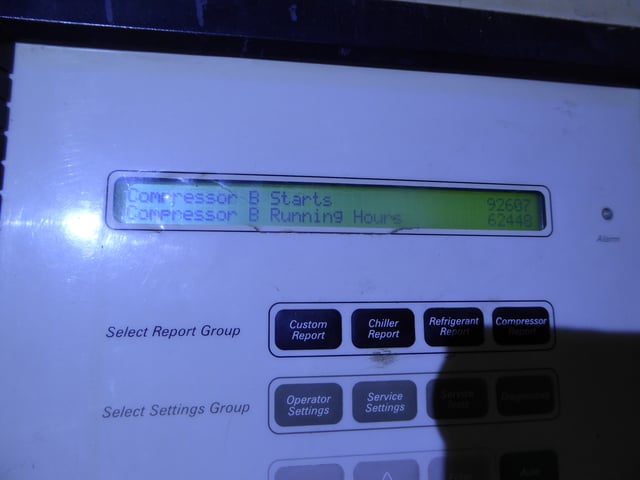

Overview This 100-Ton Trane Series R RTWA100 Water-Cooled Rotary Screw Chiller is designed for commercial and industrial cooling applications requiring reliable, efficient chilled water production. This unit delivers exceptional cooling performance with Trane's proven rotary screw compressor technology and advanced digital controls. Manufactured in 2011, this chiller provides efficient operation for facilities requiring mid-range cooling capacity with modern control systems and proven reliability. Design and Performance Cooling Capacity: 100 Tons (Nominal) Model: RTWA1004YEO2C3DOVENT Serial Number: U11L25316 Type of Use: Water-Cooled Chiller Voltage: 460/230/3 Electrical Characteristics: 3 Phase, 60Hz Full Load Amps (FLA): 122 Amps per Compressor Control System: Digital Touch Screen Interface Compressor Type: Dual Rotary Screw Compressors Number of Compressors: 2 Voltage Utilization Range: 414-506V Running Hours - Compressor A: 88,797 Hours Running Hours - Compressor B: 67,514 Hours Starts - Compressor A: 2,297 Starts - Compressor B: 3,855 Operating Parameters Total System Running Hours: 88,797 (Compressor A) / 67,514 (Compressor B) Compressor Configuration: Dual Independent Circuits Control Circuit: Electronic with Digital Display Evaporator Heater: Included Key Specifications Condition: Used - Operational Manufacturer: Trane (Industry Leader in HVAC) Chiller Type: Water-Cooled Rotary Screw Nominal Capacity: 100 Tons Year Built: 2011 Control Power: 115V Single Phase Safety Listing: UL Listed (SA8373) Electrical Diagrams: 2307-3335 / 2307-3338 Operating Voltage Range: 414-506 VAC Maximum Fuse/Circuit Breaker: 225 Amps Electrical Specifications Main Power Requirements: 460V, 3 Phase, 60Hz Compressor Motor FLA: 122A (each) Compressor Motor LRA: 410A Control Circuit: 115V, 1 Phase Circuit Configuration: Dual Independent Circuits Motor Protection: Electronic Overload Protection Starting Method: Y-Delta or Direct Ideal Applications Commercial Office Buildings Hotels and Hospitality Retail Centers Educational Facilities Healthcare Outpatient Centers Light Industrial Processes Data Centers (Secondary Cooling) Manufacturing Facilities Food Processing Plants Pharmaceutical Operations Benefits Dual screw compressor design for staging and redundancy 100-ton capacity ideal for mid-sized applications Independent dual circuits provide backup capability Lower hours on Compressor B indicates reserve capacity Digital control system for precise temperature management Compact footprint for mechanical room installation Energy-efficient rotary screw technology Factory-tested performance UL Listed for safety compliance Proven Trane reliability and service network Additional Information Condition: Used - Fully Operational Current Location: Industrial Facility Total Operating Hours: 88,797 (Lead) / 67,514 (Lag) Maintenance History: Regular Service Intervals Control Interface: Digital Display with Menu Navigation Safety Features: High/Low pressure safeties, freeze protection Service Support: Trane factory-trained technician network Installation Manuals: Available per model specifications Efficiency Rating: High-efficiency screw compressor design
Location: Ohio
