For Sale by Machinery Values Inc
Surplus Record Dealer Since 2011
Location: Harrison, NJ
Contact Rick Lazarus
Phone Number: 973...> Show Phone Number 973-497-7600
Let the seller know you found their listing on Surplus Record!
Description

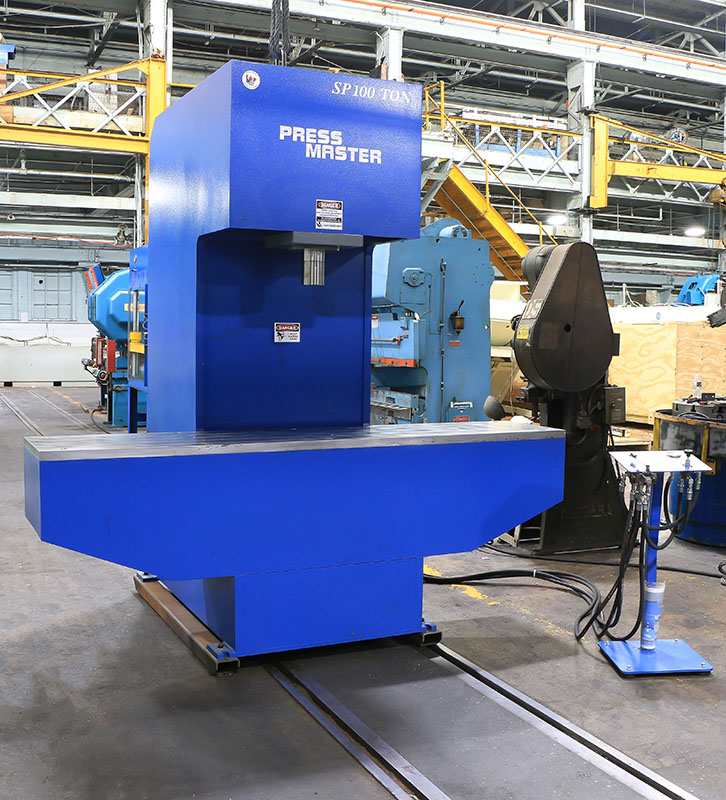

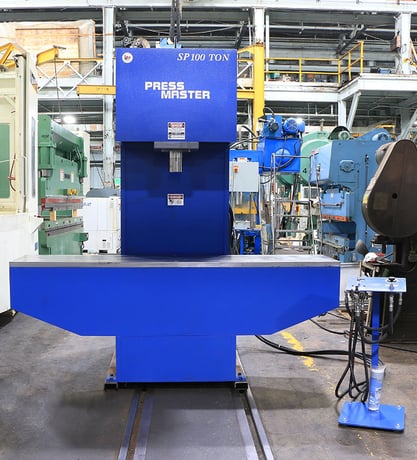

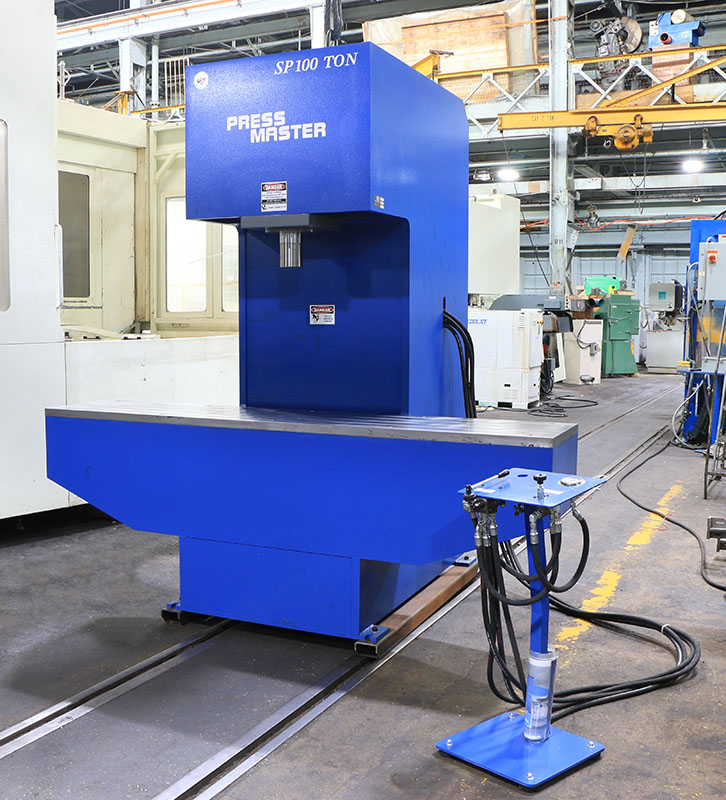

100 TON PRESSMASTER HYD. STRAIGHTENING PRESS
MODEL SP-100T
RATED CAPACITY .............................. 100 TONS
PRESSING SPEED .............................. 20 IPM
ADVANCE SPEED ............................... 20 IPM
RETURN SPEED ................................ 26 IPM

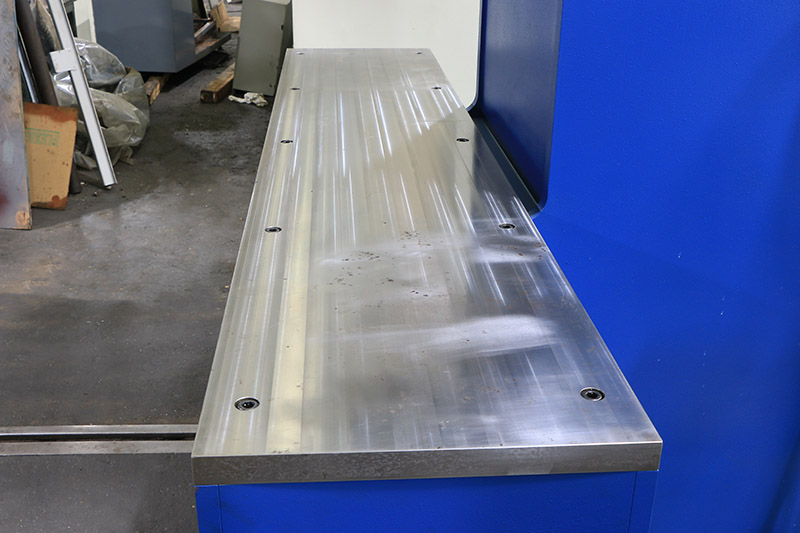

TABLE WIDTH ................................. 96"
TABLE DEPTH ................................. 20"
FULL STROKE ................................. 18"
THROAT DEPTH ................................ 12"
DAYLIGHT .................................... 27"
FLOOR TO TABLE ..............................″5"
MOTOR ....................................... 10 HP
STANDARD FEATURES:

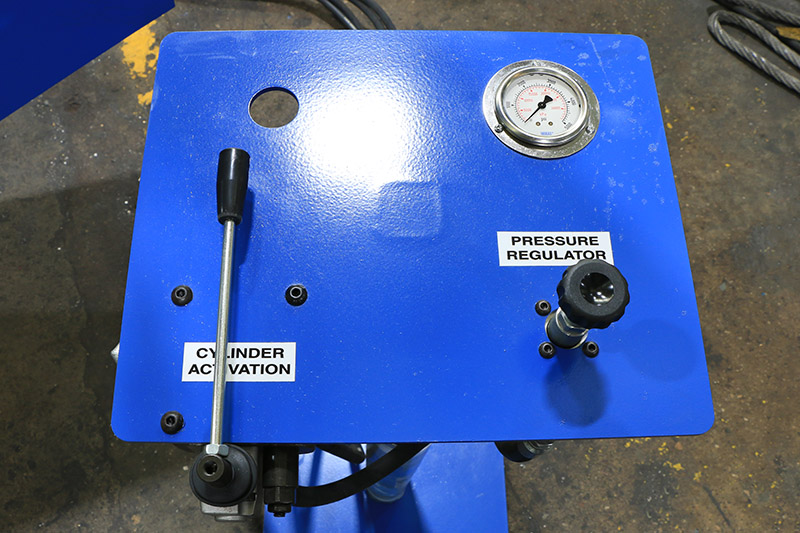

- CYLINDER ACTIVATION IS FINGERTIP CONTROLLED, THE MORE THE HAND
LEVER IS ENGAGED, THE MORE THE RAM MOVEMENT IS ACCELERATED, THIS
ALLOWS THE OPERATOR TO MATCH THE SPEED TO THE TASK.
- ELECTRIC-HYDRAULIC OPERATION PROVIDES SMOOTH, CONSISTENT
PRESSING ACTION

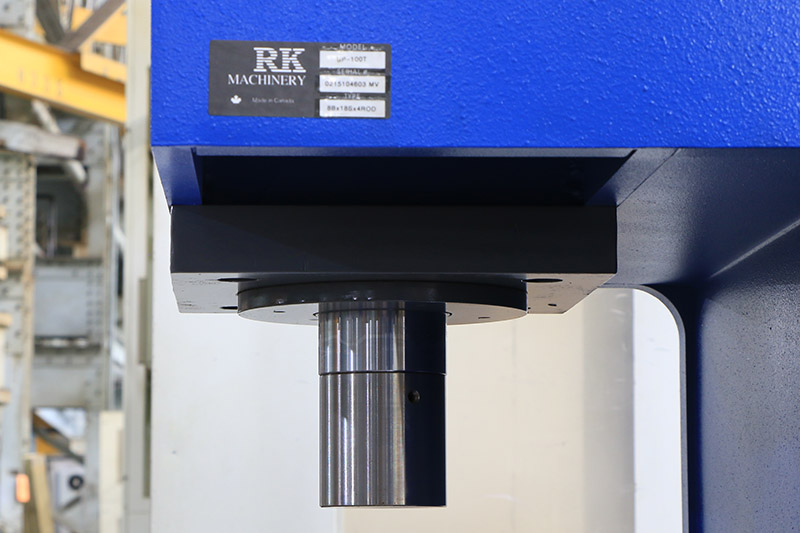

- FLAT RAM NOSE CAN BE EASILY CHANGED TO ALLOW THE USER TO ADAPT
THE PRESS TO A SPECIFC JOB.
- PRESSURE GAUGE
- PRESSURE REGULATOR, LIMITS RAM PRESSURE…
- HIGH CAPACITY 40 GALLON HYDRAULIC OIL RESERVOIR.
- LOW SPEED BALDOR ELECTRIC MOTOR 230/460″ PHASE
- LOW SPEED PUMP FOR QUIET DEPENDABLE OPERATION
- LOW PRESSURE HYDRAULIC SYSTEM, MAINTAINS LOWER OIL TEMPERATURES
RESULTING IN HIGHER EFFICIENCY AND SAFER OPERATION.
- ONE YEAR WARRANTY
- MFG. IN NORTH AMERICA - ALL HYDRAULIC AND MECHANICAL PARTS ARE
STANDARD IN THE INDUSTRY AND AVAILABLE THROUGHOUT NORTH AMERICA.
OPTIONS:
- STROKE CONTROL W/FOOT PEDAL ............. $
- FOOT PEDAL .............................. $
- SINGLE PHASE MOTOR ...................... $
- SPEED CONTROL ........................... $
- HAND HELD REMOTE ........................ $
DIMENSIONS: 60" X 96" X 106"
WEIGHT: 12,800 LBS.
