100 Ton, Press Master #HFP-100-MWH, 12" stroke, 8" bore, movable workhead, #147576

Manufacturer: Press Master
Model: HFP-100-MWH
Ton: 100
Stroke: 12.00
Stock # 147576

For Sale by Machinery Values Inc

Gold Level Dealer
Surplus Record Dealer Since 2011

Description

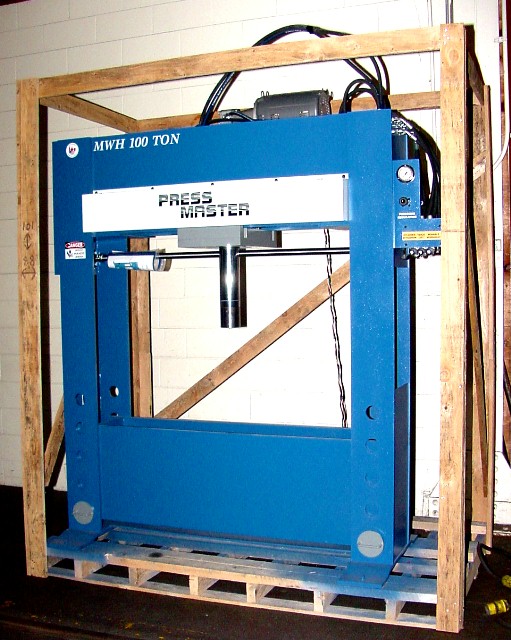

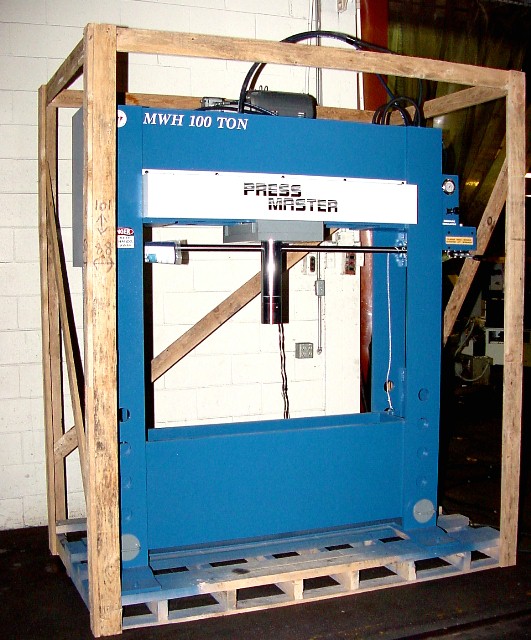

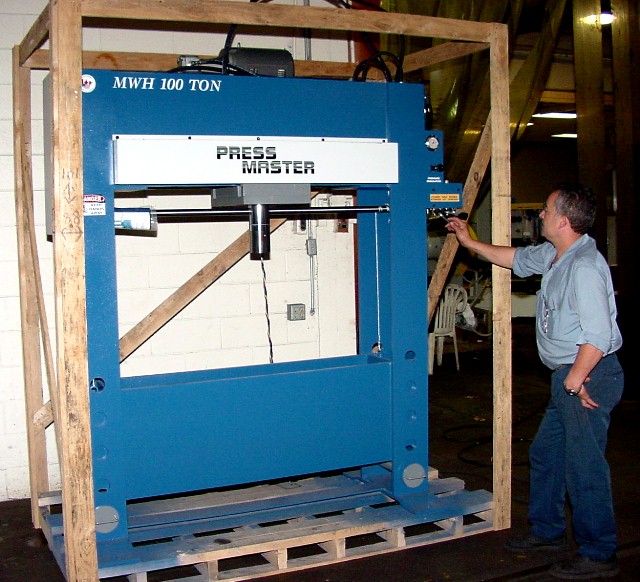

100 TON PRESSMASTER H-FRAME HYD. PRESS
MODEL HFP-100 XWMWH
NEW - IN STOCK FOR IMMEDIATE DELIVERY
RATED CAPACITY, TONNAGE........................... 100
STROKE............................................ 12"
BORE.............................................. 8"
RAM SPEED PRESS .................................. 20 IPM
RETURN ................................. 26 IPM
DISTANCE BETWEEN POSTS (RIGHT TO LEFT)............ 48"
DISTANCE BETWEEN POSTS (FRONT TO BACK)............ 13"
MAXIMUM DISTANCE FROM BED TO RAM .................″3"
WEIGHT ...........................................″,400#
SHIPPING DIMENSIONS .............................. 50" X 88" X 103"
STANDARD FEATURES:
POWERED MOVABLE WORKHEAD FOR OFF-CENTER WORK
CYLINDER ACTIVATION IS FINGERTIP CONTROLLED THE MORE THE LEVER IS
ENGAGED THE FASTER THE RAM MOVES ALLOWING THE OPERATOR TO CONTROL
THE SPEED FOR THE JOB.

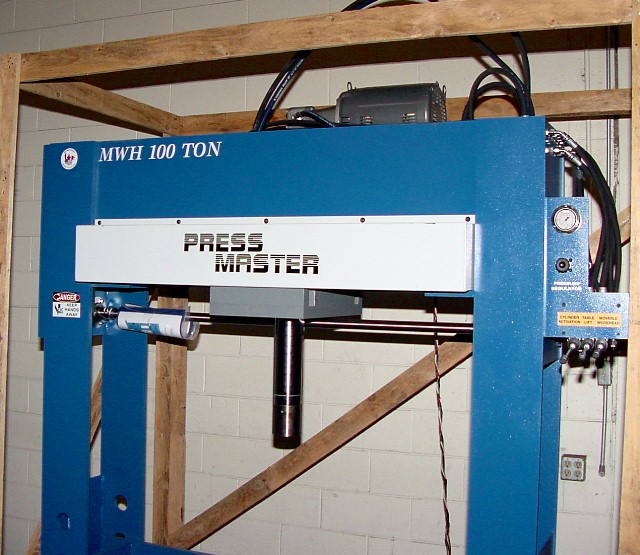

PRESSURE REGULATOR - LIMITS RAM PRESSURE
HYDRAULIC POWER LIFT TABLE
SELF LOCKING TABLE - ELIMINATES LATERAL MOVEMENT
ELECTRIC/HYDRAULIC OPERATION
HEAVY DUTY STEEL STRUCTURE
OPEN SIDES TO FACILITATE WORK ON LONG PIECES

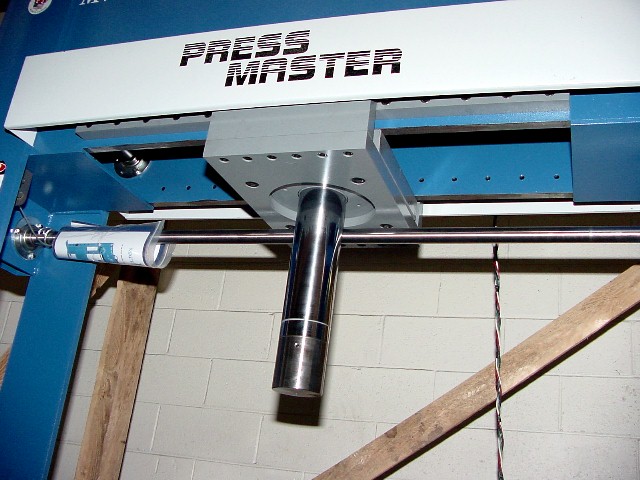

FLAT RAM NOSE TO ALLOW USER TO ADAPT THE PRESS TO A SPECIFIC JOB.
LOW SPEED PUMP
LOW SPEED BALDOR 10 HP,″ PHASE MOTOR, STANDARD VOLTAGES AVAILABLE
HIGH CAPACITY 15 GALLON HYDRAULIC OIL RESERVOIR
LOW PRESSURE HYDRAULIC SYSTEM RESULTS IN LOWER OIL TEMPERATURES
FOR HIGHER EFFICIENCY AND SAFER OPERATION
ALL PARTS ARE STANDARD AND READILY AVAILABLE THROUGHOUT NORTH AMERICA
FULL ONE YEAR WARRANTY.
NOT A CHEAP IMPORT.
MANUFACTURED IN CANADA WITH QUALITY US…amp; CANADIAN COMPONENTS.
AVAILABLE OPTIONS:
- V-BLOCKS ................................... $850 SET
- STOP / START…amp; EMERGENCY STOP .............. $900
- FRONT OR BACK SAFETY GUARD ................. $900 EA
- SIDE SAFETY GUARD ..............(PER SIDE).. $600
- FOOT PEDAL ................................. $3,400
- ADJ. STROKE CONTROL C/W FOOT PEDAL ......... $5,000
- 24 STROKE CYLINDER ........................ $1,400
- PRESS PLATE ................................ $1,600
- COMPREHENSIVE SAFETY PACKAGE WITH EMERGENCY STOPS AND
LEXAN GUARDING ............................... $7,600
SEE THE VIDEO ON THIS FANTASTIC NEW PRODUCT AT:
<ahref="http://www.youtube.com/watch?v=nDh2giylCs8">http://www.youtube.com/watch?v=nDh2giylCs8
