Description

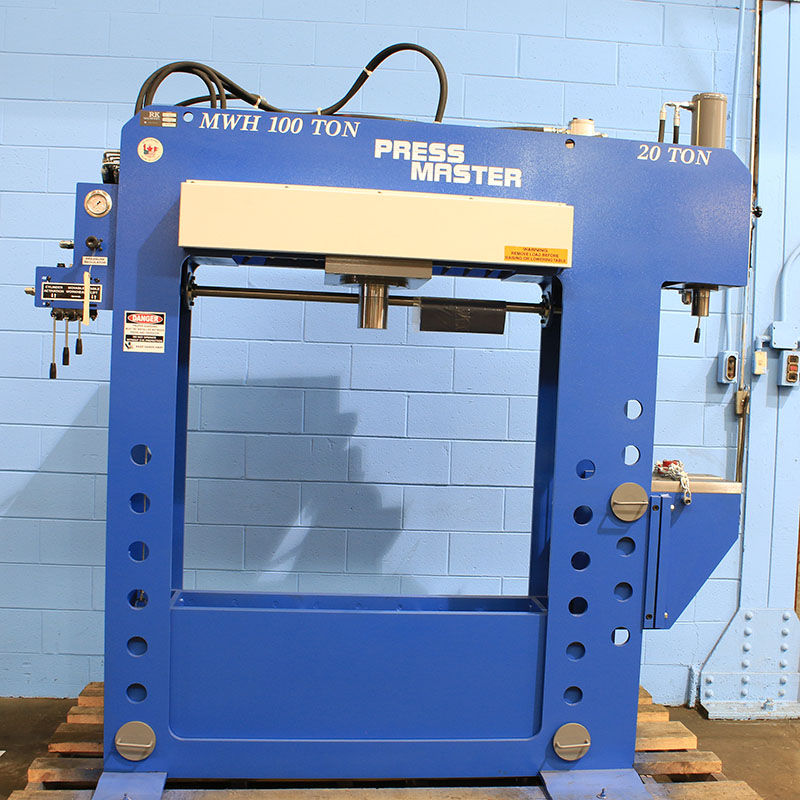

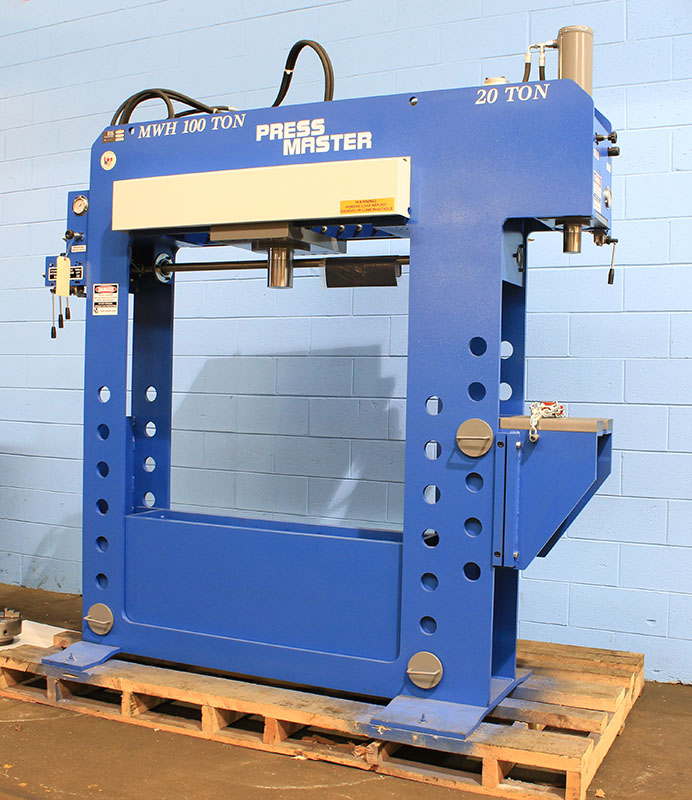

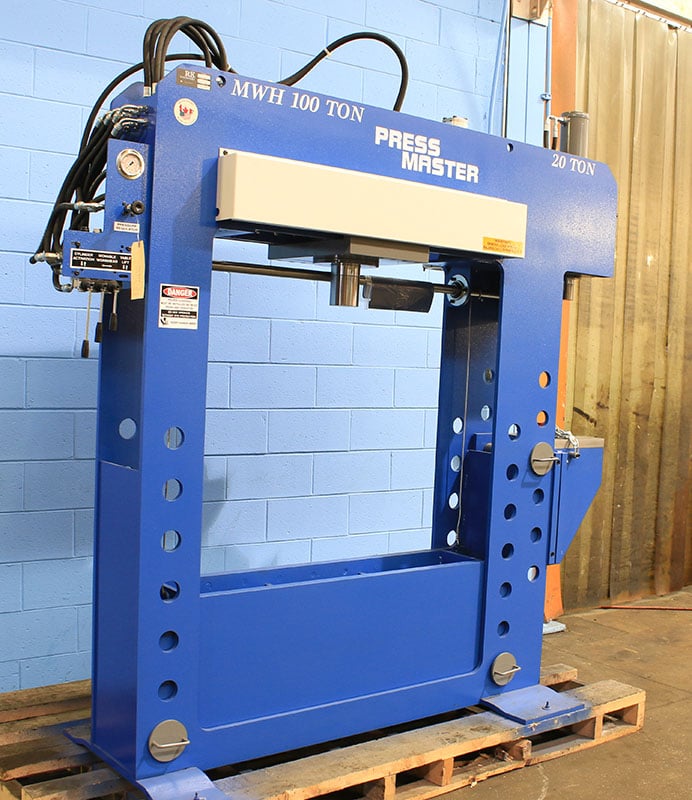

COMBINATION 100 TON H-FRAME PRESS
& 20 TON BROACH PRESS
EXTRA WIDE w/MOVABLE WORKHEAD
MODEL HFBP-100/20 MWH
NEW-IN STOCK FOR IMMEDIATE DELIVERY
H FRAME SPECS
CAPACITY............................. 100 TONS
BORE................................. 9"
STROKE............................... 16"
RAM SPEED
PRESS............................... 19 IPM
RETURN.............................. 24 IPM
DIST. BETWEEN POSTS (R TO L)......... 48"
DIST. BETWEEN POSTS (F TO B)......... 12.5"
MAX DIST. FROM BED TO RAM ...........″8"
BROACH SPECS
CAPACITY............................. 20 TONS
BORE................................. 4"
STROKE............................... 20"
RAM SPEED
PRESS............................... 97 IPM
RETURN.............................. 159 IPM
POWER................................ 10 HP″ PHASE
DIMENSIONS
LENGTH.............................. 48"
WIDTH............................... 94"
HEIGHT.............................. 104"
WEIGHT............................... 4,100#
NOT A CHEAP IMPORT -
MANUFACTURED IN CANADA WITH QUALITY US… CANADIAN COMPONENTS
STANDARD FEATURES
ELECTRIC/HYDRAULIC OPERATION PROVIDES SMOOTH, CONSISTENT PRESSING ACTION
OPEN SIDES TO FACILITATE WORK ON LONG PIECES

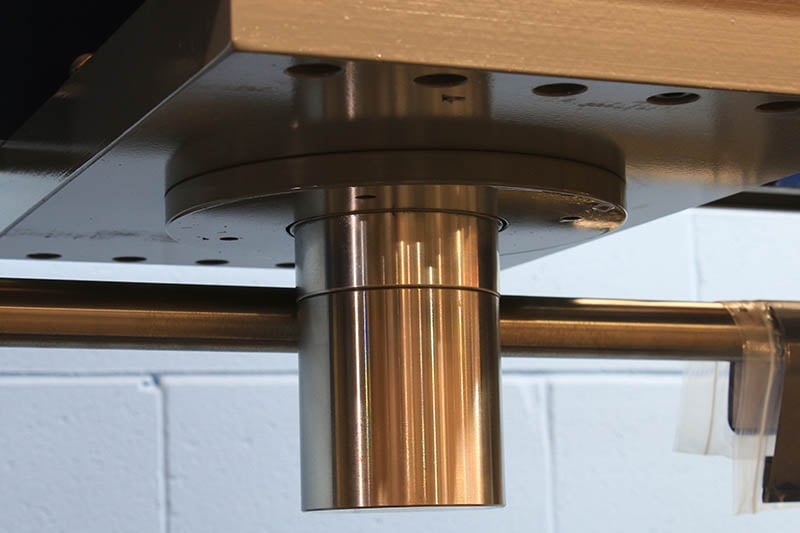

FLAT RIM NOSE CAN BE EASILY CHANGED TO ALLOW THE USER TO ADAPT THE PRESS
TO A SPECIFIC JOB
QUALITY BALDOR MOTOR, LOW SPEED
LOW SPEED PUMP-QUIET, DEPENDABLE OPERATION
SELF-LOCKING TABLE DESIGN ELIMINATES LATERAL MOVEMENT
POWERED MOVABLE WORKHEAD FOR OFF-CENTER WORK ALLOWS OPERATOR TO POSITION
THE CYLINDER FROM LEFT TO RIGHT WITH THE TOUCH OF A LEVER
HYDRAULIC POWER-LIFT FOR VERTICAL DISPLACEMENT OF TABLE

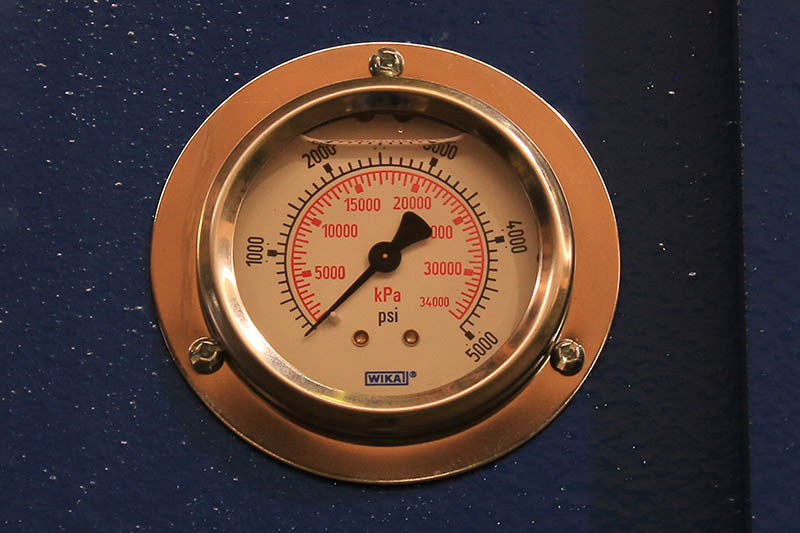

PRESSURE REGULATOR TO LIMIT THE RAM PRESSURE
CYLINDER ACTIVATION IS FINGERTIP CONTROLLED, THE MORE THE HAND LEVER IS
ENGAGED THE MORE THE RAM MOVEMENT IS ACCELERATED, ALLOWING THE OPERATOR
TO CONTROL THE PROPER SPEED FOR THE TASK
HIGH CAPACITY 15 GAL. HYDRAULIC OIL RESERVOIR
LOW PRESSURE HYDRAULIC SYSTEM MAINTAINS LOWER OIL TEMPERATURES,
RESULTING IN HIGHER EFFICIENCY AND SAFER OPERATION
ALL HYDRAULIC AND MECHANICAL PARTS ARE STANDARD IN THE INDUSTRY, AND
AVAILABLE THROUGHOUT NORTH AMERICA.
STANDARD FEATURES 20 TON

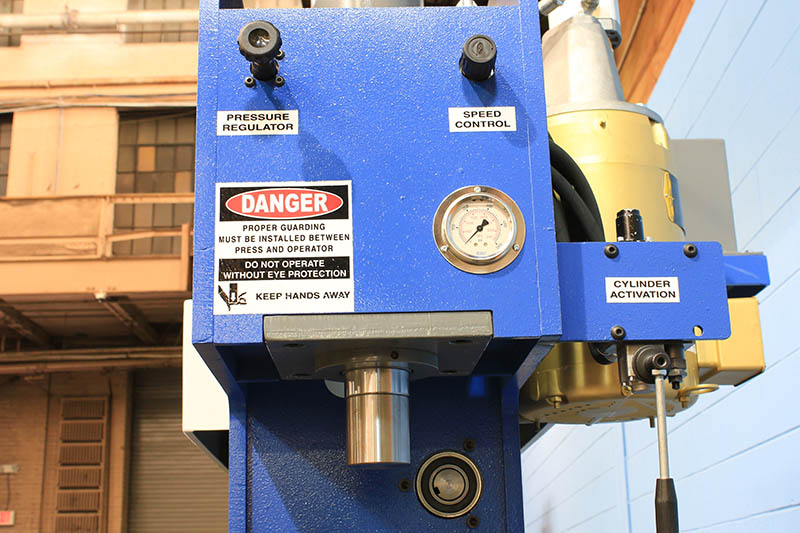

PRESSURE REGULATOR- LIMITS RAM PRESSURE
SPEED CONTROL- LIMITS THE MAXIMUM SPEED OF RAM TRAVEL, ALLOWING OPERATOR TO
SELECT THE PROPER SPEED FOR THE PROPER TASK.
AVAILABLE OPTIONS:
- SET OF V-BLOCKS ............................ $1,000
- STOP / START… EMERGENCY STOP .............. $1,000
- FRONT OR BACK SAFETY GUARD .....(PER SIDE).. $1,000
- SIDE SAFETY GUARD ..............(PER SIDE).. $… 750
- FOOT PEDAL ................................. $4,500
- ADJ. STROKE CONTROL C/W FOOT PEDAL ......... $6,500
- PRESS PLATE ................................ $2,000
- COMPREHENSIVE SAFETY PACKAGE WITH EMERGENCY STOPS AND
LEXAN GUARDING ............................... $9,500
- HANDHELD REMOTE CONTROL .................... $9,500
- 60" BETWEEN THE POSTS ...................... $6,500
CAN BE INSPECTED IN OUR HARRISON, NJ WAREHOUSE
MACHINE IN STOCK AND CAN BE SHIPPED OUT TO YOU IMMEDIATELY
