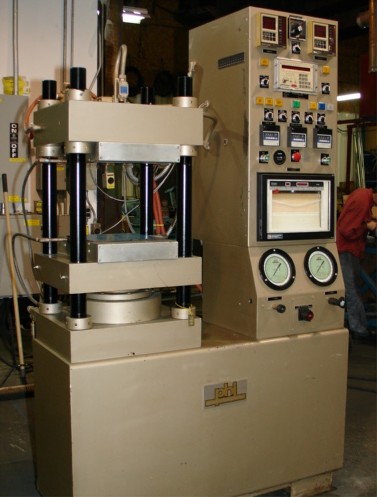

100 Ton, PHI, 12.5" elec.heat/water cooled platens, 11" daylight, 14" stroke, 1985, #1195

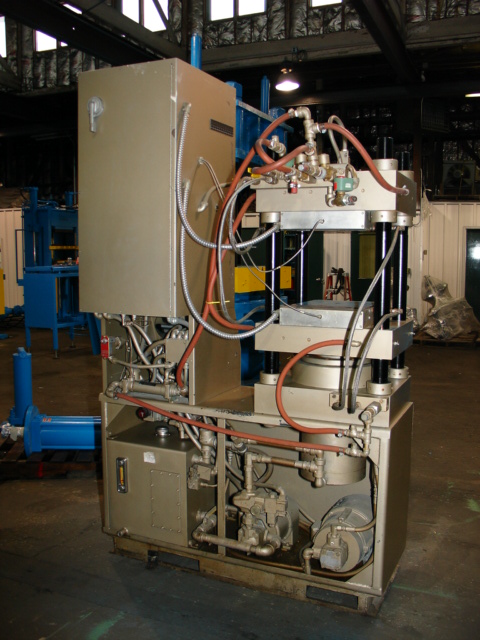

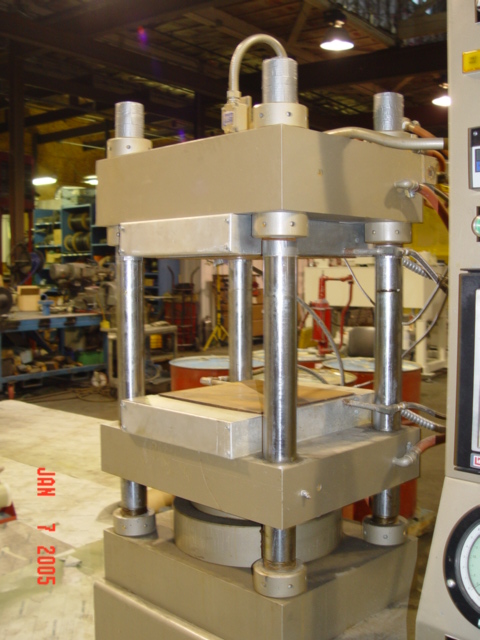

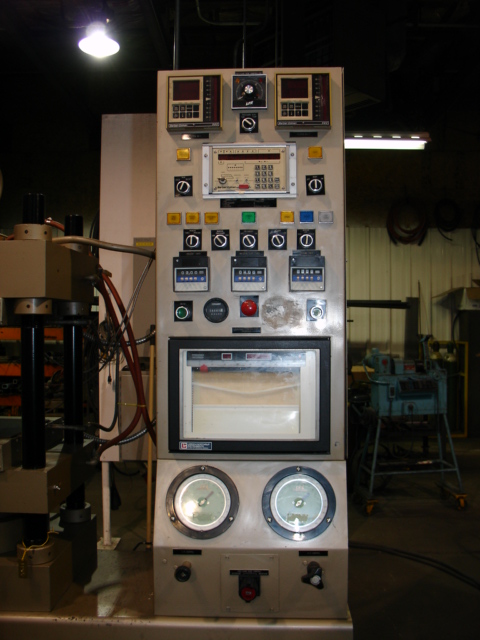

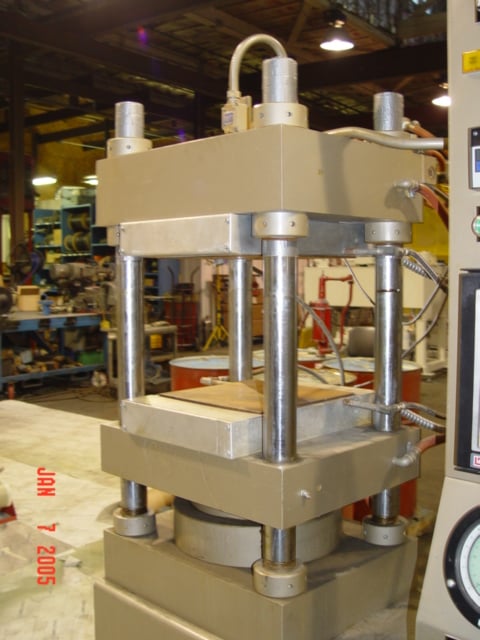

MODEL #S100R1212S-2HCS-P-Y2-S8-R-X19. SERIAL #85-9-002. NEW IN 1985. ELECTRICALLY HEATED AND WATER COOLED PLATENS: 12.5" X 12.5" WORK SURFACE; OVERALL DIMENSION OF PLATENS INCLUDING INSULATION AND TERMANAL COVER ARE 13.75" L TO R X 20" F TO B X 3" THICK. EIGHT CARTRIDGE HEATERS PER PLATEN. PRESS CROWN AND SLIDE ARE ALSO WATER-COOLED. DISTANCE BETWEEN POSTS: 16" L TO R X 12" F TO B. OVERALL BED SIZE: 22.75" L TO R X 18.5" F TO B. NOMINAL BED WITHOUT HEATED PLATENS: 16" L TO R X 18.5" F TO B. DAYLIGHT IS ADJUSTABLE FROM 11" TO 16" WITH PLATENS; 16.5" TO 21.5" WITHOUT. APPROX 14" STROKE. 2.5" POST DIAMETER. FULLY GUIDED WITH 4.5" BUSHINGS. OPERATOR HEIGHT (WITH PLATEN): 50.25". SELF CONTAINED HYDRAULIC POWER UNIT AND ELECTRICAL CONTROL SYSTEM. TWO MOTORS: 2.5 HP, 1200 RPM, 230/460 VOLTS; 1 HP, 1800 RPM, 230/460 VOLTS. CONTROLS INLUDING: LOW PRESSURE ADJUSTMENT WITH GAUGE; HIGH PRESSURE ADJUSTMENT WITH GAUGE; CHART RECORDER; TWO CLOSE BUTTONS; OPEN BUTTON; PREHEAT, CURE AND COOLING TIMERS; TWO BARBER COLEMAN TEMP CONTROLLERS; PRESSURE RISE CONTROLLER; SPRAY/WATER/AIR PURGE. OVERALL DIMENSIONS: 56" X 28" X 91" TALL. APPROX 6,000 LBS. ITEM #1195C.
