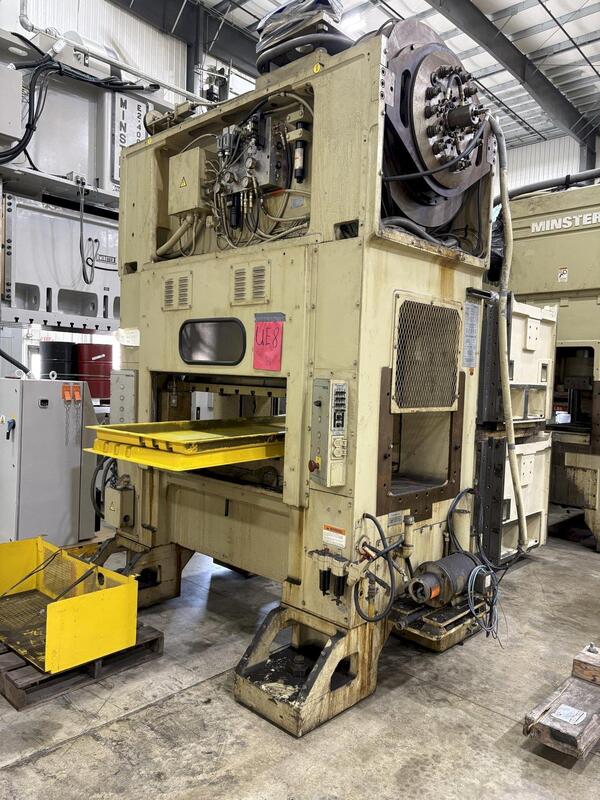

100 Ton, Minster #P2H-100-48, precision straight side double crank press, 3.94" adj stroke, 14" Shut Height, 400 SPM, 400 SPM, 31.5" x48" bed

Tonnage 100 metric-tons

Stroke 3.94 inches

Shut Height 14 inches

SPM 400

Vari Speed (Yes/No) yes

Bed W 31.5 inches

Bed L 48 inches

Crank (Single/Double) double

Air Clutch (Yes/No) no

CNC Control yes

Type of CNC Control Minster

Dimensions 155T x 104W x 70D

Weight 41000 pounds

Press Specifications:

· 112 U.S. Tons Capacity (1000 kN)

· 1.96 / 3.94in. Stroke (50 mm / 100 mm) Dual Stroke

· 3.94 in. Shutheight Adjustment (100 mm)

· 0.50 – 4.50 in. Quick Access Slide Travel (12 – 115 mm)

· 13.94 – 14.94 in. Shutheight, SDAU, on Bolster (280 – 380 mm)

· 4.94 in. thick Cast Iron Bolster Plate (100 mm)

· 48.00 x 26.00 in. Slide Area (1220 x 660 mm)

· 48.00 x 31.50 in. Bed Area (1220 x 800 mm)

· 40.00 x 14.20 in. Bed Opening (1015 x 360 mm)

· 40.80 in. Floor to top of Bed (1035 mm)

· 22 in. Upright Opening (559 mm)

· 0 - 400 SPM 1.94 in. stroke, 0-250 SPM 3.94 in. stroke

· 25 HP, 1500/1800 RPM Drive Motor (19 kW)

· 41,000 Approximate Weight (18,600 kg)

Equipped With:

· Flywheel Type

· Left hand drive, extension on opposite end

· High tensile cast iron frame w/ lube troughs cast in

· Minster Hydraulic Clutch & Brake

· Air Operated Flywheel Brake

· Counterweights on Crankshaft

· Quick Lift Slide

· Hydraulic Motorized Slide Adjustment

· Hydraulic Slide Lockup

· Pressurized Monitored Recirculating Lube System

· New Minster Production Management Control (PMC)
