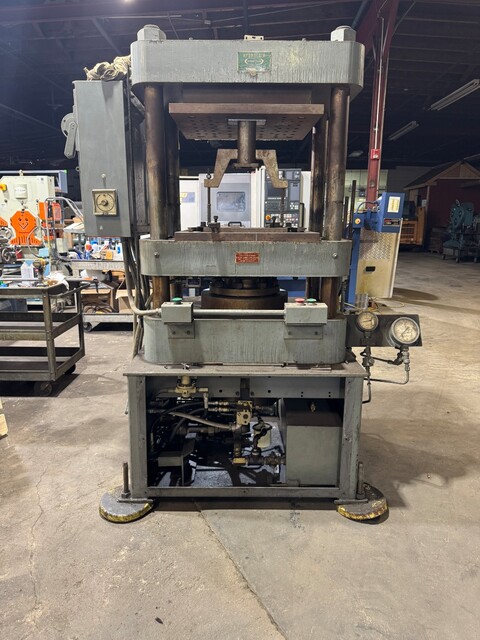

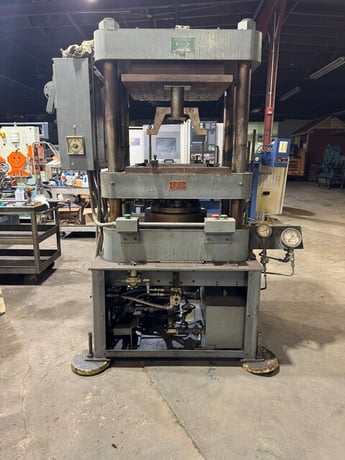

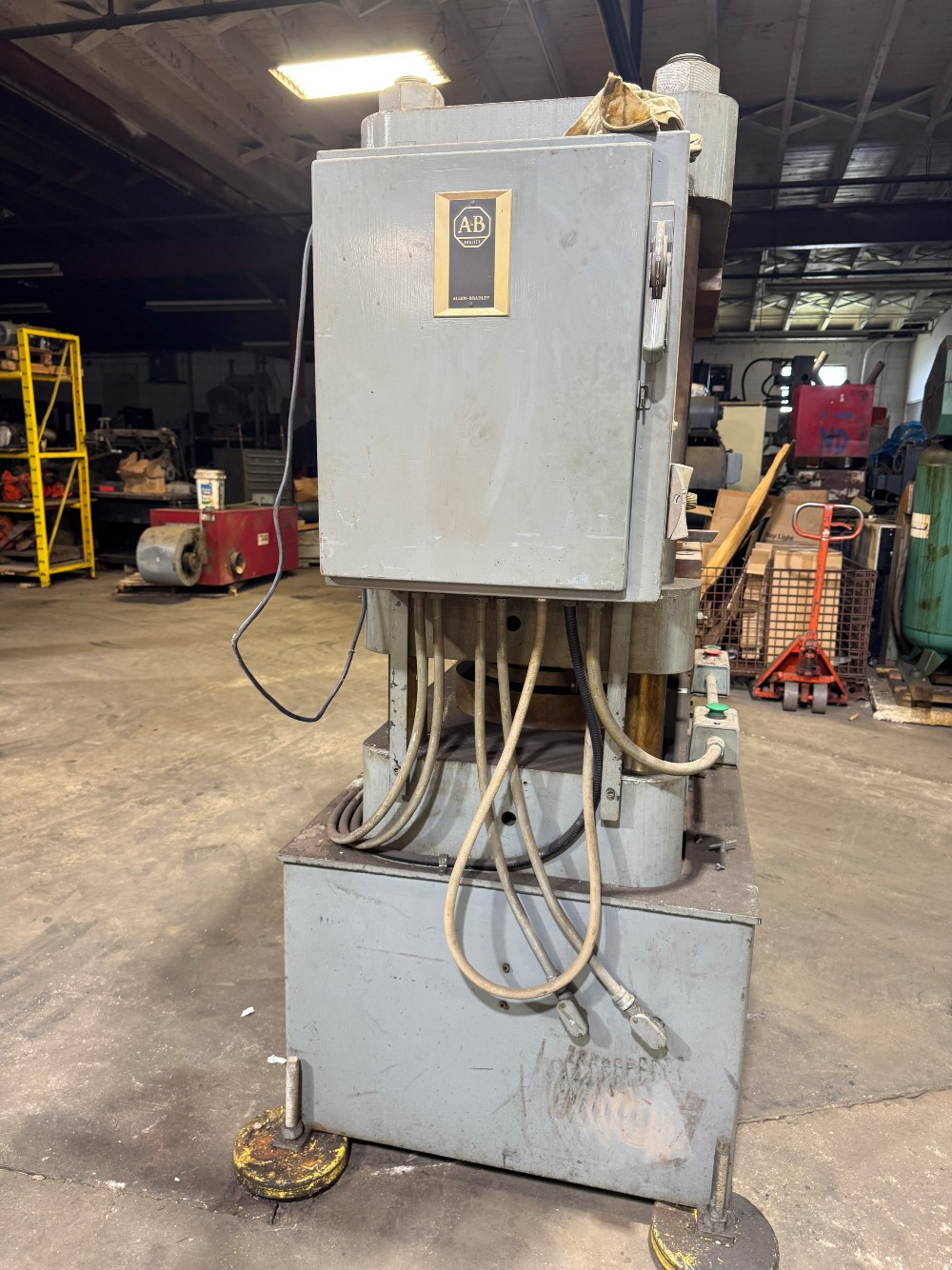

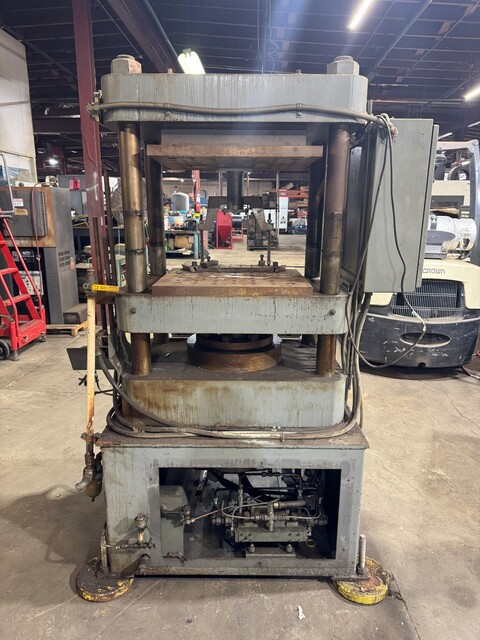

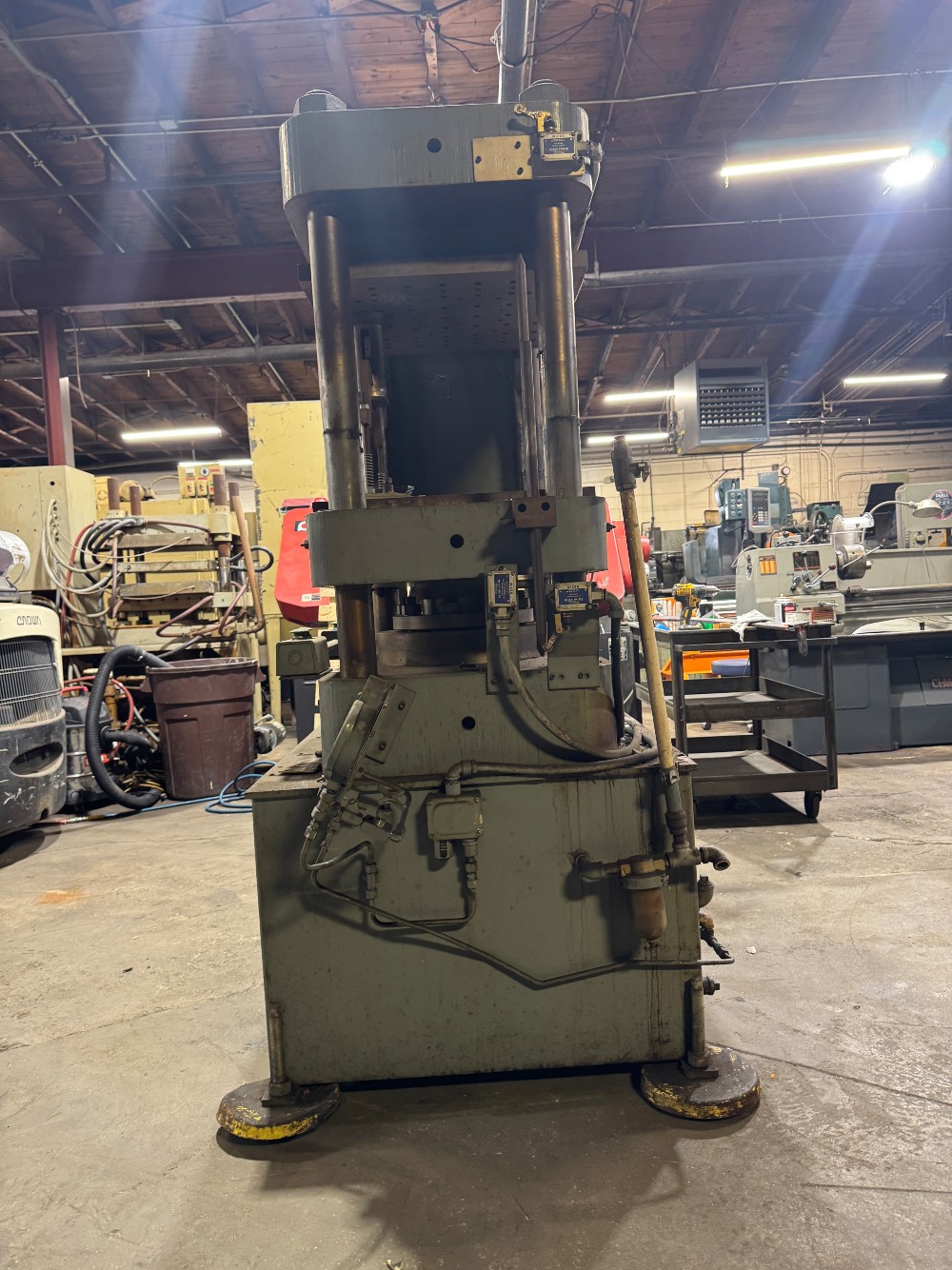

100 Ton, Greenerd #CP100T, 4 post, upacting, 24" x 36" platen press 12 stroke, 24" daylight

Greenerd Hydrolair 100-ton up Acting Air Over Hydraulic Press

Stock#R879
Model 100-Ton Hydrolair (CP100T)

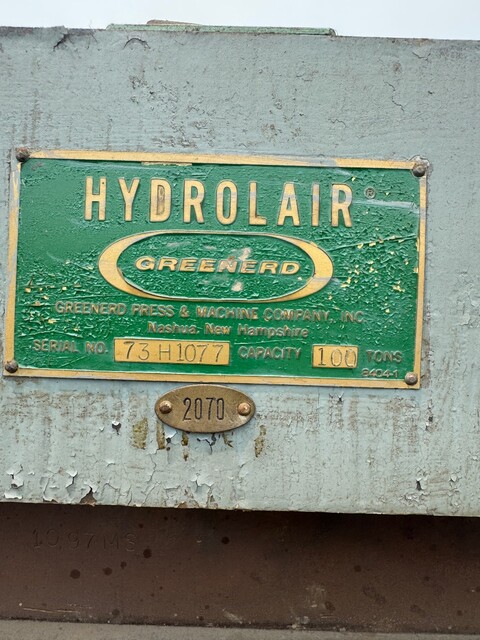

Serial# 73H1077

Capacity 100Ton
Ram 7.5”
Stroke 12”
Daylight 24”
Guide column 3” Dia.

Between Post 15” F-B, 36” R-L

Platens 24” F-B, 36” R-L
Power Air over hydraulic Intensifier system
Input 100~150 PSI Shop air
Press Action Upacting

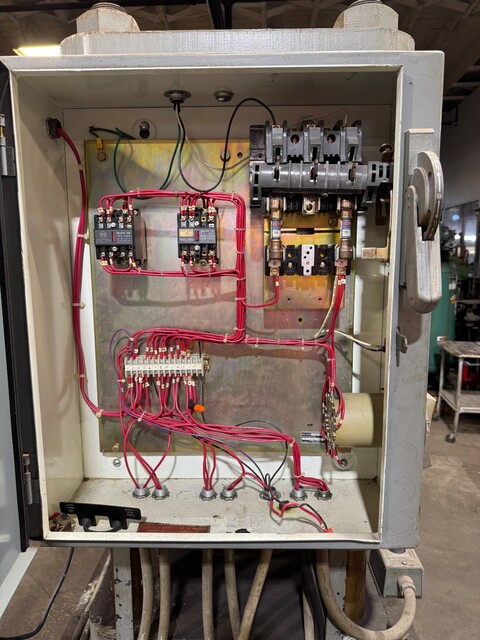

Electrical 110 Volt
Frame 4 post platen construction
Approach Speed: Rapid air stroke closes the mold or platen layout almost instantly using straight pneumatic volume.

Pressing/Clamping Speed: Automatically drops into high-tonnage intensification once resistance is met.

Energy Consumption: Zero power draw during cure cycles. The air pump stops cycling once pressure stabilizes, locking the tonnage mechanically until the air valve is opened to exhaust.

Dimensions 60” R-L, 36”F-B, 80”H,
Weight, 8,000lbs approx.
