Description
Stock #102128A
Condition Used
| Tonnage | 100 tons |
EQUIPPED WITH
Press Line with the Following Components:

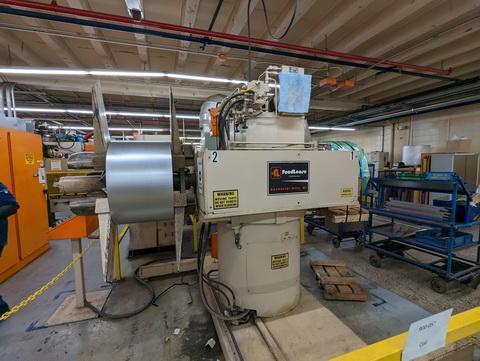

Feed Lease Double End Uncoiler
Max Coil Width: 24"
Max Coil Weight: 10,000#
Coil ID: 20"
Max Coil OD: 60"
Hydraulic Expansion
Hydraulic Rotation

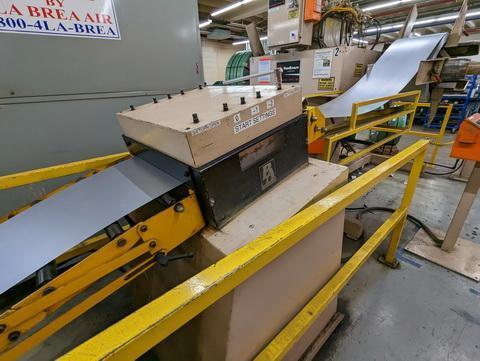

PA Industries Straightener
20" Wide Material
Thickness Range: .010"-.100"
Feeder

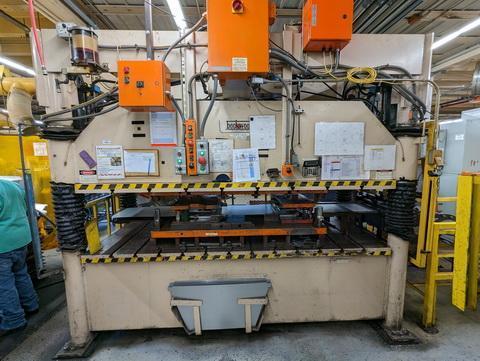

Beckwood Four Post Hydraulic Press
Press #23101A
Model: 100 36 110
Stroke: 8"
Shut Height: 13.5"
Bed Height: 34"
Bed Area: 48" x 108"
Tons: 100
21" Opening
Bolster Size: 3" x 48" x 108"
Feed Lease Double End Uncoiler
Max Coil Width: 24"
Max Coil Weight: 10,000#
Coil ID: 20"
Max Coil OD: 60"
Hydraulic Expansion
Hydraulic Rotation
PA Industries Straightener
20" Wide Material
Thickness Range: .010"-.100"
Feeder
Beckwood Four Post Hydraulic Press
Press #23101A
Model: 100 36 110
Stroke: 8"
Shut Height: 13.5"
Bed Height: 34"
Bed Area: 48" x 108"
Tons: 100
21" Opening
Bolster Size: 3" x 48" x 108"
