100 Ton, Dake #Force-100, H-Frame Press, 100 mm Ram diameter, 19" Ram Travel, 180 mm Bore, 35" max Ram to Table, 15-280 bar, 3 HP, 220 V, new

Description

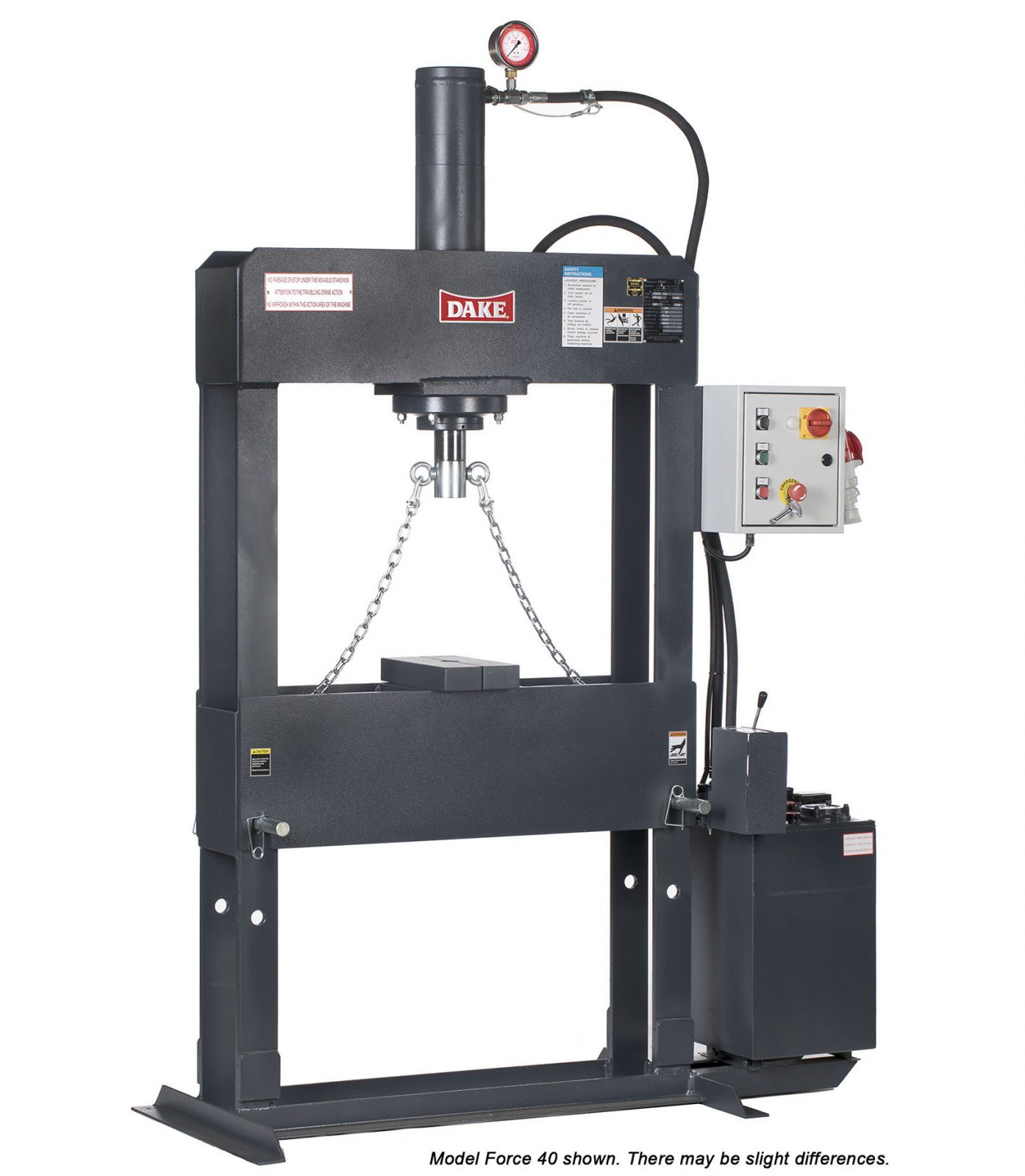

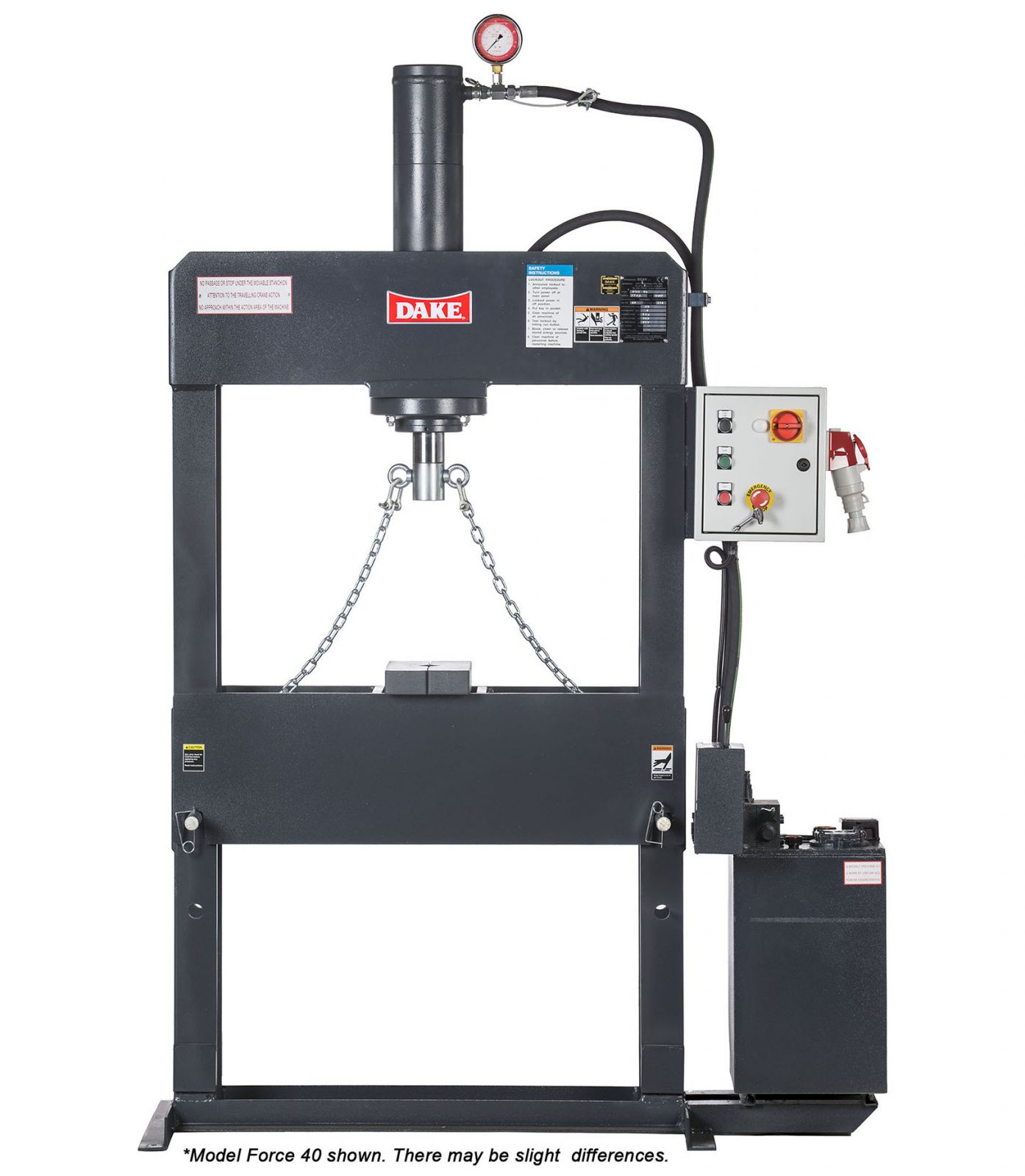

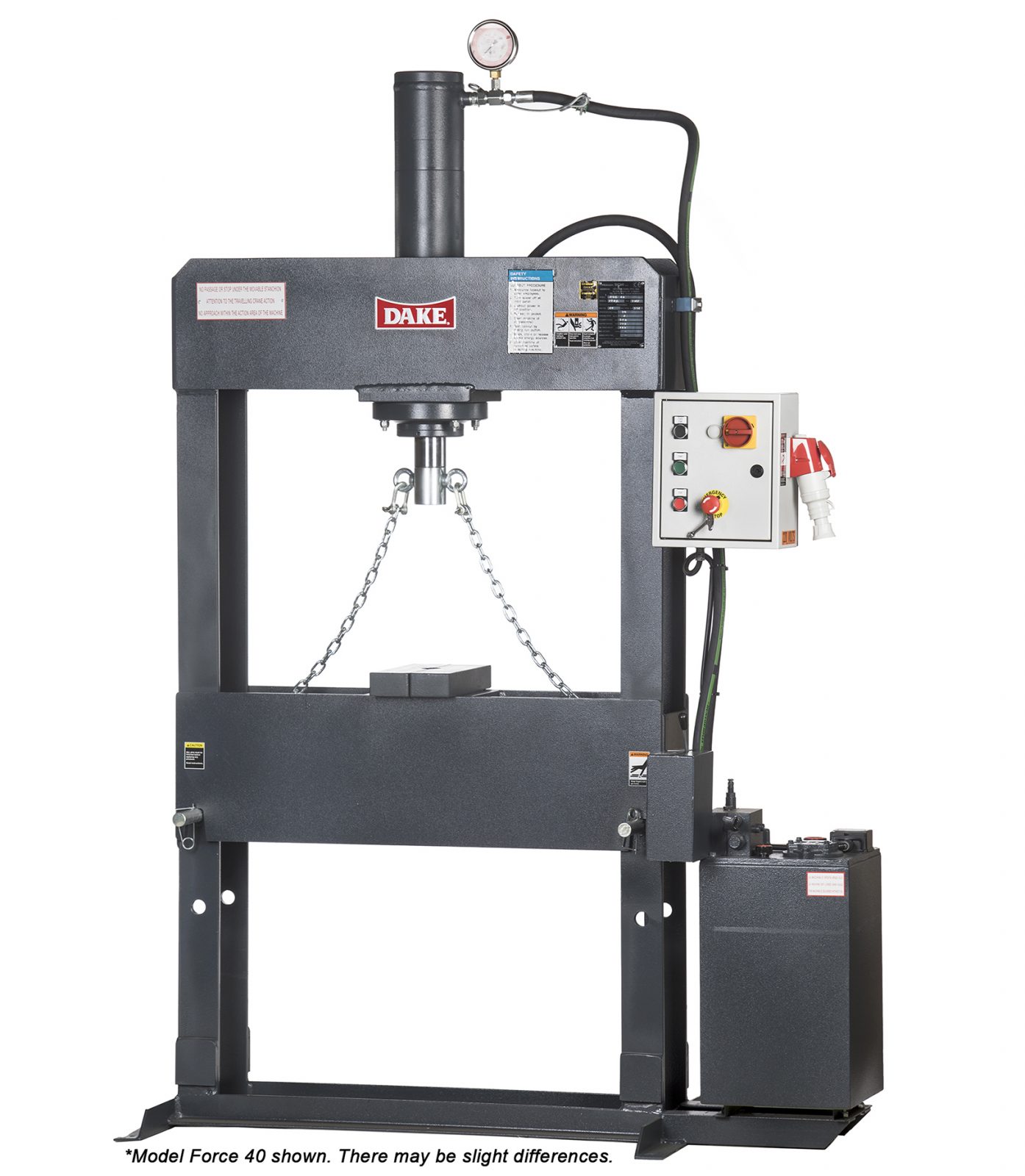

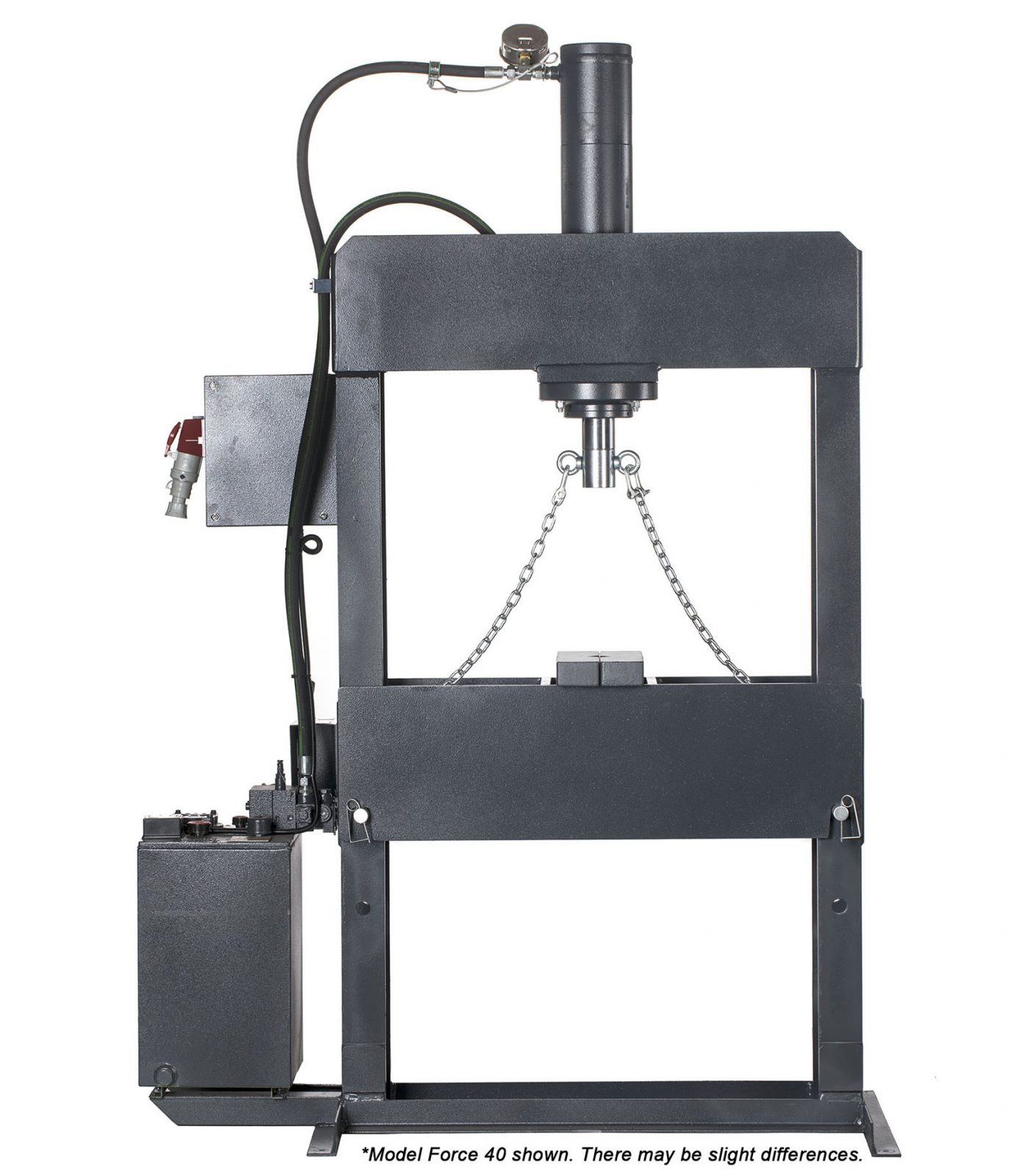

Dake 100 Ton H-Frame Press, Force 100

Inventory # 6476

Model: Force 100

Specifications:

Capacity: 100 Tons

Operating Pressure: 15 – 280 Bars

Ram Diameter: 100mm

Ram Travel: 19″

Bore: 180mm

Ram Rapid Advance Speed: 52 IPM

Ram Pressing Speed: 3 IPM

Hydraulic Pump: 3 Centrifugal Pumps

Controls: Panel Mounted 24-Volt CE Approved

Filter Type: Cartridge Type / External Access

Oil Capacity: 16 Gallons

Width Between Uprights: 41″

Width Between Table Channels: 10″

Ram to Table: 7 7/8″ – 35″

Motor: 3 HP / 220v / 3ph (440v is available for an additional cost.)

Standard Features:

Double acting cylinder design with 5-part oil seals for smooth operation and a tight seal

Welded heavy steel plate frame for greater rigidity

3 HP submerged motor drives 3 centrifugal pumps for quiet, steady oil flow

All electrical controls are low voltage (24v)

Preset and factory-sealed relief valve to prevent exceeding pressure capacity

Ram has lifting eyes that attach a chain to hydraulically move the table

Smooth, responsive control valve

Rapid advance of the ram to the workpiece – speed shifts automatically when contact is made

Standard Equipment:

Frame

2 Steel Table Plates

Lifting Chain

Cylinder

Pressure Gauge

Mechanical Specifications:

Dimensions: 75″ x 33″ x 90″ H

Weight: approx. 2,950 lbs.

FOB Factory – Contact us for Availability
