For Sale by Universal Tube & Rollform
Description
UTUBE NUMBER: 3456

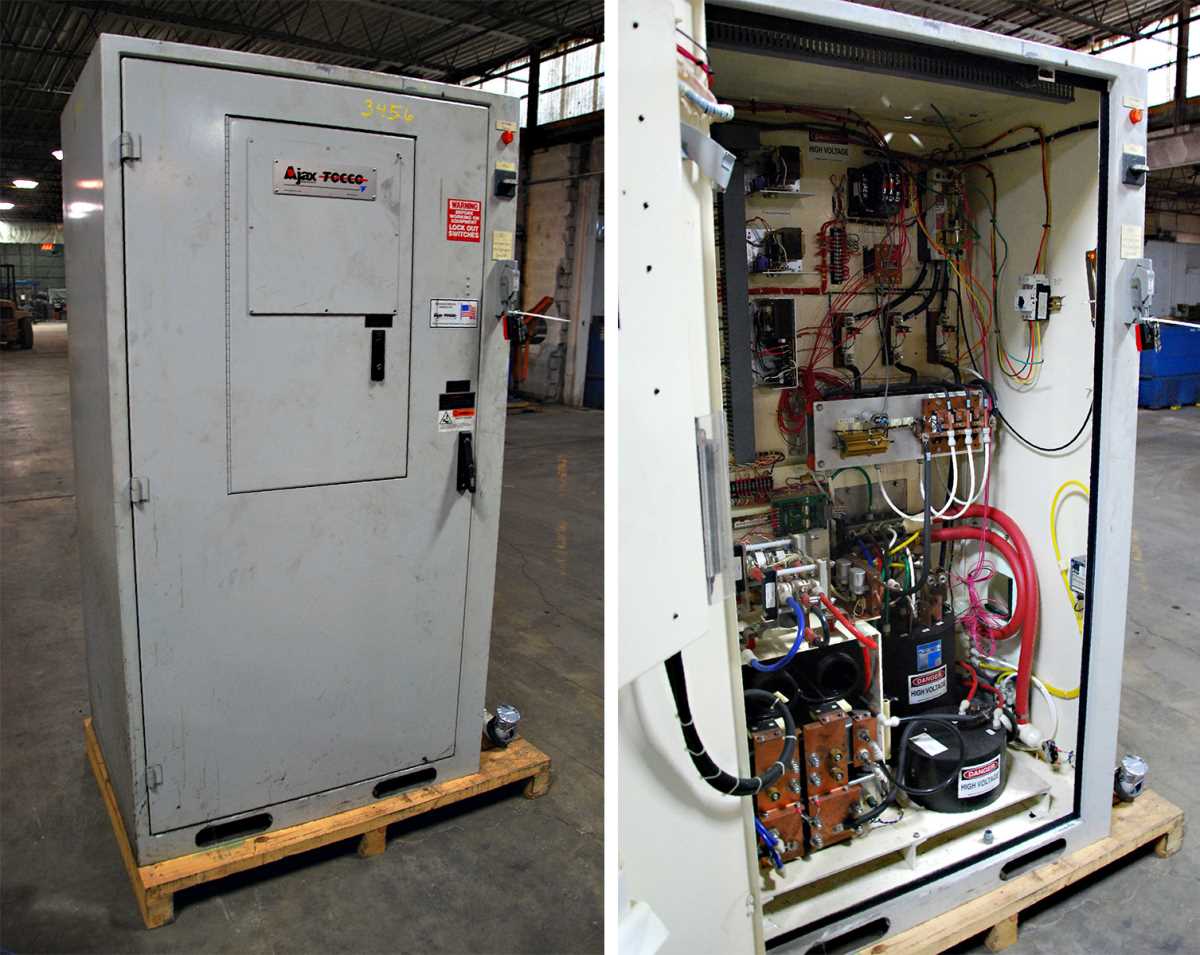

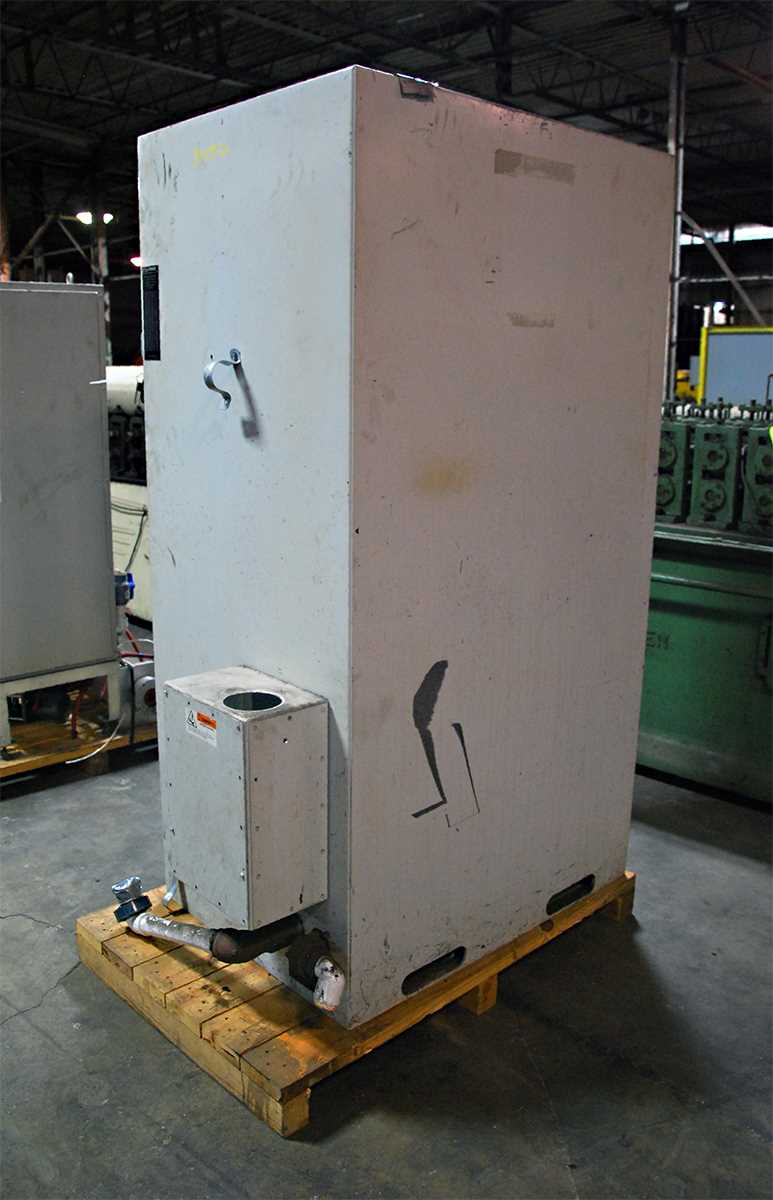

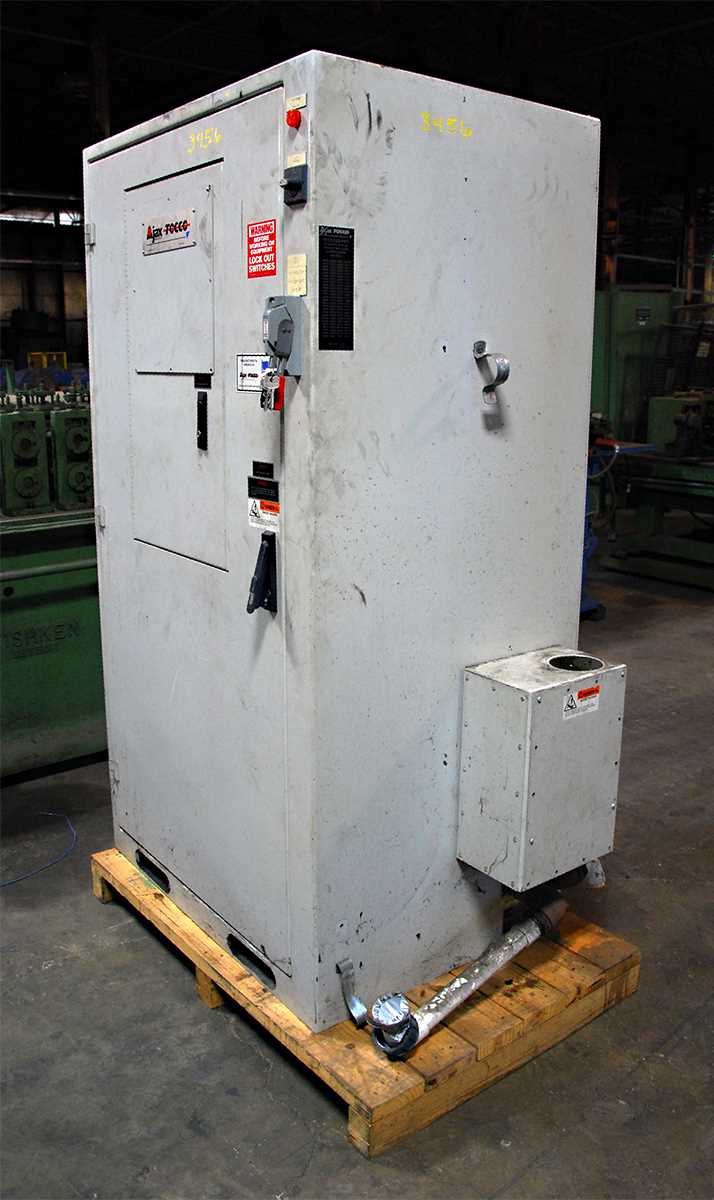

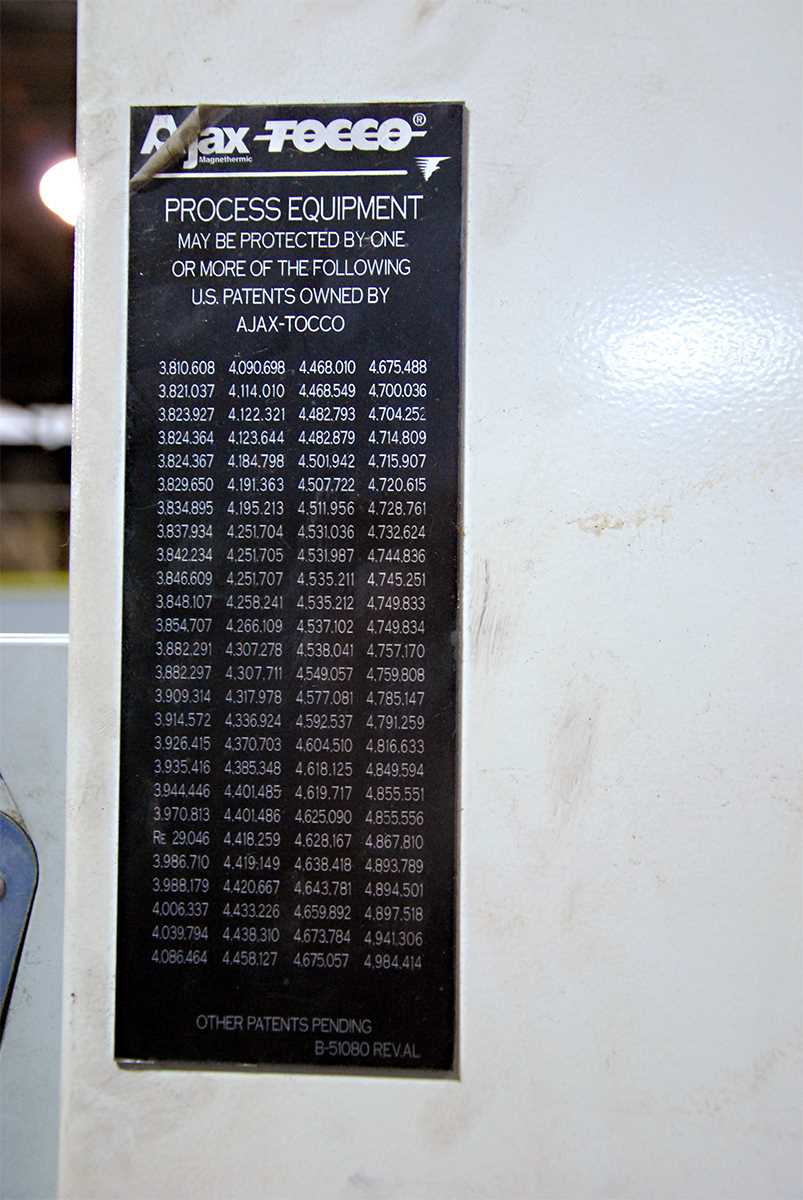

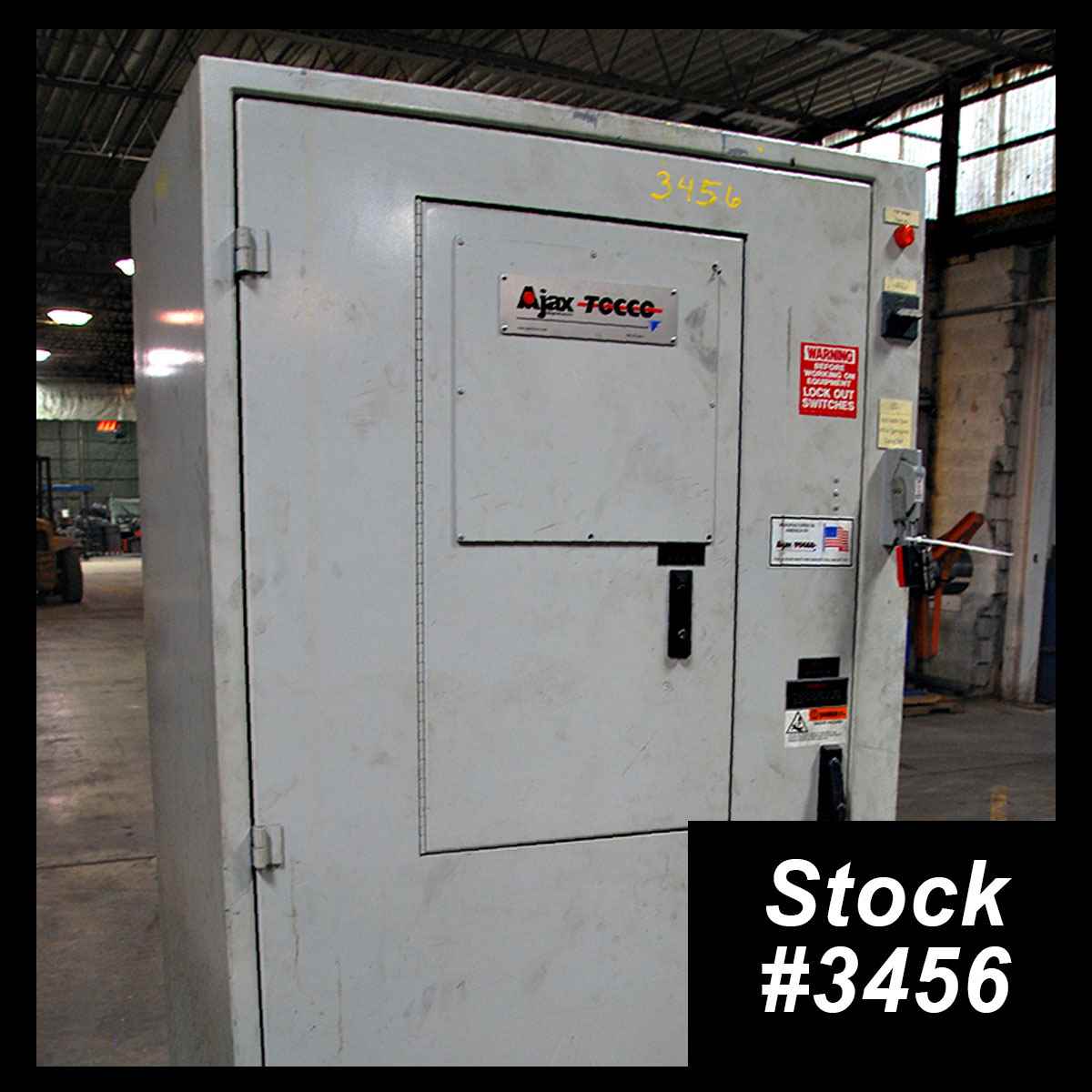

MANUFACTURER: AJAX TOCCO
MODEL NUMBER: 100 – 3 / 10T – 08H
SERIAL NUMBER: 45 – 1021 – 12
YEAR: 2006
SPECIFICATIONS:
Input: 480 V
Maximum Amps: 144
Freq. Hz: 50 / 60 Hz
PF: 93
KVA: 120
Phase: 3

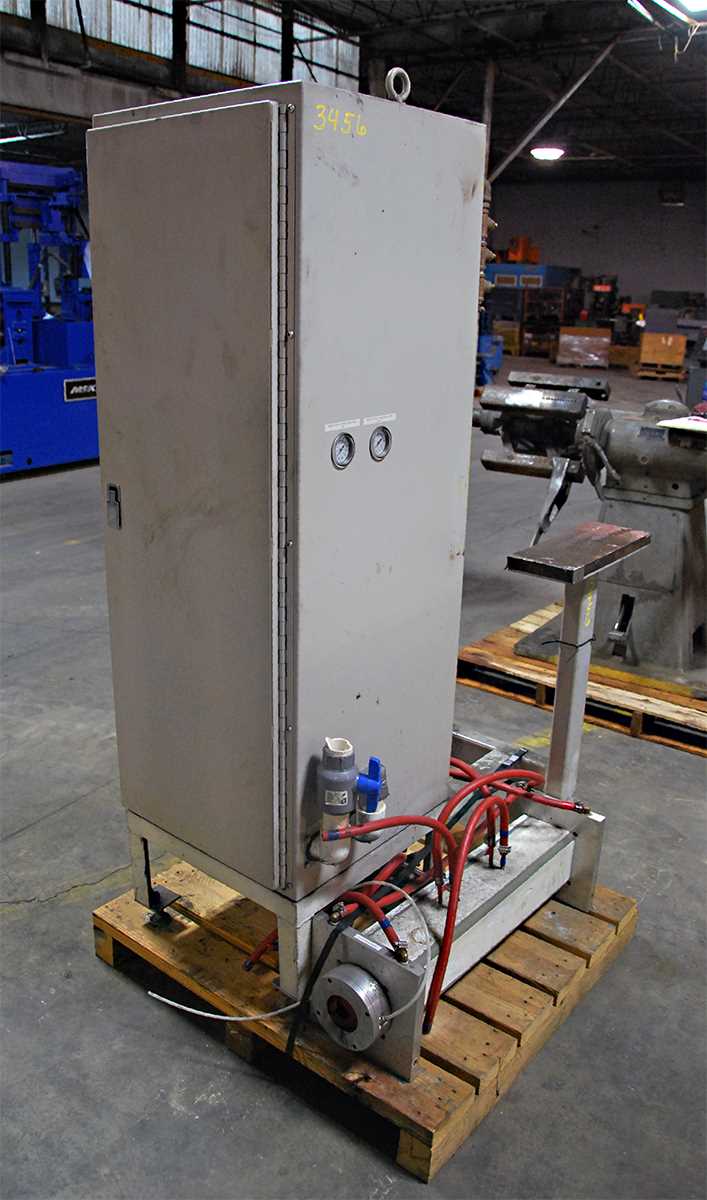

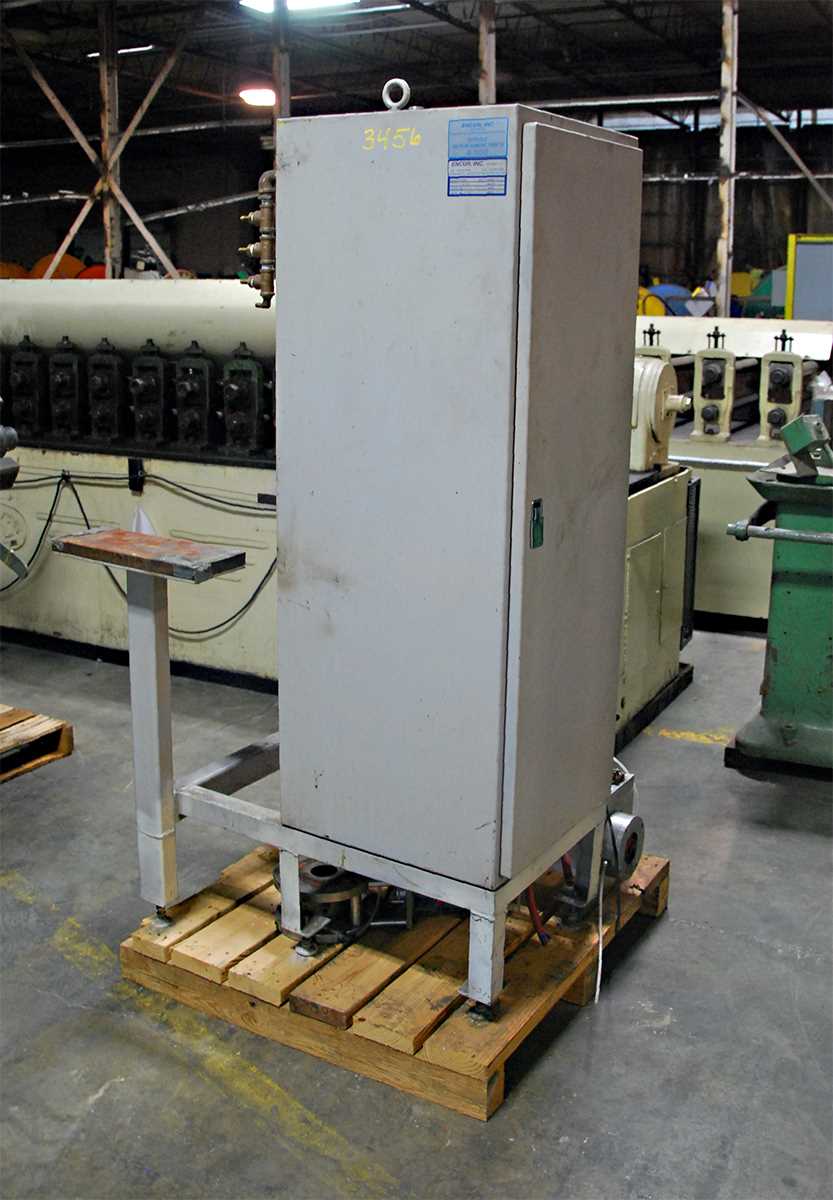

WORK STATION:
Output: 800 / 440 V
Amps: 139/255
Freq. Hz: 3 / 10
Chamber Length: 36″
Chamber Width: 2″
KW: 100
COOLING WATER:
Maximum Inlet Pressure: 90 psi
Maximum Inlet Temperature: 96 Degrees Fahrenheit
Water Flow: 18 GPM @ 30 psi

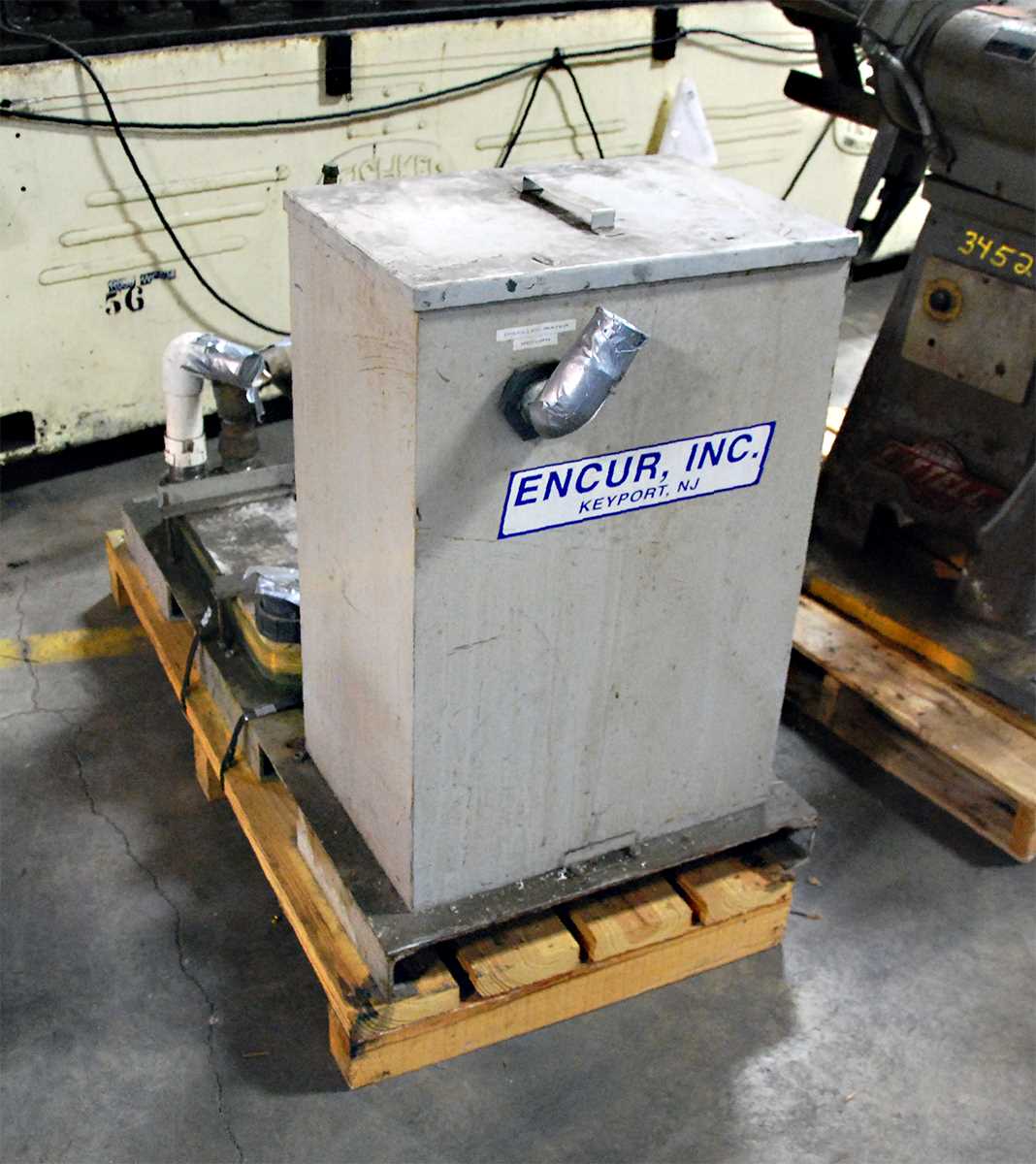

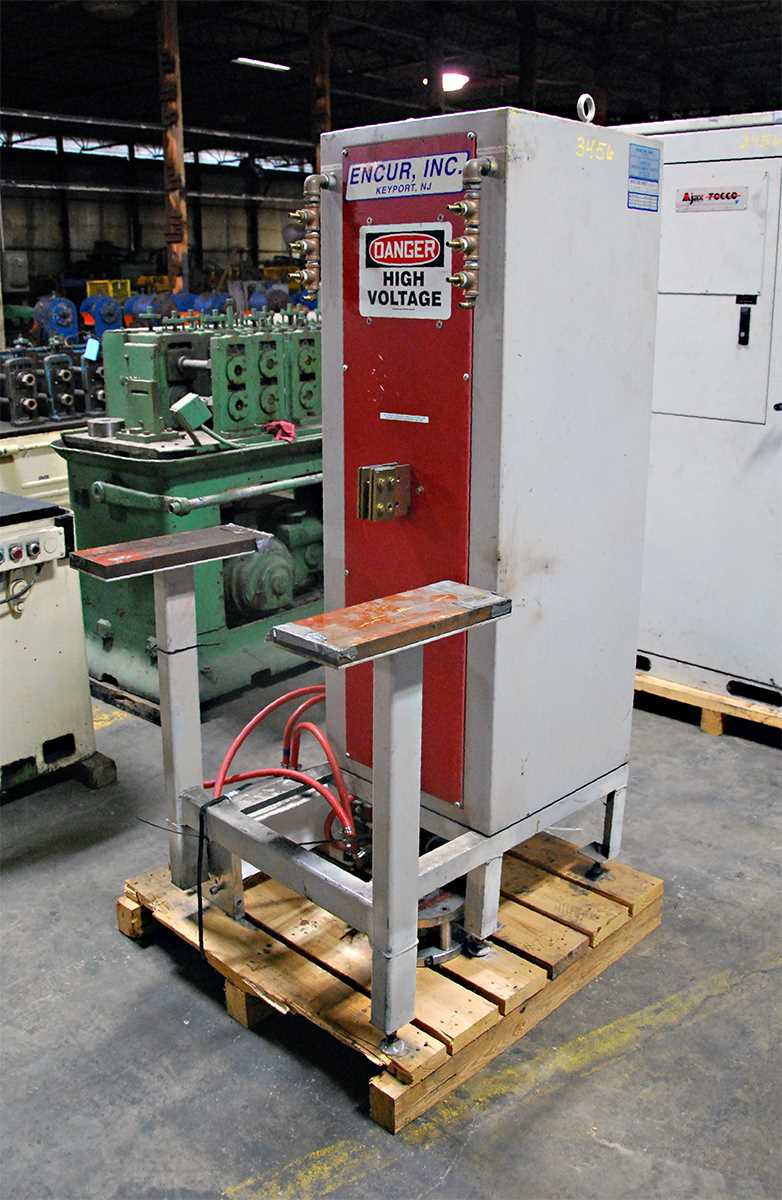

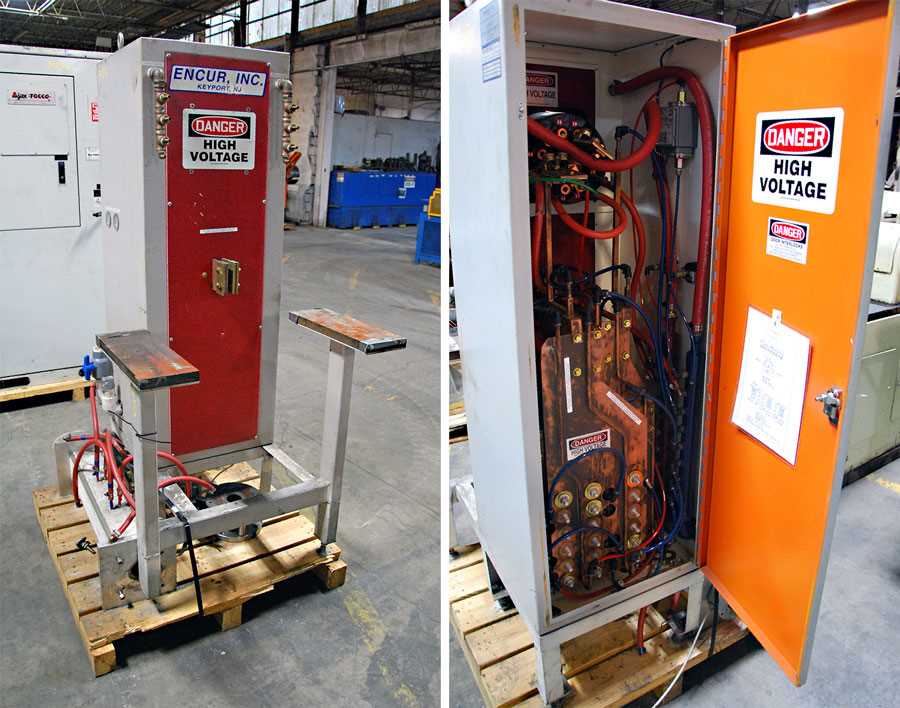

(2) ENCUR Heat Exchangers
OVERALL DIMENSIONS: 13′ x 7′ x 7′
APPROXIMATE WEIGHT: 6,500 Lbs.
LOCATION: Universal Warehouse, Perrysburg, Ohio
CARE IS TAKEN TO GIVE A RELIABLE DESCRIPTION OF THIS ANNEALING SYSTEM BUT THESE ARE NOT GUARANTEED. PROSPECTIVE PURCHASERS ARE ADVISED TO CHECK VITAL DETAILS. WE RESERVE THE RIGHT TO CORRECT STENOGRAPHIC ERRORS. ALL MACHINERY IS SUBJECT TO PRIOR SALE. CLICK HERE TO READ THE TERMS AND CONDITIONS OF SALE THAT APPLY TO THIS ANNEALING SYSTEM. VISIT UNIVERSALCONTROLSGROUP.COM FOR INFORMATION ON NEW CONTROL PANELS, DRIVE SYSTEMS AND PLANT AUTOMATION.
