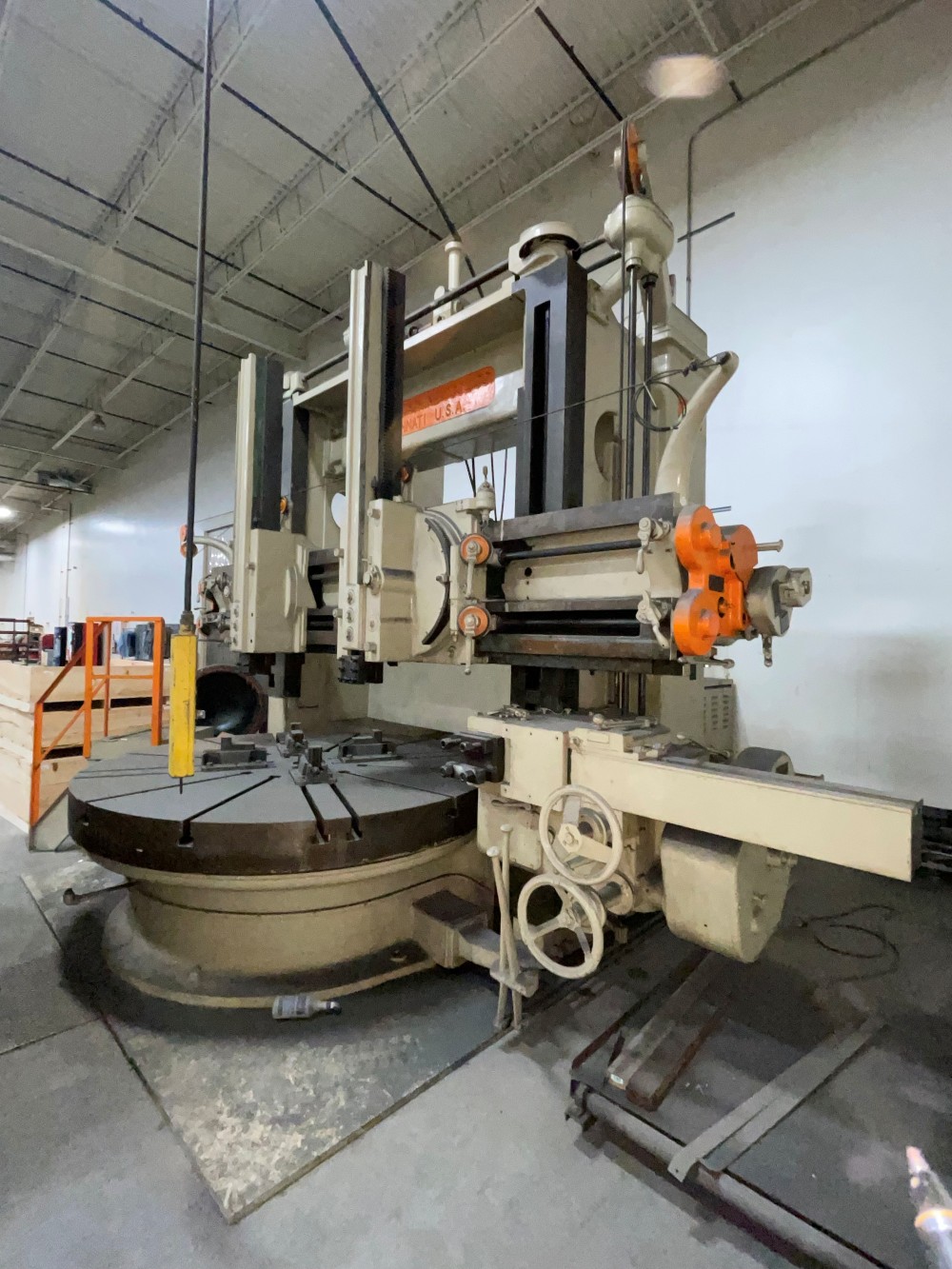

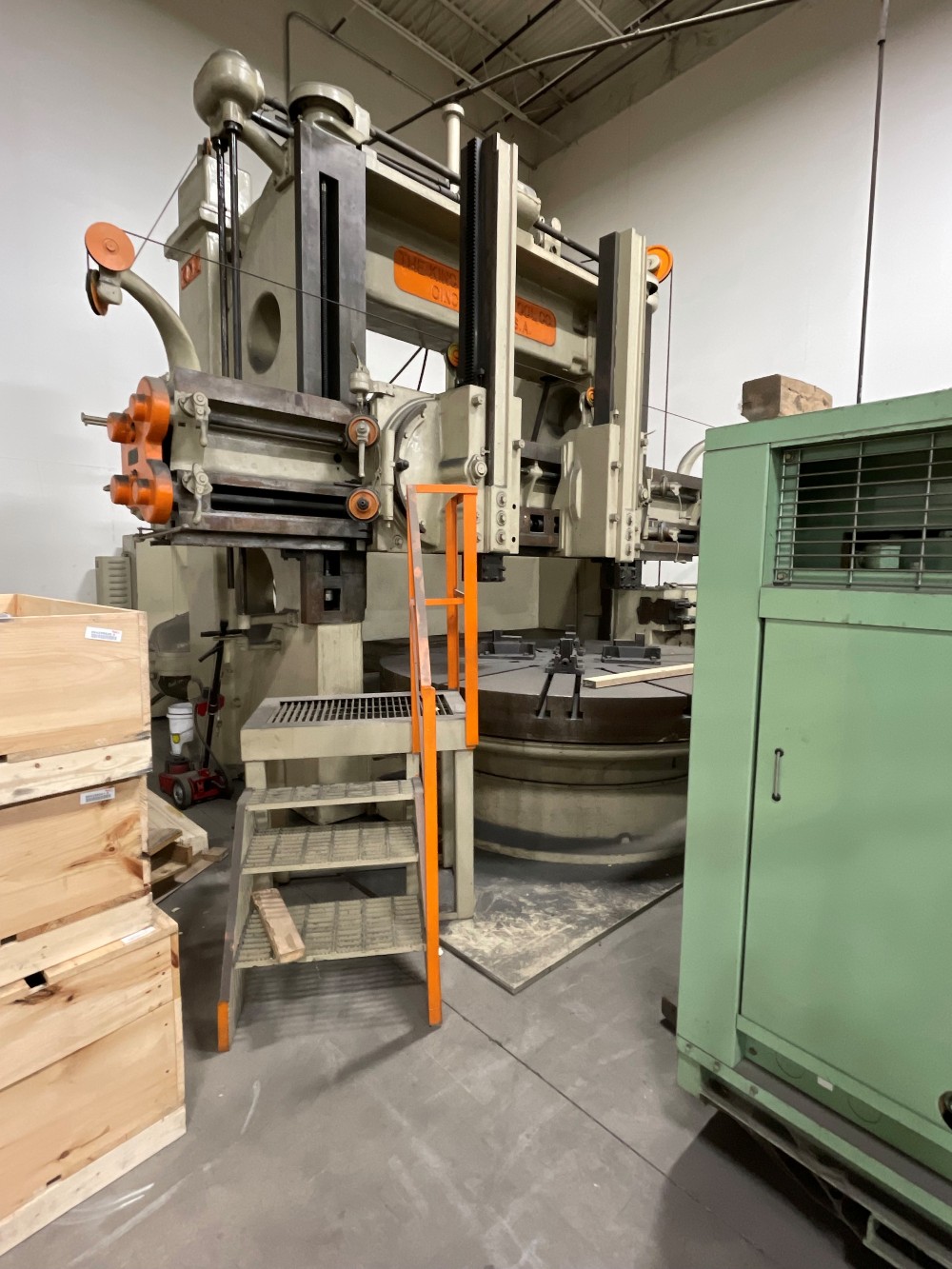

PreOwned KING 100" Vertical Boring & Turning Mill
New in 1936 - Since has been refurbished

SPECIFICATIONS"
MAXIMUM SWING WITH SIDE HEAD: 102"
MAXIMUM SWING WITH SIDE HEAD BELOW TABLE: HEIGHT UNDER RAIL - MAX.: 78"
DIAMETER OF T-SLOTTED TABLE: 96"
THICKNESS OF TABLE: 10"
TABLE SPEED RANGE - VARIABLE SPEED MOTOR:1.1 TO 28 RPM
SPEED CHANGES IN MAIN DRIVE MECHANISM: 4 RAM TRAVEL - EACH HEAD: 63"
FEED RANGE FOR RAM HEADS)S AND SIDE HEADS: ( 15) 1/48 - 3 IPM
THREADING RANGE OF RIGHT-HAND RAIL HEAD: 2 - 16 T.P.I.

FLOOR SPACE REQUIRED -
- APPROXIMATE: PARALLEL TD THE RAIL W/TWD HEADS ON RAIL: 240"
- AT RIGHT ANGLE TO THE RAIL: 188"
- HEIGHT OVERALL: 180".
- TO HIGHEST POSITION OF RAM: 222"

NET WEIGHT - APPROX.: 108,000 LBS.
MACHINE REQUIRES PIT FOR TABLE BEARING

ATTACHMENTS AND FEATURES:
- THREADING ON RIGHT HAND RAIL HEAD
- (2) SWIVEL RAIL HEADS
- (4) ADJUSTABLE FACE PLATE JAWS
- HARDENED, WEAR PLATES ON RAIL
- PENDANT CONTROL
- TOOL HOLDERS, BORING BARS
- ELECTRICS: 50 HP, 230 VOLT DC, MAIN DRIVE
- VARIABLE SPEED MOTOR 500 - 1500 RPM
- DC RECTIFIER
- ELECTRICAL CONTROLS
