Manufacturer: Cleaver-Brooks
Model: CB700-100
Year: 1998
HP: 100.00
Pounds per Square Inch: 150
Stock # CMRTM4500213
1 / 5
Click to zoom in
1 / 5
For Sale by C3 Surplus LLC
Surplus Record Dealer Since 2020
Location: Miami, FL
Contact Vernon Mccoy
Phone Number: 305...> Show Phone Number 305-428-2777
Let the seller know you found their listing on Surplus Record!
Description

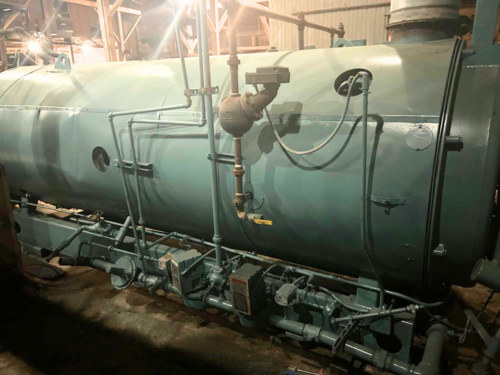

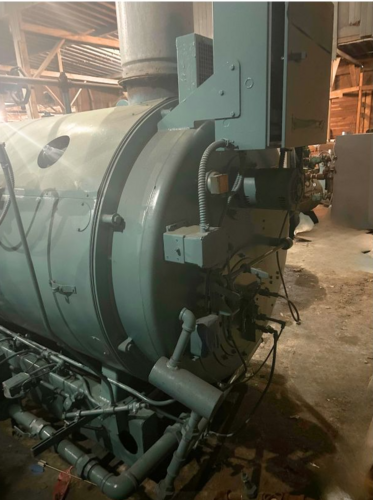

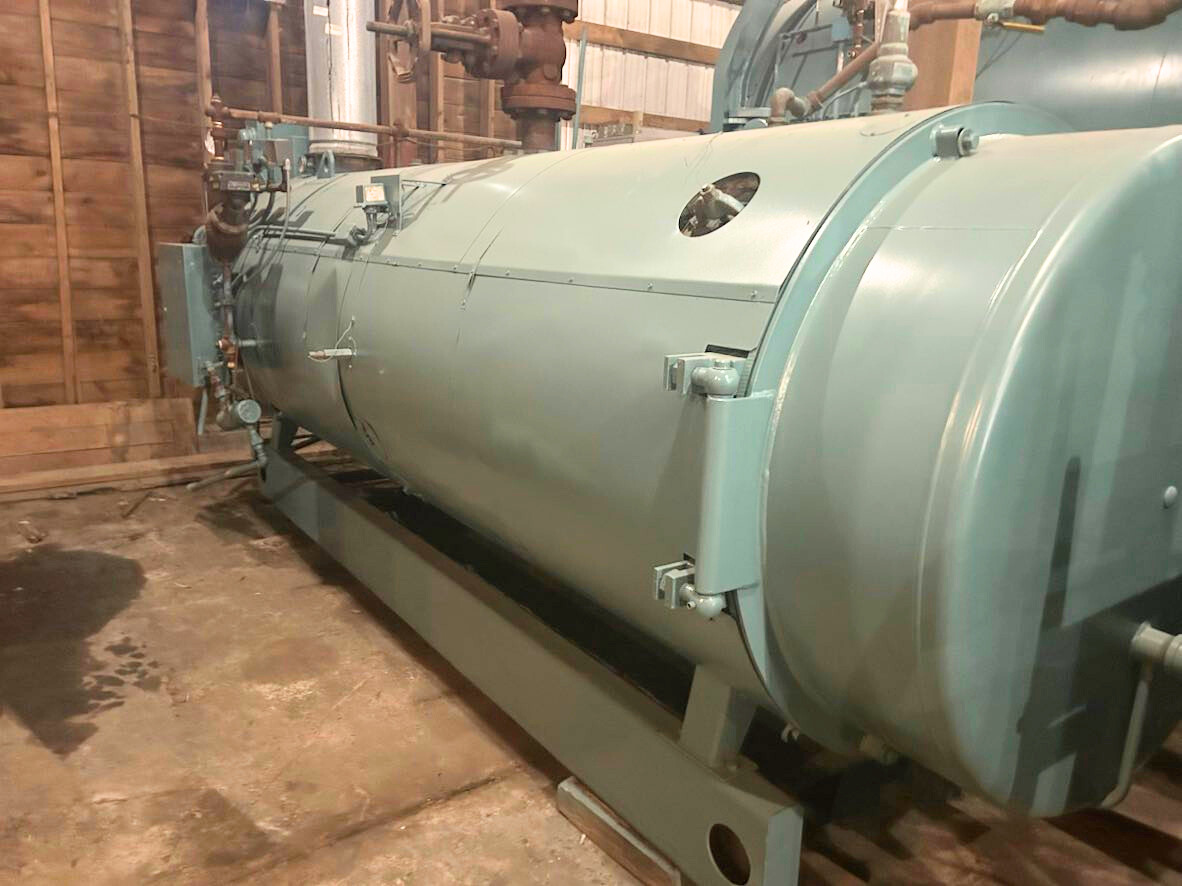

Used Cleaver Brooks Steam Boiler 3,450 steam lbs/hr, 4,185,000 BTU/hr, Model CB700-100, 100 HP, MAWP 150 PSI, Fuel Natural Gas, Serial No L-98060, Boiler Weight 9500 lbs, Built 1998
Cleaver Brooks 100 HP 150 PSI High Pressure Steam Boiler
Equipment Description
Manufacturer: Cleaver Brooks
Model: CB700-150
Boiler Horsepower: 100 HP
Boiler Type: Steam Boiler
Fuel Type: Natural Gas
Design Pressure or Maximum Allowable Working Pressure: 150 PSI
Heating Capacity: 4,185,000 BTU/hr
Steam Capacity: 3,450 steam Lbs/hr
Year Built: 1998
Serial No: L-98060
GPH Oil: N/A
Electrical Requirements
Main Power Supply
Voltage: 460V
Phase: 3 PH
Hertz: 60Hz
Ampacity: 5.9 AMP
Minimum Circuit Ampacity: 7.5 AMP
Maximum Rating of Circuit Protection: 25.1 AMP
Blower Motor
Horsepower: 8 HP
Air Compressor Motor
Horsepower: 2 HP
Oil Heater: N/A

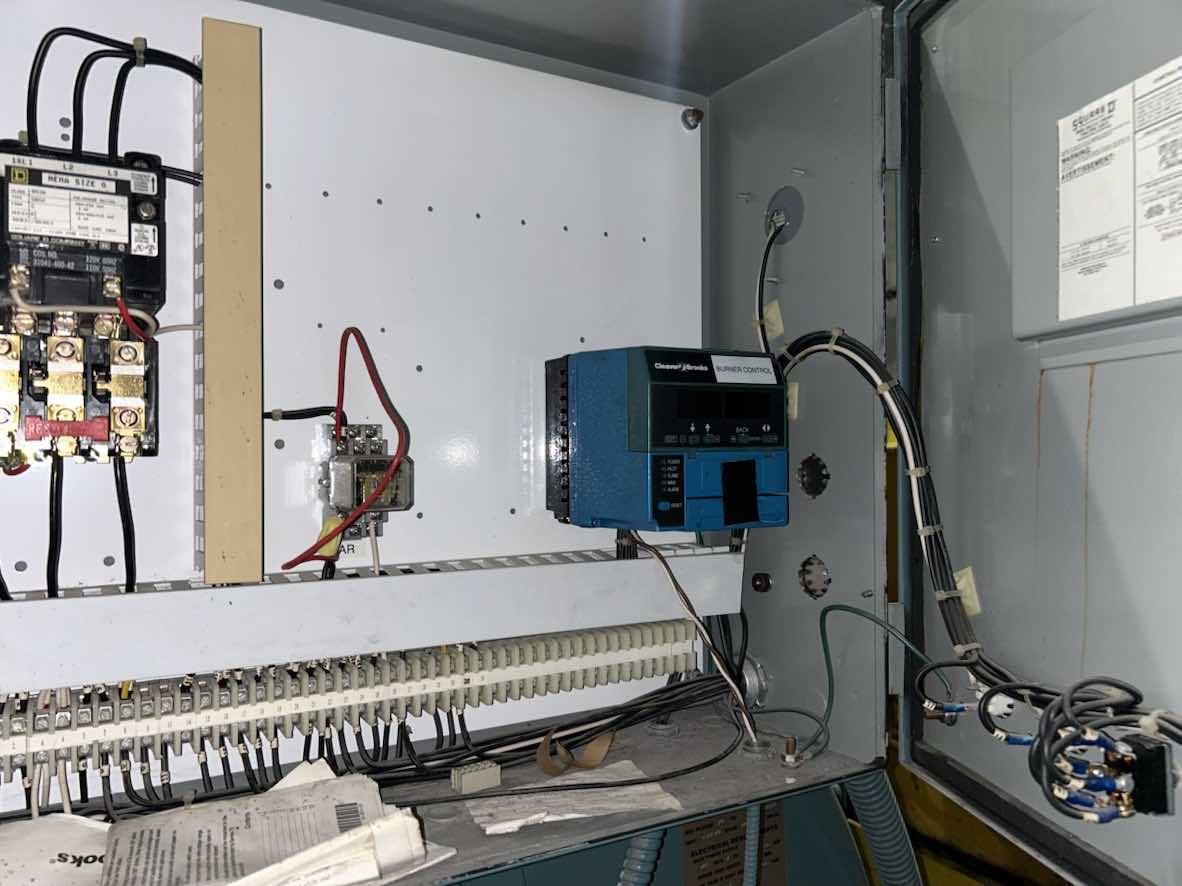

Control Circuit
Volts: 120V
Phase: 1 PH
Hertz: 60 HZ
Ampacity: 7 AMP
Oil Pump Motor
Volts: N/A
Phase: N/A
Hertz: N/A
Ampacity: N/A
Overall Dimensions
Length: 15.58 ft
Width: 6.08 ft
Height: 6.5 ft
Boiler Weight: 9,500 lbs
Location: Ohio
Cleaver Brooks 100 HP 150 PSI High Pressure Steam Boiler
Equipment Description
Manufacturer: Cleaver Brooks
Model: CB700-150
Boiler Horsepower: 100 HP
Boiler Type: Steam Boiler
Fuel Type: Natural Gas
Design Pressure or Maximum Allowable Working Pressure: 150 PSI
Heating Capacity: 4,185,000 BTU/hr
Steam Capacity: 3,450 steam Lbs/hr
Year Built: 1998
Serial No: L-98060
GPH Oil: N/A
Electrical Requirements
Main Power Supply
Voltage: 460V
Phase: 3 PH
Hertz: 60Hz
Ampacity: 5.9 AMP
Minimum Circuit Ampacity: 7.5 AMP
Maximum Rating of Circuit Protection: 25.1 AMP
Blower Motor
Horsepower: 8 HP
Air Compressor Motor
Horsepower: 2 HP
Oil Heater: N/A
Control Circuit
Volts: 120V
Phase: 1 PH
Hertz: 60 HZ
Ampacity: 7 AMP
Oil Pump Motor
Volts: N/A
Phase: N/A
Hertz: N/A
Ampacity: N/A
Overall Dimensions
Length: 15.58 ft
Width: 6.08 ft
Height: 6.5 ft
Boiler Weight: 9,500 lbs
Location: Ohio
Get Your Price from C3 Surplus LLC!
