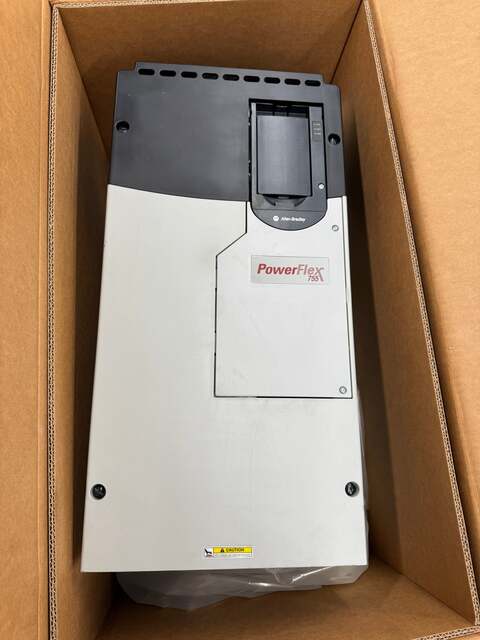

100 HP, Allen-Bradley #20G1AND156AN0NNNNN, Variable Frequency Drive, Variable RPM

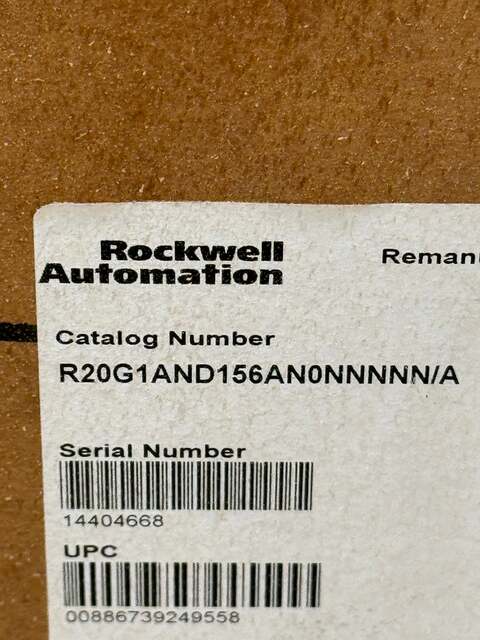

Used in pump, fan, conveyor, and general motor control applications across process and factory automation environments, the Allen-Bradley PowerFlex 755 is a high-performance adjustable frequency AC drive engineered for demanding industrial use. This unit carries catalog number 20G1AND156AN0NNNNN, Series A, manufactured by Rockwell Automation. The box label identifies this unit as a Rockwell Automation remanufactured assembly.

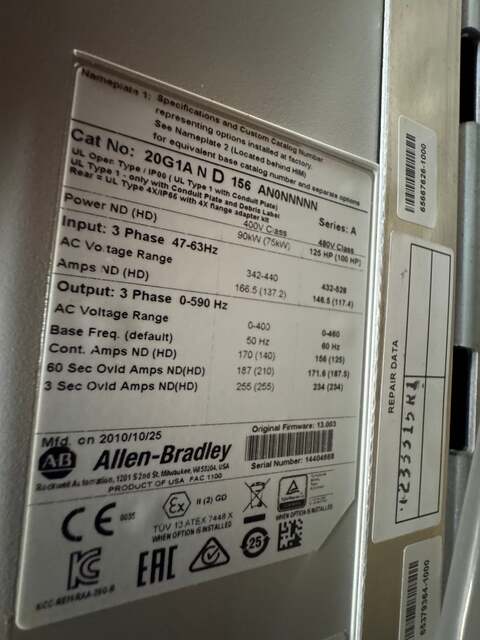

Nameplate data confirms a dual-rated configuration: 90 kW / 125 HP at Normal Duty and 75 kW / 100 HP at Heavy Duty. Input is 3-phase, 47 to 63 Hz, with an AC voltage range of 342 to 440V (400V class) and 432 to 528V (480V class). Input amps ND (HD) are 166.5 (137.2) at 400V class and 146.5 (117.4) at 480V class. Output is 3-phase, 0 to 590 Hz, with a continuous output of 156A ND (125A HD) at 480V class. The unit operates at Frame 6 with an IP00/IP20 open-type enclosure. Original firmware version 13.003. Serial number 14404668. Manufactured 2010/10/25.

Certifications visible on the nameplate include CE (0035), EAC, KC (KCC-REI-RAA-20G-B), TUV 13 ATEX 7448X (when option is installed), and Ex II (2) GD classification. The drive includes embedded EtherNet/IP communication. The PowerFlex 755 platform supports V/Hz, sensorless vector, and closed-loop vector control modes with optional integrated motion capability.

Stock # 0426-02172

Please Note: This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The warranty from the manufacturer does not apply.
