Name: 100 HP 800/1500 RPM General Electric, Frame CD684, DPFG-BV, shunt, 500 VA
Brand: General Electric
Availability: InStock

Manufacturer: General Electric

Frame: CD684

HP: 100

RPM: 800 - 1500

VA: 500

Stock # 10410700000

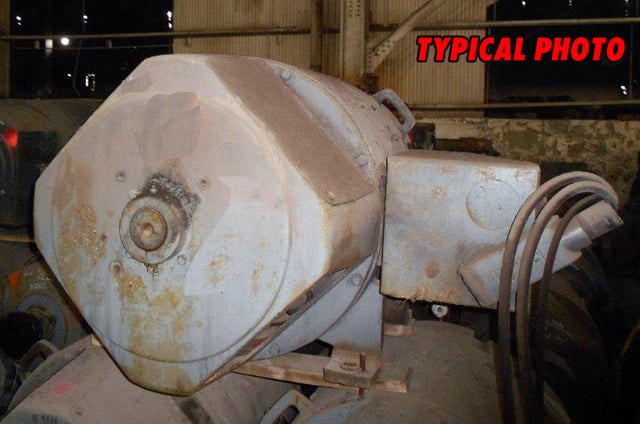

100 HP 800/1500 RPM General Electric, Frame CD684, DPFG-BV, shunt, 500 VA - Image 1

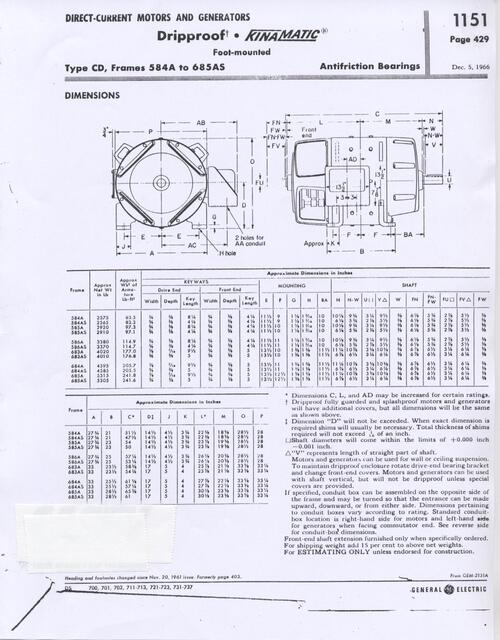

100 HP 800/1500 RPM General Electric, Frame CD684, DPFG-BV, shunt, 500 VA - Image 2

1 / 2

View PDF

For Sale by Casey Equipment/Electrical

Surplus Record Dealer Since 1963

Location: Pittsburgh, PA

Contact Sales Dept.

Phone Number: 412...> Show Phone Number 412-963-1111

Let the seller know you found their listing on Surplus Record!

See all listings from this seller

Description

INVENTORY ID	10410700000
TITLE	100 HP, 800/1500 RPM, 500V, GENERAL ELECTRIC, CD684, SHUNT USED DC MOTOR
HORSEPOWER	100 HP
SPEED	800 RPM
SPEED 2	1500 RPM
VOLTAGE	500 VOLT
MANUFACTURER	GENERAL ELECTRIC
FRAME	684
WINDING	SHUNT
ENCLOSURE	DPFG-BV
SHAFT	DESS
AMPERAGE	175
DUTY	CONTINUOUS
BEARINGS	A/F
FIELD AMPERAGE	12.12/3.3
FIELD RESISTANCE	7.53
DEGREE OF TEMPERATURE RISE	60
SERIAL NUMBER OR ID NUMBER	20I5029OXW17
MODEL NUMBER OR STYLE NUMBER	5CD684E68
SERVICE FACTOR	1.15
WEIGHT	4,500
DRIVE SHAFT DIMENSION	3.25
DRIVE SHAFT LENGTH	6.5
BRAKE SHAFT DIAMETER	3.25
BRAKE SHAFT LENGTH	6.5
