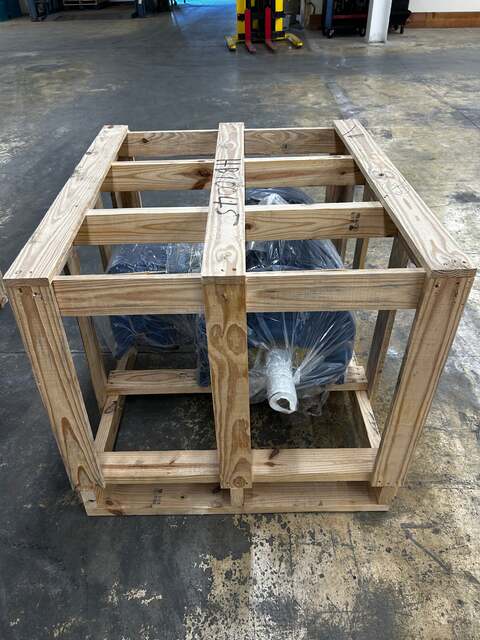

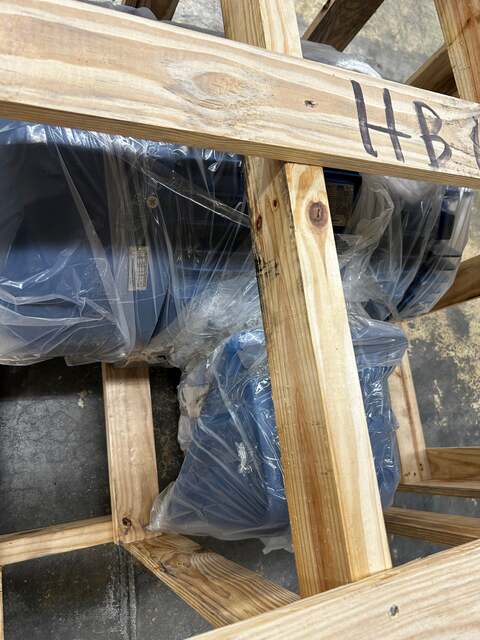

100 HP 1775 RPM TECO Westinghouse #HB10045, Frame 405T, TEFC, 575 Volts, 3 phase

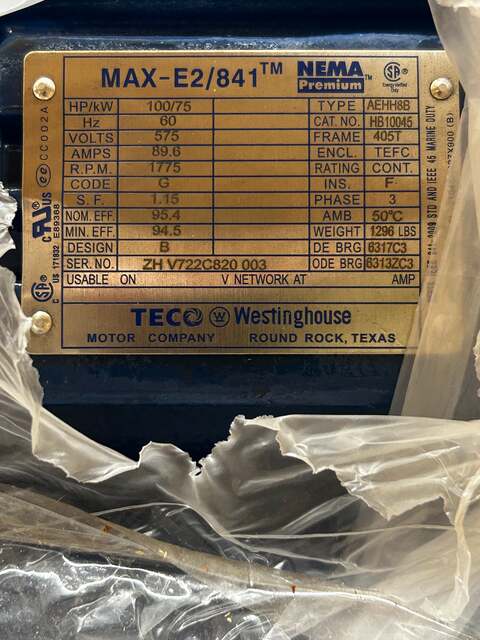

Product Specifications

• Manufacturer: TECO Westinghouse
• MPN / Model: HB10045
• Product Type: AC Induction Motor
• Product Line: MAX-E2/841 NEMA Premium
• Type: AEHH8B
• Horsepower: 100 HP / 75 kW
• Voltage: 575 V
• Phase: 3
• Frequency: 60 Hz
• Amperage: 89.6 A
• Speed: 1775 RPM
• Frame: 405T
• Enclosure Rating: TEFC
• Insulation Class: F
• Service Factor: 1.15
• Design: B
• NEMA Code: G
• Nominal Efficiency: 95.4
• Duty Rating: Continuous
• Ambient: 50 C
• DE Bearing: 6317C3
• ODE Bearing: 6313ZC3
• Weight: 1296 lbs
• Serial Number: ZH V722C820 003

Product Description

This TECO Westinghouse MAX-E2/841 NEMA Premium motor is identified by catalog number HB10045 and motor type AEHH8B. It is a 100 HP, 75 kW three phase AC induction motor rated for 575 volts at 60 Hz, drawing 89.6 amps with a full load speed of 1775 RPM. The motor uses a 405T frame in a TEFC (Totally Enclosed Fan Cooled) enclosure with Class F insulation and a 1.15 service factor.

Built to API 841 and IEEE 45 Marine Duty standards, this unit carries a NEMA Premium efficiency rating with a nominal efficiency of 95.4 percent and is rated for continuous duty at a 50 C ambient. Drive end bearing is 6317C3 and opposite drive end bearing is 6313ZC3. Listed nameplate weight is 1296 lbs. Buyers matching an exact TECO Westinghouse catalog number for replacement, spare inventory, or maintenance sourcing can use catalog number HB10045 and serial number ZH V722C820 003 to confirm the match against existing equipment.
