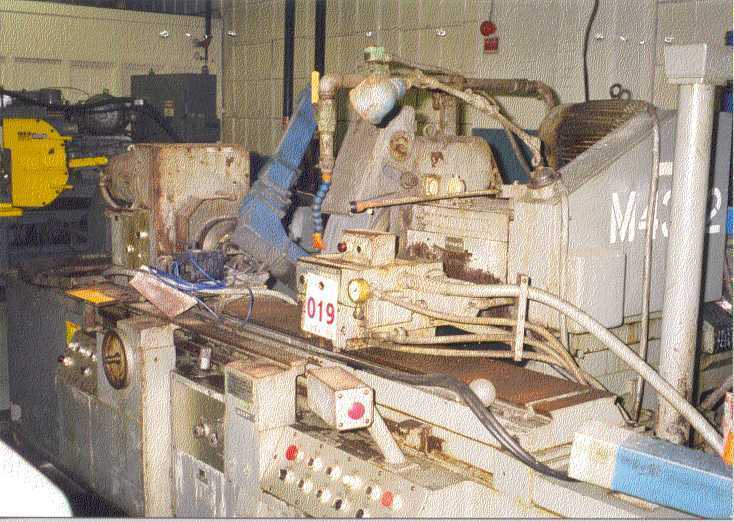

10" x 48" Cincinnati #370-DA, Electronic Controlled plain cylindrical grinder, 30" diameter x 6" width grinding wheel, 20 HP, 1040 RPM, 1974

10 x 48 #370 DA Cincinnati Plain Cylindrical Grinder, V.S. Head Stock, Balancing Spindle, Hydraulic Tail Stock, Hydraulic Table, Plunge, As Is
10" x 48" CINCINNATI ELECTRONIC
CONTROLLED PLAIN CYLINDRICAL GRINDER
MODEL 370 "DA"
S/N 35372E74-0002
STANDARD SPECIFICATIONS
Swing over table, maximum.......................... 10.93"
Grinding diameter, maximum (With new wheel)........ 10"
Grinding length, maximum (Work length)............. 48"
Grinding wheel, maximum diameter (With new wheel).. 30"
Grinding wheel, maximum width...................... 6"
Grinding wheel, hole diameter...................... 12"
Table rapid traverse rate.......................... 220 IPM
Table feed rates................................... 3 - 220 IPM
Wheel head infeed rapid traverse rate.............. 101 IPM
Wheel head infeed feed rates....................... 0 - 9.99 IPM
Table swivel angle toward wheel head............... 9 degrees
Table swivel angle away from wheel head............ 2 degrees
Wheel head horsepower.............................. 20 HP
Wheel head (Grinding wheel) speed.................. 1040 RPM
Work head horsepower............................... 3 HP
Work head speed.................................... 10 - 550 RPM
Electrical system.................................. 460/3/60
Approximate machine dimensions..................... 74" x 167"
Approximate machine height......................... 85"
Approximate machine weight......................... 25,900 lbs.
EQUIPPED WITH
Acramatic EC 1 electronic in feed control for pick or
plunge cycles.
Balancing spindle.
Acralign 2 taper correction unit.
Gap eliminator with Marposse E-5 jump on gage and amp. box.
3 HP Vee-arc variable speed head stock option.
Table traverse.
90 Degree swiveling head stock option.
Hydraulic tail stock.
Cross feed travel extended by 2 inches.
Swivel table w/precision taper attachment.
Behind wheel auto truing device.
Specifications are deemed accurate, however, subject to verification or prior sale.
