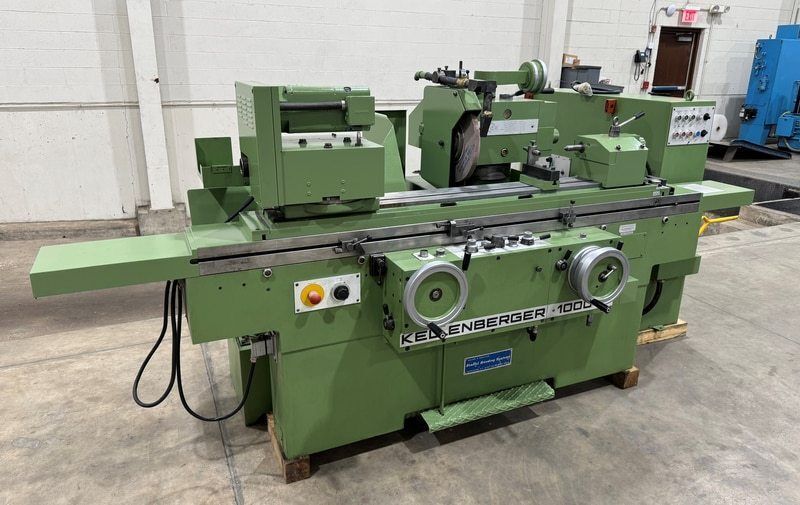

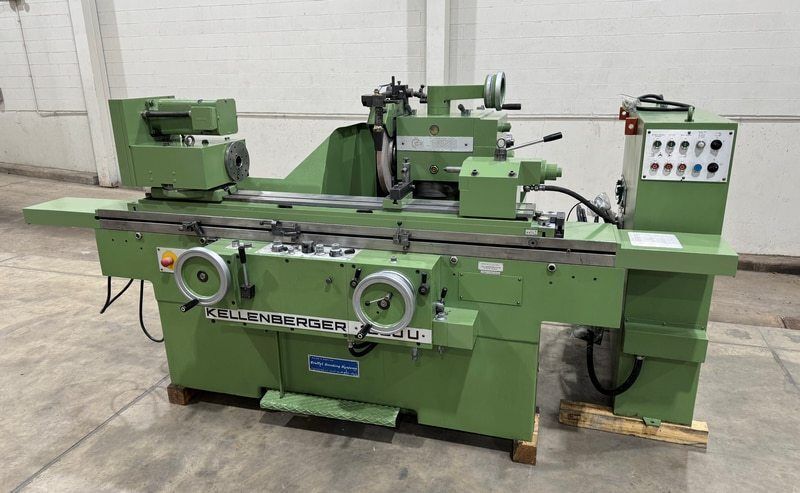

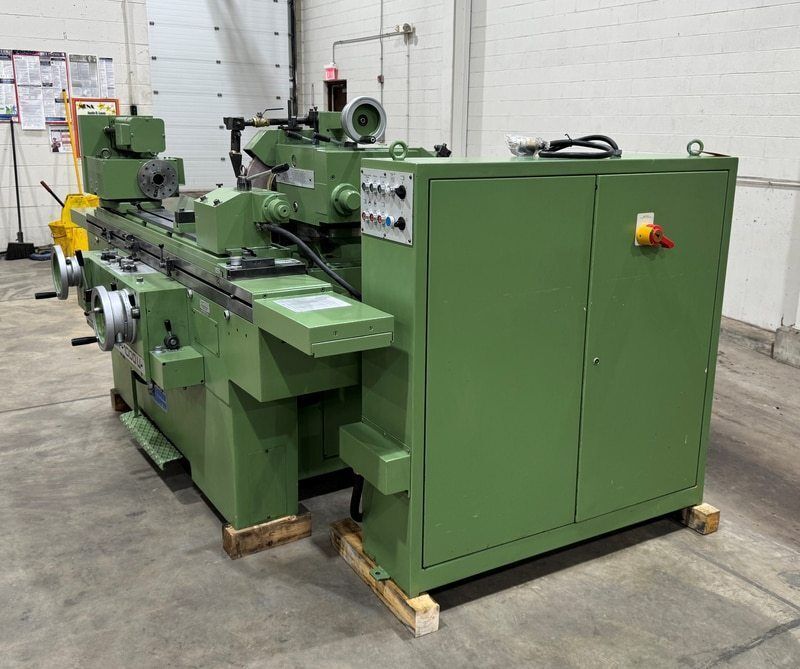

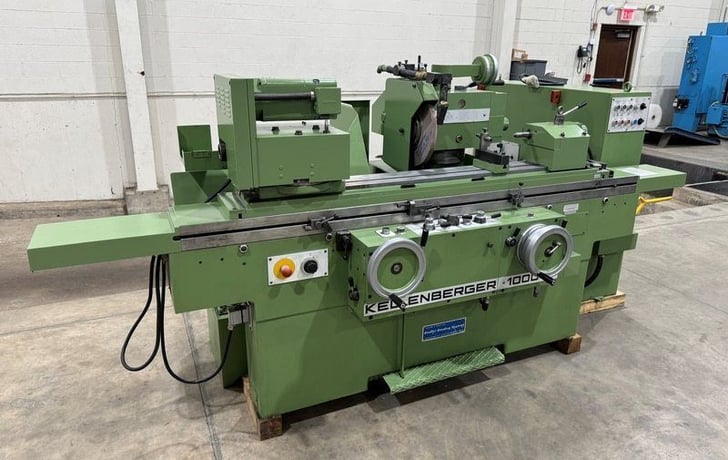

10" x 40" Kellenberger #1000U-125, 3-Wheel Design, ID Spindle, Coolant System, 1989

New - 1990
Serial No. 32.467.2911
SPECIFICATIONS:
Distance Between Centers............39-3/8"
Distance Between Centers w/ Tailstock Overhanging............47-1/4"
Height of Centers............4.96"
Swing Over Table............10"

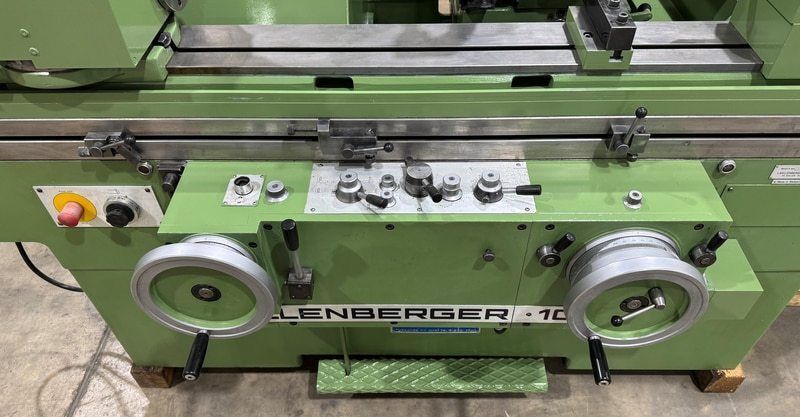

Longitudinal Table Travel............51-13/16"
Longitudinal Table Travel Per Turn of Handwheel - Coarse............25/32"
Longitudinal Table Travel per Turn of Handwheel - Fine............3/32"
Longitudinal Table Speed - Hydraulic............0.6 - 240 IPM
Table Swivels............9 Degrees
Reversing Dwell............0 to 5 Seconds

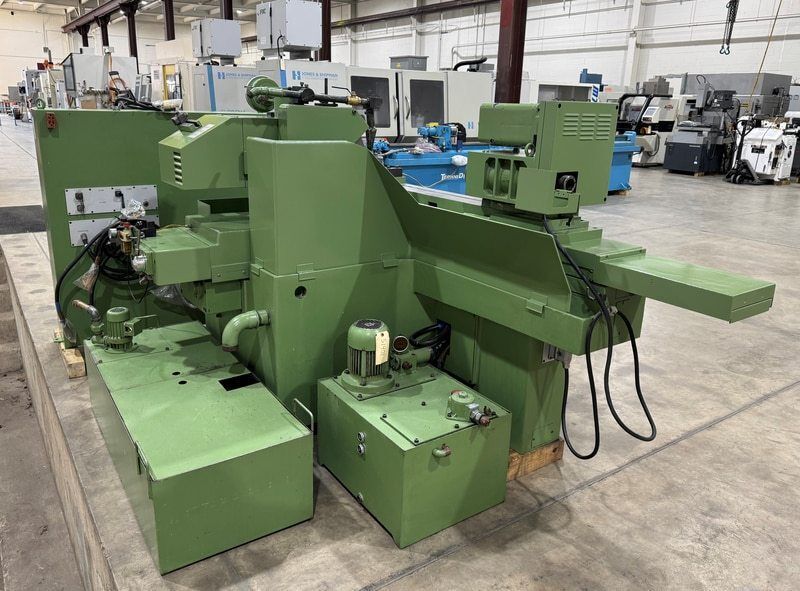

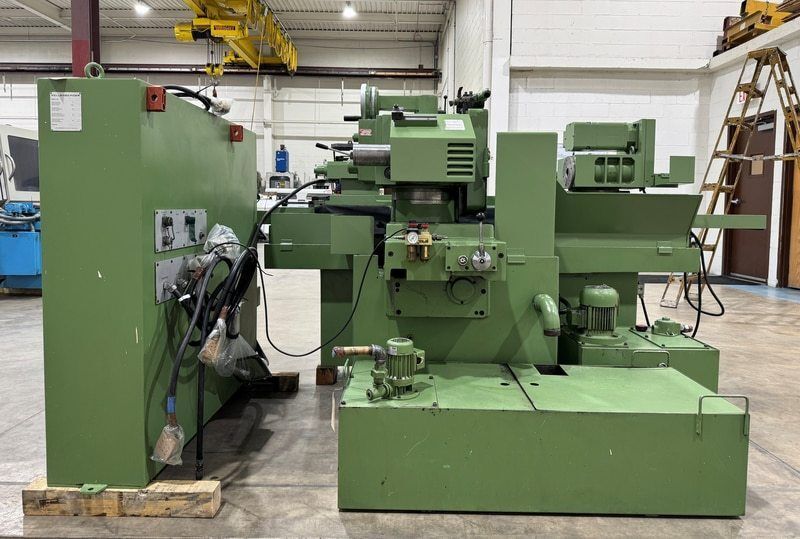

Dimensions - Approximate:
- Machine............114"L X 72"W X 60"H
- Electrical Cabinet............48"L X 12"W X 63"H
- Coolant System............42"L X 20"W X 17"H
- Hydraulic System............34"L X 18"W X 24"H
- Filter System............10"L X 10"W X 34"H
Grinding Wheel Infeed:
1 Graduation of Feed Scale............0.0002"
Automatic Feed - Maximum............0.036"
Automatic Infeed Per Table Reversal............0.00005" to .0012"
Infeed for Plunge Grinding............0.00004" to .002"
Micrometer Stop, 1 Graduation............0.00005"

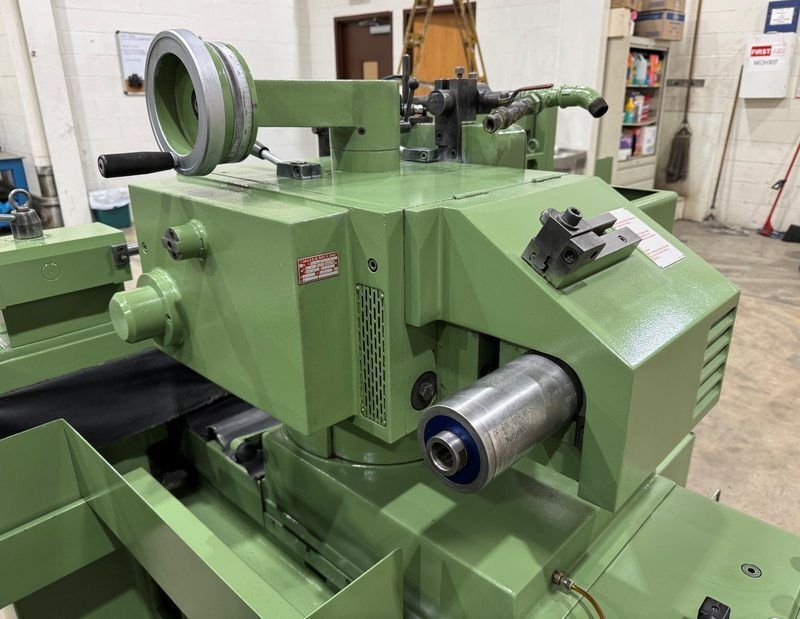

Universal Grinding Spindle Head:
Transverse Movement of Wheel Slide............11-1/4"
Hydraulic Rapid Wheel Slide Advance/Retraction Stroke............1-37/64"
Grinding Wheel Head Motor............4 HP
Grinding Wheel Speeds (4)............500, 1700, 2200, 3600 RPM
Grinding Wheel - Cylindrical Grinding............16" X 2" X 5"
Grinding Wheel - Surface Grinding............10" X 3/4" X 3"
Swivel of Grinding Head w/Locking Every 90 Degrees............270 Degrees
Vert. Motion of Grinding Spdl. Head, Height of Centers............4-59/64" - 13-25/32"

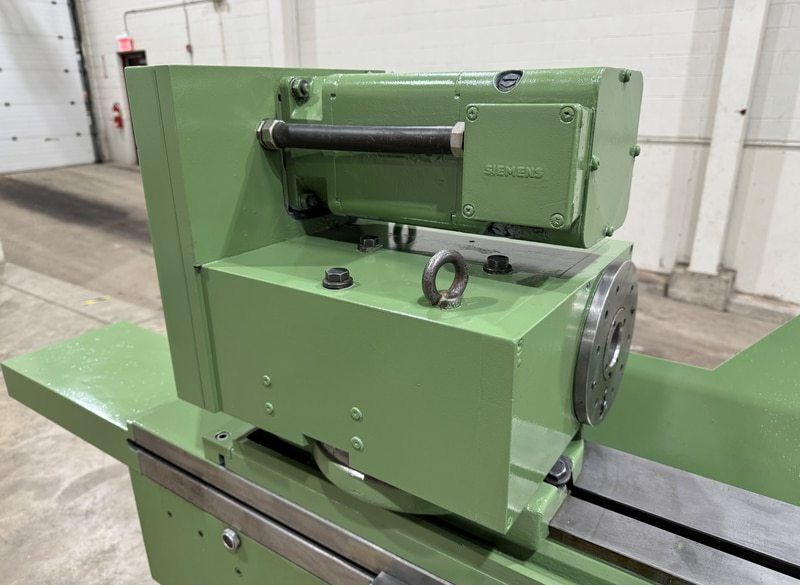

Workhead:
Variable Spindle Speed............10 - 400 RPM
Workhead Swivles............360 Degrees
Inside Taper of Work Spindle............#5 MT
Approximate Floor Space Required............106"L X 64"W X 66"H
Approximate Weight............6,500 Lbs.

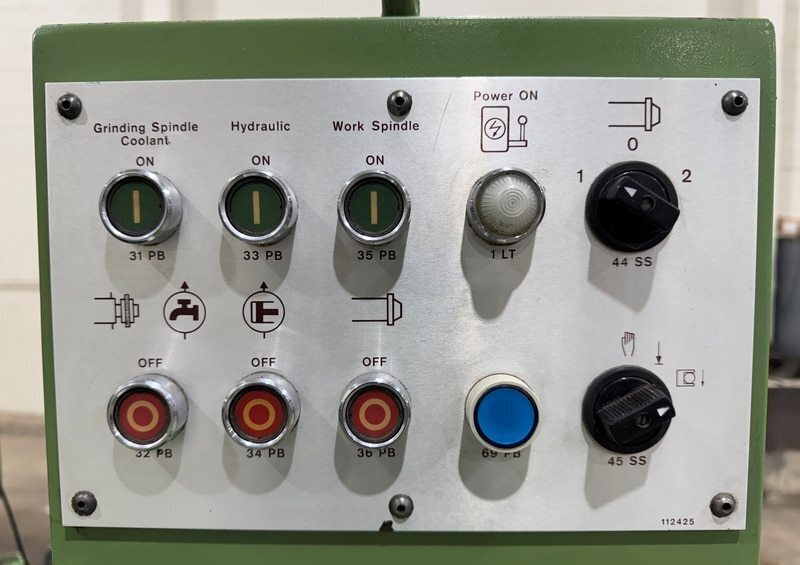

EQUIPPED WITH:
Three-wheel design
Belt driven ID spindle
Fortuna FIV 80 R 315.54 I.D. Grinding Spindle (17,000 Max RPM)
ID spindle wheelguard

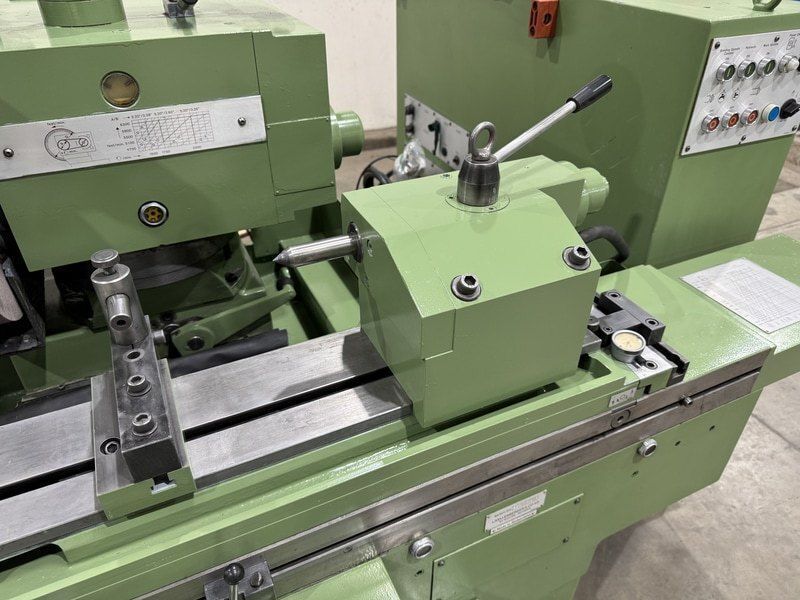

Hydraulic tailstock w/foot treadle
Table mount wheel dresser
Infinitely Variable Table Traverse
Automatic infeed
Plunge infeed
Dial guage stop for table swivel
Rapid wheel advance and retraction
Sparkout timer
Coolant system w/filtration
Hydraulic System
Grinding wheel balancing stand
Grinding wheel arbor
9.5" Face Plate
Misc. Grind Wheels
*Preliminary specifications pending confirmation.
