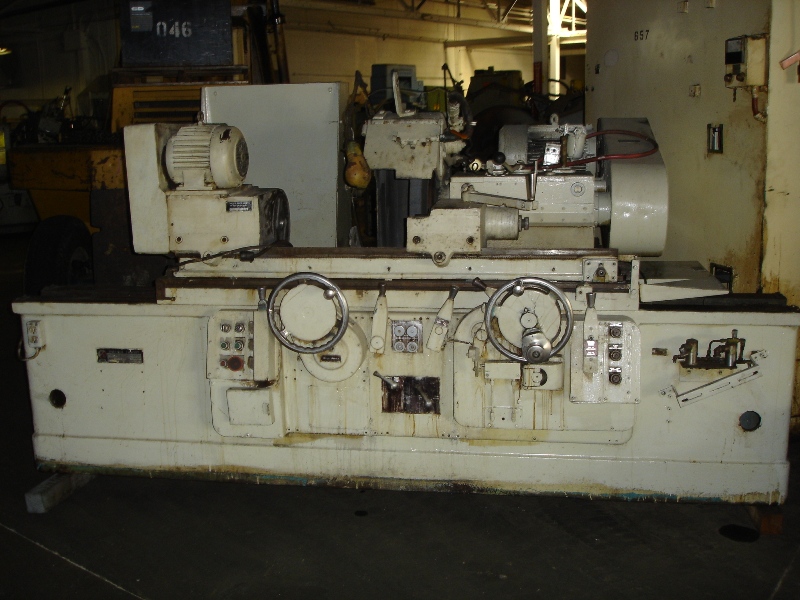

10" x 36" Warner & Swasey #C-5, plain cylindrical grinder, 30" x 2" x 12" grinding wheel, 15 HP, 1765 RPM, 1972

10x36 Warner & Swasey C5 Semi?Automatic Cylindrical Grinder, Hydraulic Table Travel, Grinding Wheel 30" x 2", Attached Electrical, Plunge, As Is
10 x 36 WARNER SWASEY C-5 SEMI-AUTOMATIC CYLINDRICAL GRINDER
S/N NAC 2535Year: 1972
STANDARD CATALOG SPECIFICATIONS
Nominal length................................ 36
Nominal swing................................. 10
Maximum diameter work ground,w/30 wheel..... 10
GRINDING WHEELS
Standard......................................30 x 2 x 12
WHEEL AND WORK CENTER DISTANCES
Maximum......... (10) 21 Minimum.......... (10) 81/4
Automatic rapid advance stroke(max).......... 4
(On semi-automatic machines)
STEADY REST
Maximum work diameter accommodated............ 4 5/8
Swivel table adjustment(in/per/ft on dia.):
Machine length................................ 36
Maximum taper (inches).... 31/2, 3, 2 1/2, 2, 1 1/2, 1 1/4, 1
Maximum taper (degrees)... 81/4, 7 1/2, 6, 4 3/4, 3 1/2, 3, 2 1/4
Note: Actual tapers ground depend on wheel diameter,
work diameter and length, also on the location of
the taper with reference to the pivot point.
HEAD STOCK
Center diameter.................................1 3/4
Center taper.................................... No. 14 Jarno
Work speeds, AC Motor (10C-5)................. 50-80-125-200 RPM
FOOT STOCK
Center diameters................................ 1 3/4
Center taper....................................No. 14 Jarno
TABLE
Range of speeds (in. per min)................... 2 - 240
Number of speeds................................ Infinite
MACHINE WEIGHT FLOOR SPACE
Weight......................................... 15,000
Floor space.................................... 134 x 97
MOTORS CONTROLS
15 HP 1765 RPM 220/440 3 60 Cycle wheel drive motor.
1 1/2 HP 1160 RPM.
1 1/2 HP Lubricating pump motor.
1/4 HP Coolant pump drive motor.
EQUIPMENT FEATURES
Hydraulic table travel.
Grinding wheel 30 x 2.
G.C.H. stocks over hundreds of Cylindrical Grinders. We can tool any machine to suit your requirements. Call for our complete stock list.
Specifications are deemed accurate, however, subject to verification or prior sale.
