For Sale by Southern Fabricating Mchy Sales
Description

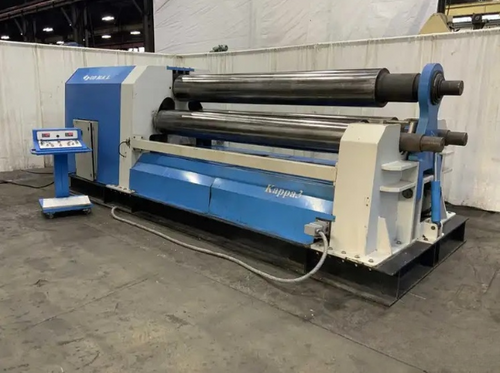

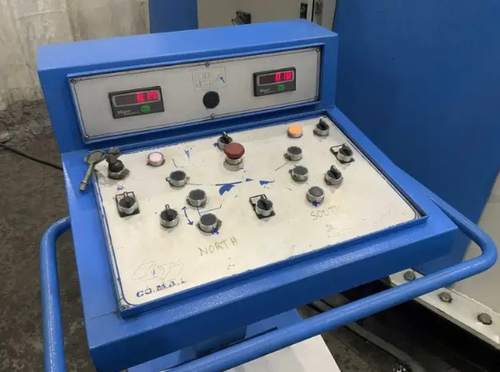

¾” X 10’ Pyramid Style Plate Roll with Hydraulic Roll Adjustment, Cone Rolling, Variable Speed Operator Console with Roll Position Display.
GENERAL SPECIFICATIONS
Max Rolling Capacity: ¾”
Length of Rolls: 122”
Diameter of Top Rolls: 14.961”
Diameter of Lower Rolls: 14.73”
Main Drive Motor: 30 HP
Machine Dimensions: 288” X 88” X 82” H
Control Dimensions: 24” X 30’ x 44” H
INCLUDES: Hydraulic Roll Adjustment, Cone Rolling, Variable Speed Operator Console with Roll Position Display.
***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
