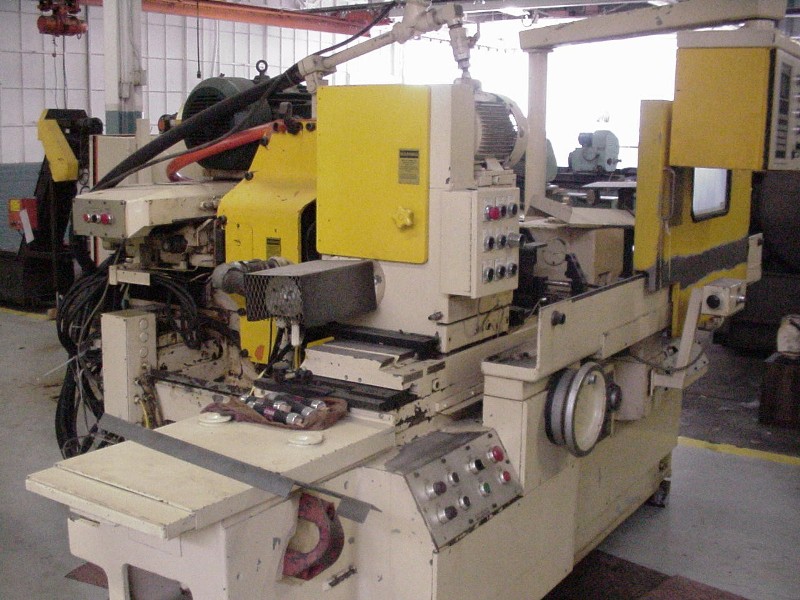

10" x 24" Cincinnati #370-DA, plain cylindrical grinder, 30" diameter x 5" width x 12" hole grinding wheel, 20 HP, 1040 RPM, 1971

10" x 24" Cincinnati Plain Cylindrial Grinder, Model 370 DA, 30" x 5" Grind Wheel, Hyd. Behind Wheel Profile Dresser,Cincinnati Camac VLC Controls, As Is
10 x 24CINCINNATI ELECTRONIC
CONTROLLED CYLINDRICAL PLUNGE GRINDER
MODEL 370 DA
S/N 35372B5Y-0006Year: 1971
STARDARD SPECIFICATIONS
Swing over table, maximum........................... 10.93
Grinding diameter, maximum (With new wheel)......... 10
Grinding length, maximum (Work length).............. 24
Grinding wheel, maximum diameter(With new wheel)... 30
Grinding wheel, maximum width....................... 5
Grinding wheel, hole diameter....................... 12
Wheel head in feed rapid traverse rate.............. 101 IPM
Wheel head in feed feed rates....................... 0 - 9.99 IPM
Table swivel angle toward wheel head................ 9 degrees
Table swivel angle away from wheel head............. 2 degrees
Wheel head horse power............................... 20 HP
Wheel head (Grinding wheel)speed................... 1040 RPM
Work head horse power................................ 3 HP
Work head speed..................................... 10 - 550 RPM
Electrical system................................... 460/3/60
Approximate machine dimensions...................... 74 x 167
Approximate machine height.......................... 85
Approximate machine weight.......................... 25,900 lbs.
EQUIPPED WITH
Acramatic EC 1 electronic in feed control for plunge cycle.
Auto balancing grinding wheel.
Aeralign VLC Camac Control taper correction unit.
3 HP Vee-arc variable speed head stock option.
90 Degree swiveling heads stock.
Hydraulic tail stock.
Swivel table w/precision taper attachment.
Behind wheel hydraulic profile dresser.
Live dead center head stock.
Head stock jog.
Expanding mandrel for head stock.
Specifications are deemed accurate, however, subject to verification or prior sale.
