10" x 20" Chevalier #FSG-1020ADII, surface grinder, 21" centers, 8" x 5" x 1.25" grinding wheel, 10" x 20" chuck, 16-82 FPM, 3 HP

Chevalier FSG-1020ADII Horizontal Surface Grinder. Features 10"x20" size capacity, 3 HP power, 10"x20" magnetic chuck, automatic plunge grinding. Equipped with hydraulic and coolant systems. Ideal for precision surface grinding tasks.

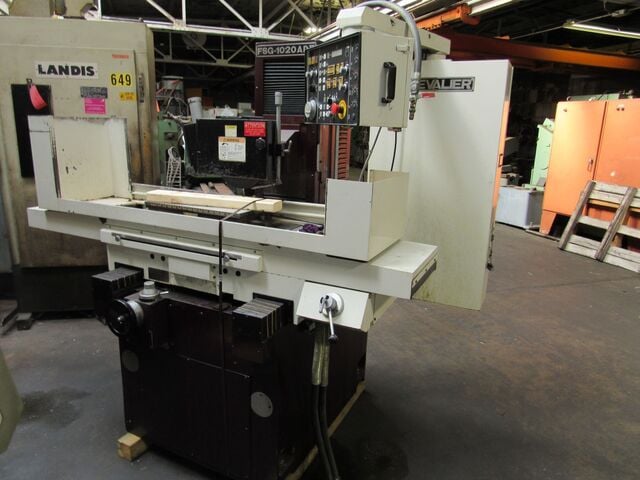

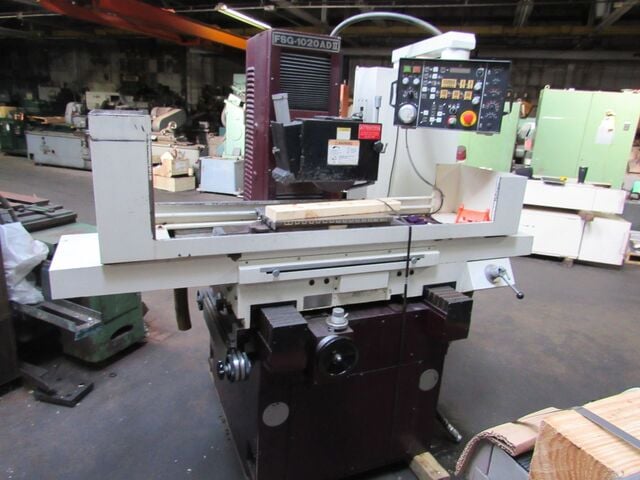

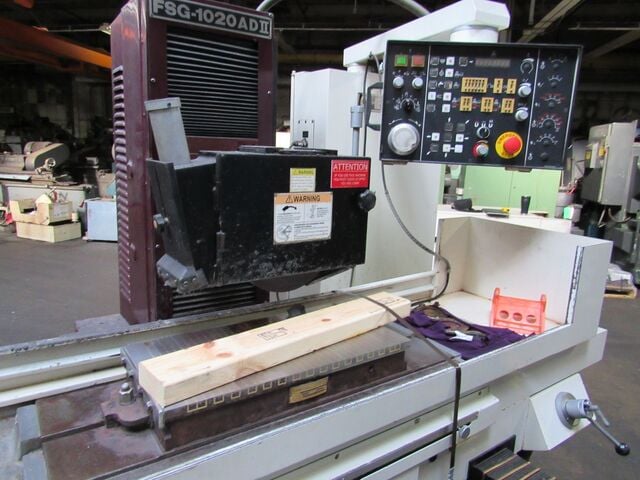

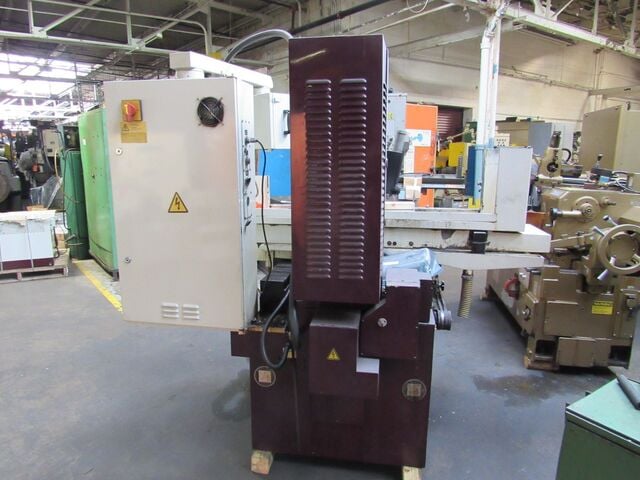

CHEVALIER FSG-1020ADII SURFACE GRINDER
S/N EB904001
STANDARD SPECIFICATIONS
Max Grinding Length…………………………………………………………………20”
Max Grinding Width……………………………………………………………………10”
Max Distance Between Centers…………………………………………21”
Manual Longitudinal Travel………………………………………………24.375”
Hydraulic Longitudinal Travel………………………………………22.875”
Longitudinal Table Speed……………………………………………………16-82 FPM
Manual Crossfeed Travel………………………………………………………11.75”
Crossfeed Rapid Travel Speed…………………………………………12.5 FPM
Crossfeed Micro Feed (Per Graduation)…………………0.00005”
Crossfeed Micro Feed (Per Revolution)…………………0.005”
Wheelhead Auto Infeed……………………………………………………………0.000050”-0.002”
Wheelhead Infeed Rapid Travel………………………………………8 IPM
Wheelhead Micro Feed………………………………………………………………0.000050”/0.0001”
Wheelhead Infeed (Per Graduation)……………………………0.0005”
Wheelhead Infeed (Per Revolution)……………………………0.05”
Spindle Motor…………………………………………………………………………………3 HP
Grinding Wheel………………………………………………………………………………8”x 5”x 1.25”
Electrical…………………………………………………………………………………………480 Volts
EQUIPPED WITH

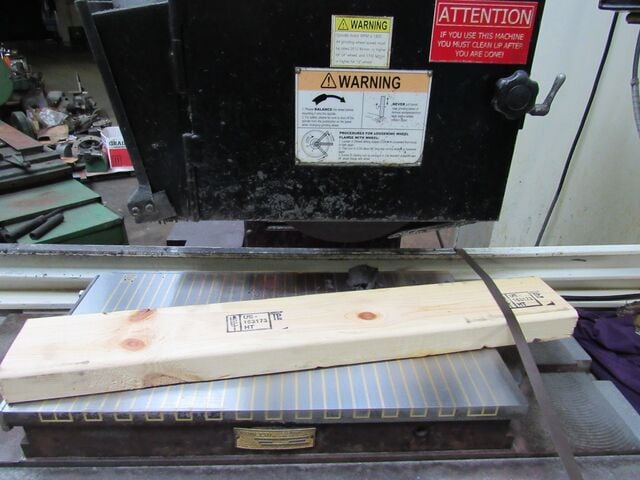

10”x 20” Magnetic chuck.

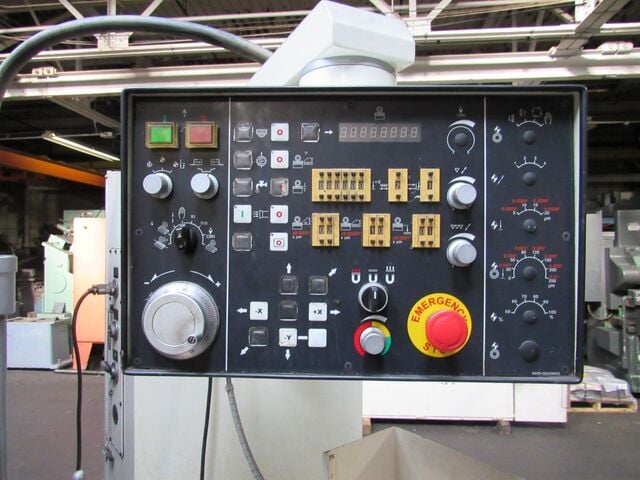

3-Axis fully automatic & plunge grinding system.
Spark-out 0-9 times for fine finish.
Table park.
Incremental downfeed.
External hydraulic system.
External coolant system with paper filter separator.
Specifications are deemed accurate, however, subject to verification or prior sale.
