Manufacturer: Acer
Model: AGS-1020AHD
Year: 1999
Width/Cross: 10.0
Length/Longit.: 20.0
Stock # 40639
1 / 8
Click to zoom in
1 / 8
For Sale by Machinery Network Inc
Surplus Record Dealer Since 1989
Location: Encino, CA
Contact Sales Dept.
Phone Number: 818...> Show Phone Number 818-465-6700
Let the seller know you found their listing on Surplus Record!
Description

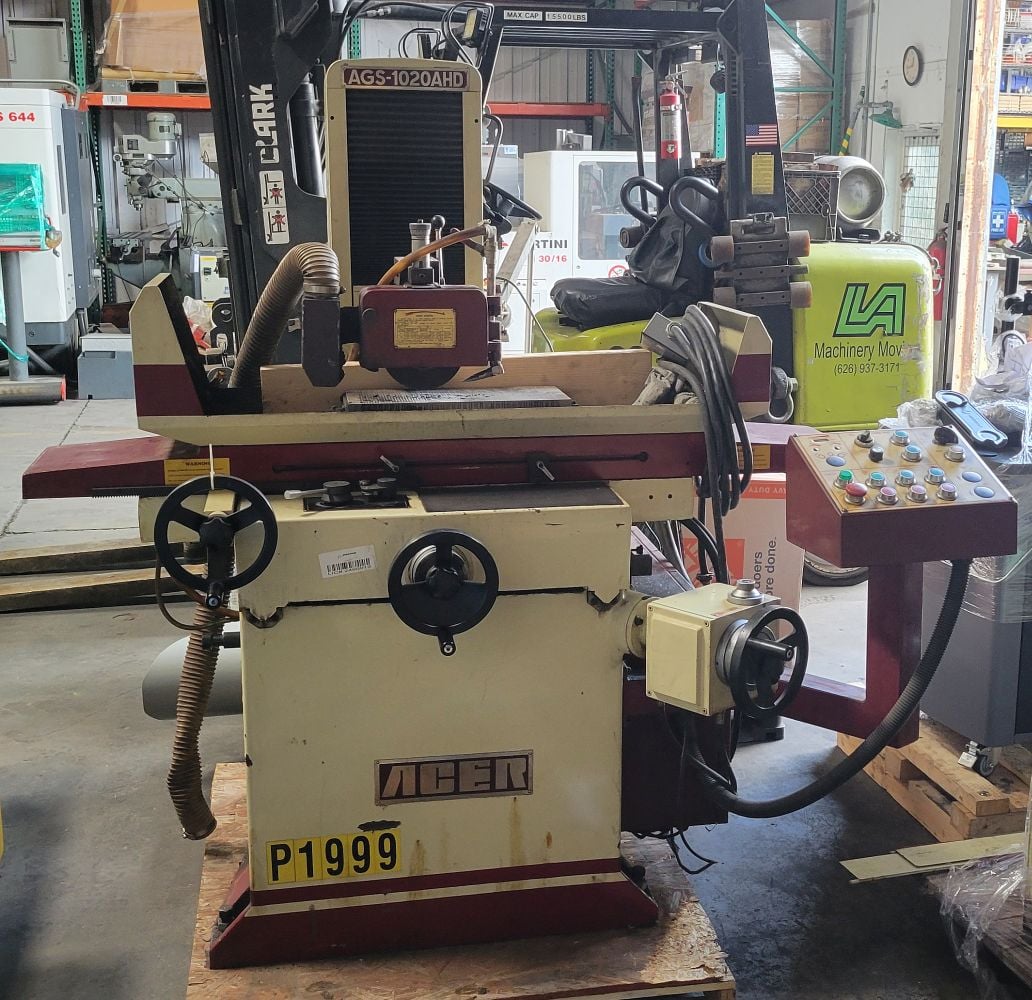

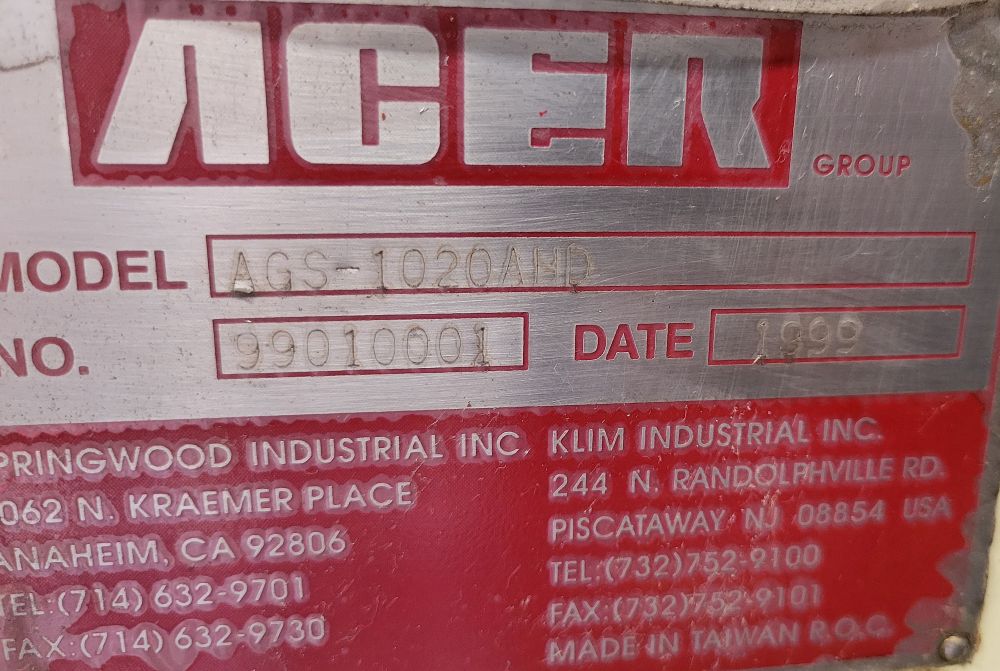

1999 ACER AGS-1020AHD
SPECIFICATIONS:
Table size........................... 10" x 20"
Table travel - longitudinal.......... 20.5"
Table travel - cross................. 11"
Distance - spindle center to table... 19.5"
Max table load....................... 1,000 lb
Longitudinal table speeds............ 16-80 FPM
Cross feed - automatic............... 0 -1"
Down feed - auto incremental......... .0001 to .001 IPR
Power................................ 2 hp
Grinding wheel dimensions............ 8"OD x 0.5"W x 1.25" bore
Dimensions........................... 6' x 5.5' x 6'H
Weight............................... 3800 Lbs
EQUIPPED WITH:

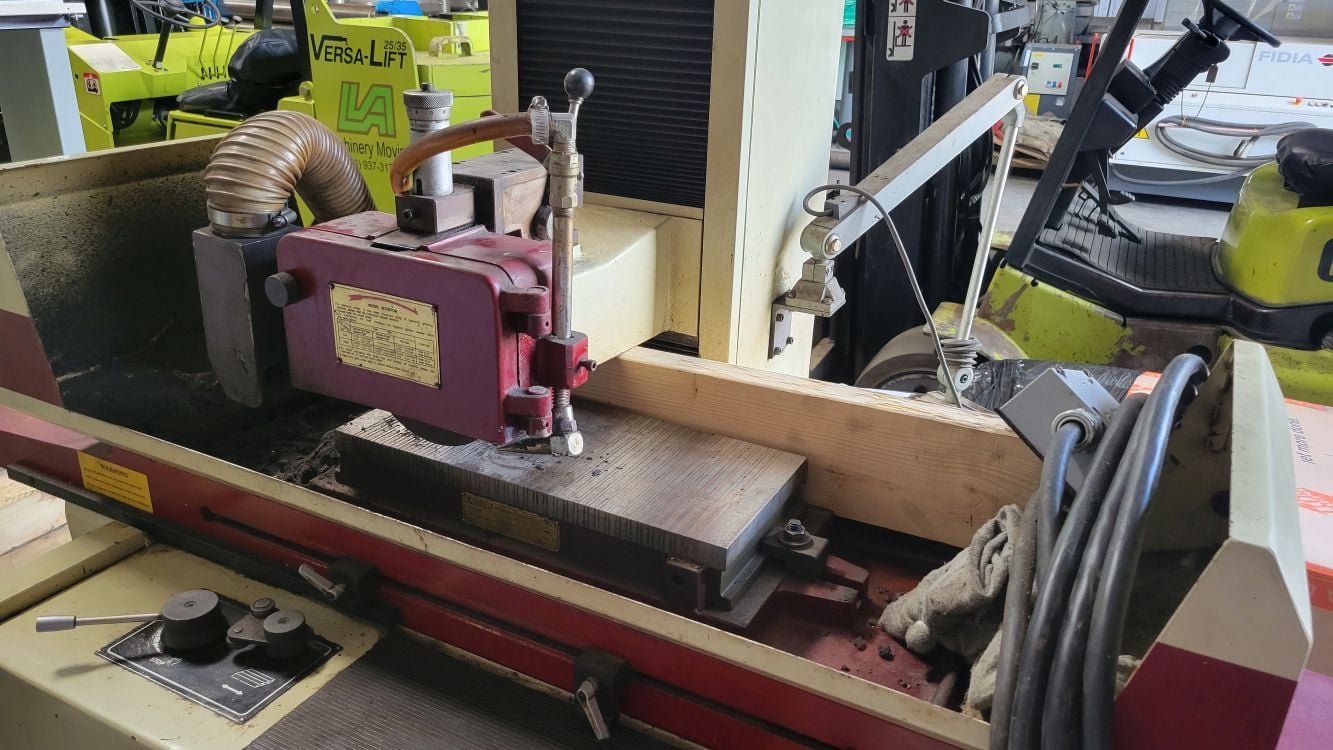

10" x 20" Permanent magnetic chuck
Over the wheel dresser

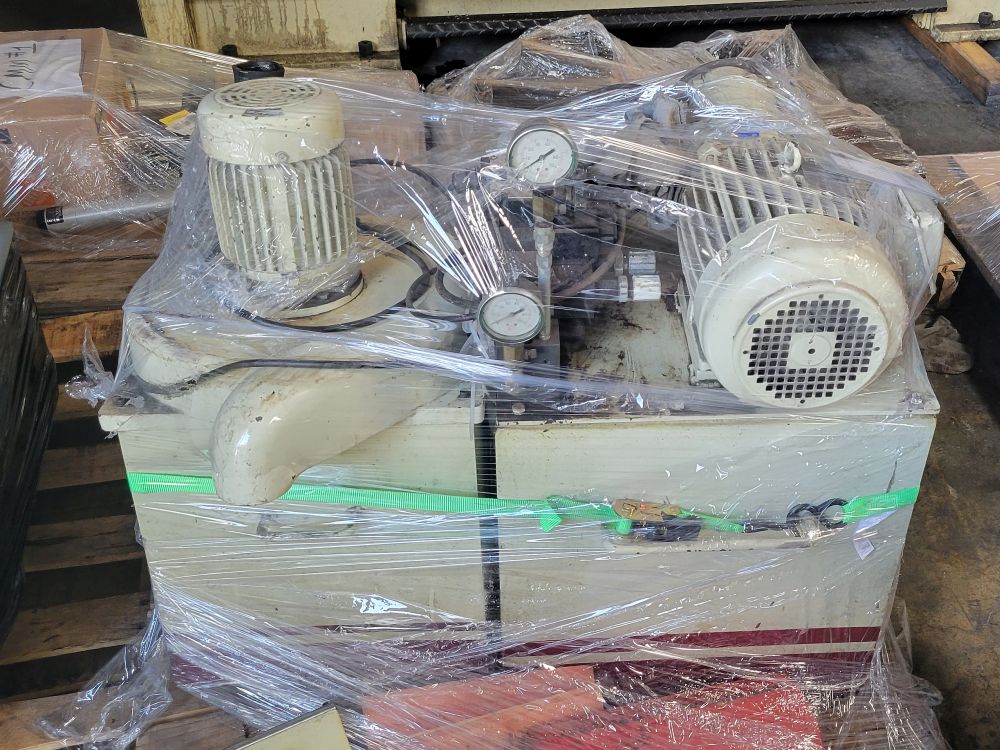

Coolant system
SPECIFICATIONS:
Table size........................... 10" x 20"
Table travel - longitudinal.......... 20.5"
Table travel - cross................. 11"
Distance - spindle center to table... 19.5"
Max table load....................... 1,000 lb
Longitudinal table speeds............ 16-80 FPM
Cross feed - automatic............... 0 -1"
Down feed - auto incremental......... .0001 to .001 IPR
Power................................ 2 hp
Grinding wheel dimensions............ 8"OD x 0.5"W x 1.25" bore
Dimensions........................... 6' x 5.5' x 6'H
Weight............................... 3800 Lbs
EQUIPPED WITH:
10" x 20" Permanent magnetic chuck
Over the wheel dresser
Coolant system
