Description

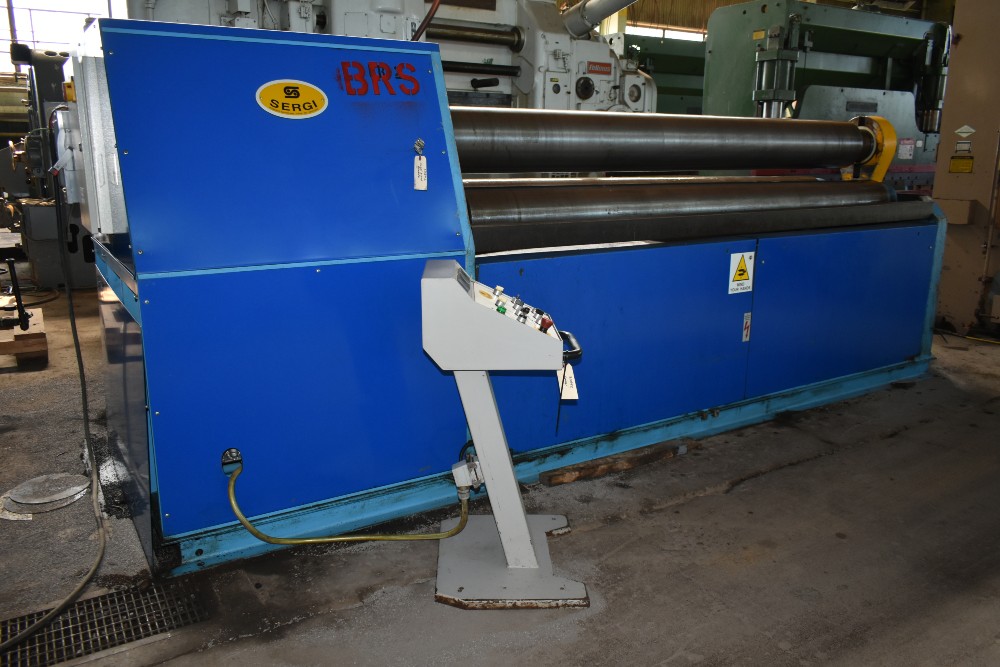

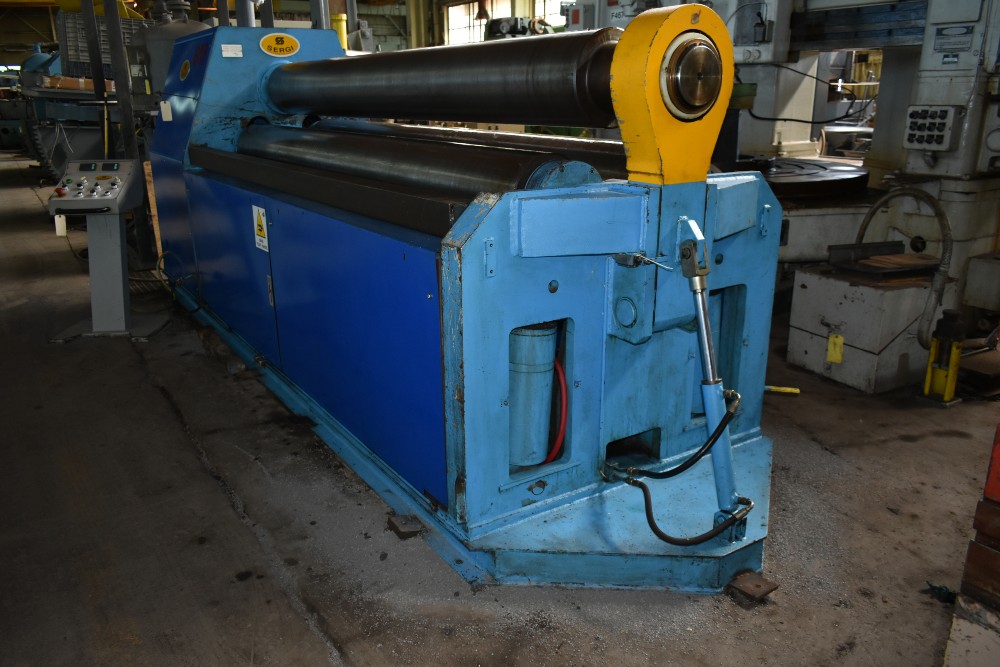

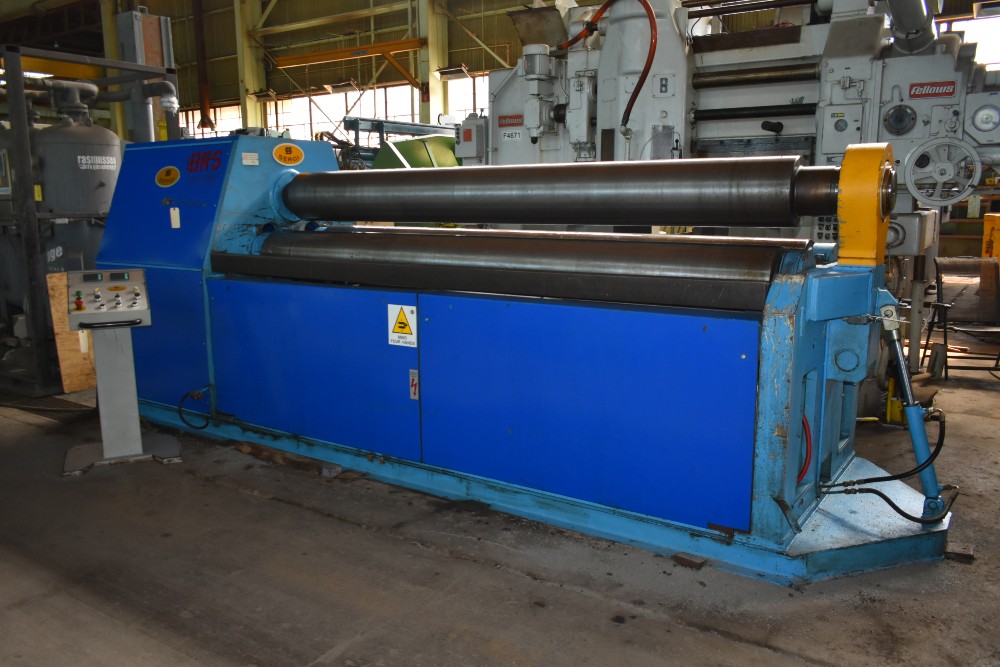

10 X 1/2 SERGI C.I. 3050X10/12 HYDRAULIC 3-ROLL DOUBLE PINCH PLATE BENDING ROLL - Hydraulic Drop End - Hardened Powered Rolls - 15 HP Motor 10 x 1/2 SERGI FULLY-HYDRAULIC DOUBLE-PINCH PLATE BENDING ROLL New 2002, Serial No 1659, Model C.I., Series 3050x10/12MM EQUIPPED WITH: Hydraulic Drop End Double Pre-Bending Capabilities (3) Hardened Driven Rolls - Dual Rotation Speeds (Fast/Slow) Side Roll Inclination For Conical Bending Mobil Control Panel w/Digital Readouts For Side Roll Position CATALOG SPECIFICATIONS: Plate Bending Capacity 10 x 1/2 Plate Bending Capacity 3050MM x 12MM Pre-Bending Capacity Rated 10 x 3/8 Pre-Bending Capacity Rated 3050MM x 10MM Smallest Diameter Rolled At Full Capacity 19" 480MM Top-Roll Diameter 12.2 310MM Bottom-Rolls Diameter 11.4 290MM Opening Between Top & Bottom Roll, Maximum 2" 50MM Working Height 43" 1100MM Motor Horsepower 15 HP 11KW Overall Dimensions, L x W 189" x 58" Overall Dimensions, L x W 4800MM X 1470MM Overall Height 73" 1850MM Weight Approximately 21560 LBS 9800 KG F.O.B. OUR WAREHOUSE
10' X 1” Plate Roll with Siemens Digital Readout, (2) Top Rolls, Side and Overhead Supports., Roll Length: 10’, Max Prebending Capacity: 1”, Max Rolling Capacity: 1.77”, Top Roll Diameter: 17.7”, Side Rolls: 15.7”, Total Power: 59”, INCLUDES: Siemens Digital Readout, (2) ...more
