For Sale by Revelation Machinery
Surplus Record Dealer Since 2017
Location: Chicago, IL
Contact Tim Wheeler
Phone Number: 816...> Show Phone Number 816-330-2138
Let the seller know you found their listing on Surplus Record!

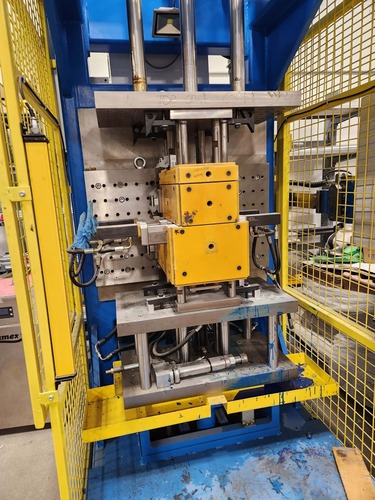

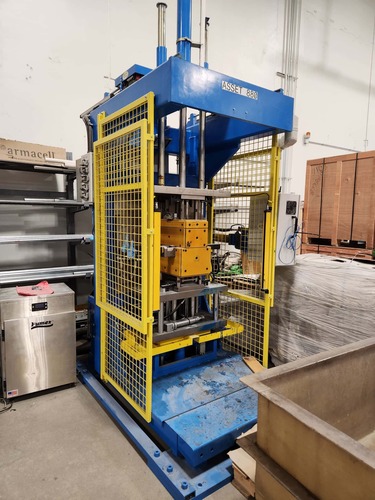

Description
Make: XU SHI
Model: Hag e 10 z
Year: 2021
Machine Location: Illinois
Model: Hag e 10 z
Year: 2021
Machine Location: Illinois
Vertical Clamping Force: 100kn.
Top Core:
Top Core Carriage on Top of the Machine Frame.
Top Core Cylinder Stroke: 950mm, Linear Sensor with Power-Off Memory Function.
Distance Between the Core-Pulling Plate and The Equipment Center: Min.. 250mm,and Max. 1200mm.
Top Horizontal Cylinder: Stroke 630mm.
Top Core Plate: 700×450mm.
Bottom Core:
Bottom Core Pulling Plate.
Bottom Core Cylinder: Stroke 350mm, Piston Diameter 80mm.
The Distance Between the Core-Pulling Plate And The Equipment Center: Min. 310mm, And Max. 660mm.
Bottom Horizontal Cylinder: Stroke 260mm. Linear Sensor with
Bottom Core Plate: 700×450mm.
Heating Plate:
Heating Plate: 1000 X 600 Mm (Width X Height).
Using Heat Insulation And Pad.
480v Heating Rod.
Pt100 Sensor.
Get Your Price from Revelation Machinery!
Buyers Who Viewed This Listing Also Viewed:
10 Ton, XU SHI #HAG E 10 Z, Vertical Mold Injection Press, 2021 #3
Category: Molding Compression Hydraulic Presses
Seller: Revelation Machinery
Location: Chicago, IL
Mfr: Xu Shi
Model: HAG E 10 Z
Year: 2021
Make: XU SHI, Model: Hag E 10 Z, Year: 2021, Machine Location: Illinois, Vertical Clamping Force: 100kn., Top Core:, Top Core Carriage on Top of the Machine Frame., Top Core Cylinder Stroke: 950mm, Linear Sensor with Power-Off Memory Function., Distance Between the Core-Pulling Plate and the Equipment Center: Min. ...more
10 Ton, XU SHI #HAG E 10 Z, Vertical Mold Injection Press, 2021 #1
Category: Molding Compression Hydraulic Presses
Seller: Revelation Machinery
Location: Chicago, IL
Mfr: Xu Xhi
Model: HAG E 10 Z
Year: 2021
Make: XU SHI, Model: HAG E 10 Z, Year: 2021, Machine Location: Illinois, Vertical Clamping Force: 100kn., Top Core:, Top Core Carriage on top of the Machine Frame., Top Core Cylinder Stroke: 950mm, Linear Sensor with Power-Off Memory Function., Distance Between the Core-Pulling Plate and the Equipment Center: Min. ...more
JUST ADDED!

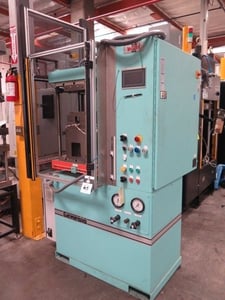

30 Ton, Wabash #G30-18-BLPX, compression molding press, 8 stroke, 8"-28" DL, 2 HP, 2019
