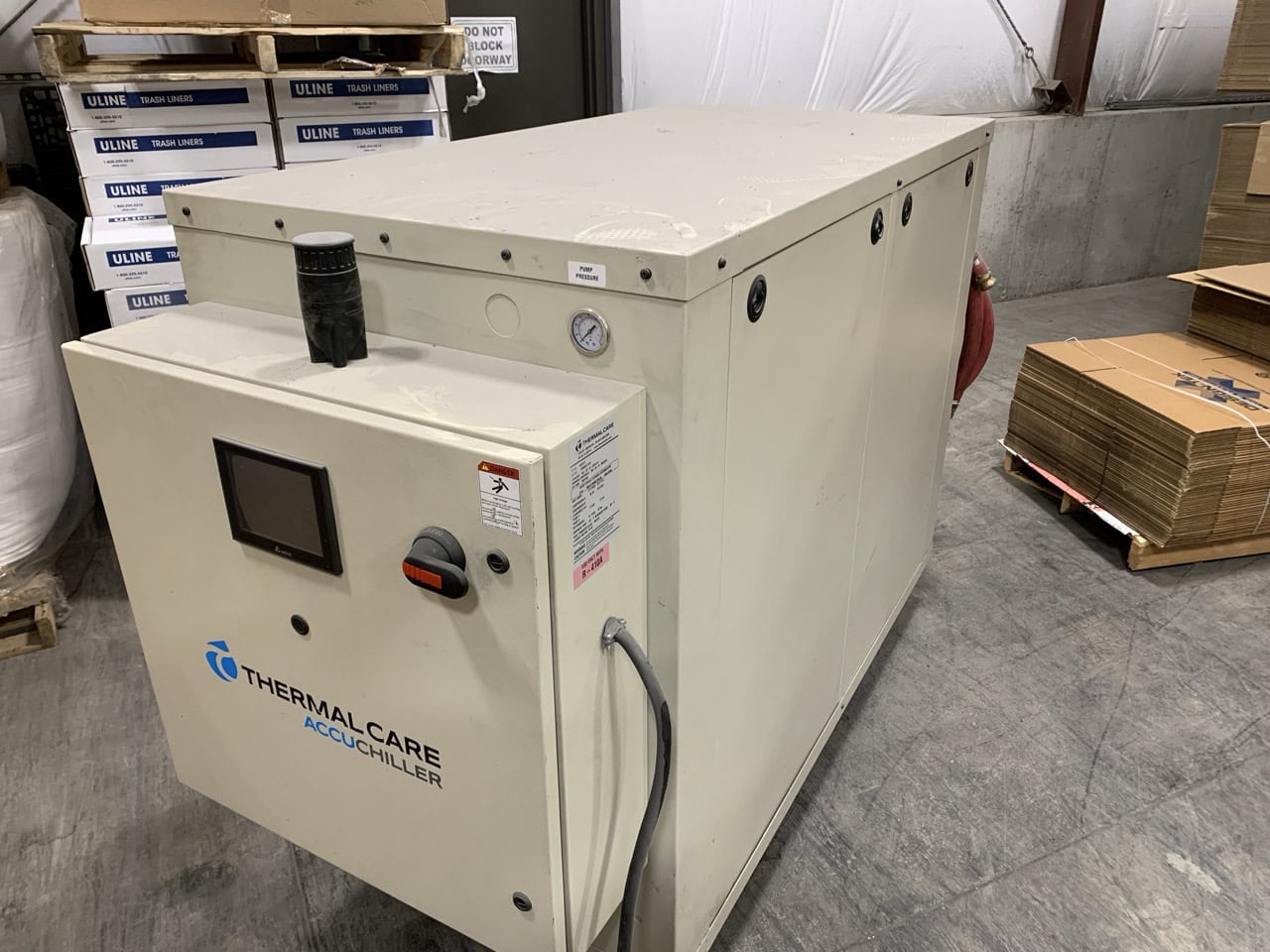

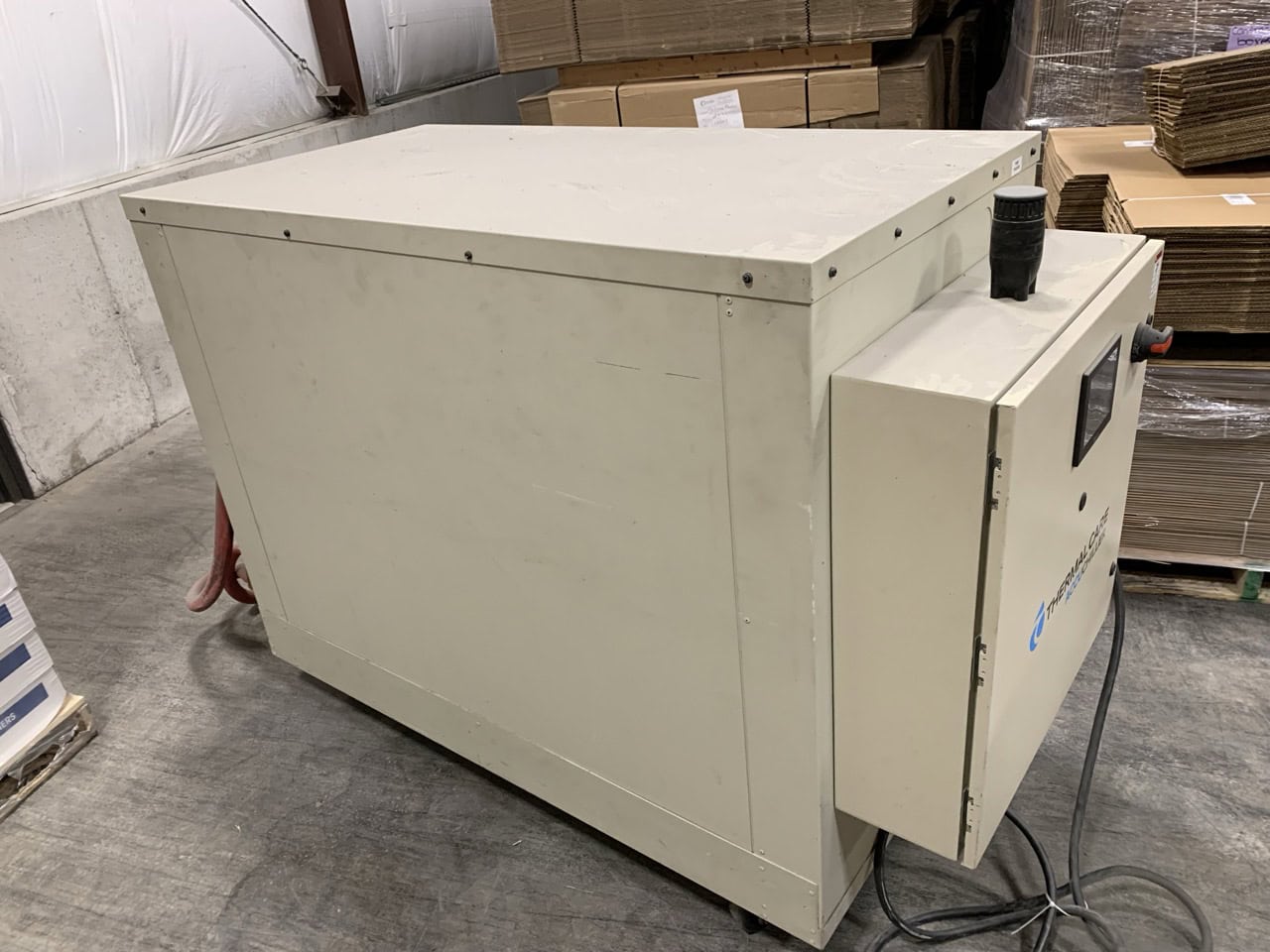

10 Ton, Thermal Care #NQW10-Accuchiller, chiller, R-410a, Water-cooled, upgraded HMI, 460 V.

Equipment Overview
The Thermal Care NQW10 is a 10-ton industrial-grade water-cooled chiller designed for precise process temperature control in demanding production environments. This unit is equipped with a 10 HP scroll compressor and an updated digital touchscreen control interface, offering enhanced monitoring and ease of use. Common applications include plastics processing, metalworking, food production, and chemical manufacturing.

Key Features and Specifications
• Cooling Capacity: 10 HP
• Voltage: 460V / 3-Phase / 60 Hz
• Compressor Type: Scroll
• Compressor Rating: 10 HP
• Rated Full Load Amps (FLA): 22.8 A
• Rated Minimum Circuit Amps (MCA): 27.5 A
• Pump 1: 1.5 HP, 3 FLA
• Pump 2: Not Present
• Largest Motor Load: 10 HP
• Refrigerant: R-410A (charge: 10 lbs)
• Cooling Fluid: Water
• Temperature Range: 20°F – 80°F fluid outlet
• Short Circuit Current Rating (SCCR): 5 kA @ 460V

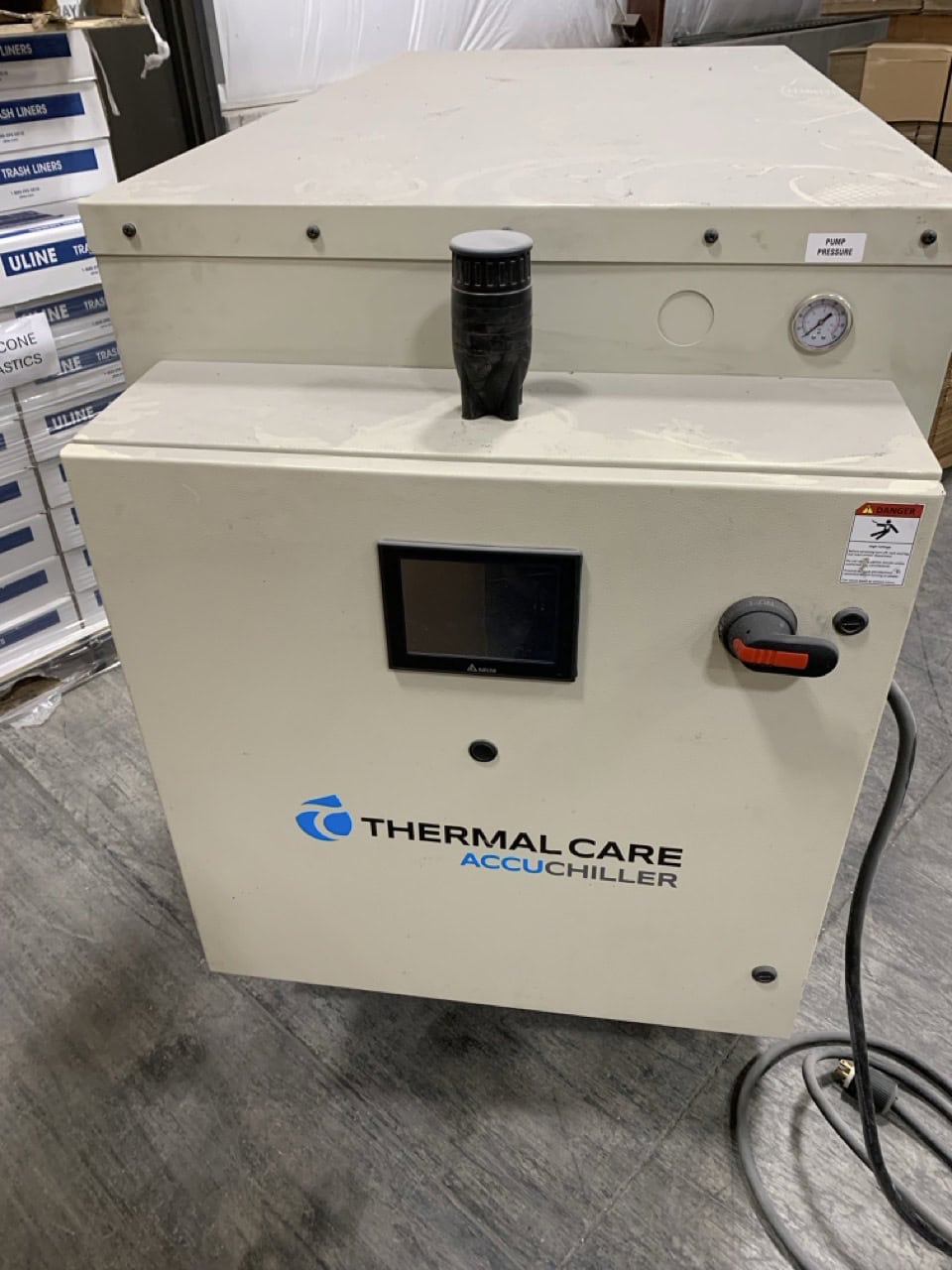

• Control Interface: Upgraded HMI touchscreen (Delta interface visible)
• Integrated Safety Systems:
• – High and Low Refrigerant Pressure Monitoring
• – Phase Loss / Electrical Error Detection
• – Reservoir Level Sensors
• – Low Flow / Flow Loss Monitoring
• – FreezeStat Sensor
• Panel Functions (via HMI):
• – Setpoint Adjustment
• – Live Supply & Return Temp Readout
• – Run/Stop Controls
• – Pump Test & Runtime Hours
• – Alarm Status Indicators
• – Compressor/Flow Control
