10" Krio #KRIO-250-DC24V, Single Flange Pneumatic Butterfly Valve, DN250, Aluminum Body, Stainless Disc, 24 VDC, 2020

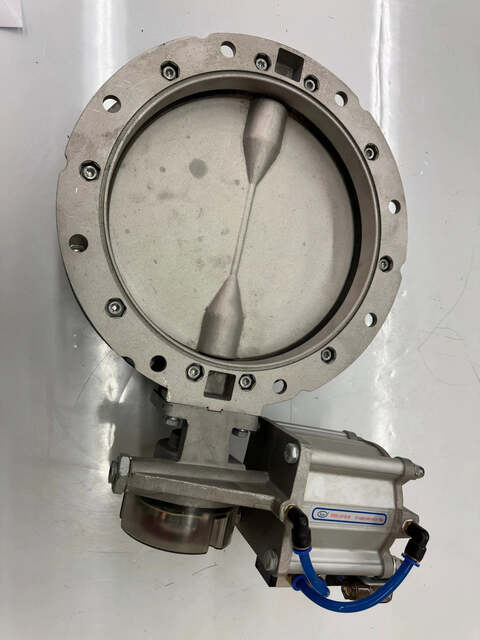

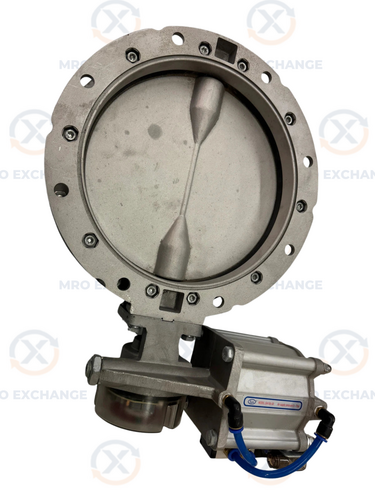

This listing is for a Krio model KRIO-250-DC24V single flange pneumatic butterfly valve assembly, manufactured by Zhongshan Krio Mechanical Equipment Co., Ltd, dated 2020.03.23. The valve body is a large-diameter single flange butterfly valve with an aluminum body and stainless steel disc, nominal size DN250 (approximately 10 in.). The pneumatic rack-and-pinion rotary actuator is labeled Krio-100x8 and drives the disc through a 90-degree open/close stroke. A visual position indicator on the actuator cap shows open and closed positions. The solenoid pilot valve controlling the actuator is a Shako BM520-02-S, rated DC24V at 4.8W, 120mA, IP65, voltage range DC20.4V to 26.4V, pressure range 1.5 to 8 kgf/cm2. Pneumatic tubing connecting the solenoid to the actuator ports is present and intact. This assembly is suited for industrial process flow control applications including pneumatic conveying, dust collection, HVAC, water treatment, and bulk material handling systems requiring remotely actuated large-bore butterfly valve control at DC24V. Buyers should verify flange drilling pattern compatibility, line pressure requirements, and media compatibility prior to purchase.

Stock # 0226-305
